One Machine Controller

Complete and robust machine automation
The HEART of Sysmac Platform


  • Fastest system cycle: 125μs
  • Up To 256 synchronized axes
  • Synchronized control of all machine network devices
  • Multi-tasking programs
  • In-line ST, Structure Text and Ladder mixed in the same program
  • Full control of Axes Group Position
  • System Backup and Restore
  • Built-in EtherCAT and EtherNet/IP ports
  • CE and cULus global standards

Hardware Design

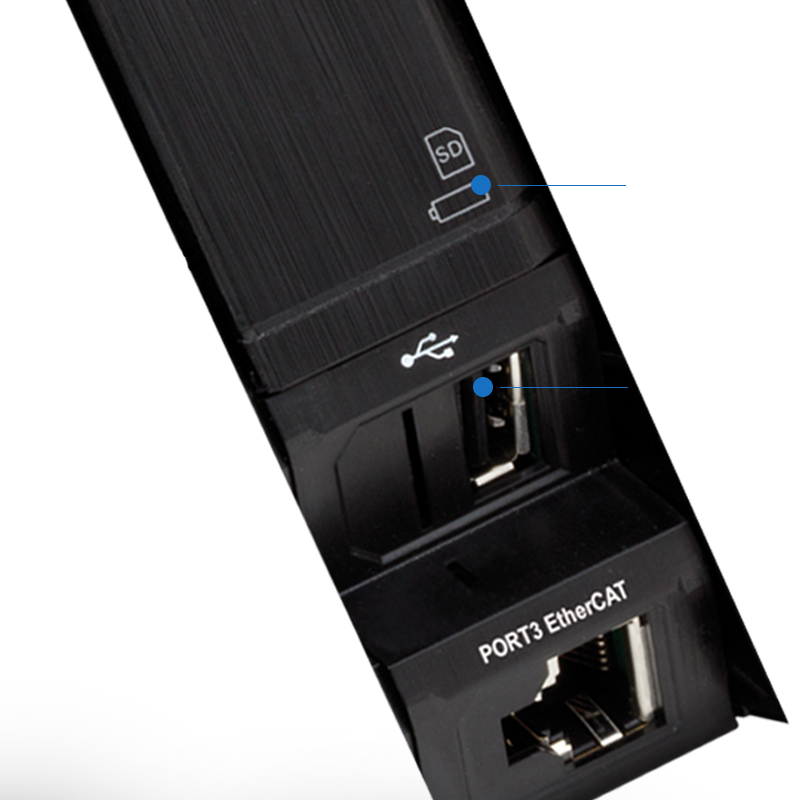

Architecture based on new Intel® CPU. The most
compact control in its class. Built-in USB port and SD Card slot.

Standard Programming

  • Fully conforms with IEC 61131-3 standards
  • PLCopen Function Blocks for Motion Control

System Robustness

  • One event log for controller, field devices and networks
  • Standard PLC system check: Watch-Dog Timer, memory check, network topology check, etc.

Application Libraries

FB library option for packing engineering (Rotary Knife, Winder/Unwinder, Temperature Control…)

Scalability, Performance, Robustness

♦   Servos
♦   Inverters
♦   Robotics
♦   Vision Systems
♦   Distributed I/O
♦   Integrated Safety
♦   Sensing

Standard Factory Network

♦   Programming CPU
♦   Other machine controllers
♦   IT systems
♦   Standard protocols and services: TCP/IP,
     FTP, NTP, SNMP, CIP protocol
♦   Database connection DB’s or Microsoft
     SQL Server, Oracle, IBM DB2, MySQL
     and Firebird
♦   Built-in SECS/GEM communications

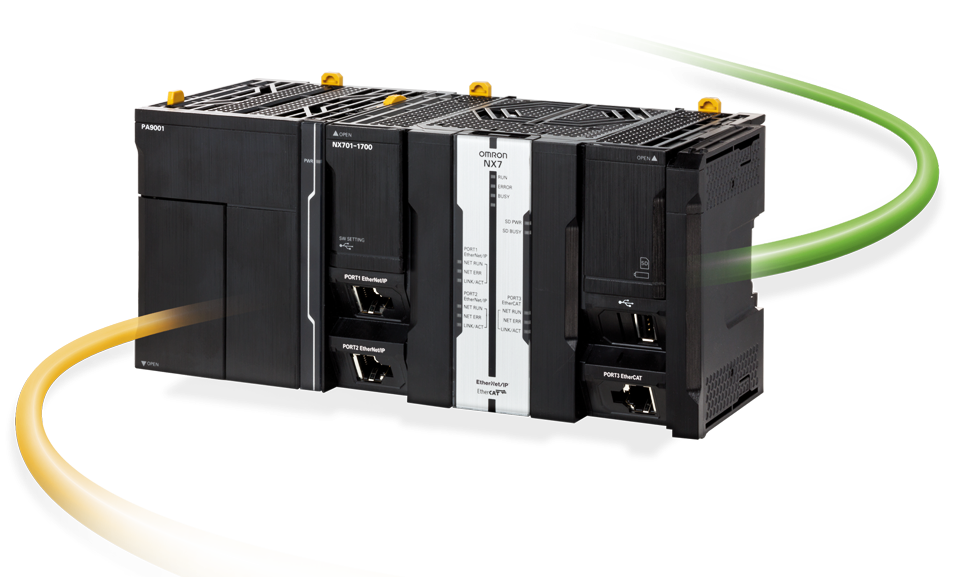

Machine Automation Controller

Machine performance, scalability, stable operation, and productivity improvement and
quality control using data. Here is a solution to all these requirements.

Machine Control

Factory Control

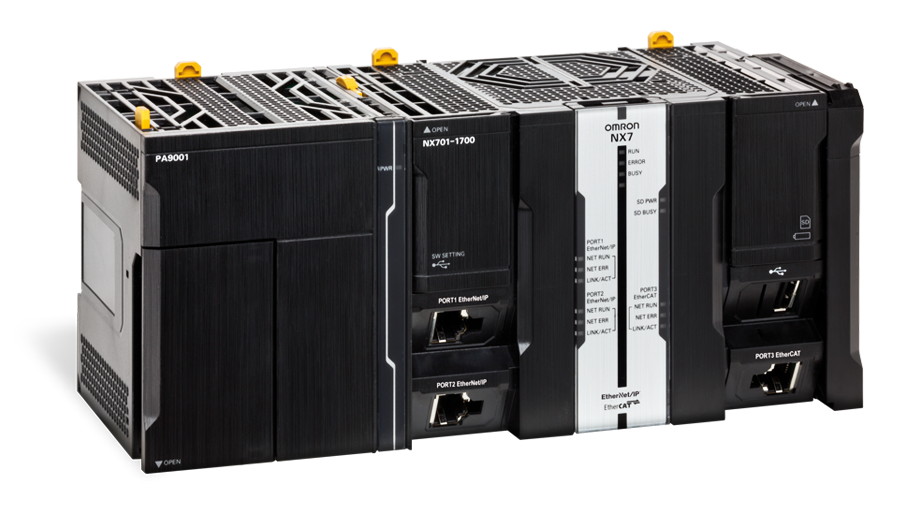

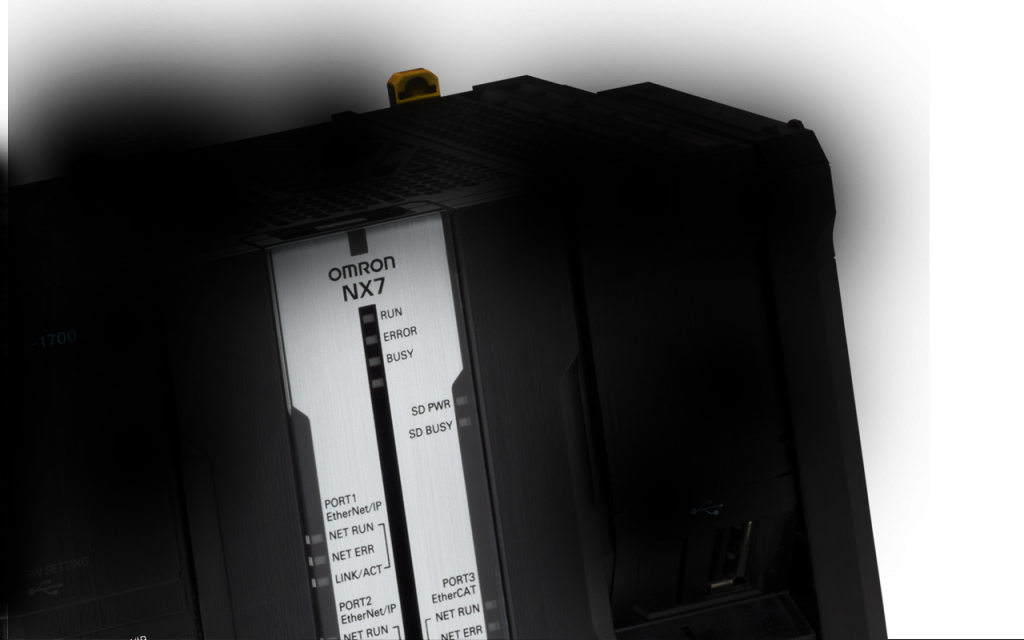

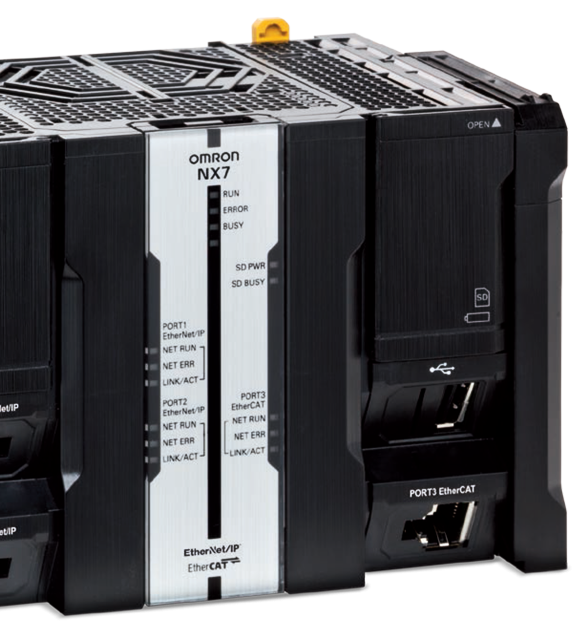

NX7 Specification

Industry’s Fastest & Largest In Class

Motion Control
125 μs / 8 axes

Processing Speed


Memory Capacity

Note: Performance comparison with previous OMRON products based on OMRON investigation in March 2015.

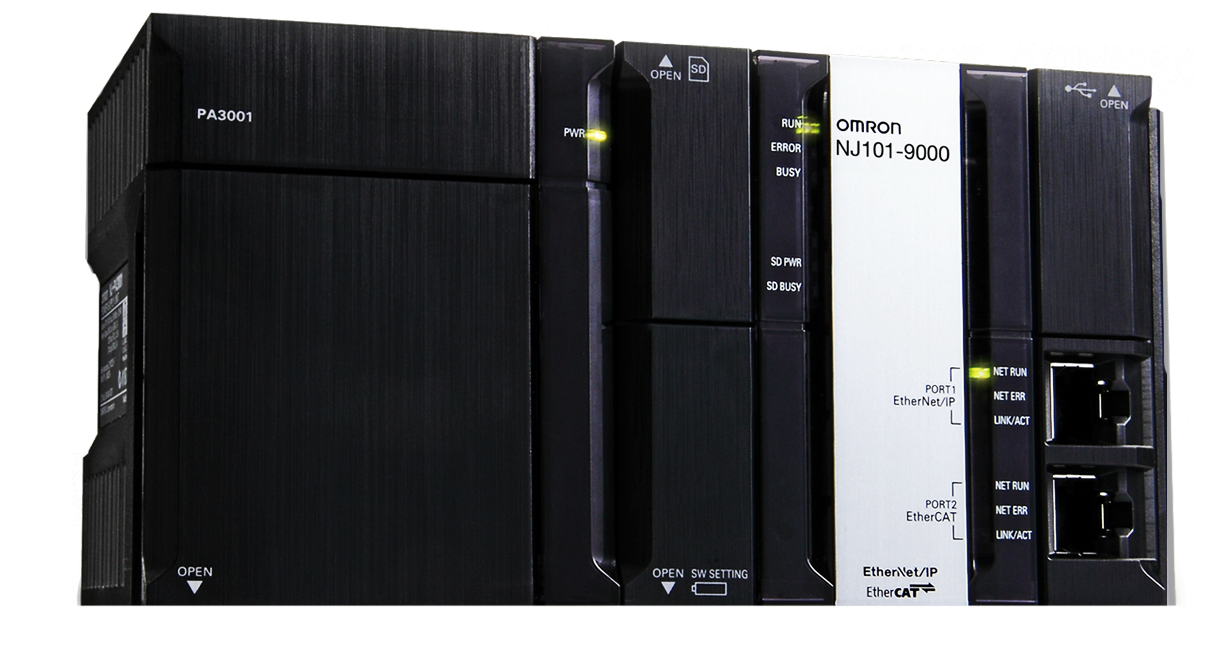

New Controllers Ideal for Simple Machines

Fully Compatible with NJ501/301 Machine Automation Controllers, having the same concept, dimensions, general specifications, and functions.

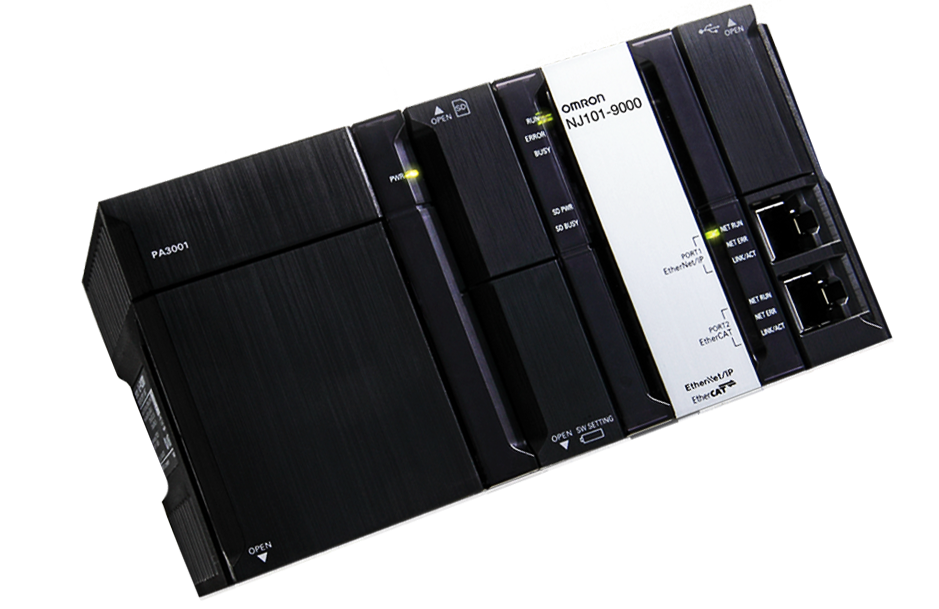

NJ1 Features & Benefits

Feature♦   Conforms IEC 61131-3 standards and JIS B 3503, variable-based instructions including the PLCopen® Motion function blocks
♦   Complete and robust machine automation: fast control performance and basic functions and reliability of industrial controllers

♦   Easy integration

♦   Advance control with simple programming

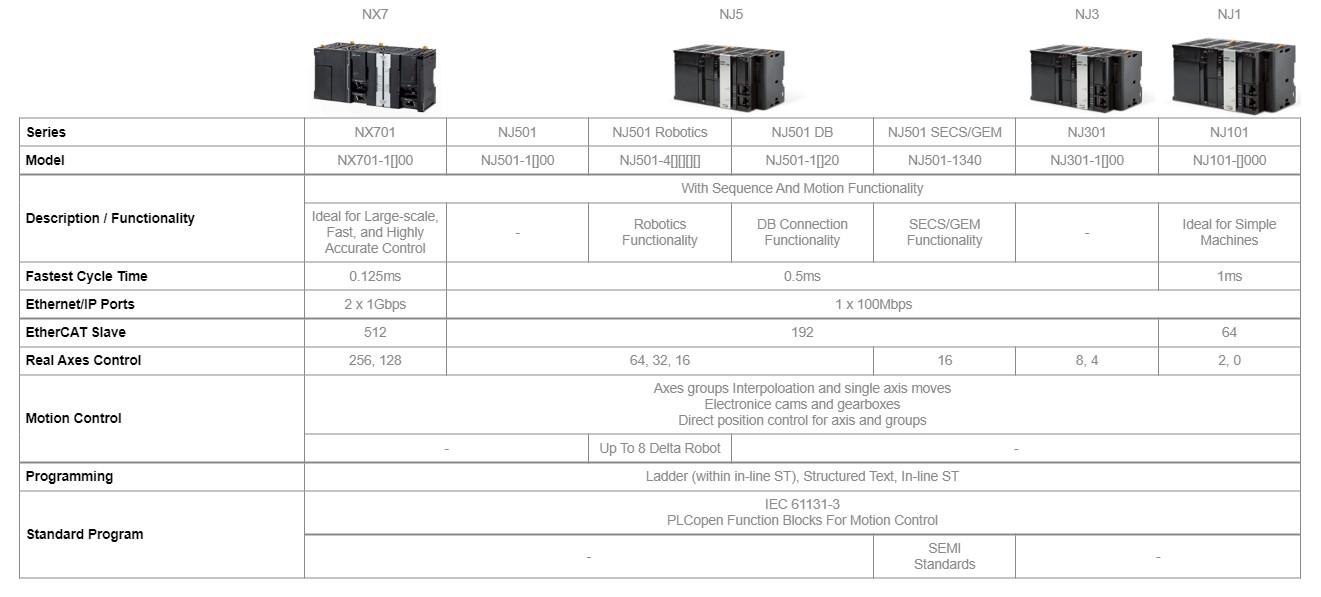

Choose Your CPU

Controller Lineup
