iX4

Parallel Robots EtherCAT (NJ501-R) version

iX4

Four-axis parallel robot achieves high speed and high precision

ACE software is available to download from the Omron US website.

last update: July 12, 2021

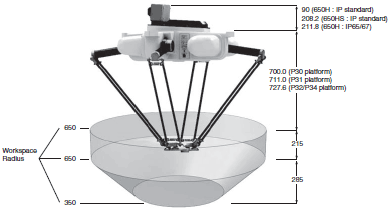

(Unit: mm)

Note: The figure shows the HS type.

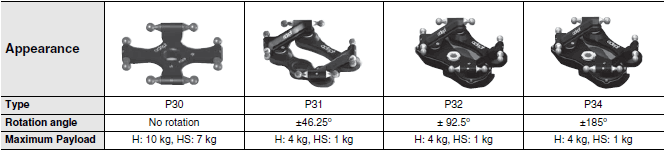

Four choices of platform offer different ranges of rotation.

Note: The platform appearances of the H type are shown above. The platform of the HS type is made of stainless steel.

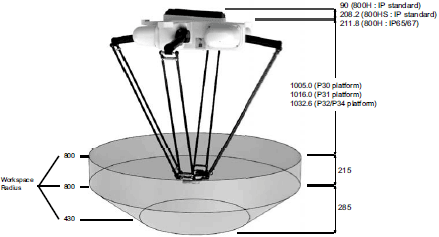

Note: The figure shows the H type.

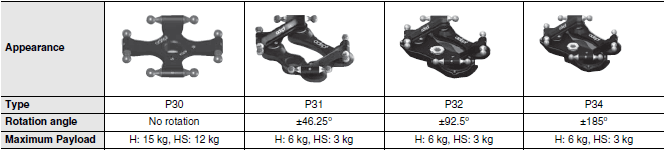

Four choices of platform offer different ranges of rotation.

Note: The platform appearances of the H type are shown above. The platform of the HS type is made of stainless steel.
