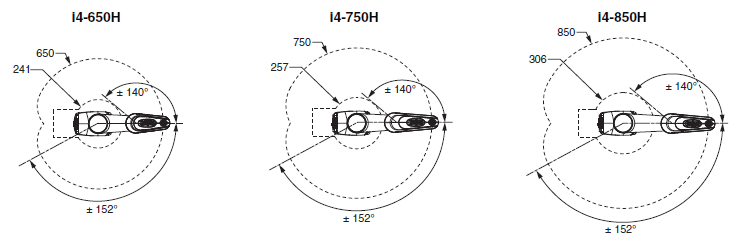

Arm Reach Dimensions
Note: Reach restrictions behind the robot may vary based on robot configuration and type.
Robot Dimensions
i4-650H
i4-650H Long Quill
i4-650H Inverted
i4-650H Inverted, Long Quill
i4-750H
i4-750H Long Quill
i4-750H Inverted
i4-750H Inverted, Long Quill
i4-850H
i4-850H Long Quill
i4-850H Inverted
i4-850H Inverted, Long Quill
*1 For any model with a cable seal, this distance increases by 150 mm.
*2 For any model with bellows, this distance increases by 47 mm.
Note:1. The base of the robot is 240 mm wide.
2. The z-axis quill has a hollow shaft design and can be utilized for routing cables and pneumatic lines to an end-effector.
The inner diameter of this hollow shaft is 18 mm.
Other Dimensions

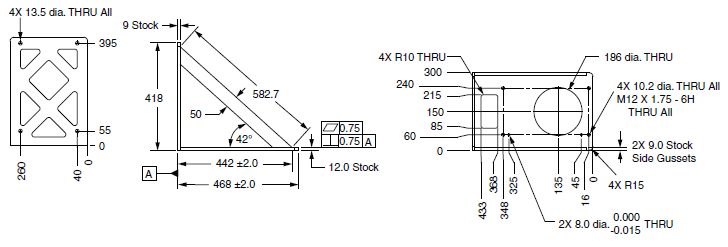

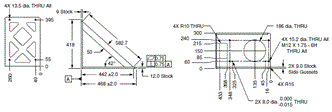

Wall Mount Bracket

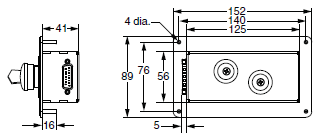

Front Panel

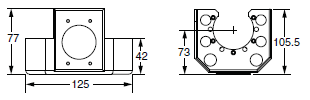

eCobra Mount Adapter

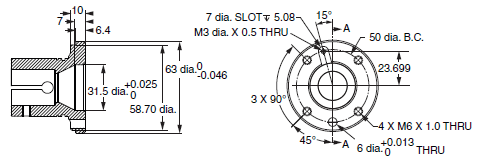

Tool Flange (ISO)
Robot Base
Camera Mounting Bracket
