Industrial Automation
Discontinued On Mar. 2025
FQM1 Series
Flexible Motion Controllers
Advanced Power in Three Applications: Motion Control, Measurement Control, and High-speed Response Control
* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.
Related Contents
last update: December 13, 2013
(Unit: mm)

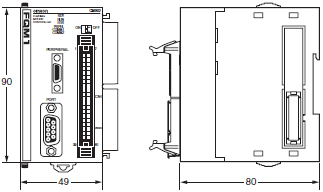

Coordinator Module
FQM1-CM002

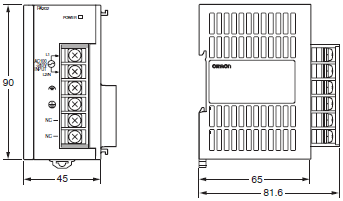

Power Supply Units
CJ1W-PA202

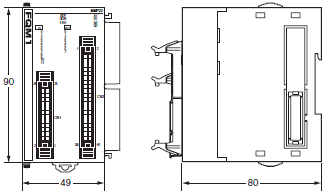

Motion Control Modules
FQM1-MMP22/MMA22

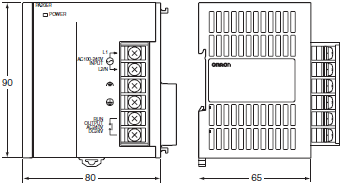

Power Supply Units
CJ1W-PA205R
End Module
FQM1-TER01
I/O Control Module
FQM1-IC101

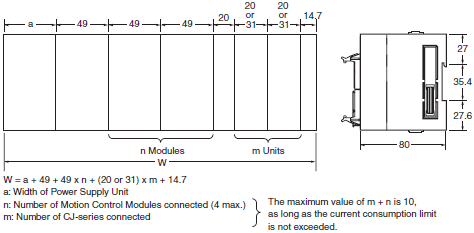

Assembled Dimensions
FQM1 Expanded Using CJ-series Units

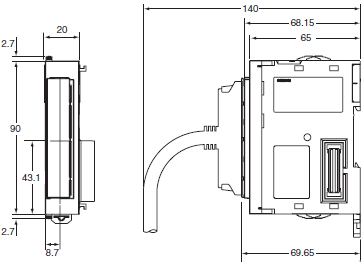

Height with Cables Connected
Height with Peripheral Port and RS-232C Port Connected

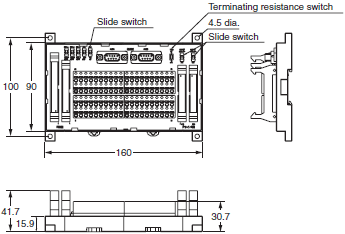

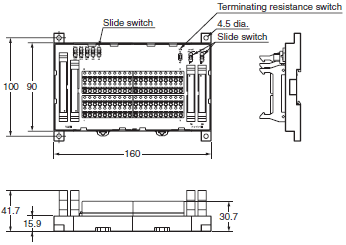

Servo Relay Unit
XW2B-80J7-1A
XW2B-80J7-12A
last update: December 13, 2013
