S8NR-S / S8R-BB
Environment-resistant IP67 Power Supply / DC Blocking Box
IP67 compliance and integrated functionality simplify the construction of power and safety circuits outside of control panels
Related Contents
Application Solutions
S8NR-Slast update: April 21, 2026
S8NR-S
Model Number Structure

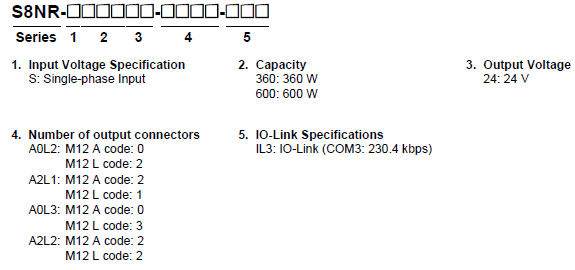

Model Number Legend
Ordering Information
Main unit
| Capacity | Input Voltage | Output Voltage | Maximum
Tripping Output Current per a branch output |
Output branch | Communication | Model |
|---|---|---|---|---|---|---|
| 360 W | Single-phase
100 to 240 VAC |
24 V | M12-A: 3.8 A
M12-L: 10 A |
2 connectors 4 outputs
Connector 1: 10 A, 10 A Connector 2: 10 A, 10 A |
IO-Link | S8NR-S36024-A0L2-IL3 |
| 3 connectors 4 outputs
Connector 1: 3.8 A (Class 2) Connector 2: 3.8 A (Class 2) Connector 3: 10 A, 10 A |
S8NR-S36024-A2L1-IL3 | |||||
| 600 W | Single-phase
200 to 240 VAC |
3 connectors 6 outputs
Connector 1: 10 A, 10 A Connector 2: 10 A, 10 A Connector 3: 10 A, 10 A |
S8NR-S60024-A0L3-IL3 | |||
| 4 connectors 6 outputs
Connector 1: 3.8 A (Class 2) Connector 2: 3.8 A (Class 2) Connector 3: 10 A, 10 A Connector 4: 10 A, 10 A |
S8NR-S60024-A2L2-IL3 |
Mounting Brackets (Sold separately)
| Name | Model |
|---|---|
| DIN-Rail mounting brackets | S82Y-NRS02DIN |
Waterproof Caps (Sold separately)
| Name | Model |
|---|---|
| Waterproof caps for socket connectors | XS5Z-12 |
| Waterproof caps for plug connectors | XS5Z-13 |
Rain Mounting (order separately)
Support rail (Material: Aluminum)
| Model |
|---|
| PFP-100N |
| PFP-50N |
Support rail (Material: Aluminum)
| Model |
|---|
| PFP-100N2 |
End Plate
| Model |
|---|
| PFP-M |
S8R-BB
Model Number Structure

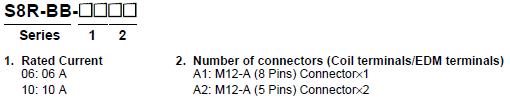

Model Number Legend
Ordering Information
Main Unit
| Circuit configuration |
Rated Voltage
(Input/Output) |
Rated Current
(Input/Output) |
Coil Rated Voltage | Model |
|---|---|---|---|---|
| Input/Output contact section:
Two 1a (NO) contacts Connected in series EDM section: Two 1b (NC) contacts connected in series |
24 VDC | 6 A | 24 VDC | S8R-BB06A1 |
| S8R-BB06A2 | ||||
| 10 A | S8R-BB10A1 | |||
| S8R-BB10A2 |
Mounting Brackets (Sold separately)
| Name | Model |
|---|---|
| DIN-Rail Mounting Brackets for S8R-BB06 | S82Y-RBB01DIN |
| DIN-Rail Mounting Brackets for S8R-BB10 | S82Y-RBB02DIN |
Waterproof Caps (Sold separately)
| Name | Model |
|---|---|
| Waterproof caps for socket connectors | XS5Z-12 |
| Waterproof caps for plug connectors | XS5Z-13 |
last update: April 21, 2026
