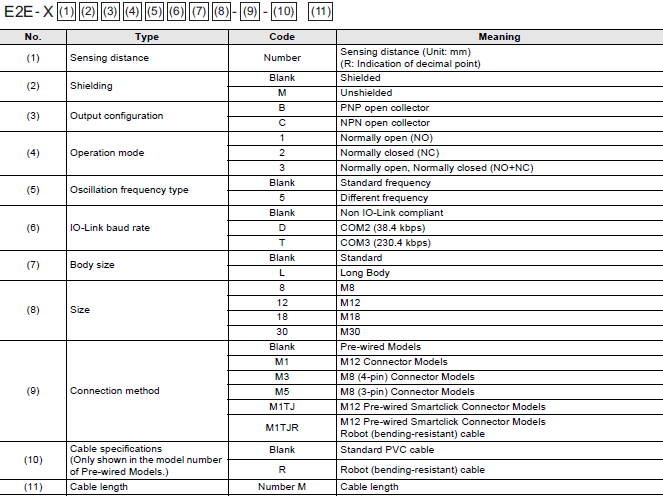

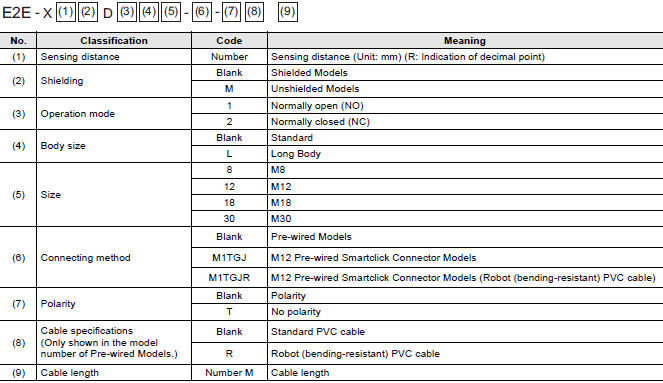

Model Number Legend
Note: The purpose of this model number legend is to provide understanding of the meaning of specifications from the
model number.
model number.
PREMIUM Model
E2E NEXT Series (Quadruple distance model)
DC 3-wire Shielded *1
|
Size
(Sensing distance) |
Connection
method |
Body
size |
Opera-tion
mode |
Model | ||
|---|---|---|---|---|---|---|
| PNP | NPN | |||||
| IO-Link (COM3) | IO-Link (COM2) *5 | --- *5 | ||||
| M8
(4 mm) |
Pre-wired
(2 m) *2 |
38 mm
*3 |
NO | E2E-X4B1T8 2M | E2E-X4B1D8 2M | E2E-X4C18 2M |
| NC | - | E2E-X4B28 2M | E2E-X4C28 2M | |||
| 48 mm | NO | E2E-X4B1TL8 2M | E2E-X4B1DL8 2M | E2E-X4C1L8 2M | ||
| NC | - | E2E-X4B2L8 2M | E2E-X4C2L8 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
38 mm
*4 |
NO | E2E-X4B1T8-M1TJ 0.3M | E2E-X4B1D8-M1TJ 0.3M | E2E-X4C18-M1TJ 0.3M | |
| NC | - | E2E-X4B28-M1TJ 0.3M | E2E-X4C28-M1TJ 0.3M | |||
| 48 mm | NO | E2E-X4B1TL8-M1TJ 0.3M | E2E-X4B1DL8-M1TJ 0.3M | E2E-X4C1L8-M1TJ 0.3M | ||
| NC | - | E2E-X4B2L8-M1TJ 0.3M | E2E-X4C2L8-M1TJ 0.3M | |||
| M12
Connector |
43 mm | NO | E2E-X4B1T8-M1 | E2E-X4B1D8-M1 | E2E-X4C18-M1 | |
| NC | - | E2E-X4B28-M1 | E2E-X4C28-M1 | |||
| 53 mm | NO | E2E-X4B1TL8-M1 | E2E-X4B1DL8-M1 | E2E-X4C1L8-M1 | ||
| NC | - | E2E-X4B2L8-M1 | E2E-X4C2L8-M1 | |||
| M8
Connector (4-pin) |
39 mm | NO | E2E-X4B1T8-M3 | E2E-X4B1D8-M3 | E2E-X4C18-M3 | |
| NC | - | E2E-X4B28-M3 | E2E-X4C28-M3 | |||
| 49 mm | NO | E2E-X4B1TL8-M3 | E2E-X4B1DL8-M3 | E2E-X4C1L8-M3 | ||
| NC | - | E2E-X4B2L8-M3 | E2E-X4C2L8-M3 | |||
| M8
Connector (3-pin) |
39 mm | NO | E2E-X4B1T8-M5 | E2E-X4B1D8-M5 | E2E-X4C18-M5 | |
| NC | - | E2E-X4B28-M5 | E2E-X4C28-M5 | |||
| 49 mm | NO | E2E-X4B1TL8-M5 | E2E-X4B1DL8-M5 | E2E-X4C1L8-M5 | ||
| NC | - | E2E-X4B2L8-M5 | E2E-X4C2L8-M5 | |||
| M12
(9 mm) |
Pre-wired
(2 m) *2 |
47 mm
*3 |
NO | E2E-X9B1T12 2M | E2E-X9B1D12 2M | E2E-X9C112 2M |
| NC | - | E2E-X9B212 2M | E2E-X9C212 2M | |||
| 69 mm | NO | E2E-X9B1TL12 2M | E2E-X9B1DL12 2M | E2E-X9C1L12 2M | ||
| NC | - | E2E-X9B2L12 2M | E2E-X9C2L12 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
47 mm
*4 |
NO | E2E-X9B1T12-M1TJ 0.3M | E2E-X9B1D12-M1TJ 0.3M | E2E-X9C112-M1TJ 0.3M | |
| NC | - | E2E-X9B212-M1TJ 0.3M | E2E-X9C212-M1TJ 0.3M | |||
| 69 mm | NO | E2E-X9B1TL12-M1TJ 0.3M | E2E-X9B1DL12-M1TJ 0.3M | E2E-X9C1L12-M1TJ 0.3M | ||
| NC | - | E2E-X9B2L12-M1TJ 0.3M | E2E-X9C2L12-M1TJ 0.3M | |||
| M12
Connector |
48 mm | NO | E2E-X9B1T12-M1 | E2E-X9B1D12-M1 | E2E-X9C112-M1 | |
| NC | - | E2E-X9B212-M1 | E2E-X9C212-M1 | |||
| 70 mm | NO | E2E-X9B1TL12-M1 | E2E-X9B1DL12-M1 | E2E-X9C1L12-M1 | ||
| NC | - | E2E-X9B2L12-M1 | E2E-X9C2L12-M1 | |||
| M18
(14 mm) |
Pre-wired
(2 m) *2 |
55 mm
*3 |
NO | E2E-X14B1T18 2M | E2E-X14B1D18 2M | E2E-X14C118 2M |
| NC | - | E2E-X14B218 2M | E2E-X14C218 2M | |||
| 77 mm | NO | E2E-X14B1TL18 2M | E2E-X14B1DL18 2M | E2E-X14C1L18 2M | ||
| NC | - | E2E-X14B2L18 2M | E2E-X14C2L18 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
55 mm
*4 |
NO | E2E-X14B1T18-M1TJ 0.3M | E2E-X14B1D18-M1TJ 0.3M | E2E-X14C118-M1TJ 0.3M | |
| NC | - | E2E-X14B218-M1TJ 0.3M | E2E-X14C218-M1TJ 0.3M | |||
| 77 mm | NO | E2E-X14B1TL18-M1TJ 0.3M | E2E-X14B1DL18-M1TJ 0.3M | E2E-X14C1L18-M1TJ 0.3M | ||
| NC | - | E2E-X14B2L18-M1TJ 0.3M | E2E-X14C2L18-M1TJ 0.3M | |||
| M12
Connector |
53 mm | NO | E2E-X14B1T18-M1 | E2E-X14B1D18-M1 | E2E-X14C118-M1 | |
| NC | - | E2E-X14B218-M1 | E2E-X14C218-M1 | |||
| 75 mm | NO | E2E-X14B1TL18-M1 | E2E-X14B1DL18-M1 | E2E-X14C1L18-M1 | ||
| NC | - | E2E-X14B2L18-M1 | E2E-X14C2L18-M1 | |||
| M30
(23 mm) |
Pre-wired
(2 m) *2 |
60 mm
*4 |
NO | E2E-X23B1T30 2M | E2E-X23B1D30 2M | E2E-X23C130 2M |
| NC | - | E2E-X23B230 2M | E2E-X23C230 2M | |||
| 82 mm | NO | E2E-X23B1TL30 2M | E2E-X23B1DL30 2M | E2E-X23C1L30 2M | ||
| NC | - | E2E-X23B2L30 2M | E2E-X23C2L30 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
60 mm
*4 |
NO | E2E-X23B1T30-M1TJ 0.3M | E2E-X23B1D30-M1TJ 0.3M | E2E-X23C130-M1TJ 0.3M | |
| NC | - | E2E-X23B230-M1TJ 0.3M | E2E-X23C230-M1TJ 0.3M | |||
| 82 mm | NO | E2E-X23B1TL30-M1TJ 0.3M | E2E-X23B1DL30-M1TJ 0.3M | E2E-X23C1L30-M1TJ 0.3M | ||
| NC | - | E2E-X23B2L30-M1TJ 0.3M | E2E-X23C2L30-M1TJ 0.3M | |||
| M12
Connector |
58 mm | NO | E2E-X23B1T30-M1 | E2E-X23B1D30-M1 | E2E-X23C130-M1 | |
| NC | - | E2E-X23B230-M1 | E2E-X23C230-M1 | |||
| 80 mm | NO | E2E-X23B1TL30-M1 | E2E-X23B1DL30-M1 | E2E-X23C1L30-M1 | ||
| NC | - | E2E-X23B2L30-M1 | E2E-X23C2L30-M1 | |||
*1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
*2. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-X9B1D12 5M)
*3. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X9B1D12-R 2M/E2E-X9B1D12-R 5M)
*4. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with "R" in the model
number. (Example: E2E-X9B1D12-M1TJR 0.3M)
*5. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
*2. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-X9B1D12 5M)
*3. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X9B1D12-R 2M/E2E-X9B1D12-R 5M)
*4. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with "R" in the model
number. (Example: E2E-X9B1D12-M1TJR 0.3M)
*5. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
E2E NEXT Series (Quadruple distance model)
DC 3-wire Unshielded
|
Size
(Sensing distance) |
Connection
method |
Body
size |
Opera-tion
mode |
Model | ||
|---|---|---|---|---|---|---|
| PNP | NPN | |||||
| IO-Link (COM3) | IO-Link (COM2) *4 | --- *4 | ||||
| M8
(8 mm) |
Pre-wired
(2 m) *1 |
38 mm
*2 |
NO | E2E-X8MB1T8 2M | E2E-X8MB1D8 2M | E2E-X8MC18 2M |
| NC | - | E2E-X8MB28 2M | E2E-X8MC28 2M | |||
| 48 mm | NO | E2E-X8MB1TL8 2M | E2E-X8MB1DL8 2M | E2E-X8MC1L8 2M | ||
| NC | - | E2E-X8MB2L8 2M | E2E-X8MC2L8 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
38 mm
*3 |
NO | E2E-X8MB1T8-M1TJ 0.3M | E2E-X8MB1D8-M1TJ 0.3M | E2E-X8MC18-M1TJ 0.3M | |
| NC | - | E2E-X8MB28-M1TJ 0.3M | E2E-X8MC28-M1TJ 0.3M | |||
| 48 mm | NO | E2E-X8MB1TL8-M1TJ 0.3M | E2E-X8MB1DL8-M1TJ 0.3M | E2E-X8MC1L8-M1TJ 0.3M | ||
| NC | - | E2E-X8MB2L8-M1TJ 0.3M | E2E-X8MC2L8-M1TJ 0.3M | |||
| M12
Connector |
43 mm | NO | E2E-X8MB1T8-M1 | E2E-X8MB1D8-M1 | E2E-X8MC18-M1 | |
| NC | - | E2E-X8MB28-M1 | E2E-X8MC28-M1 | |||
| 53 mm | NO | E2E-X8MB1TL8-M1 | E2E-X8MB1DL8-M1 | E2E-X8MC1L8-M1 | ||
| NC | - | E2E-X8MB2L8-M1 | E2E-X8MC2L8-M1 | |||
| M8
Connector (4-pin) |
39 mm | NO | E2E-X8MB1T8-M3 | E2E-X8MB1D8-M3 | E2E-X8MC18-M3 | |
| NC | - | E2E-X8MB28-M3 | E2E-X8MC28-M3 | |||
| 49 mm | NO | E2E-X8MB1TL8-M3 | E2E-X8MB1DL8-M3 | E2E-X8MC1L8-M3 | ||
| NC | - | E2E-X8MB2L8-M3 | E2E-X8MC2L8-M3 | |||
| M8
Connector (3-pin) |
39 mm | NO | E2E-X8MB1T8-M5 | E2E-X8MB1D8-M5 | E2E-X8MC18-M5 | |
| NC | - | E2E-X8MB28-M5 | E2E-X8MC28-M5 | |||
| 49 mm | NO | E2E-X8MB1TL8-M5 | E2E-X8MB1DL8-M5 | E2E-X8MC1L8-M5 | ||
| NC | - | E2E-X8MB2L8-M5 | E2E-X8MC2L8-M5 | |||
| M12
(16 mm) |
Pre-wired
(2 m) *1 |
47 mm
*2 |
NO | E2E-X16MB1T12 2M | E2E-X16MB1D12 2M | E2E-X16MC112 2M |
| NC | - | E2E-X16MB212 2M | E2E-X16MC212 2M | |||
| 69 mm | NO | E2E-X16MB1TL12 2M | E2E-X16MB1DL12 2M | E2E-X16MC1L12 2M | ||
| NC | - | E2E-X16MB2L12 2M | E2E-X16MC2L12 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
47 mm
*3 |
NO | E2E-X16MB1T12-M1TJ 0.3M | E2E-X16MB1D12-M1TJ 0.3M | E2E-X16MC112-M1TJ 0.3M | |
| NC | - | E2E-X16MB212-M1TJ 0.3M | E2E-X16MC212-M1TJ 0.3M | |||
| 69 mm | NO | E2E-X16MB1TL12-M1TJ 0.3M | E2E-X16MB1DL12-M1TJ 0.3M | E2E-X16MC1L12-M1TJ 0.3M | ||
| NC | - | E2E-X16MB2L12-M1TJ 0.3M | E2E-X16MC2L12-M1TJ 0.3M | |||
| M12
Connector |
48 mm | NO | E2E-X16MB1T12-M1 | E2E-X16MB1D12-M1 | E2E-X16MC112-M1 | |
| NC | - | E2E-X16MB212-M1 | E2E-X16MC212-M1 | |||
| 70 mm | NO | E2E-X16MB1TL12-M1 | E2E-X16MB1DL12-M1 | E2E-X16MC1L12-M1 | ||
| NC | - | E2E-X16MB2L12-M1 | E2E-X16MC2L12-M1 | |||
| M18
(30 mm) |
Pre-wired
(2 m) *1 |
77 mm
*2 |
NO | E2E-X30MB1TL18 2M | E2E-X30MB1DL18 2M | E2E-X30MC1L18 2M |
| NC | - | E2E-X30MB2L18 2M | E2E-X30MC2L18 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
77 mm
*3 |
NO | E2E-X30MB1TL18-M1TJ 0.3M | E2E-X30MB1DL18-M1TJ 0.3M | E2E-X30MC1L18-M1TJ 0.3M | |
| NC | - | E2E-X30MB2L18-M1TJ 0.3M | E2E-X30MC2L18-M1TJ 0.3M | |||
| M12
Connector |
75 mm | NO | E2E-X30MB1TL18-M1 | E2E-X30MB1DL18-M1 | E2E-X30MC1L18-M1 | |
| NC | - | E2E-X30MB2L18-M1 | E2E-X30MC2L18-M1 | |||
| M30
(50 mm) |
Pre-wired
(2 m) *1 |
97 mm
*2 |
NO | E2E-X50MB1TL30 2M | E2E-X50MB1DL30 2M | E2E-X50MC1L30 2M |
| NC | - | E2E-X50MB2L30 2M | E2E-X50MC2L30 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
97 mm
*3 |
NO | E2E-X50MB1TL30-M1TJ 0.3M | E2E-X50MB1DL30-M1TJ 0.3M | E2E-X50MC1L30-M1TJ 0.3M | |
| NC | - | E2E-X50MB2L30-M1TJ 0.3M | E2E-X50MC2L30-M1TJ 0.3M | |||
| M12
Connector |
95 mm | NO | E2E-X50MB1TL30-M1 | E2E-X50MB1DL30-M1 | E2E-X50MC1L30-M1 | |
| NC | - | E2E-X50MB2L30-M1 | E2E-X50MC2L30-M1 | |||
*1. Models with 5-m cable length are also available (Example: E2E-X16MB1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X16MB1D12-R 2M/E2E-X16MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X16MB1D12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X16MB1D12-R 2M/E2E-X16MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X16MB1D12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
E2E NEXT Series (Triple distance model)
DC 3-wire Shielded *1
|
Size
(Sensing distance) |
Connection
method |
Body
size |
Opera-tion
mode |
Model | ||
|---|---|---|---|---|---|---|
| PNP | NPN | |||||
| IO-Link (COM3) | IO-Link (COM2) *5 | --- *5 | ||||
| M8
(3 mm) |
Pre-wired
(2 m) *2 |
38 mm
*3 |
NO | E2E-X3B1T8 2M | E2E-X3B1D8 2M | E2E-X3C18 2M |
| NC | - | E2E-X3B28 2M | E2E-X3C28 2M | |||
| 48 mm | NO | E2E-X3B1TL8 2M | E2E-X3B1DL8 2M | E2E-X3C1L8 2M | ||
| NC | - | E2E-X3B2L8 2M | E2E-X3C2L8 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
38 mm
*4 |
NO | E2E-X3B1T8-M1TJ 0.3M | E2E-X3B1D8-M1TJ 0.3M | E2E-X3C18-M1TJ 0.3M | |
| NC | - | E2E-X3B28-M1TJ 0.3M | E2E-X3C28-M1TJ 0.3M | |||
| 48 mm | NO | E2E-X3B1TL8-M1TJ 0.3M | E2E-X3B1DL8-M1TJ 0.3M | E2E-X3C1L8-M1TJ 0.3M | ||
| NC | - | E2E-X3B2L8-M1TJ 0.3M | E2E-X3C2L8-M1TJ 0.3M | |||
| M12
Connector |
43 mm | NO | E2E-X3B1T8-M1 | E2E-X3B1D8-M1 | E2E-X3C18-M1 | |
| NC | - | E2E-X3B28-M1 | E2E-X3C28-M1 | |||
| 53 mm | NO | E2E-X3B1TL8-M1 | E2E-X3B1DL8-M1 | E2E-X3C1L8-M1 | ||
| NC | - | E2E-X3B2L8-M1 | E2E-X3C2L8-M1 | |||
| M8
Connector (4-pin) |
39 mm | NO | E2E-X3B1T8-M3 | E2E-X3B1D8-M3 | E2E-X3C18-M3 | |
| NC | - | E2E-X3B28-M3 | E2E-X3C28-M3 | |||
| 49 mm | NO | E2E-X3B1TL8-M3 | E2E-X3B1DL8-M3 | E2E-X3C1L8-M3 | ||
| NC | - | E2E-X3B2L8-M3 | E2E-X3C2L8-M3 | |||
| M8
Connector (3-pin) |
39 mm | NO | E2E-X3B1T8-M5 | E2E-X3B1D8-M5 | E2E-X3C18-M5 | |
| NC | - | E2E-X3B28-M5 | E2E-X3C28-M5 | |||
| 49 mm | NO | E2E-X3B1TL8-M5 | E2E-X3B1DL8-M5 | E2E-X3C1L8-M5 | ||
| NC | - | E2E-X3B2L8-M5 | E2E-X3C2L8-M5 | |||
| M12
(6 mm) |
Pre-wired
(2 m) *2 |
47 mm
*3 |
NO | E2E-X6B1T12 2M | E2E-X6B1D12 2M | E2E-X6C112 2M |
| NC | - | E2E-X6B212 2M | E2E-X6C212 2M | |||
| NO+NC | - | E2E-X6B3D12 2M | E2E-X6C312 2M | |||
| 69 mm | NO | E2E-X6B1TL12 2M | E2E-X6B1DL12 2M | E2E-X6C1L12 2M | ||
| NC | - | E2E-X6B2L12 2M | E2E-X6C2L12 2M | |||
| NO+NC | - | E2E-X6B3DL12 2M | E2E-X6C3L12 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
47 mm
*4 |
NO | E2E-X6B1T12-M1TJ 0.3M | E2E-X6B1D12-M1TJ 0.3M | E2E-X6C112-M1TJ 0.3M | |
| NC | - | E2E-X6B212-M1TJ 0.3M | E2E-X6C212-M1TJ 0.3M | |||
| NO+NC | - | E2E-X6B3D12-M1TJ 0.3M | E2E-X6C312-M1TJ 0.3M | |||
| 69 mm | NO | E2E-X6B1TL12-M1TJ 0.3M | E2E-X6B1DL12-M1TJ 0.3M | E2E-X6C1L12-M1TJ 0.3M | ||
| NC | - | E2E-X6B2L12-M1TJ 0.3M | E2E-X6C2L12-M1TJ 0.3M | |||
| NO+NC | - | E2E-X6B3DL12-M1TJ 0.3M | E2E-X6C3L12-M1TJ 0.3M | |||
| M12
Connector |
48 mm | NO | E2E-X6B1T12-M1 | E2E-X6B1D12-M1 | E2E-X6C112-M1 | |
| NC | - | E2E-X6B212-M1 | E2E-X6C212-M1 | |||
| NO+NC | - | E2E-X6B3D12-M1 | E2E-X6C312-M1 | |||
| 70 mm | NO | E2E-X6B1TL12-M1 | E2E-X6B1DL12-M1 | E2E-X6C1L12-M1 | ||
| NC | - | E2E-X6B2L12-M1 | E2E-X6C2L12-M1 | |||
| NO+NC | - | E2E-X6B3DL12-M1 | E2E-X6C3L12-M1 | |||
| M18
(12 mm) |
Pre-wired
(2 m) *2 |
55 mm
*3 |
NO | E2E-X12B1T18 2M | E2E-X12B1D18 2M | E2E-X12C118 2M |
| NC | - | E2E-X12B218 2M | E2E-X12C218 2M | |||
| NO+NC | - | E2E-X12B3D18 2M | E2E-X12C318 2M | |||
| 77 mm | NO | E2E-X12B1TL18 2M | E2E-X12B1DL18 2M | E2E-X12C1L18 2M | ||
| NC | - | E2E-X12B2L18 2M | E2E-X12C2L18 2M | |||
| NO+NC | - | E2E-X12B3DL18 2M | E2E-X12C3L18 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
55 mm
*4 |
NO | E2E-X12B1T18-M1TJ 0.3M | E2E-X12B1D18-M1TJ 0.3M | E2E-X12C118-M1TJ 0.3M | |
| NC | - | E2E-X12B218-M1TJ 0.3M | E2E-X12C218-M1TJ 0.3M | |||
| NO+NC | - | E2E-X12B3D18-M1TJ 0.3M | E2E-X12C318-M1TJ 0.3M | |||
| 77 mm | NO | E2E-X12B1TL18-M1TJ 0.3M | E2E-X12B1DL18-M1TJ 0.3M | E2E-X12C1L18-M1TJ 0.3M | ||
| NC | - | E2E-X12B2L18-M1TJ 0.3M | E2E-X12C2L18-M1TJ 0.3M | |||
| NO+NC | - | E2E-X12B3DL18-M1TJ 0.3M | E2E-X12C3L18-M1TJ 0.3M | |||
| M12
Connector |
53 mm | NO | E2E-X12B1T18-M1 | E2E-X12B1D18-M1 | E2E-X12C118-M1 | |
| NC | - | E2E-X12B218-M1 | E2E-X12C218-M1 | |||
| NO+NC | - | E2E-X12B3D18-M1 | E2E-X12C318-M1 | |||
| 75 mm | NO | E2E-X12B1TL18-M1 | E2E-X12B1DL18-M1 | E2E-X12C1L18-M1 | ||
| NC | - | E2E-X12B2L18-M1 | E2E-X12C2L18-M1 | |||
| NO+NC | - | E2E-X12B3DL18-M1 | E2E-X12C3L18-M1 | |||
| M30
(22 mm) |
Pre-wired
(2 m) *2 |
60 mm
*3 |
NO | E2E-X22B1T30 2M | E2E-X22B1D30 2M | E2E-X22C130 2M |
| NC | - | E2E-X22B230 2M | E2E-X22C230 2M | |||
| NO+NC | - | E2E-X22B3D30 2M | E2E-X22C330 2M | |||
| 82 mm | NO | E2E-X22B1TL30 2M | E2E-X22B1DL30 2M | E2E-X22C1L30 2M | ||
| NC | - | E2E-X22B2L30 2M | E2E-X22C2L30 2M | |||
| NO+NC | - | E2E-X22B3DL30 2M | E2E-X22C3L30 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
60 mm
*4 |
NO | E2E-X22B1T30-M1TJ 0.3M | E2E-X22B1D30-M1TJ 0.3M | E2E-X22C130-M1TJ 0.3M | |
| NC | - | E2E-X22B230-M1TJ 0.3M | E2E-X22C230-M1TJ 0.3M | |||
| NO+NC | - | E2E-X22B3D30-M1TJ 0.3M | E2E-X22C330-M1TJ 0.3M | |||
| 82 mm | NO | E2E-X22B1TL30-M1TJ 0.3M | E2E-X22B1DL30-M1TJ 0.3M | E2E-X22C1L30-M1TJ 0.3M | ||
| NC | - | E2E-X22B2L30-M1TJ 0.3M | E2E-X22C2L30-M1TJ 0.3M | |||
| NO+NC | - | E2E-X22B3DL30-M1TJ 0.3M | E2E-X22C3L30-M1TJ 0.3M | |||
| M12
Connector |
58 mm | NO | E2E-X22B1T30-M1 | E2E-X22B1D30-M1 | E2E-X22C130-M1 | |
| NC | - | E2E-X22B230-M1 | E2E-X22C230-M1 | |||
| NO+NC | - | E2E-X22B3D30-M1 | E2E-X22C330-M1 | |||
| 80 mm | NO | E2E-X22B1TL30-M1 | E2E-X22B1DL30-M1 | E2E-X22C1L30-M1 | ||
| NC | - | E2E-X22B2L30-M1 | E2E-X22C2L30-M1 | |||
| NO+NC | - | E2E-X22B3DL30-M1 | E2E-X22C3L30-M1 | |||
*1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
*2. Models with 5-m cable length are also available (Example: E2E-X6B1D12 5M)
*3. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X6B1D12-R 2M/E2E-X6B1D12-R 5M)
*4. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X6B1D12-M1TJR 0.3M)
*5. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
*2. Models with 5-m cable length are also available (Example: E2E-X6B1D12 5M)
*3. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X6B1D12-R 2M/E2E-X6B1D12-R 5M)
*4. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X6B1D12-M1TJR 0.3M)
*5. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
E2E NEXT Series (Triple distance model)
DC 3-wire Unshielded
|
Size
(Sensing distance) |
Connection
method |
Body
size |
Opera-tion
mode |
Model | ||
|---|---|---|---|---|---|---|
| PNP | NPN | |||||
| IO-Link (COM3) | IO-Link (COM2) *4 | --- *4 | ||||
| M8
(6 mm) |
Pre-wired
(2 m) *1 |
38 mm
*2 |
NO | E2E-X6MB1T8 2M | E2E-X6MB1D8 2M | E2E-X6MC18 2M |
| NC | - | E2E-X6MB28 2M | E2E-X6MC28 2M | |||
| 48 mm | NO | E2E-X6MB1TL8 2M | E2E-X6MB1DL8 2M | E2E-X6MC1L8 2M | ||
| NC | - | E2E-X6MB2L8 2M | E2E-X6MC2L8 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
38 mm
*3 |
NO | E2E-X6MB1T8-M1TJ 0.3M | E2E-X6MB1D8-M1TJ 0.3M | E2E-X6MC18-M1TJ 0.3M | |
| NC | - | E2E-X6MB28-M1TJ 0.3M | E2E-X6MC28-M1TJ 0.3M | |||
| 48 mm | NO | E2E-X6MB1TL8-M1TJ 0.3M | E2E-X6MB1DL8-M1TJ 0.3M | E2E-X6MC1L8-M1TJ 0.3M | ||
| NC | - | E2E-X6MB2L8-M1TJ 0.3M | E2E-X6MC2L8-M1TJ 0.3M | |||
| M12
Connector |
43 mm | NO | E2E-X6MB1T8-M1 | E2E-X6MB1D8-M1 | E2E-X6MC18-M1 | |
| NC | - | E2E-X6MB28-M1 | E2E-X6MC28-M1 | |||
| 53 mm | NO | E2E-X6MB1TL8-M1 | E2E-X6MB1DL8-M1 | E2E-X6MC1L8-M1 | ||
| NC | - | E2E-X6MB2L8-M1 | E2E-X6MC2L8-M1 | |||
| M8
Connector (4-pin) |
39 mm | NO | E2E-X6MB1T8-M3 | E2E-X6MB1D8-M3 | E2E-X6MC18-M3 | |
| NC | - | E2E-X6MB28-M3 | E2E-X6MC28-M3 | |||
| 49 mm | NO | E2E-X6MB1TL8-M3 | E2E-X6MB1DL8-M3 | E2E-X6MC1L8-M3 | ||
| NC | - | E2E-X6MB2L8-M3 | E2E-X6MC2L8-M3 | |||
| M8
Connector (3-pin) |
39 mm | NO | E2E-X6MB1T8-M5 | E2E-X6MB1D8-M5 | E2E-X6MC18-M5 | |
| NC | - | E2E-X6MB28-M5 | E2E-X6MC28-M5 | |||
| 49 mm | NO | E2E-X6MB1TL8-M5 | E2E-X6MB1DL8-M5 | E2E-X6MC1L8-M5 | ||
| NC | - | E2E-X6MB2L8-M5 | E2E-X6MC2L8-M5 | |||
| M12
(10 mm) |
Pre-wired
(2 m) *1 |
47 mm
*2 |
NO | E2E-X10MB1T12 2M | E2E-X10MB1D12 2M | E2E-X10MC112 2M |
| NC | - | E2E-X10MB212 2M | E2E-X10MC212 2M | |||
| NO+NC | - | E2E-X10MB3D12 2M | E2E-X10MC312 2M | |||
| 69 mm | NO | E2E-X10MB1TL12 2M | E2E-X10MB1DL12 2M | E2E-X10MC1L12 2M | ||
| NC | - | E2E-X10MB2L12 2M | E2E-X10MC2L12 2M | |||
| NO+NC | - | E2E-X10MB3DL12 2M | E2E-X10MC3L12 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
47 mm
*3 |
NO | E2E-X10MB1T12-M1TJ 0.3M | E2E-X10MB1D12-M1TJ 0.3M | E2E-X10MC112-M1TJ 0.3M | |
| NC | - | E2E-X10MB212-M1TJ 0.3M | E2E-X10MC212-M1TJ 0.3M | |||
| NO+NC | - | E2E-X10MB3D12-M1TJ 0.3M | E2E-X10MC312-M1TJ 0.3M | |||
| 69 mm | NO | E2E-X10MB1TL12-M1TJ 0.3M | E2E-X10MB1DL12-M1TJ 0.3M | E2E-X10MC1L12-M1TJ 0.3M | ||
| NC | - | E2E-X10MB2L12-M1TJ 0.3M | E2E-X10MC2L12-M1TJ 0.3M | |||
| NO+NC | - | E2E-X10MB3DL12-M1TJ 0.3M | E2E-X10MC3L12-M1TJ 0.3M | |||
| M12
Connector |
48 mm | NO | E2E-X10MB1T12-M1 | E2E-X10MB1D12-M1 | E2E-X10MC112-M1 | |
| NC | - | E2E-X10MB212-M1 | E2E-X10MC212-M1 | |||
| NO+NC | - | E2E-X10MB3D12-M1 | E2E-X10MC312-M1 | |||
| 70 mm | NO | E2E-X10MB1TL12-M1 | E2E-X10MB1DL12-M1 | E2E-X10MC1L12-M1 | ||
| NC | - | E2E-X10MB2L12-M1 | E2E-X10MC2L12-M1 | |||
| NO+NC | - | E2E-X10MB3DL12-M1 | E2E-X10MC3L12-M1 | |||
| M18
(20 mm) |
Pre-wired
(2 m) *1 |
77 mm
*2 |
NO | E2E-X20MB1TL18 2M | E2E-X20MB1DL18 2M | E2E-X20MC1L18 2M |
| NC | - | E2E-X20MB2L18 2M | E2E-X20MC2L18 2M | |||
| NO+NC | - | E2E-X20MB3DL18 2M | E2E-X20MC3L18 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
77 mm
*3 |
NO | E2E-X20MB1TL18-M1TJ | E2E-X20MB1DL18-M1TJ | E2E-X20MC1L18-M1TJ 0.3M | |
| NC | - | E2E-X20MB2L18-M1TJ 0.3M | E2E-X20MC2L18-M1TJ 0.3M | |||
| NO+NC | - | E2E-X20MB3DL18-M1TJ 0.3M | E2E-X20MC3L18-M1TJ 0.3M | |||
| M12
Connector |
75 mm | NO | E2E-X20MB1TL18-M1 | E2E-X20MB1DL18-M1 | E2E-X20MC1L18-M1 | |
| NC | - | E2E-X20MB2L18-M1 | E2E-X20MC2L18-M1 | |||
| NO+NC | - | E2E-X20MB3DL18-M1 | E2E-X20MC3L18-M1 | |||
| M30
(40 mm) |
Pre-wired
(2 m) *1 |
82 mm
*2 |
NO | E2E-X40MB1TL30 2M | E2E-X40MB1DL30 2M | E2E-X40MC1L30 2M |
| NC | - | E2E-X40MB2L30 2M | E2E-X40MC2L30 2M | |||
| NO+NC | - | E2E-X40MB3DL30 2M | E2E-X40MC3L30 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
82 mm
*3 |
NO | E2E-X40MB1TL30-M1TJ 0.3M | E2E-X40MB1DL30-M1TJ 0.3M | E2E-X40MC1L30-M1TJ 0.3M | |
| NC | - | E2E-X40MB2L30-M1TJ 0.3M | E2E-X40MC2L30-M1TJ 0.3M | |||
| NO+NC | - | E2E-X40MB3DL30-M1TJ 0.3M | E2E-X40MC3L30-M1TJ 0.3M | |||
| M12
Connector |
80 mm | NO | E2E-X40MB1TL30-M1 | E2E-X40MB1DL30-M1 | E2E-X40MC1L30-M1 | |
| NC | - | E2E-X40MB2L30-M1 | E2E-X40MC2L30-M1 | |||
| NO+NC | - | E2E-X40MB3DL30-M1 | E2E-X40MC3L30-M1 | |||
*1. Models with 5-m cable length are also available (Example: E2E-X10MB1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X10MB1D12-R 2M/E2E-X10MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X10MB1D12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X10MB1D12-R 2M/E2E-X10MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X10MB1D12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
BASIC Model
E2E NEXT Series (Double distance model)
DC 3-wire Shielded
|
Size
(Sensing distance) |
Connection
method |
Body
size |
Opera-tion
mode |
Model | ||
|---|---|---|---|---|---|---|
| PNP | NPN | |||||
| IO-Link (COM3) | IO-Link (COM2) *4 | --- *4 | ||||
| M8
(2 mm) |
Pre-wired
(2 m) *1 |
38 mm
*2 |
NO | E2E-X2B1T8 2M | E2E-X2B1D8 2M | E2E-X2C18 2M |
| NC | - | E2E-X2B28 2M | E2E-X2C28 2M | |||
| 48 mm | NO | E2E-X2B1TL8 2M | E2E-X2B1DL8 2M | E2E-X2C1L8 2M | ||
| NC | - | E2E-X2B2L8 2M | E2E-X2C2L8 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
38 mm
*3 |
NO | E2E-X2B1T8-M1TJ 0.3M | E2E-X2B1D8-M1TJ 0.3M | E2E-X2C18-M1TJ 0.3M | |
| NC | - | E2E-X2B28-M1TJ 0.3M | E2E-X2C28-M1TJ 0.3M | |||
| 48 mm | NO | E2E-X2B1TL8-M1TJ 0.3M | E2E-X2B1DL8-M1TJ 0.3M | E2E-X2C1L8-M1TJ 0.3M | ||
| NC | - | E2E-X2B2L8-M1TJ 0.3M | E2E-X2C2L8-M1TJ 0.3M | |||
| M12
Connector |
43 mm | NO | E2E-X2B1T8-M1 | E2E-X2B1D8-M1 | E2E-X2C18-M1 | |
| NC | - | E2E-X2B28-M1 | E2E-X2C28-M1 | |||
| 53 mm | NO | E2E-X2B1TL8-M1 | E2E-X2B1DL8-M1 | E2E-X2C1L8-M1 | ||
| NC | - | E2E-X2B2L8-M1 | E2E-X2C2L8-M1 | |||
| NO+NC | - | E2E-X2B3DL8-M1 | E2E-X2C3L8-M1 | |||
| M8
Connector (4-pin) |
39 mm | NO | E2E-X2B1T8-M3 | E2E-X2B1D8-M3 | E2E-X2C18-M3 | |
| NC | - | E2E-X2B28-M3 | E2E-X2C28-M3 | |||
| 49 mm | NO | E2E-X2B1TL8-M3 | E2E-X2B1DL8-M3 | E2E-X2C1L8-M3 | ||
| NC | - | E2E-X2B2L8-M3 | E2E-X2C2L8-M3 | |||
| M8
Connector (3-pin) |
39 mm | NO | E2E-X2B1T8-M5 | E2E-X2B1D8-M5 | E2E-X2C18-M5 | |
| NC | - | E2E-X2B28-M5 | E2E-X2C28-M5 | |||
| 49 mm | NO | E2E-X2B1TL8-M5 | E2E-X2B1DL8-M5 | E2E-X2C1L8-M5 | ||
| NC | - | E2E-X2B2L8-M5 | E2E-X2C2L8-M5 | |||
| M12
(4 mm) |
Pre-wired
(2 m) *1 |
47 mm
*2 |
NO | E2E-X4B1T12 2M | E2E-X4B1D12 2M | E2E-X4C112 2M |
| NC | - | E2E-X4B212 2M | E2E-X4C212 2M | |||
| NO+NC | - | E2E-X4B3D12 2M | E2E-X4C312 2M | |||
| 69 mm | NO | E2E-X4B1TL12 2M | E2E-X4B1DL12 2M | E2E-X4C1L12 2M | ||
| NC | - | E2E-X4B2L12 2M | E2E-X4C2L12 2M | |||
| NO+NC | - | E2E-X4B3DL12 2M | E2E-X4C3L12 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
47 mm
*3 |
NO | E2E-X4B1T12-M1TJ 0.3M | E2E-X4B1D12-M1TJ 0.3M | E2E-X4C112-M1TJ 0.3M | |
| NC | - | E2E-X4B212-M1TJ 0.3M | E2E-X4C212-M1TJ 0.3M | |||
| NO+NC | - | E2E-X4B3D12-M1TJ 0.3M | E2E-X4C312-M1TJ 0.3M | |||
| 69 mm | NO | E2E-X4B1TL12-M1TJ 0.3M | E2E-X4B1DL12-M1TJ 0.3M | E2E-X4C1L12-M1TJ 0.3M | ||
| NC | - | E2E-X4B2L12-M1TJ 0.3M | E2E-X4C2L12-M1TJ 0.3M | |||
| NO+NC | - | E2E-X4B3DL12-M1TJ 0.3M | E2E-X4C3L12-M1TJ 0.3M | |||
| M12
Connector |
48 mm | NO | E2E-X4B1T12-M1 | E2E-X4B1D12-M1 | E2E-X4C112-M1 | |
| NC | - | E2E-X4B212-M1 | E2E-X4C212-M1 | |||
| NO+NC | - | E2E-X4B3D12-M1 | E2E-X4C312-M1 | |||
| 70 mm | NO | E2E-X4B1TL12-M1 | E2E-X4B1DL12-M1 | E2E-X4C1L12-M1 | ||
| NC | - | E2E-X4B2L12-M1 | E2E-X4C2L12-M1 | |||
| NO+NC | - | E2E-X4B3DL12-M1 | E2E-X4C3L12-M1 | |||
| M18
(8 mm) |
Pre-wired
(2 m) *1 |
55 mm
*2 |
NO | E2E-X8B1T18 2M | E2E-X8B1D18 2M | E2E-X8C118 2M |
| NC | - | E2E-X8B218 2M | E2E-X8C218 2M | |||
| NO+NC | - | E2E-X8B3D18 2M | E2E-X8C318 2M | |||
| 77 mm | NO | E2E-X8B1TL18 2M | E2E-X8B1DL18 2M | E2E-X8C1L18 2M | ||
| NC | - | E2E-X8B2L18 2M | E2E-X8C2L18 2M | |||
| NO+NC | - | E2E-X8B3DL18 2M | E2E-X8C3L18 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
55 mm
*3 |
NO | E2E-X8B1T18-M1TJ 0.3M | E2E-X8B1D18-M1TJ 0.3M | E2E-X8C118-M1TJ 0.3M | |
| NC | - | E2E-X8B218-M1TJ 0.3M | E2E-X8C218-M1TJ 0.3M | |||
| NO+NC | - | E2E-X8B3D18-M1TJ 0.3M | E2E-X8C318-M1TJ 0.3M | |||
| 77 mm | NO | E2E-X8B1TL18-M1TJ 0.3M | E2E-X8B1DL18-M1TJ 0.3M | E2E-X8C1L18-M1TJ 0.3M | ||
| NC | - | E2E-X8B2L18-M1TJ 0.3M | E2E-X8C2L18-M1TJ 0.3M | |||
| NO+NC | - | E2E-X8B3DL18-M1TJ 0.3M | E2E-X8C3L18-M1TJ 0.3M | |||
| M12
Connector |
53 mm | NO | E2E-X8B1T18-M1 | E2E-X8B1D18-M1 | E2E-X8C118-M1 | |
| NC | - | E2E-X8B218-M1 | E2E-X8C218-M1 | |||
| NO+NC | - | E2E-X8B3D18-M1 | E2E-X8C318-M1 | |||
| 75 mm | NO | E2E-X8B1TL18-M1 | E2E-X8B1DL18-M1 | E2E-X8C1L18-M1 | ||
| NC | - | E2E-X8B2L18-M1 | E2E-X8C2L18-M1 | |||
| NO+NC | - | E2E-X8B3DL18-M1 | E2E-X8C3L18-M1 | |||
| M30
(15 mm) |
Pre-wired
(2 m) *1 |
60 mm
*2 |
NO | E2E-X15B1T30 2M | E2E-X15B1D30 2M | E2E-X15C130 2M |
| NC | - | E2E-X15B230 2M | E2E-X15C230 2M | |||
| NO+NC | - | E2E-X15B3D30 2M | E2E-X15C330 2M | |||
| 82 mm | NO | E2E-X15B1TL30 2M | E2E-X15B1DL30 2M | E2E-X15C1L30 2M | ||
| NC | - | E2E-X15B2L30 2M | E2E-X15C2L30 2M | |||
| NO+NC | - | E2E-X15B3DL30 2M | E2E-X15C3L30 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
60 mm
*3 |
NO | E2E-X15B1T30-M1TJ 0.3M | E2E-X15B1D30-M1TJ 0.3M | E2E-X15C130-M1TJ 0.3M | |
| NC | - | E2E-X15B230-M1TJ 0.3M | E2E-X15C230-M1TJ 0.3M | |||
| NO+NC | - | E2E-X15B3D30-M1TJ 0.3M | E2E-X15C330-M1TJ 0.3M | |||
| 82 mm | NO | E2E-X15B1TL30-M1TJ 0.3M | E2E-X15B1DL30-M1TJ 0.3M | E2E-X15C1L30-M1TJ 0.3M | ||
| NC | - | E2E-X15B2L30-M1TJ 0.3M | E2E-X15C2L30-M1TJ 0.3M | |||
| NO+NC | - | E2E-X15B3DL30-M1TJ 0.3M | E2E-X15C3L30-M1TJ 0.3M | |||
| M12
Connector |
58 mm | NO | E2E-X15B1T30-M1 | E2E-X15B1D30-M1 | E2E-X15C130-M1 | |
| NC | - | E2E-X15B230-M1 | E2E-X15C230-M1 | |||
| NO+NC | - | E2E-X15B3D30-M1 | E2E-X15C330-M1 | |||
| 80 mm | NO | E2E-X15B1TL30-M1 | E2E-X15B1DL30-M1 | E2E-X15C1L30-M1 | ||
| NC | - | E2E-X15B2L30-M1 | E2E-X15C2L30-M1 | |||
| NO+NC | - | E2E-X15B3DL30-M1 | E2E-X15C3L30-M1 | |||
*1. Models with 5-m cable length are also available (Example: E2E-X2B1D8 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X2B1D8-R 2M/E2E-X2B1D8-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X4B1T12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X2B1D8-R 2M/E2E-X2B1D8-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X4B1T12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
E2E NEXT Series (Double distance model)
DC 3-wire Unshielded
|
Size
(Sensing distance) |
Connection
method |
Body
size |
Opera-tion
mode |
Model | ||
|---|---|---|---|---|---|---|
| PNP | NPN | |||||
| IO-Link (COM3) | IO-Link (COM2) *4 | --- *4 | ||||
| M8
(4 mm) |
Pre-wired
(2 m) *1 |
38 mm
*2 |
NO | E2E-X4MB1T8 2M | E2E-X4MB1D8 2M | E2E-X4MC18 2M |
| NC | - | E2E-X4MB28 2M | E2E-X4MC28 2M | |||
| 48 mm | NO | E2E-X4MB1TL8 2M | E2E-X4MB1DL8 2M | E2E-X4MC1L8 2M | ||
| NC | - | E2E-X4MB2L8 2M | E2E-X4MC2L8 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
38 mm
*3 |
NO | E2E-X4MB1T8-M1TJ 0.3M | E2E-X4MB1D8-M1TJ 0.3M | E2E-X4MC18-M1TJ 0.3M | |
| NC | - | E2E-X4MB28-M1TJ 0.3M | E2E-X4MC28-M1TJ 0.3M | |||
| 48 mm | NO | E2E-X4MB1TL8-M1TJ 0.3M | E2E-X4MB1DL8-M1TJ 0.3M | E2E-X4MC1L8-M1TJ 0.3M | ||
| NC | - | E2E-X4MB2L8-M1TJ 0.3M | E2E-X4MC2L8-M1TJ 0.3M | |||
| M12
Connector |
43 mm | NO | E2E-X4MB1T8-M1 | E2E-X4MB1D8-M1 | E2E-X4MC18-M1 | |
| NC | - | E2E-X4MB28-M1 | E2E-X4MC28-M1 | |||
| 53 mm | NO | E2E-X4MB1TL8-M1 | E2E-X4MB1DL8-M1 | E2E-X4MC1L8-M1 | ||
| NC | - | E2E-X4MB2L8-M1 | E2E-X4MC2L8-M1 | |||
| NO+NC | - | E2E-X4MB3DL8-M1 | E2E-X4MC3L8-M1 | |||
| M8
Connector (4-pin) |
39 mm | NO | E2E-X4MB1T8-M3 | E2E-X4MB1D8-M3 | E2E-X4MC18-M3 | |
| NC | - | E2E-X4MB28-M3 | E2E-X4MC28-M3 | |||
| 49 mm | NO | E2E-X4MB1TL8-M3 | E2E-X4MB1DL8-M3 | E2E-X4MC1L8-M3 | ||
| NC | - | E2E-X4MB2L8-M3 | E2E-X4MC2L8-M3 | |||
| M8
Connector (3-pin) |
39 mm | NO | E2E-X4MB1T8-M5 | E2E-X4MB1D8-M5 | E2E-X4MC18-M5 | |
| NC | - | E2E-X4MB28-M5 | E2E-X4MC28-M5 | |||
| 49 mm | NO | E2E-X4MB1TL8-M5 | E2E-X4MB1DL8-M5 | E2E-X4MC1L8-M5 | ||
| NC | - | E2E-X4MB2L8-M5 | E2E-X4MC2L8-M5 | |||
| M12
(8 mm) |
Pre-wired
(2 m) *1 |
47 mm
*2 |
NO | E2E-X8MB1T12 2M | E2E-X8MB1D12 2M | E2E-X8MC112 2M |
| NC | - | E2E-X8MB212 2M | E2E-X8MC212 2M | |||
| NO+NC | - | E2E-X8MB3D12 2M | E2E-X8MC312 2M | |||
| 69 mm | NO | E2E-X8MB1TL12 2M | E2E-X8MB1DL12 2M | E2E-X8MC1L12 2M | ||
| NC | - | E2E-X8MB2L12 2M | E2E-X8MC2L12 2M | |||
| NO+NC | - | E2E-X8MB3DL12 2M | E2E-X8MC3L12 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
47 mm
*3 |
NO | E2E-X8MB1T12-M1TJ 0.3M | E2E-X8MB1D12-M1TJ 0.3M | E2E-X8MC112-M1TJ 0.3M | |
| NC | - | E2E-X8MB212-M1TJ 0.3M | E2E-X8MC212-M1TJ 0.3M | |||
| NO+NC | - | E2E-X8MB3D12-M1TJ 0.3M | E2E-X8MC312-M1TJ 0.3M | |||
| 69 mm | NO | E2E-X8MB1TL12-M1TJ 0.3M | E2E-X8MB1DL12-M1TJ 0.3M | E2E-X8MC1L12-M1TJ 0.3M | ||
| NC | - | E2E-X8MB2L12-M1TJ 0.3M | E2E-X8MC2L12-M1TJ 0.3M | |||
| NO+NC | - | E2E-X8MB3DL12-M1TJ 0.3M | E2E-X8MC3L12-M1TJ 0.3M | |||
| M12
Connector |
48 mm | NO | E2E-X8MB1T12-M1 | E2E-X8MB1D12-M1 | E2E-X8MC112-M1 | |
| NC | - | E2E-X8MB212-M1 | E2E-X8MC212-M1 | |||
| NO+NC | - | E2E-X8MB3D12-M1 | E2E-X8MC312-M1 | |||
| 70 mm | NO | E2E-X8MB1TL12-M1 | E2E-X8MB1DL12-M1 | E2E-X8MC1L12-M1 | ||
| NC | - | E2E-X8MB2L12-M1 | E2E-X8MC2L12-M1 | |||
| NO+NC | - | E2E-X8MB3DL12-M1 | E2E-X8MC3L12-M1 | |||
| M18
(16 mm) |
Pre-wired
(2 m) *1 |
55 mm
*2 |
NO | E2E-X16MB1T18 2M | E2E-X16MB1D18 2M | E2E-X16MC118 2M |
| NC | - | E2E-X16MB218 2M | E2E-X16MC218 2M | |||
| NO+NC | - | E2E-X16MB3D18 2M | E2E-X16MC318 2M | |||
| 77 mm | NO | E2E-X16MB1TL18 2M | E2E-X16MB1DL18 2M | E2E-X16MC1L18 2M | ||
| NC | - | E2E-X16MB2L18 2M | E2E-X16MC2L18 2M | |||
| NO+NC | - | E2E-X16MB3DL18 2M | E2E-X16MC3L18 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
55 mm
*3 |
NO | E2E-X16MB1T18-M1TJ 0.3M | E2E-X16MB1D18-M1TJ 0.3M | E2E-X16MC118-M1TJ 0.3M | |
| NC | - | E2E-X16MB218-M1TJ 0.3M | E2E-X16MC218-M1TJ 0.3M | |||
| NO+NC | - | E2E-X16MB3D18-M1TJ 0.3M | E2E-X16MC318-M1TJ 0.3M | |||
| 77 mm | NO | E2E-X16MB1TL18-M1TJ 0.3M | E2E-X16MB1DL18-M1TJ 0.3M | E2E-X16MC1L18-M1TJ 0.3M | ||
| NC | - | E2E-X16MB2L18-M1TJ 0.3M | E2E-X16MC2L18-M1TJ 0.3M | |||
| NO+NC | - | E2E-X16MB3DL18-M1TJ 0.3M | E2E-X16MC3L18-M1TJ 0.3M | |||
| M12
Connector |
53 mm | NO | E2E-X16MB1T18-M1 | E2E-X16MB1D18-M1 | E2E-X16MC118-M1 | |
| NC | - | E2E-X16MB218-M1 | E2E-X16MC218-M1 | |||
| NO+NC | - | E2E-X16MB3D18-M1 | E2E-X16MC318-M1 | |||
| 75 mm | NO | E2E-X16MB1TL18-M1 | E2E-X16MB1DL18-M1 | E2E-X16MC1L18-M1 | ||
| NC | - | E2E-X16MB2L18-M1 | E2E-X16MC2L18-M1 | |||
| NO+NC | - | E2E-X16MB3DL18-M1 | E2E-X16MC3L18-M1 | |||
| M30
(30 mm) |
Pre-wired
(2 m) *1 |
82 mm
*2 |
NO | E2E-X30MB1TL30 2M | E2E-X30MB1DL30 2M | E2E-X30MC1L30 2M |
| NC | - | E2E-X30MB2L30 2M | E2E-X30MC2L30 2M | |||
| NO+NC | - | E2E-X30MB3DL30 2M | E2E-X30MC3L30 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
82 mm
*3 |
NO | E2E-X30MB1TL30-M1TJ 0.3M | E2E-X30MB1DL30-M1TJ 0.3M | E2E-X30MC1L30-M1TJ 0.3M | |
| NC | - | E2E-X30MB2L30-M1TJ 0.3M | E2E-X30MC2L30-M1TJ 0.3M | |||
| NO+NC | - | E2E-X30MB3DL30-M1TJ 0.3M | E2E-X30MC3L30-M1TJ 0.3M | |||
| M12
Connector |
80 mm | NO | E2E-X30MB1TL30-M1 | E2E-X30MB1DL30-M1 | E2E-X30MC1L30-M1 | |
| NC | - | E2E-X30MB2L30-M1 | E2E-X30MC2L30-M1 | |||
| NO+NC | - | E2E-X30MB3DL30-M1 | E2E-X30MC3L30-M1 | |||
*1. Models with 5-m cable length are also available (Example: E2E-X8MB1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X8MB1D12-R 2M/E2E-X8MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X8MB1D12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X8MB1D12-R 2M/E2E-X8MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X8MB1D12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
E2E NEXT Series (Single distance model)
DC 3-wire Shielded
|
Size
(Sensing distance) |
Connection
method |
Body
size |
Opera-tion
mode |
Model | ||
|---|---|---|---|---|---|---|
| PNP | NPN | |||||
| IO-Link (COM3) | IO-Link (COM2) *4 | --- *4 | ||||
| M8
(1.5 mm) |
Pre-wired
(2 m) *1 |
38 mm
*2 |
NO | E2E-X1R5B1T8 2M | E2E-X1R5B1D8 2M | E2E-X1R5C18 2M |
| NC | - | E2E-X1R5B28 2M | E2E-X1R5C28 2M | |||
| 48 mm | NO | E2E-X1R5B1TL8 2M | E2E-X1R5B1DL8 2M | E2E-X1R5C1L8 2M | ||
| NC | - | E2E-X1R5B2L8 2M | E2E-X1R5C2L8 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
38 mm
*3 |
NO | E2E-X1R5B1T8-M1TJ 0.3M | E2E-X1R5B1D8-M1TJ 0.3M | E2E-X1R5C18-M1TJ 0.3M | |
| NC | - | E2E-X1R5B28-M1TJ 0.3M | E2E-X1R5C28-M1TJ 0.3M | |||
| 48 mm | NO | E2E-X1R5B1TL8-M1TJ 0.3M | E2E-X1R5B1DL8-M1TJ 0.3M | E2E-X1R5C1L8-M1TJ 0.3M | ||
| NC | - | E2E-X1R5B2L8-M1TJ 0.3M | E2E-X1R5C2L8-M1TJ 0.3M | |||
| M12
Connector |
43 mm | NO | E2E-X1R5B1T8-M1 | E2E-X1R5B1D8-M1 | E2E-X1R5C18-M1 | |
| NC | - | E2E-X1R5B28-M1 | E2E-X1R5C28-M1 | |||
| 53 mm | NO | E2E-X1R5B1TL8-M1 | E2E-X1R5B1DL8-M1 | E2E-X1R5C1L8-M1 | ||
| NC | - | E2E-X1R5B2L8-M1 | E2E-X1R5C2L8-M1 | |||
| NO+NC | - | E2E-X1R5B3DL8-M1 | E2E-X1R5C3L8-M1 | |||
| M8
Connector (4-pin) |
39 mm | NO | E2E-X1R5B1T8-M3 | E2E-X1R5B1D8-M3 | E2E-X1R5C18-M3 | |
| NC | - | E2E-X1R5B28-M3 | E2E-X1R5C28-M3 | |||
| 49 mm | NO | E2E-X1R5B1TL8-M3 | E2E-X1R5B1DL8-M3 | E2E-X1R5C1L8-M3 | ||
| NC | - | E2E-X1R5B2L8-M3 | E2E-X1R5C2L8-M3 | |||
| M8
Connector (3-pin) |
39 mm | NO | E2E-X1R5B1T8-M5 | E2E-X1R5B1D8-M5 | E2E-X1R5C18-M5 | |
| NC | - | E2E-X1R5B28-M5 | E2E-X1R5C28-M5 | |||
| 49 mm | NO | E2E-X1R5B1TL8-M5 | E2E-X1R5B1DL8-M5 | E2E-X1R5C1L8-M5 | ||
| NC | - | E2E-X1R5B2L8-M5 | E2E-X1R5C2L8-M5 | |||
| M12
(2 mm) |
Pre-wired
(2 m) *1 |
47 mm
*2 |
NO | E2E-X2B1T12 2M | E2E-X2B1D12 2M | E2E-X2C112 2M |
| NC | - | E2E-X2B212 2M | E2E-X2C212 2M | |||
| NO+NC | - | E2E-X2B3D12 2M | E2E-X2C312 2M | |||
| 69 mm | NO | E2E-X2B1TL12 2M | E2E-X2B1DL12 2M | E2E-X2C1L12 2M | ||
| NC | - | E2E-X2B2L12 2M | E2E-X2C2L12 2M | |||
| NO+NC | - | E2E-X2B3DL12 2M | E2E-X2C3L12 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
47 mm
*3 |
NO | E2E-X2B1T12-M1TJ 0.3M | E2E-X2B1D12-M1TJ 0.3M | E2E-X2C112-M1TJ 0.3M | |
| NC | - | E2E-X2B212-M1TJ 0.3M | E2E-X2C212-M1TJ 0.3M | |||
| NO+NC | - | E2E-X2B3D12-M1TJ 0.3M | E2E-X2C312-M1TJ 0.3M | |||
| 69 mm | NO | E2E-X2B1TL12-M1TJ 0.3M | E2E-X2B1DL12-M1TJ 0.3M | E2E-X2C1L12-M1TJ 0.3M | ||
| NC | - | E2E-X2B2L12-M1TJ 0.3M | E2E-X2C2L12-M1TJ 0.3M | |||
| NO+NC | - | E2E-X2B3DL12-M1TJ 0.3M | E2E-X2C3L12-M1TJ 0.3M | |||
| M12
Connector |
48 mm | NO | E2E-X2B1T12-M1 | E2E-X2B1D12-M1 | E2E-X2C112-M1 | |
| NC | - | E2E-X2B212-M1 | E2E-X2C212-M1 | |||
| NO+NC | - | E2E-X2B3D12-M1 | E2E-X2C312-M1 | |||
| 70 mm | NO | E2E-X2B1TL12-M1 | E2E-X2B1DL12-M1 | E2E-X2C1L12-M1 | ||
| NC | - | E2E-X2B2L12-M1 | E2E-X2C2L12-M1 | |||
| NO+NC | - | E2E-X2B3DL12-M1 | E2E-X2C3L12-M1 | |||
| M18
(5 mm) |
Pre-wired
(2 m) *1 |
55 mm
*2 |
NO | E2E-X5B1T18 2M | E2E-X5B1D18 2M | E2E-X5C118 2M |
| NC | - | E2E-X5B218 2M | E2E-X5C218 2M | |||
| NO+NC | - | E2E-X5B3D18 2M | E2E-X5C318 2M | |||
| 77 mm | NO | E2E-X5B1TL18 2M | E2E-X5B1DL18 2M | E2E-X5C1L18 2M | ||
| NC | - | E2E-X5B2L18 2M | E2E-X5C2L18 2M | |||
| NO+NC | - | E2E-X5B3DL18 2M | E2E-X5C3L18 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
55 mm
*3 |
NO | E2E-X5B1T18-M1TJ 0.3M | E2E-X5B1D18-M1TJ 0.3M | E2E-X5C118-M1TJ 0.3M | |
| NC | - | E2E-X5B218-M1TJ 0.3M | E2E-X5C218-M1TJ 0.3M | |||
| NO+NC | - | E2E-X5B3D18-M1TJ 0.3M | E2E-X5C318-M1TJ 0.3M | |||
| 77 mm | NO | E2E-X5B1TL18-M1TJ 0.3M | E2E-X5B1DL18-M1TJ 0.3M | E2E-X5C1L18-M1TJ 0.3M | ||
| NC | - | E2E-X5B2L18-M1TJ 0.3M | E2E-X5C2L18-M1TJ 0.3M | |||
| NO+NC | - | E2E-X5B3DL18-M1TJ 0.3M | E2E-X5C3L18-M1TJ 0.3M | |||
| M12
Connector |
53 mm | NO | E2E-X5B1T18-M1 | E2E-X5B1D18-M1 | E2E-X5C118-M1 | |
| NC | - | E2E-X5B218-M1 | E2E-X5C218-M1 | |||
| NO+NC | - | E2E-X5B3D18-M1 | E2E-X5C318-M1 | |||
| 75 mm | NO | E2E-X5B1TL18-M1 | E2E-X5B1DL18-M1 | E2E-X5C1L18-M1 | ||
| NC | - | E2E-X5B2L18-M1 | E2E-X5C2L18-M1 | |||
| NO+NC | - | E2E-X5B3DL18-M1 | E2E-X5C3L18-M1 | |||
| M30
(10 mm) |
Pre-wired
(2 m) *1 |
60 mm
*2 |
NO | E2E-X10B1T30 2M | E2E-X10B1D30 2M | E2E-X10C130 2M |
| NC | - | E2E-X10B230 2M | E2E-X10C230 2M | |||
| NO+NC | - | E2E-X10B3D30 2M | E2E-X10C330 2M | |||
| 82 mm | NO | E2E-X10B1TL30 2M | E2E-X10B1DL30 2M | E2E-X10C1L30 2M | ||
| NC | - | E2E-X10B2L30 2M | E2E-X10C2L30 2M | |||
| NO+NC | - | E2E-X10B3DL30 2M | E2E-X10C3L30 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
60 mm
*3 |
NO | E2E-X10B1T30-M1TJ 0.3M | E2E-X10B1D30-M1TJ 0.3M | E2E-X10C130-M1TJ 0.3M | |
| NC | - | E2E-X10B230-M1TJ 0.3M | E2E-X10C230-M1TJ 0.3M | |||
| NO+NC | - | E2E-X10B3D30-M1TJ 0.3M | E2E-X10C330-M1TJ 0.3M | |||
| 82 mm | NO | E2E-X10B1TL30-M1TJ 0.3M | E2E-X10B1DL30-M1TJ 0.3M | E2E-X10C1L30-M1TJ 0.3M | ||
| NC | - | E2E-X10B2L30-M1TJ 0.3M | E2E-X10C2L30-M1TJ 0.3M | |||
| NO+NC | - | E2E-X10B3DL30-M1TJ 0.3M | E2E-X10C3L30-M1TJ 0.3M | |||
| M12
Connector |
58 mm | NO | E2E-X10B1T30-M1 | E2E-X10B1D30-M1 | E2E-X10C130-M1 | |
| NC | - | E2E-X10B230-M1 | E2E-X10C230-M1 | |||
| NO+NC | - | E2E-X10B3D30-M1 | E2E-X10C330-M1 | |||
| 80 mm | NO | E2E-X10B1TL30-M1 | E2E-X10B1DL30-M1 | E2E-X10C1L30-M1 | ||
| NC | - | E2E-X10B2L30-M1 | E2E-X10C2L30-M1 | |||
| NO+NC | - | E2E-X10B3DL30-M1 | E2E-X10C3L30-M1 | |||
*1. Models with 5-m cable length are also available (Example: E2E-X2B1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X2B1D12-R 2M/E2E-X2B1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X2B1D12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X2B1D12-R 2M/E2E-X2B1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X2B1D12-M1TJR 0.3M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
E2E NEXT Series (Single distance model)
DC 3-wire Unshielded
|
Size
(Sensing distance) |
Connection
method |
Body
size |
Opera-tion
mode |
Model | ||
|---|---|---|---|---|---|---|
| PNP | NPN | |||||
| IO-Link (COM3) | IO-Link (COM2) *4 | --- *4 | ||||
| M8
(2mm) |
Pre-wired
(2 m) *1 |
38 mm
*2 |
NO | E2E-X2MB1T8 2M | E2E-X2MB1D8 2M | E2E-X2MC18 2M |
| NC | - | E2E-X2MB28 2M | E2E-X2MC28 2M | |||
| 48 mm | NO | E2E-X2MB1TL8 2M | E2E-X2MB1DL8 2M | E2E-X2MC1L8 2M | ||
| NC | - | E2E-X2MB2L8 2M | E2E-X2MC2L8 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
38 mm
*3 |
NO | E2E-X2MB1T8-M1TJ 0.3M | E2E-X2MB1D8-M1TJ 0.3M | E2E-X2MC18-M1TJ 0.3M | |
| NC | - | E2E-X2MB28-M1TJ 0.3M | E2E-X2MC28-M1TJ 0.3M | |||
| 48 mm | NO | E2E-X2MB1TL8-M1TJ 0.3M | E2E-X2MB1DL8-M1TJ 0.3M | E2E-X2MC1L8-M1TJ 0.3M | ||
| NC | - | E2E-X2MB2L8-M1TJ 0.3M | E2E-X2MC2L8-M1TJ 0.3M | |||
| M12
Connector |
43 mm | NO | E2E-X2MB1T8-M1 | E2E-X2MB1D8-M1 | E2E-X2MC18-M1 | |
| NC | - | E2E-X2MB28-M1 | E2E-X2MC28-M1 | |||
| 53 mm | NO | E2E-X2MB1TL8-M1 | E2E-X2MB1DL8-M1 | E2E-X2MC1L8-M1 | ||
| NC | - | E2E-X2MB2L8-M1 | E2E-X2MC2L8-M1 | |||
| NO+NC | - | E2E-X2MB3DL8-M1 | E2E-X2MC3L8-M1 | |||
| M8
Connector (4-pin) |
39 mm | NO | E2E-X2MB1T8-M3 | E2E-X2MB1D8-M3 | E2E-X2MC18-M3 | |
| NC | - | E2E-X2MB28-M3 | E2E-X2MC28-M3 | |||
| 49 mm | NO | E2E-X2MB1TL8-M3 | E2E-X2MB1DL8-M3 | E2E-X2MC1L8-M3 | ||
| NC | - | E2E-X2MB2L8-M3 | E2E-X2MC2L8-M3 | |||
| M8
Connector (3-pin) |
39 mm | NO | E2E-X2MB1T8-M5 | E2E-X2MB1D8-M5 | E2E-X2MC18-M5 | |
| NC | - | E2E-X2MB28-M5 | E2E-X2MC28-M5 | |||
| 49 mm | NO | E2E-X2MB1TL8-M5 | E2E-X2MB1DL8-M5 | E2E-X2MC1L8-M5 | ||
| NC | - | E2E-X2MB2L8-M5 | E2E-X2MC2L8-M5 | |||
| M12
(5mm) |
Pre-wired
(2 m) *1 |
47 mm
*2 |
NO | E2E-X5MB1T12 2M | E2E-X5MB1D12 2M | E2E-X5MC112 2M |
| NC | - | E2E-X5MB212 2M | E2E-X5MC212 2M | |||
| NO+NC | - | E2E-X5MB3D12 2M | E2E-X5MC312 2M | |||
| 69 mm | NO | E2E-X5MB1TL12 2M | E2E-X5MB1DL12 2M | E2E-X5MC1L12 2M | ||
| NC | - | E2E-X5MB2L12 2M | E2E-X5MC2L12 2M | |||
| NO+NC | - | E2E-X5MB3DL12 2M | E2E-X5MC3L12 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
47 mm
*3 |
NO | E2E-X5MB1T12-M1TJ 0.3M | E2E-X5MB1D12-M1TJ 0.3M | E2E-X5MC112-M1TJ 0.3M | |
| NC | - | E2E-X5MB212-M1TJ 0.3M | E2E-X5MC212-M1TJ 0.3M | |||
| NO+NC | - | E2E-X5MB3D12-M1TJ 0.3M | E2E-X5MC312-M1TJ 0.3M | |||
| 69 mm | NO | E2E-X5MB1TL12-M1TJ 0.3M | E2E-X5MB1DL12-M1TJ 0.3M | E2E-X5MC1L12-M1TJ 0.3M | ||
| NC | - | E2E-X5MB2L12-M1TJ 0.3M | E2E-X5MC2L12-M1TJ 0.3M | |||
| NO+NC | - | E2E-X5MB3DL12-M1TJ 0.3M | E2E-X5MC3L12-M1TJ 0.3M | |||
| M12
Connector |
48 mm | NO | E2E-X5MB1T12-M1 | E2E-X5MB1D12-M1 | E2E-X5MC112-M1 | |
| NC | - | E2E-X5MB212-M1 | E2E-X5MC212-M1 | |||
| NO+NC | - | E2E-X5MB3D12-M1 | E2E-X5MC312-M1 | |||
| 70 mm | NO | E2E-X5MB1TL12-M1 | E2E-X5MB1DL12-M1 | E2E-X5MC1L12-M1 | ||
| NC | - | E2E-X5MB2L12-M1 | E2E-X5MC2L12-M1 | |||
| NO+NC | - | E2E-X5MB3DL12-M1 | E2E-X5MC3L12-M1 | |||
| M18
(10mm) |
Pre-wired
(2 m) *1 |
55 mm
*2 |
NO | E2E-X10MB1T18 2M | E2E-X10MB1D18 2M | E2E-X10MC118 2M |
| NC | - | E2E-X10MB218 2M | E2E-X10MC218 2M | |||
| NO+NC | - | E2E-X10MB3D18 2M | E2E-X10MC318 2M | |||
| 77 mm | NO | E2E-X10MB1TL18 2M | E2E-X10MB1DL18 2M | E2E-X10MC1L18 2M | ||
| NC | - | E2E-X10MB2L18 2M | E2E-X10MC2L18 2M | |||
| NO+NC | - | E2E-X10MB3DL18 2M | E2E-X10MC3L18 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
55 mm
*3 |
NO | E2E-X10MB1T18-M1TJ 0.3M | E2E-X10MB1D18-M1TJ 0.3M | E2E-X10MC118-M1TJ 0.3M | |
| NC | - | E2E-X10MB218-M1TJ 0.3M | E2E-X10MC218-M1TJ 0.3M | |||
| NO+NC | - | E2E-X10MB3D18-M1TJ 0.3M | E2E-X10MC318-M1TJ 0.3M | |||
| 77 mm | NO | E2E-X10MB1TL18-M1TJ 0.3M | E2E-X10MB1DL18-M1TJ 0.3M | E2E-X10MC1L18-M1TJ 0.3M | ||
| NC | - | E2E-X10MB2L18-M1TJ 0.3M | E2E-X10MC2L18-M1TJ 0.3M | |||
| NO+NC | - | E2E-X10MB3DL18-M1TJ 0.3M | E2E-X10MC3L18-M1TJ 0.3M | |||
| M12
Connector |
53 mm | NO | E2E-X10MB1T18-M1 | E2E-X10MB1D18-M1 | E2E-X10MC118-M1 | |
| NC | - | E2E-X10MB218-M1 | E2E-X10MC218-M1 | |||
| NO+NC | - | E2E-X10MB3D18-M1 | E2E-X10MC318-M1 | |||
| 75 mm | NO | E2E-X10MB1TL18-M1 | E2E-X10MB1DL18-M1 | E2E-X10MC1L18-M1 | ||
| NC | - | E2E-X10MB2L18-M1 | E2E-X10MC2L18-M1 | |||
| NO+NC | - | E2E-X10MB3DL18-M1 | E2E-X10MC3L18-M1 | |||
| M30
(18mm) |
Pre-wired
(2 m) *1 |
60 mm
*2 |
NO | E2E-X18MB1T30 2M | E2E-X18MB1D30 2M | E2E-X18MC130 2M |
| NC | - | E2E-X18MB230 2M | E2E-X18MC230 2M | |||
| NO+NC | - | E2E-X18MB3D30 2M | E2E-X18MC330 2M | |||
| 82 mm | NO | E2E-X18MB1TL30 2M | E2E-X18MB1DL30 2M | E2E-X18MC1L30 2M | ||
| NC | - | E2E-X18MB2L30 2M | E2E-X18MC2L30 2M | |||
| NO+NC | - | E2E-X18MB3DL30 2M | E2E-X18MC3L30 2M | |||
| M12
Pre-wired Smartclick Connector (0.3 m) |
60 mm
*3 |
NO | E2E-X18MB1T30-M1TJ 0.3M | E2E-X18MB1D30-M1TJ 0.3M | E2E-X18MC130-M1TJ 0.3M | |
| NC | - | E2E-X18MB230-M1TJ 0.3M | E2E-X18MC230-M1TJ 0.3M | |||
| NO+NC | - | E2E-X18MB3D30-M1TJ 0.3M | E2E-X18MC330-M1TJ 0.3M | |||
| 82 mm | NO | E2E-X18MB1TL30-M1TJ 0.3M | E2E-X18MB1DL30-M1TJ 0.3M | E2E-X18MC1L30-M1TJ 0.3M | ||
| NC | - | E2E-X18MB2L30-M1TJ 0.3M | E2E-X18MC2L30-M1TJ 0.3M | |||
| NO+NC | - | E2E-X18MB3DL30-M1TJ 0.3M | E2E-X18MC3L30-M1TJ 0.3M | |||
| M12
Connector |
58 mm | NO | E2E-X18MB1T30-M1 | E2E-X18MB1D30-M1 | E2E-X18MC130-M1 | |
| NC | - | E2E-X18MB230-M1 | E2E-X18MC230-M1 | |||
| NO+NC | - | E2E-X18MB3D30-M1 | E2E-X18MC330-M1 | |||
| 80 mm | NO | E2E-X18MB1TL30-M1 | E2E-X18MB1DL30-M1 | E2E-X18MC1L30-M1 | ||
| NC | - | E2E-X18MB2L30-M1 | E2E-X18MC2L30-M1 | |||
| NO+NC | - | E2E-X18MB3DL30-M1 | E2E-X18MC3L30-M1 | |||
*1. Models with 5-m cable length are also available (Example: E2E-X5MB1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X5MB1D12-R 2M/E2E-X5MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X5MB1D12-M1TJR 2M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X5MB1D12-R 2M/E2E-X5MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
number. (Example: E2E-X5MB1D12-M1TJR 2M)
*4. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
Accessories (Sold Separately)
e-jig (Mounting Sleeves)
A Mounting Bracket is not provided with the Sensor. It must be ordered separately as required.
| Appearance | Model | Applicable Sensor size | Applicable Sensor type |
|---|---|---|---|
 |
Y92E-J8S12 | M8 | Triple distance model
Shielded models Pre-wired models Standard body-sized |
| Y92E-J12S18 | M12 | ||
| Y92E-J18S30 | M18 |
Nut Sets
A Nut Set is included with the Sensor. Order a Nut Set when required, e.g., if you lose the nuts.
| Model | Applicable Sensors | Applicable
Sensor diameter |
Set contents |
|---|---|---|---|
| Y92E-NWM08-E2EN | E2E NEXT Series
Quadruple distance/Triple distance model (Shielded models) |
M8 | Clamping nuts (bronze with nickel plating): 2
Toothed washer (iron with zinc plating): 2 |
| Y92E-NWM12-E2EN | M12 | ||
| Y92E-NWM18-E2EN | M18 | Clamping nuts (bronze with nickel plating): 2
Toothed washer (iron with zinc plating): 1 |
|
| Y92E-NWM30-E2EN | M30 | ||
| Y92E-NWM08-E2E | E2E NEXT Series
Quadruple distance/Triple distance model (Unshielded models) Double distance/Single distance model (Shielded/Unshielded models) |
M8 | |
| Y92E-NWM12-E2E | M12 | ||
| Y92E-NWM18-E2E | M18 | ||
| Y92E-NWM30-E2E | M30 |
Sensor I/O Connectors (Sold Separately)
For details of the connector, refer to XS5 NEXT Series Round Oil-resistant Connectors (M12 Smartclick) on Catalog.
For details of the connector, refer to XS5 Series Round Water-resistant Connectors (M12 Smartclick) on Catalog.
For details of the connector, refer to XS3 Series Round Water-resistant Connectors (M8) on Catalog.
DC 2-wire (Triple distance model)
Model Number Legend
Note: 1. The purpose of this model number legend is to provide understanding of the meaning of specifications from the
model number.
2. Pin arrangements vary depending on the model. Refer to I/O Circuit Diagrams on Catalog for details.
model number.
2. Pin arrangements vary depending on the model. Refer to I/O Circuit Diagrams on Catalog for details.
DC 2-wire (Triple distance model)
Shielded Models *1
|
Size
(Sensing distance) |
Connection method | Polarity | Model | |
|---|---|---|---|---|
| Operation mode: NO | Operation mode: NC | |||
| M8
(3 mm) |
Pre-wired (2 m) *2 *3 | Yes | E2E-X3D18 2M | E2E-X3D28 2M |
| No | E2E-X3D18-T 2M | E2E-X3D28-T 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) *4 |
Yes | E2E-X3D18-M1TGJ 0.3M | E2E-X3D28-M1TGJ 0.3M | |
| No | E2E-X3D18-M1TGJ-T 0.3M | E2E-X3D28-M1TGJ-T 0.3M | ||
| M12
(7 mm) |
Pre-wired (2 m) *2 *3 | Yes | E2E-X7D112 2M | E2E-X7D212 2M |
| No | E2E-X7D112-T 2M | E2E-X7D212-T 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) *4 |
Yes | E2E-X7D112-M1TGJ 0.3M | E2E-X7D212-M1TGJ 0.3M | |
| No | E2E-X7D112-M1TGJ-T 0.3M | E2E-X7D212-M1TGJ-T 0.3M | ||
| M18
(11 mm) |
Pre-wired (2 m) *2 *3 | Yes | E2E-X11D118 2M | E2E-X11D218 2M |
| No | E2E-X11D118-T 2M | E2E-X11D218-T 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) *4 |
Yes | E2E-X11D118-M1TGJ 0.3M | E2E-X11D218-M1TGJ 0.3M | |
| No | E2E-X11D118-M1TGJ-T 0.3M | E2E-X11D218-M1TGJ-T 0.3M | ||
| M30
(20 mm) |
Pre-wired (2 m) *2 *3 | Yes | E2E-X20D130 2M | E2E-X20D230 2M |
| No | E2E-X20D130-T 2M | E2E-X20D230-T 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) *4 |
Yes | E2E-X20D130-M1TGJ 0.3M | E2E-X20D230-M1TGJ 0.3M | |
| No | E2E-X20D130-M1TGJ-T 0.3M | E2E-X20D230-M1TGJ-T 0.3M | ||
Unshielded Models
|
Size
(Sensing distance) |
Connection method | Polarity | Model | |
|---|---|---|---|---|
| Operation mode: NO | Operation mode: NC | |||
| M8
(6 mm) |
Pre-wired (2 m) *2 *3 | Yes | E2E-X6MD18 2M | E2E-X6MD28 2M |
| No | E2E-X6MD18-T 2M | E2E-X6MD28-T 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) *4 |
Yes | E2E-X6MD18-M1TGJ 0.3M | E2E-X6MD28-M1TGJ 0.3M | |
| No | E2E-X6MD18-M1TGJ-T 0.3M | E2E-X6MD28-M1TGJ-T 0.3M | ||
| M12
(10 mm) |
Pre-wired (2 m) *2 *3 | Yes | E2E-X10MD112 2M | E2E-X10MD212 2M |
| No | E2E-X10MD112-T 2M | E2E-X10MD212-T 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) *4 |
Yes | E2E-X10MD112-M1TGJ 0.3M | E2E-X10MD212-M1TGJ 0.3M | |
| No | E2E-X10MD112-M1TGJ-T 0.3M | E2E-X10MD212-M1TGJ-T 0.3M | ||
| M18
(20 mm) |
Pre-wired (2 m) *2 *3 | Yes | E2E-X20MD1L18 2M | E2E-X20MD2L18 2M |
| No | E2E-X20MD1L18-T 2M | E2E-X20MD2L18-T 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) *4 |
Yes | E2E-X20MD1L18-M1TGJ 0.3M | E2E-X20MD2L18-M1TGJ 0.3M | |
| No | E2E-X20MD1L18-M1TGJ-T 0.3M | E2E-X20MD2L18-M1TGJ-T 0.3M | ||
| M30
(40 mm) |
Pre-wired (2 m) *2 *3 | Yes | E2E-X40MD1L30 2M | E2E-X40MD2L30 2M |
| No | E2E-X40MD1L30-T 2M | E2E-X40MD2L30-T 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) *4 |
Yes | E2E-X40MD1L30-M1TGJ 0.3M | E2E-X40MD2L30-M1TGJ 0.3M | |
| No | E2E-X40MD1L30-M1TGJ-T 0.3M | E2E-X40MD2L30-M1TGJ-T 0.3M | ||
*1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
*2. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-X3D18 5M)
*3. Models with a 2-m or 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X3D18-R 2M/E2EX3D18-R 5M)
*4. Models with M12 Pre-wired Smartclick Connectors and robot (bending-resistant) cables are also available with "R" in
the model number. (Example: E2E-X3D18-M1TGJR 0.3M/E2E-X3D18-M1TGJR-T 0.3M)
*2. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-X3D18 5M)
*3. Models with a 2-m or 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X3D18-R 2M/E2EX3D18-R 5M)
*4. Models with M12 Pre-wired Smartclick Connectors and robot (bending-resistant) cables are also available with "R" in
the model number. (Example: E2E-X3D18-M1TGJR 0.3M/E2E-X3D18-M1TGJR-T 0.3M)
Accessories (Sold Separately)
e-jig (Mounting Sleeves)
A Mounting Bracket is not provided with the Sensor. It must be ordered separately as required.
| Appearance | Model | Applicable Sensor size | Applicable Sensor type |
|---|---|---|---|
 |
Y92E-J8S12 | M8 | Triple distance model
Shielded models Pre-wired models Standard body-sized |
| Y92E-J12S18 | M12 | ||
| Y92E-J18S30 | M18 |
Nut Sets
A Nut Set is included with the Sensor. Order a Nut Set when required, e.g., if you lose the nuts.
| Model | Applicable Sensors | Applicable Sensor
diameter |
Set contents |
|---|---|---|---|
| Y92E-NWM08-E2EN | E2E NEXT Series
Triple distance model (Shielded models) |
M8 | Clamping nuts (bronze with nickel plating): 2
Toothed washer (iron with zinc plating): 2 |
| Y92E-NWM12-E2EN | M12 | ||
| Y92E-NWM18-E2EN | M18 | Clamping nuts (bronze with nickel plating): 2
Toothed washer (iron with zinc plating): 1 |
|
| Y92E-NWM30-E2EN | M30 | ||
| Y92E-NWM08-E2E | E2E NEXT Series
Triple distance model (Unshielded models) |
M8 | |
| Y92E-NWM12-E2E | M12 | ||
| Y92E-NWM18-E2E | M18 | ||
| Y92E-NWM30-E2E | M30 |
Sensor I/O Connectors (Sold Separately)
For details of the connector, refer to XS5 NEXT Series Round Oil-resistant Connectors (M12 Smartclick) on Catalog.
For details of the connector, refer to XS5 Series Round Water-resistant Connectors (M12 Smartclick) on Catalog.
DC 2-wire (Standard/ Double/ Single distance model)
Model Number Legend
Note: 1. The purpose of this model number legend is to provide understanding of the meaning of specifications from the
model number.
2. Pin arrangements vary depending on the model. Refer to I/O Circuit Diagrams on page 82 for details.
model number.
2. Pin arrangements vary depending on the model. Refer to I/O Circuit Diagrams on page 82 for details.
DC 2-wire (Standard model)
Shielded Models
| Size
(Sensing distance) |
Connection method | Body
size |
Polarity | Model | |
|---|---|---|---|---|---|
| Operation mode: NO | Operation mode: NC | ||||
| M8
(2mm) |
Pre-wired (2 m) | 38 mm | Yes | E2E-X2D1-N 2M *1 *2 | E2E-X2D2-N 2M *1 *2 |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
38 mm | Yes | E2E-X2D1-M1TGJ 0.3M *4 *5 | --- | |
| M12 Connector | 43 mm | Yes | E2E-X2D1-M1G *5 | E2E-X2D2-M1G *5 | |
| M8 (4-pin) Connector | 39 mm | Yes | E2E-X2D1-M3G | E2E-X2D2-M3G | |
| M12
(3 mm) |
Pre-wired (2 m) | 47 mm | Yes | E2E-X3D1-N 2M *1 *2 *3 | E2E-X3D2-N 2M *1 *2 *3 |
| 69 mm | E2E-X3D1L 2M *1 *3 | E2E-X3D2L 2M *1 | |||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
47 mm | Yes | E2E-X3D1-M1TGJ 0.3M *4 *5 | --- | |
| No | E2E-X3D1-M1TJ-T 0.3M | --- | |||
| M12 Pre-wired
Standard Connector (0.3 m) |
47 mm | No | --- | E2E-X3D2-M1GJ-T 0.3M | |
| M12 Connector | 48 mm | Yes | E2E-X3D1-M1G *3 *5 | E2E-X3D2-M1G *5 | |
| M18
(7 mm) |
Pre-wired (2 m) | 55 mm | Yes | E2E-X7D1-N 2M *1 *2 *3 | E2E-X7D2-N 2M *1 *2 *3 |
| 77 mm | E2E-X7D1L 2M *1 *3 | E2E-X7D2L 2M *1 | |||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
55 mm | Yes | E2E-X7D1-M1TGJ 0.3M *4 *5 | --- | |
| No | E2E-X7D1-M1TJ-T 0.3M | --- | |||
| M12 Pre-wired
Standard Connector (0.3 m) |
55 mm | No | --- | E2E-X7D2-M1GJ-T 0.3M | |
| M12 Connector | 53 mm | Yes | E2E-X7D1-M1G *3 *5 | E2E-X7D2-M1G *5 | |
| M30
(10 mm) |
Pre-wired (2 m) | 60 mm | Yes | E2E-X10D1-N 2M *1 *2 | E2E-X10D2-N 2M *1 *3 |
| 82 mm | E2E-X10D1L 2M *1 *3 | E2E-X10D2L 2M *1 | |||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
60 mm | Yes | E2E-X10D1-M1TGJ 0.3M *3 *4 *5 | --- | |
| No | E2E-X10D1-M1TJ-T 0.3M | --- | |||
| M12 Connector | 58 mm | Yes | E2E-X10D1-M1G *3 *5 | E2E-X10D2-M1G *5 | |
Unshielded Models
| Size
(Sensing distance) |
Connection method | Body
size |
Polarity | Model | |
|---|---|---|---|---|---|
| Operation mode: NO | Operation mode: NC | ||||
| M8
(4 mm) |
Pre-wired (2 m) | 38 mm | Yes | E2E-X4MD1 2M *1 *2 | E2E-X4MD2 2M *1 *2 |
| M12 Connector | 43 mm | Yes | E2E-X4MD1-M1G *5 | E2E-X4MD2-M1G *5 | |
| M8 (4-pin) Connector | 39 mm | Yes | E2E-X4MD1-M3G | E2E-X4MD2-M3G | |
| M12
(8 mm) |
Pre-wired (2 m) | 47 mm | Yes | E2E-X8MD1 2M *1 *2 | E2E-X8MD2 2M *1 *3 |
| 69 mm | E2E-X8MD1L 2M *1 *3 | E2E-X8MD2L 2M *1 | |||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
47 mm | Yes | E2E-X8MD1-M1TGJ 0.3M *4 *5 | --- | |
| M12 Connector | 48 mm | Yes | E2E-X8MD1-M1G *3 *5 | E2E-X8MD2-M1G *5 | |
| M18
(14 mm) |
Pre-wired (2 m) | 55 mm | Yes | E2E-X14MD1 2M *1 *2 *3 | E2E-X14MD2 2M *1 *2 *3 |
| 77 mm | E2E-X14MD1L 2M *1 *3 | E2E-X14MD2L 2M | |||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
55 mm | Yes | E2E-X14MD1-M1TGJ 0.3M *4 *5 | --- | |
| M12 Connector | 53 mm | Yes | E2E-X14MD1-M1G *3 *5 | E2E-X14MD2-M1G *5 | |
| M30
(20 mm) |
Pre-wired (2 m) | 60 mm | Yes | E2E-X20MD1 2M *1 *2 *3 | E2E-X20MD2 2M *1 *3 |
| 82 mm | E2E-X20MD1L 2M *1 *3 | E2E-X20MD2L 2M *1 | |||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
60 mm | Yes | E2E-X20MD1-M1TGJ 0.3M *4 *5 | --- | |
| M12 Connector | 58 mm | Yes | E2E-X20MD1-M1G *3 *5 | E2E-X20MD2-M1G *5 | |
*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-X2D1-N 5M)
*2. Models with a 2-m or 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X2D1-R 2M/E2EX2D1-R 5M)
*3. Models with different frequencies are also available. The model number is E2E-X[]D[]5. (Example: E2E-X3D15-N 2M/
E2E-X3D15L 2M)
*4. M12 Pre-wired Standard Connector Models with a 0.3-m cable are also available. The model numbers of models with
IEC pin arrangement include "-M1GJ". (Example: E2E-X2D1-M1GJ 0.3M)
The model numbers of models with old pin arrangement include "-M1J". (Example: E2E-X2D1-M1J 0.3M)
Models with old pin arrangement of M12 Pre-wired Smartclick Connector Models are also available. The model numbers
include "-M1TJ". (Example: E2E-X3D1-M1TJ 0.3M)
*5. Models with old pin arrangement are also available. The model number is E2E-X[]D[]-M1. (Example: E2E-X2D1-M1)
*2. Models with a 2-m or 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X2D1-R 2M/E2EX2D1-R 5M)
*3. Models with different frequencies are also available. The model number is E2E-X[]D[]5. (Example: E2E-X3D15-N 2M/
E2E-X3D15L 2M)
*4. M12 Pre-wired Standard Connector Models with a 0.3-m cable are also available. The model numbers of models with
IEC pin arrangement include "-M1GJ". (Example: E2E-X2D1-M1GJ 0.3M)
The model numbers of models with old pin arrangement include "-M1J". (Example: E2E-X2D1-M1J 0.3M)
Models with old pin arrangement of M12 Pre-wired Smartclick Connector Models are also available. The model numbers
include "-M1TJ". (Example: E2E-X3D1-M1TJ 0.3M)
*5. Models with old pin arrangement are also available. The model number is E2E-X[]D[]-M1. (Example: E2E-X2D1-M1)
DC 2-wire (Double distance model)
Shielded Models
| Size
(Sensing distance) |
Connection method | Body size | Polarity | Model | |
|---|---|---|---|---|---|
| Operation mode: NO | Operation mode: NC | ||||
| M12
(4 mm) |
Pre-wired (2 m) | 47 mm | No | E2E-X4D1-T 2M *1 | E2E-X4D2-T 2M *1 |
| M18
(8 mm) |
Pre-wired (2 m) | 55 mm | No | E2E-X8D1-T 2M *1 | E2E-X8D2-T 2M *1 |
| M30
(15 mm) |
Pre-wired (2 m) | 60 mm | No | E2E-X15D1-T 2M *1 | E2E-X15D2-T 2M *1 |
Unshielded Models
| Size
(Sensing distance) |
Connection method | Body size | Polarity | Model | |
|---|---|---|---|---|---|
| Operation mode: NO | Operation mode: NC | ||||
| M18
(16 mm) |
Pre-wired (2 m) | 77 mm | No | E2E-X16MD1L-T 2M *1 | E2E-X16MD2L-T 2M |
| M30
(30 mm) |
Pre-wired (2 m) | 82 mm | No | E2E-X30MD1L-T 2M *1 | E2E-X30MD2L-T 2M *1 |
*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-X4D1-T 5M)
DC 2-wire (Single distance model)
Shielded Models
| Size
(Sensing distance) |
Connection method | Polarity | Model | |
|---|---|---|---|---|
| Operation mode: NO | Operation mode: NC | |||
| M8
(1.5 mm) |
Pre-wired (2 m) *2 *3 | Yes | E2E-X1R5D1-N 2M | E2E-X1R5D2-N 2M |
| No | E2E-X1R5D1-T-N 2M | E2E-X1R5D2-T-N 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) *4 |
Yes | E2E-X1R5D1-M1TGJ 0.3M | E2E-X1R5D2-M1TGJ 0.3M | |
| No | E2E-X1R5D1-M1TGJ-T 0.3M | E2E-X1R5D2-M1TGJ-T 0.3M | ||
| M12
(2.5 mm) |
Pre-wired (2 m) *2 *3 | Yes | E2E-X2R5D1-N 2M | E2E-X2R5D2-N 2M |
| No | E2E-X2R5D1-T-N 2M | E2E-X2R5D2-T-N 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) *4 |
Yes | E2E-X2R5D1-M1TGJ 0.3M | E2E-X2R5D2-M1TGJ 0.3M | |
| No | E2E-X2R5D1-M1TGJ-T 0.3M | E2E-X2R5D2-M1TGJ-T 0.3M | ||
| M18
(5 mm) |
Pre-wired (2 m) *2 *3 | Yes | E2E-X5D1-N 2M | E2E-X5D2-N 2M |
| No | E2E-X5D1-T-N 2M | E2E-X5D2-T-N 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) *4 |
Yes | E2E-X5D1-M1TGJ 0.3M | E2E-X5D2-M1TGJ 0.3M | |
| No | E2E-X5D1-M1TGJ-T 0.3M | E2E-X5D2-M1TGJ-T 0.3M | ||
*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-X1R5D1-N 5M)
*2. Models with a 2-m or 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X1R5D1-R-N 2M/E2E-X1R5D1-R-N 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with "R" in the model
number. (Example: E2E-X1R5D1-M1TGJR 0.3M/E2E-X1R5D1-M1TGJR-T 0.3M)
*2. Models with a 2-m or 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
E2E-X1R5D1-R-N 2M/E2E-X1R5D1-R-N 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with "R" in the model
number. (Example: E2E-X1R5D1-M1TGJR 0.3M/E2E-X1R5D1-M1TGJR-T 0.3M)
Accessories (Sold Separately)
Nut Sets
A Nut Set is included with the Sensor. Order a Nut Set when required, e.g., if you lose the nuts.
| Model | Applicable Sensors | Applicable
Sensor diameter |
Set contents |
|---|---|---|---|
| Y92E-NWM08-E2E | E2E NEXT Series
Standard model (Shielded/Unshielded Models) Single distance model (Shielded Models) |
M8 | Clamping nuts
(bronze with nickel plating): 2 Toothed washer (iron with zinc plating): 1 |
| Y92E-NWM12-E2E | E2E NEXT Series
Standard model (Shielded/Unshielded Models) Double distance model (Shielded Models) Single distance model (Shielded Models) |
M12 | |
| Y92E-NWM18-E2E | E2E NEXT Series
Standard model (Shielded/Unshielded Models) Double distance model (Shielded/Unshielded Models) Single distance model (Shielded Models) |
M18 | |
| Y92E-NWM30-E2E | E2E NEXT Series
Standard model (Shielded/Unshielded Models) Double distance model (Shielded/Unshielded Models) |
M30 |
Sensor I/O Connectors (Sold Separately)
For details of the connector, refer to XS5 NEXT Series Round Oil-resistant Connectors (M12 Smartclick) on Catalog.
For details of the connector, refer to XS5 Series Round Water-resistant Connectors (M12 Smartclick) on Catalog.
For details of the connector, refer to XS3 Series Round Water-resistant Connectors (M8) on Catalog.
last update: January 5, 2023
Top of page
Products
Menu
About Us
Menu
Solutions
Menu
Privacy
Menu
Services
Menu
Resources
Menu
© Copyright OMRON Corporation 2000-2020. All Rights Reserved.
