E3AS Series

Distance-settable Photoelectric Sensor

E3AS Series

E3AS Series changes the “way of using” reflective photoelectric sensors

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

E3AS-HL

Sensors

Pre-wired Models/Pre-wired Connector Models

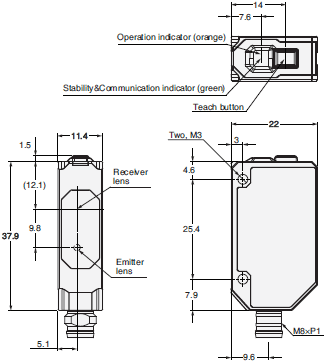

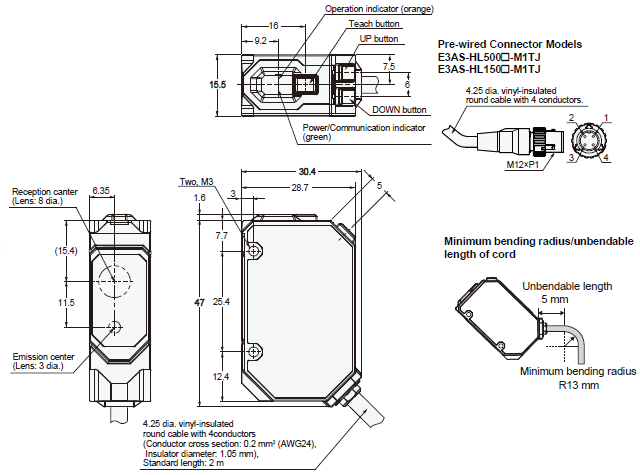

E3AS-HL500[] (-M1TJ)
E3AS-HL150[] (-M1TJ)

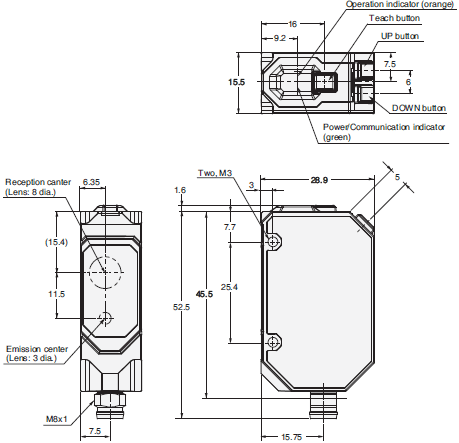

E3AS Series Dimensions 4

Connector Models

E3AS-HL500[] M3
E3AS-HL150[] M3

E3AS Series Dimensions 5

E3AS-F

Sensors

Pre-wired Models/Pre-wired Connector Models

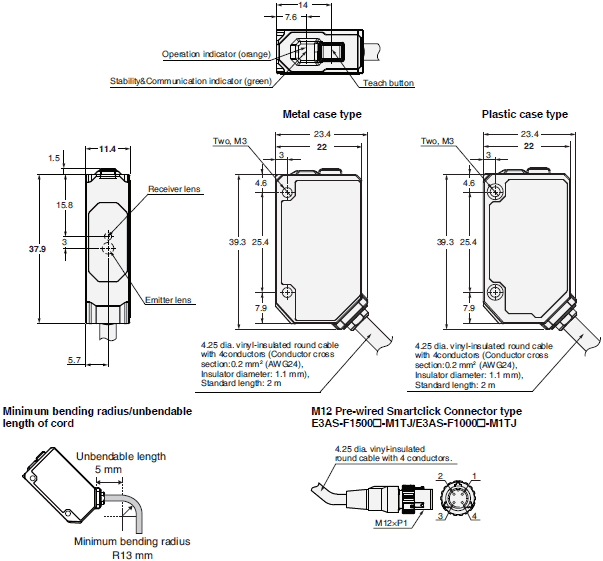

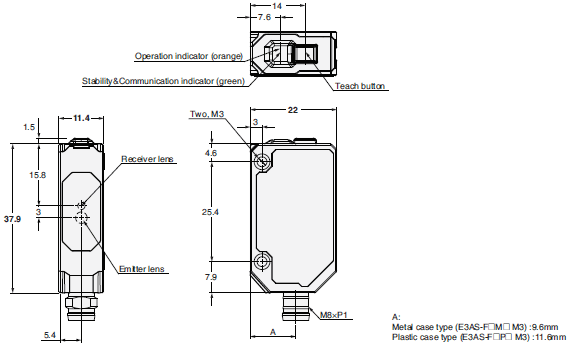

E3AS-F1500[] (-M1TJ)
E3AS-F1000[] (-M1TJ)

E3AS Series Dimensions 8

Connector Models

E3AS-F1500[] M3
E3AS-F1000[] M3

E3AS Series Dimensions 9

E3AS-L

Sensors

Pre-wired Models/Pre-wired Connector Models

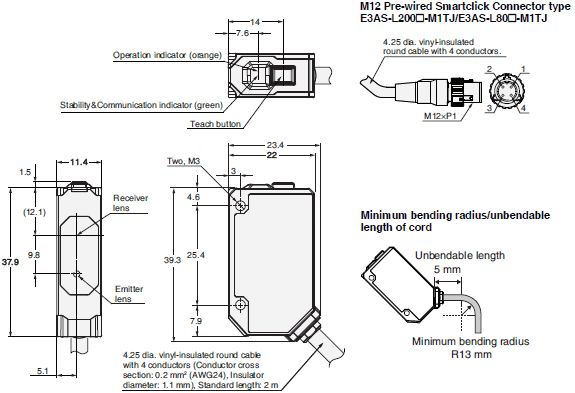

E3AS-L200[] (-M1TJ)
E3AS-L80[] (-M1TJ)

E3AS Series Dimensions 12

Connector Models

E3AS-L200[] M3
E3AS-L80[] M3

E3AS Series Dimensions 13

Accessories (Sold Separately)

Mounting Brackets

For E3AS-HL models

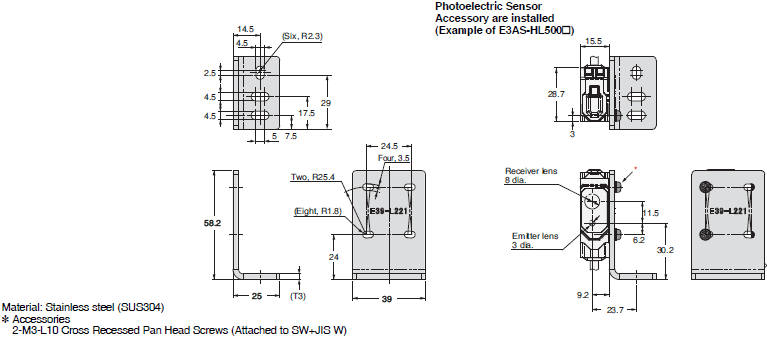

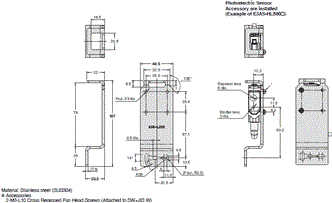

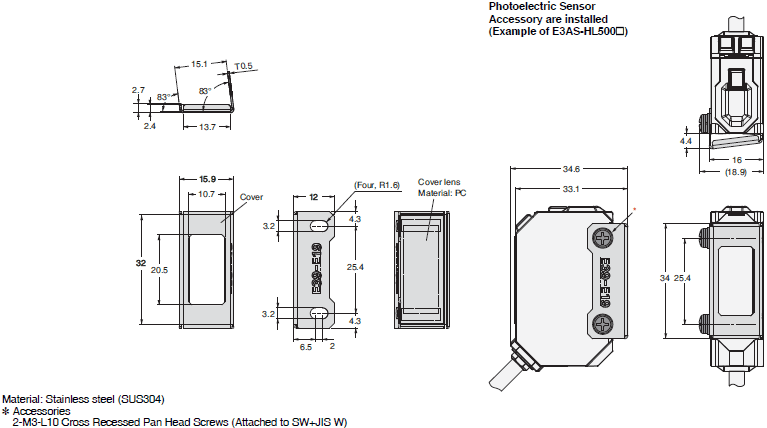

E39-L221

E3AS Series Dimensions 17

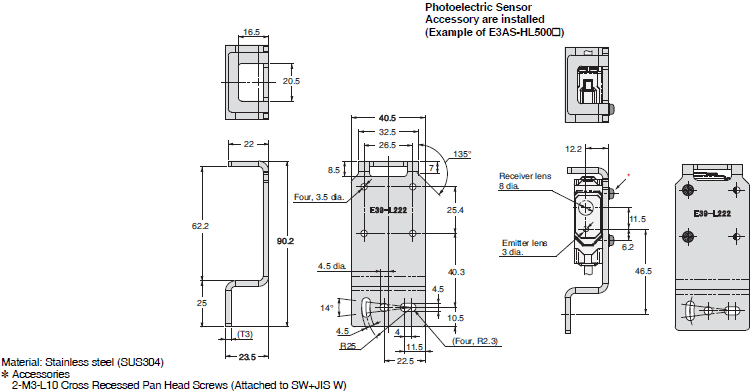

E39-L222

E3AS Series Dimensions 18

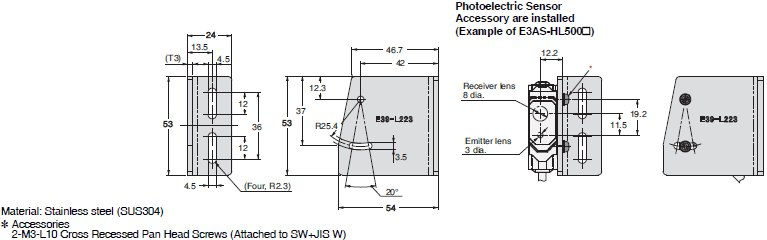

E39-L223

E3AS Series Dimensions 19

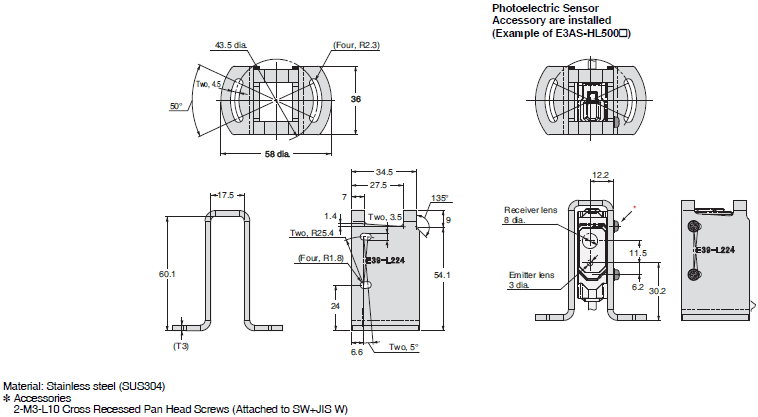

E39-L224

E3AS Series Dimensions 20

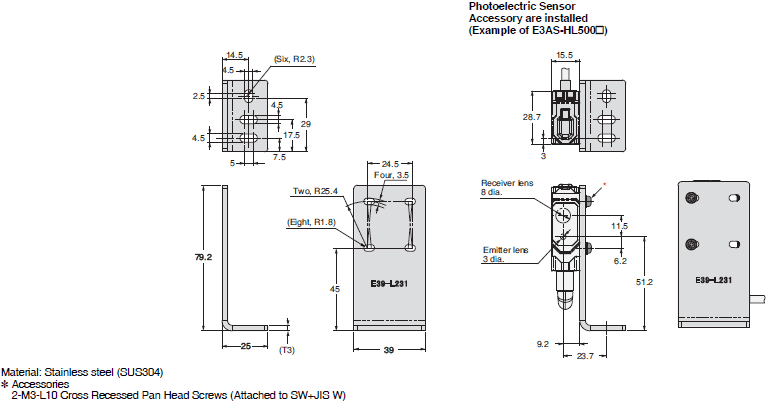

E39-L231

E3AS Series Dimensions 21

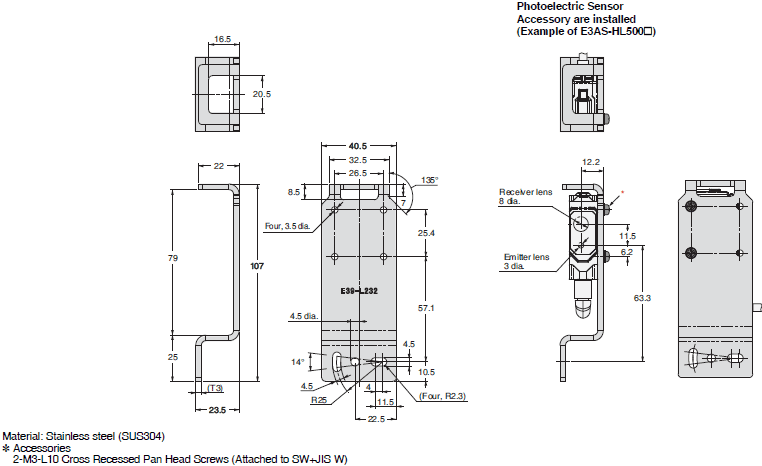

E39-L232

E3AS Series Dimensions 22

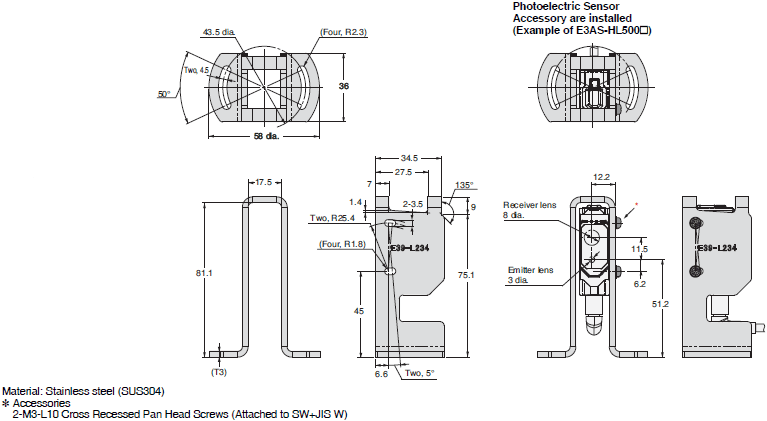

E39-L234

E3AS Series Dimensions 23

E39-E19

E3AS Series Dimensions 24

For E3AS-F/L models

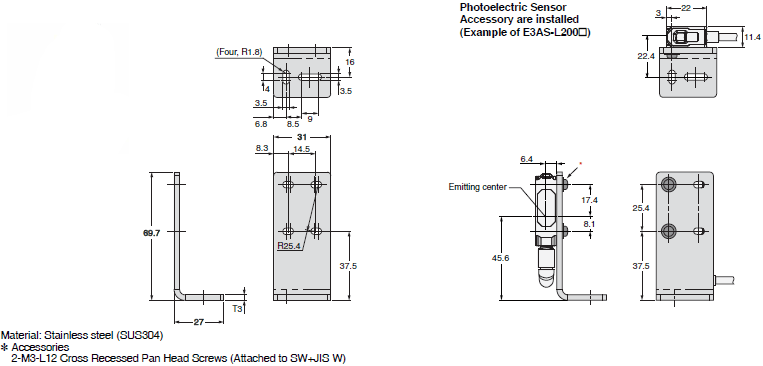

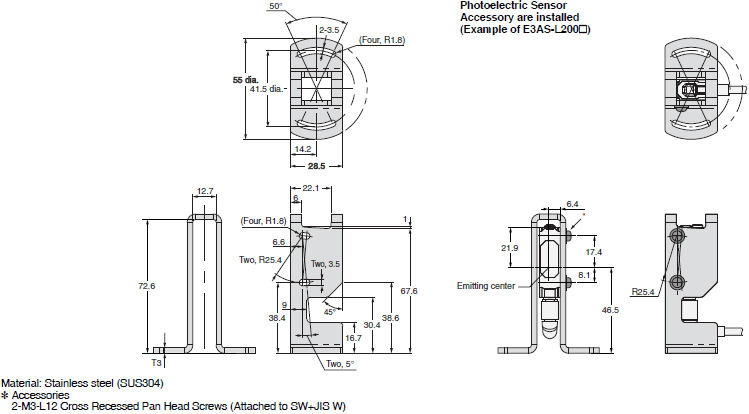

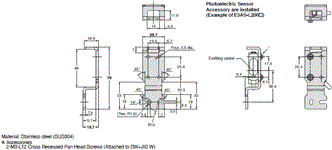

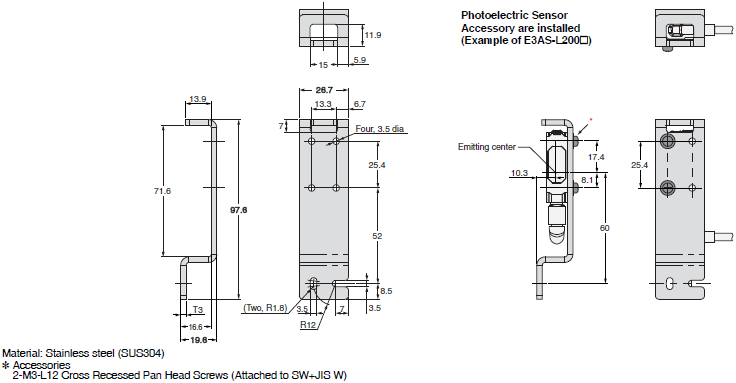

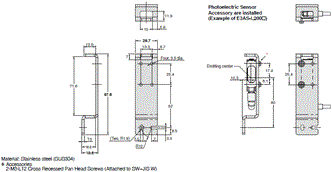

E39-L201

E3AS Series Dimensions 26

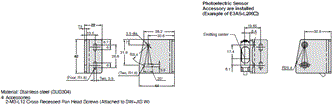

E39-L202

E3AS Series Dimensions 27

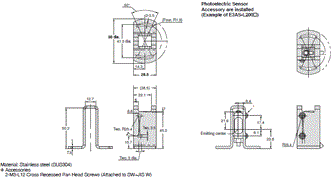

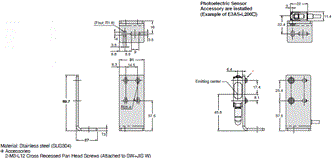

E39-L203

E3AS Series Dimensions 28

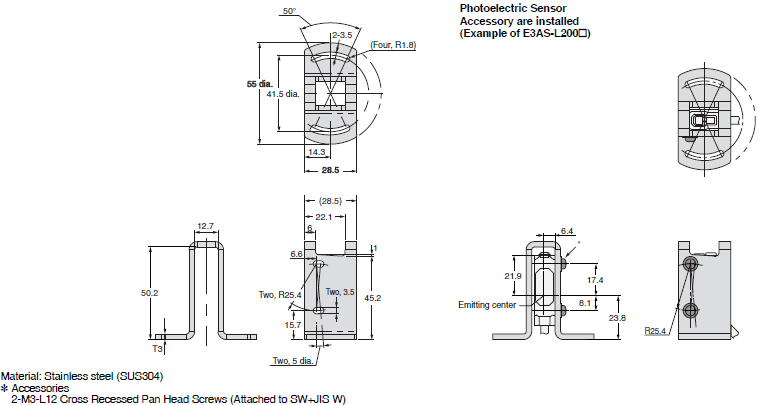

E39-L204

E3AS Series Dimensions 29

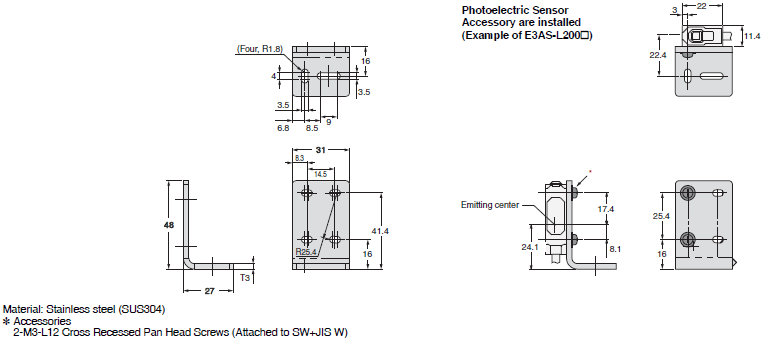

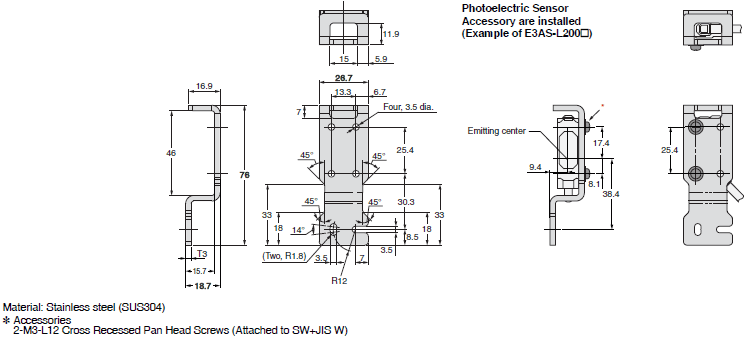

E39-L211

E3AS Series Dimensions 30

E39-L212

E3AS Series Dimensions 31

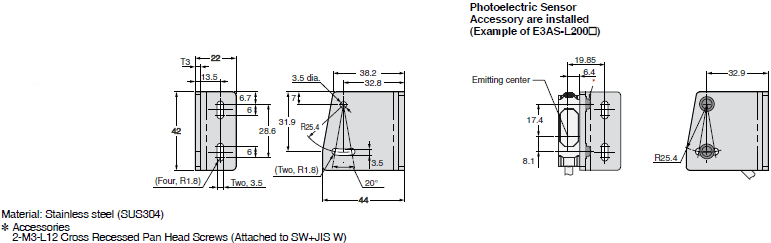

E39-L214

E3AS Series Dimensions 32

Common to E3AS series

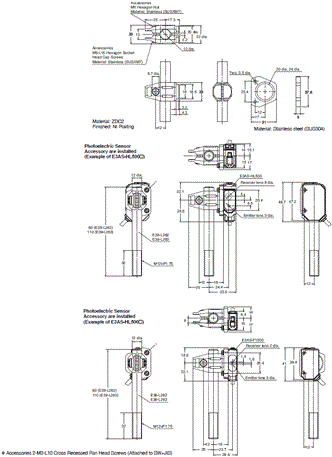

Flexible Mounting Bracket

E39-L261

E3AS Series Dimensions 34

Post 50 mm

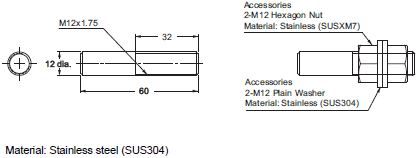

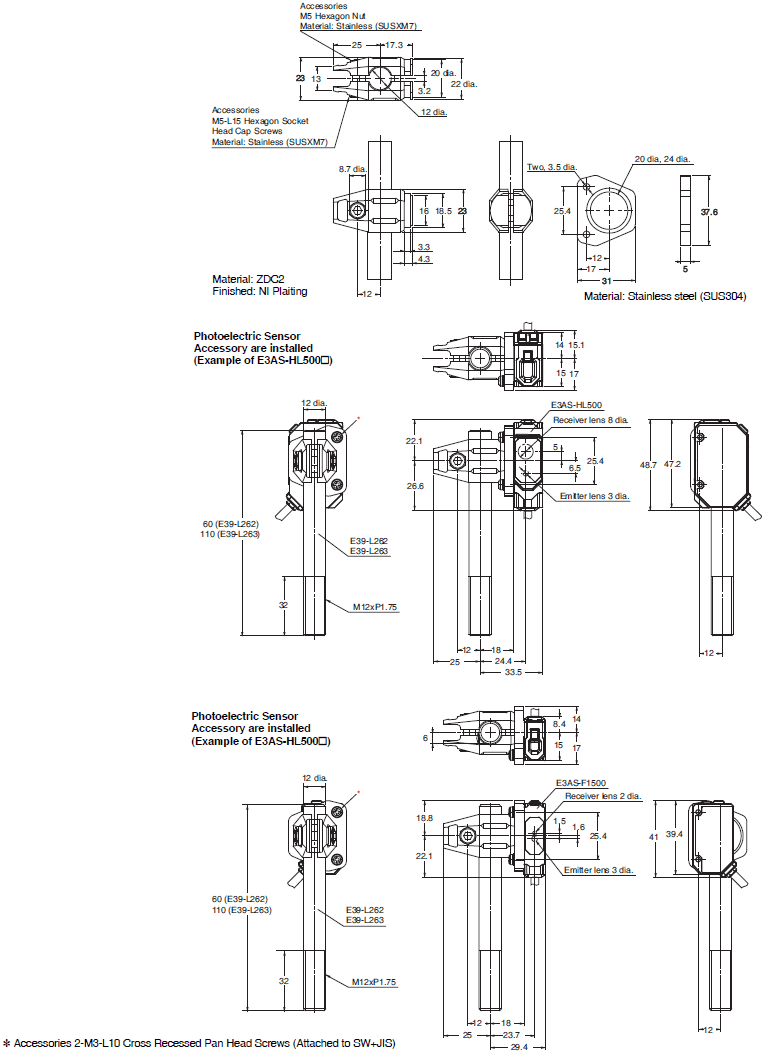

E39-L262

E3AS Series Dimensions 35

Post 100 mm

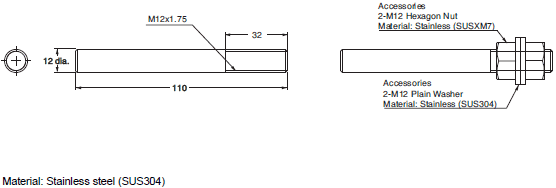

E39-L263

E3AS Series Dimensions 36

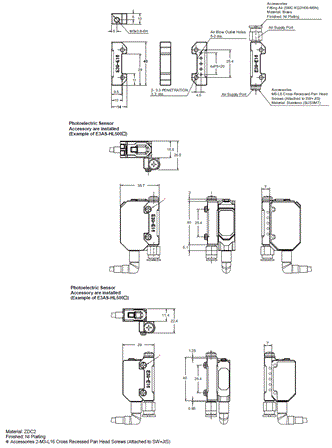

Air Blow Unit

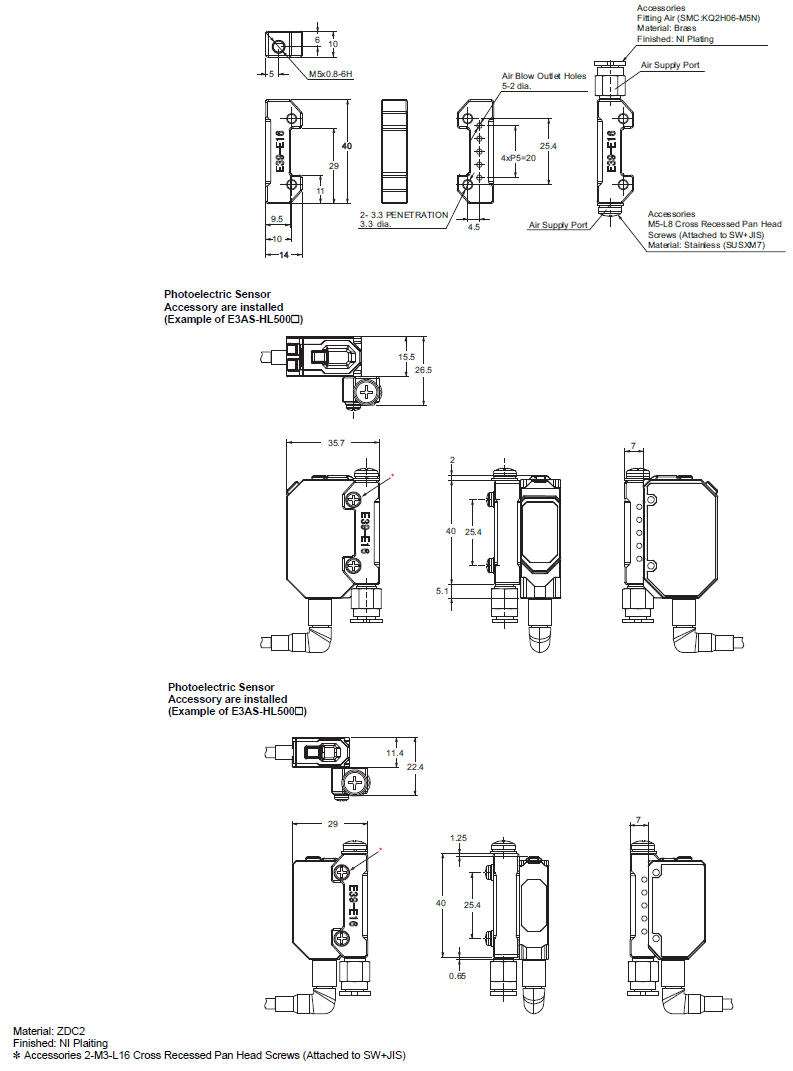

E39-E16

E3AS Series Dimensions 37
