E3S-DB

Transparent Object Detection Photoelectric Sensor

E3S-DB

Superb Detection of Many Types of Transparent Objects

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

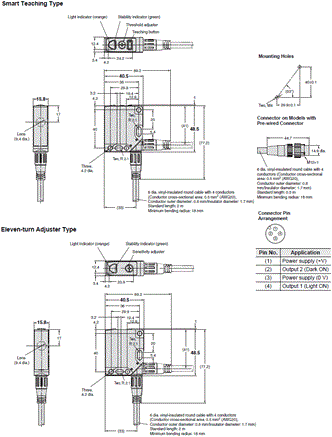

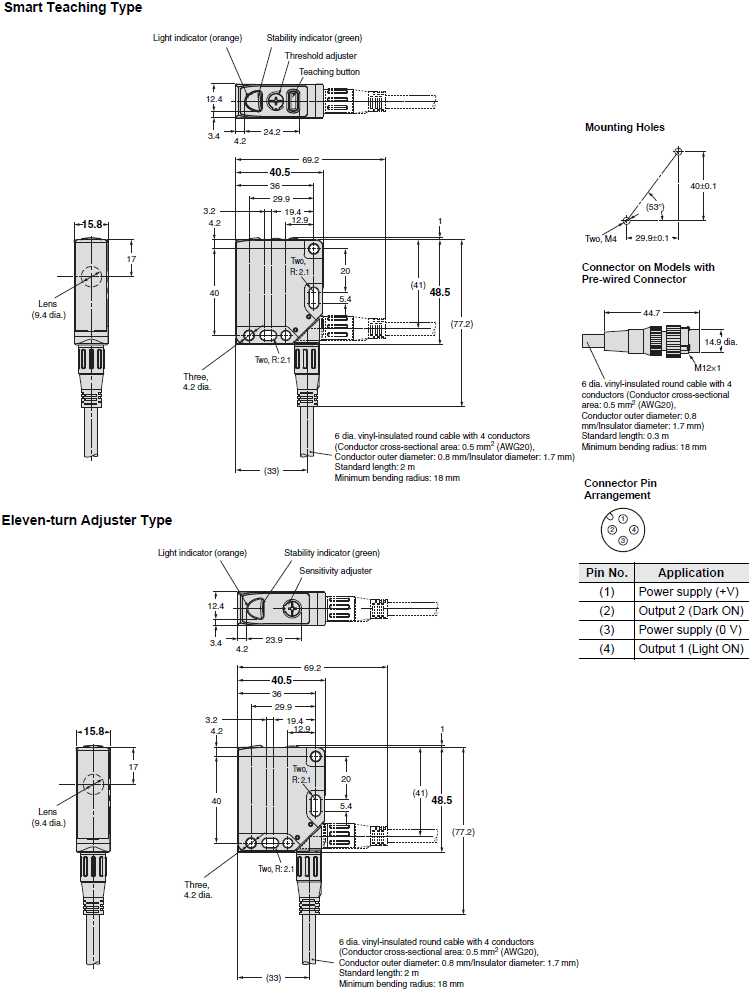

Pre-wired Models
E3S-DBN1[](T)
E3S-DBP1[](T)
Models with Pre-wired Connector
E3S-DBN3[](T)
E3S-DBP3[](T)

E3S-DB Dimensions 3

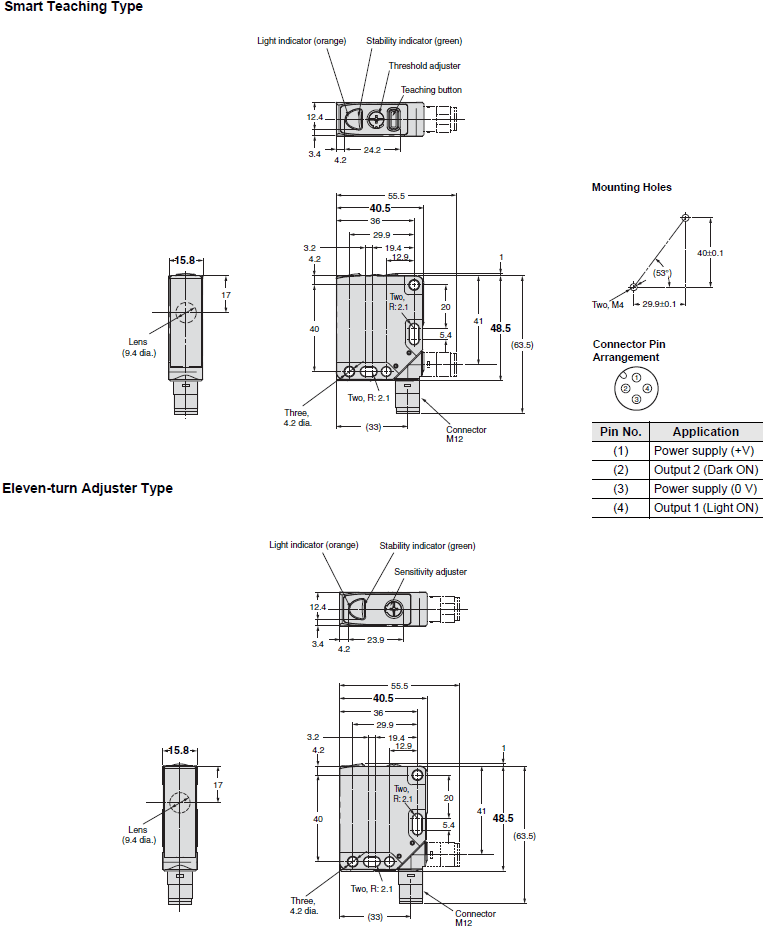

Models with M12 Connector
E3S-DBN2[](T)
E3S-DBP2[](T)

E3S-DB Dimensions 4

Accessories (Sold Separately)

Reflector

E39-R1S/E39-R1K*

E3S-DB Dimensions 7

Materials: Reflective surface: Acrylic, Rear surface: ABS
* E39-R1K only
   Coating on reflective surface

Special Polarizing Reflector

E39-RP1

E3S-DB Dimensions 9

Materials: Reflective surface: Acrylic, Rear surface: ABS

Reflector

E39-R21

E3S-DB Dimensions 11

Materials: Reflective surface: Methacrylic resin (PMMA),
Rear surface: Polybutylene terephthalate (PBT)

E39-R8

E3S-DB Dimensions 12

Materials: Reflective surface: Acrylic, Rear surface: ABS

E39-RS10

E3S-DB Dimensions 13

Materials: Reflective surface: Methacrylic resin (PMMA)

E39-RS11

E3S-DB Dimensions 14

Materials: Reflective surface: Methacrylic resin (PMMA)

Mounting Brackets

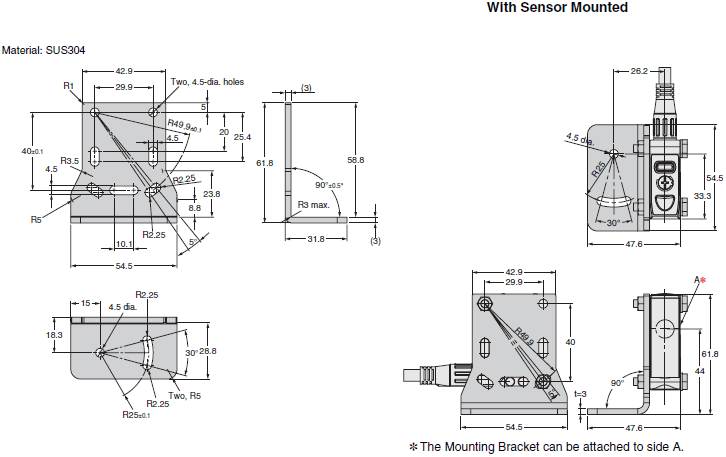

E39-L192

E3S-DB Dimensions 16

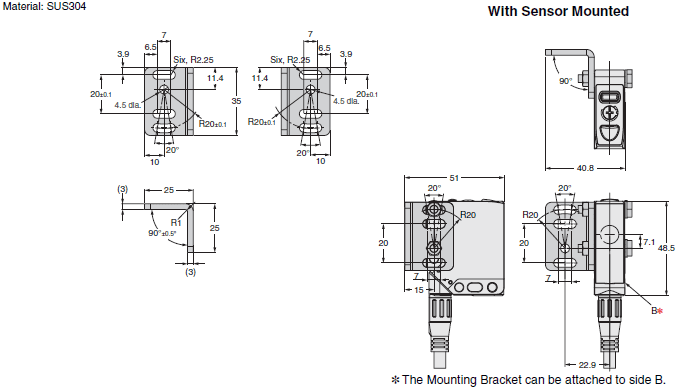

E39-L193

E3S-DB Dimensions 17
