K8AK-AW

Single-phase Overcurrent/Undercurrent Relay

K8AK-AW

Ideal for Current Monitoring for Industrial Facilities and Equipment. Monitor for overcurrents and undercurrents simultaneously.

Single-phase Current Relays

K8AK-AW1
K8AK-AW2
K8AK-AW3

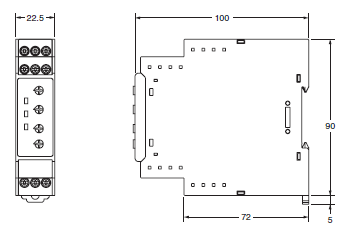

K8AK-AW Dimensions 1

OMRON CT

K8AC-CT200L

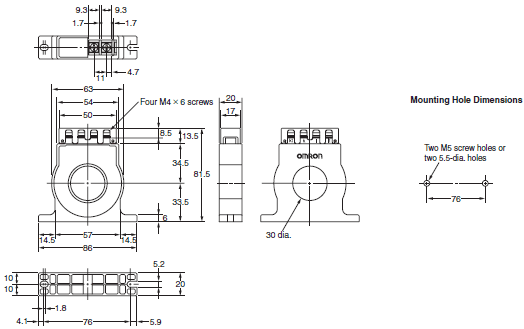

K8AK-AW Dimensions 2

Note: The OMRON Current Transformer (CT) is designed to be used with the K8AK-AW3.
          Use terminals k and l for connections.
          (Terminals kt and lt are not used.)

Optional Parts for DIN Track Mounting

DIN Tracks

PFP-100N
PFP-50N

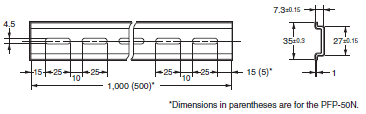

K8AK-AW Dimensions 5
