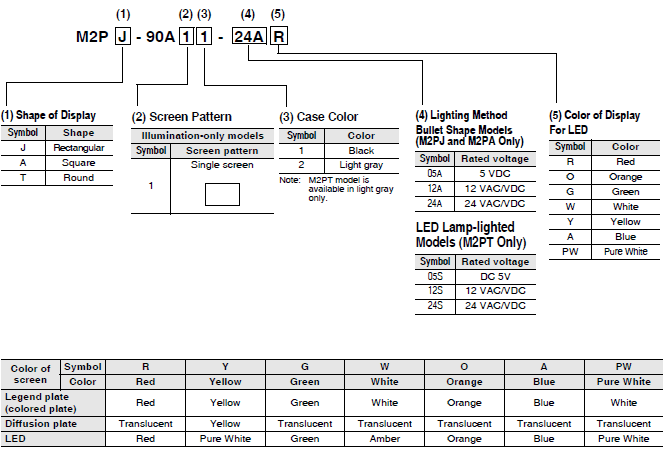

The model numbers used to order sets of Units are given in the following tables. One set comprises the Display, Lamp, and Socket.
Australia
Phone: 1300 766 766
M2P (Super Luminosity Type)
Indicator (Square) Ultra Bright LED Type
Large Square-bodied Indicators. New models added with Ultra LEDs.
Related Contents
last update: October 15, 2013
Ordering as a Set
M2PJ (Rectangular) Single-screen Models
| Case color | Black | Light gray | |
|---|---|---|---|
| Lighting method | |||
| Bullet Shape LEDs
R, O, G, W, Y, A or PW |
5 VDC | M2PJ-90A11-05A(1) | M2PJ-90A12-05A(1) |
| 12 VAC/DC | M2PJ-90A11-12A(1) | M2PJ-90A12-12A(1) | |
| 24 VAC/DC | M2PJ-90A11-24A(1) | M2PJ-90A12-24A(1) | |
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.
M2PA (Square) Single-screen Models
| Case color | Black | Light gray | |
|---|---|---|---|
| Lighting method | |||
| Bullet Shape LEDs
R, O, G, W, Y, A or PW |
5 VDC | M2PA-90A11-05A(1) | M2PA-90A12-05A(1) |
| 12 VAC/DC | M2PA-90A11-12A(1) | M2PA-90A12-12A(1) | |
| 24 VAC/DC | M2PA-90A11-24A(1) | M2PA-90A12-24A(1) | |
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.
M2PT (Round) Single-screen Models
| Case color | Light gray | Lamp holder color symbol | |
|---|---|---|---|
| Lighting method | |||
| LED lamp | 5 VDC | M2PT-90A12-05S(1) | R, O, G, W, Y, A or PW |
| 12 VAC/DC | M2PT-90A12-12S(1) | ||
| 24 VAC/DC | M2PT-90A12-24S(1) | ||
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.
Accessories, Parts, and Tools
The accessories, parts, and tools are the same as those for the A3P Lighted Pushbutton Switches. Refer to the A3P datasheet.
