M2P (Super Luminosity Type)

Indicator (Square) Ultra Bright LED Type

M2P (Super Luminosity Type)

Large Square-bodied Indicators. New models added with Ultra LEDs.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

(Unit: mm)

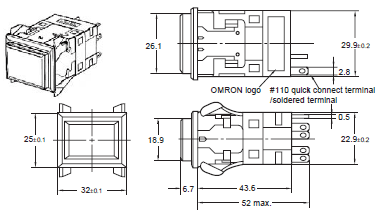

M2PJ (Rectangular) Models

M2P (Super Luminosity Type) Dimensions 1

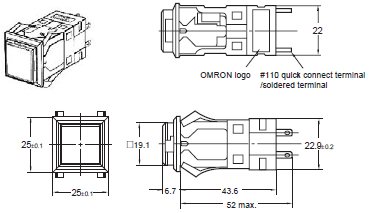

M2PA (Square) Models

M2P (Super Luminosity Type) Dimensions 2

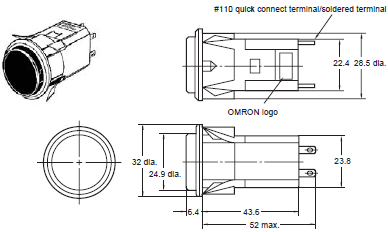

M2PT (Round) Models

M2P (Super Luminosity Type) Dimensions 3

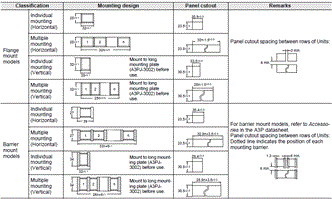

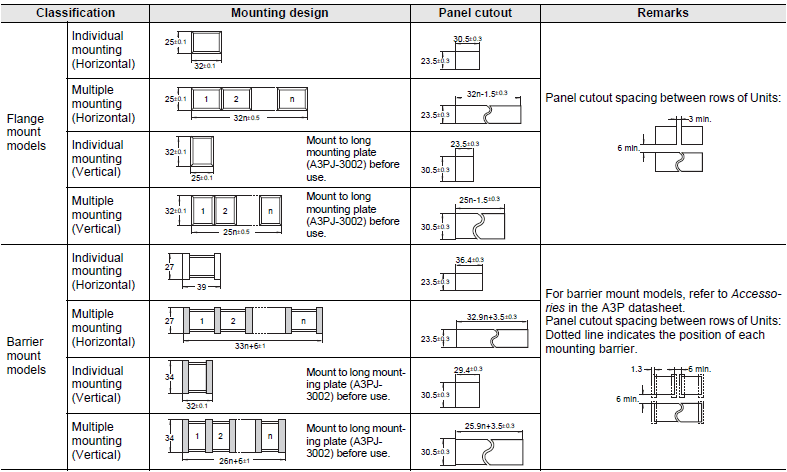

Panel Cutout

M2PJ (Rectangular) Models

M2P (Super Luminosity Type) Dimensions 5

Note:
1. n: Number of Units
2. Recommended panel thickness: 1 to 5 mm
3. Mount the panel before mounting the Switch Guard.
4. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the coating.

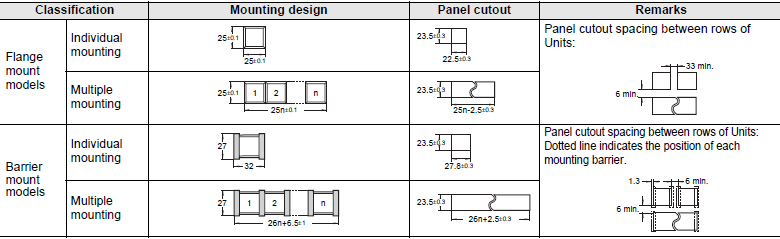

M2PA (Square) Models

M2P (Super Luminosity Type) Dimensions 6

Note:
1. n: Number of Units
2. Recommended panel thickness: 1 to 5 mm
3. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the coating.

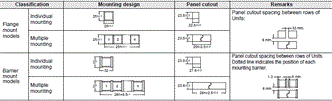

M2PT (Round) Models

Note:
1. Recommended panel thickness: 1 to 5 mm
2. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the coating

M2P (Super Luminosity Type) Dimensions 7
