E3X-SD / NA
Simple Fiber Amplifier Unit
Simple and Affordable Fiber Amplifier Units
Related Contents
Application Solutions
last update: January 4, 2024
(Unit: mm)
Fiber Amplifier Units
Amplifier Units with Cables

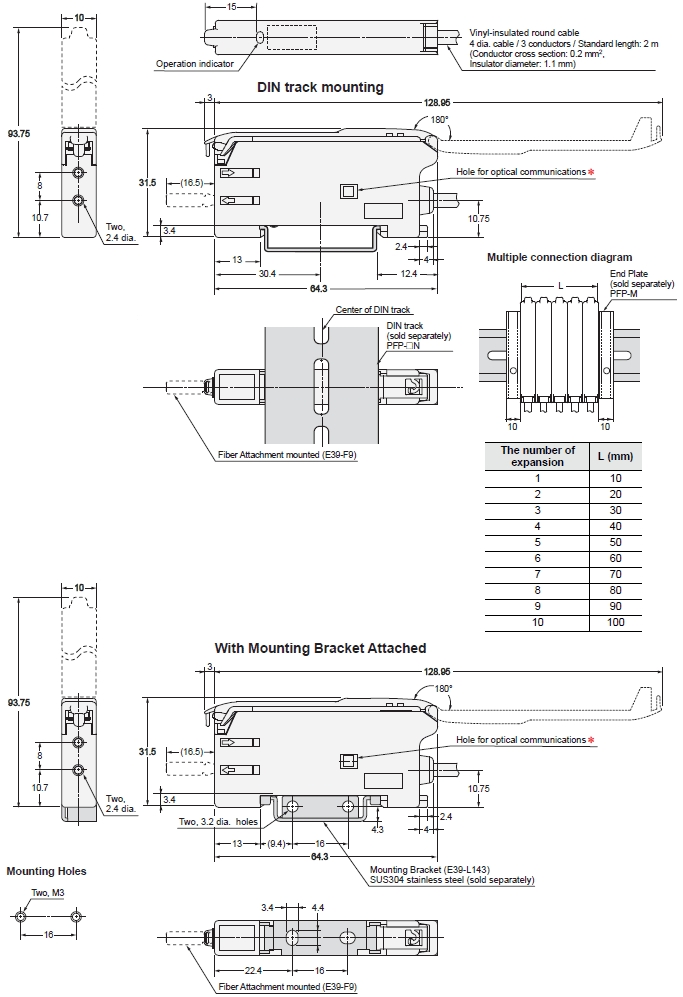

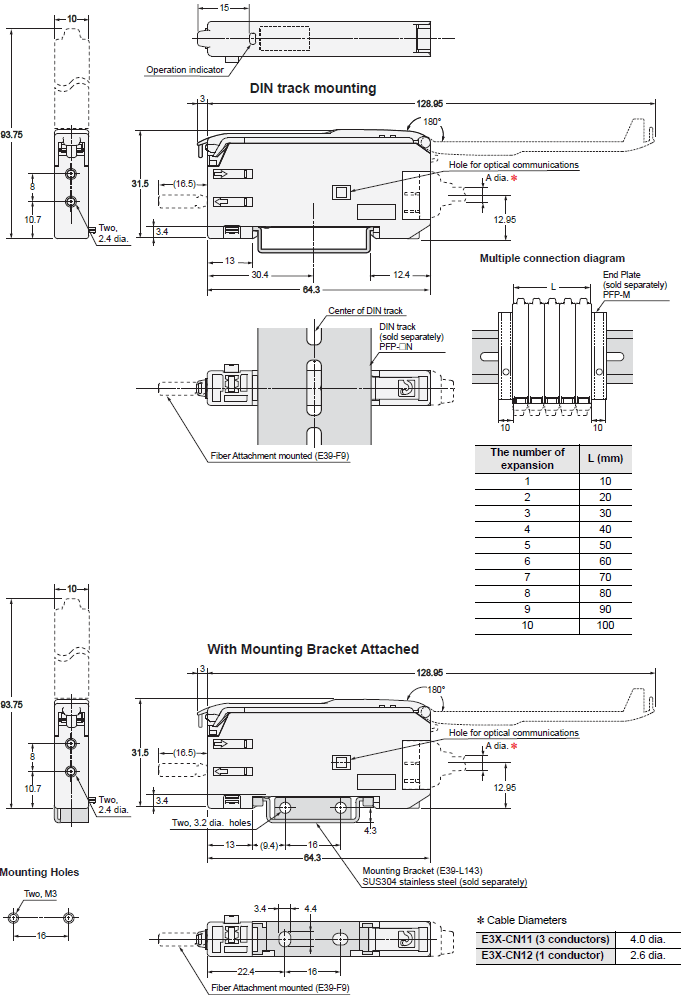

E3X-SD21, E3X-SD51
E3X-NA11, E3X-NA11F

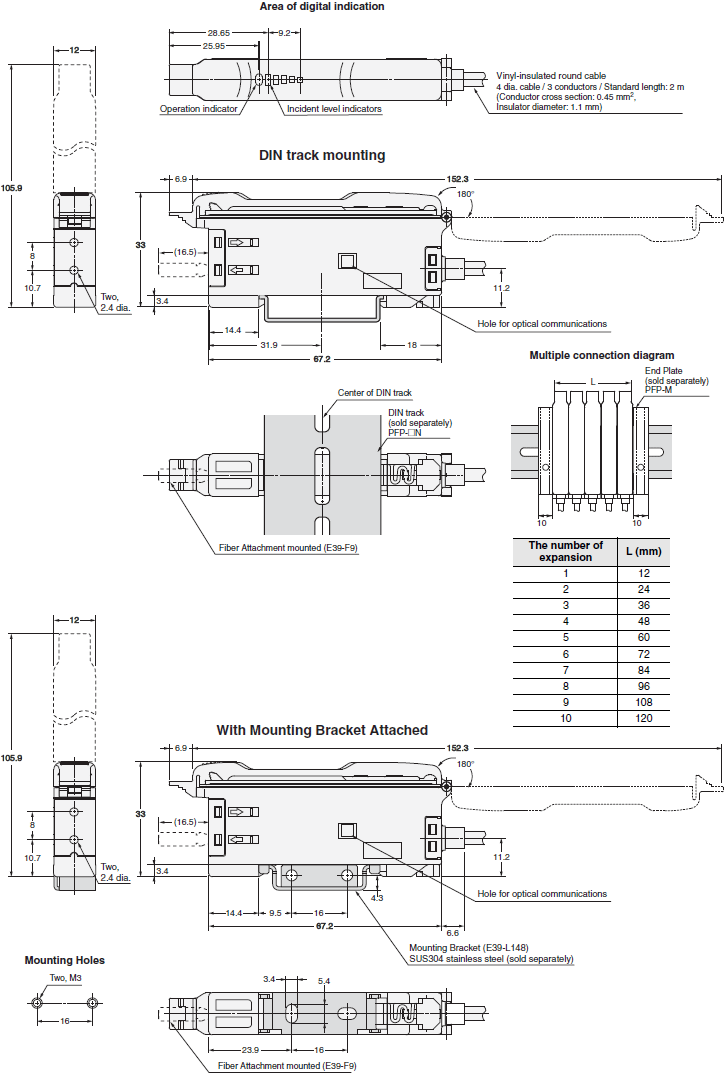

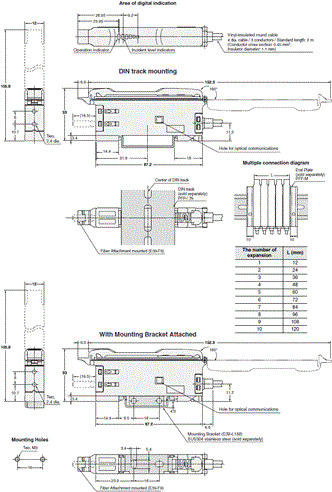

E3X-NA41, E3X-NA41F
* There is no hole for E3X-NA[]F models.
Note: When using E39-L143 Mounting Brackets, there will be small gaps between the Fiber Amplifier Units if they are
mounted side by side.
Amplifier Units with Connectors
E3X-SD7, E3X-SD9
E3X-NA6, E3X-NA8
Note: When using E39-L143 Mounting Brackets, there will be small gaps between the Fiber Amplifier Units if they are
mounted side by side.
mounted side by side.
Amplifier Units with Cables, Water-resistant Models
E3X-NA11V
E3X-NA41V
Amplifier Units with Connectors, Water-resistant Models

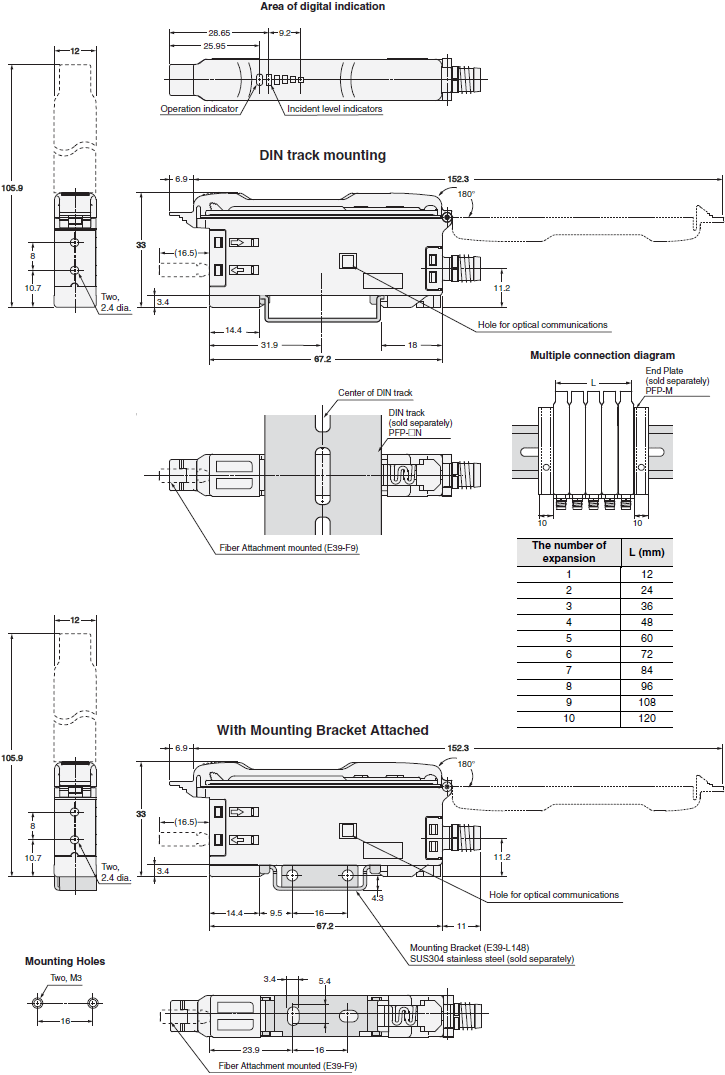

E3X-NA14V

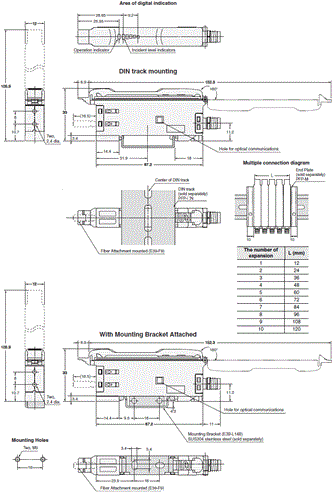

E3X-NA44V
Amplifier Unit Connectors (Wire-saving Connectors)

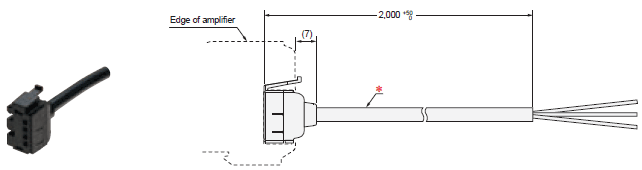

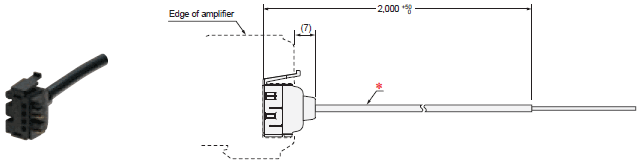

Master Connector
E3X-CN11
* E3X-CN11: 4 dia. cable/3 conductors/Standard length: 2 m (Conductor cross section: 0.2 mm2 (AWG24), Insulator
diameter: 1.1 mm)
diameter: 1.1 mm)
Slave Connector
E3X-CN12
* E3X-CN12: 2.6 dia. cable/1 conductor/Standard length: 2 m (Conductor cross section: 0.2 mm2 (AWG24), Insulator
diameter: 1.1 mm)
diameter: 1.1 mm)
Accessories (sold separately)
Mounting Brackets

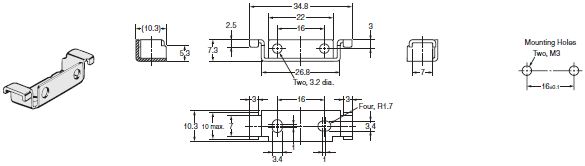

E39-L143
Material: Stainless steel (SUS304)
End Plates

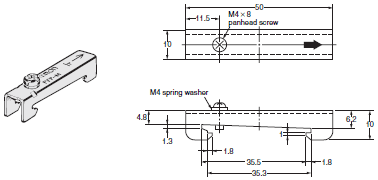

PFP-M
