CP1E

last update: January 5, 2015

CP1E CPU Unit

CPU Units with 10 I/O Points

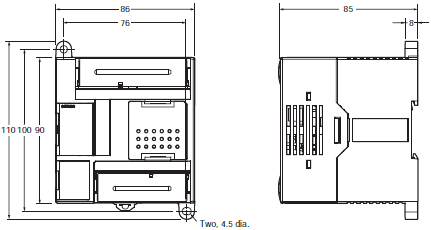

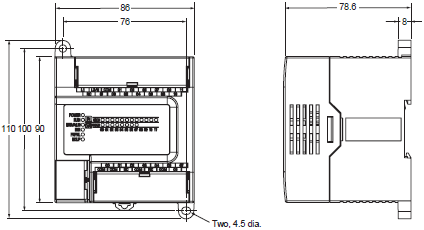

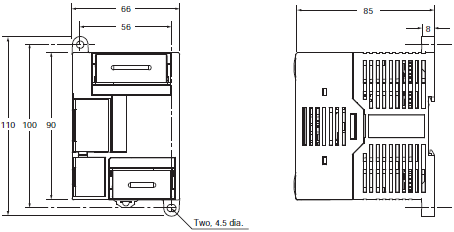

CPU Units with 14 or 20 I/O Points

CP1E-[]14/20D[][]-[]

CP1E-[]14/20SD[][]-[]

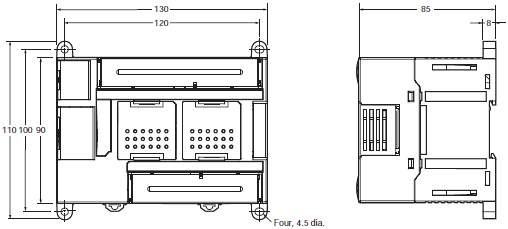

CPU Units with 30 I/O Points
CPU Units with 20 I/O Points and Built-in Analog

CP1E-[]30D[][]-[], CP1E-NA20D[]-[]

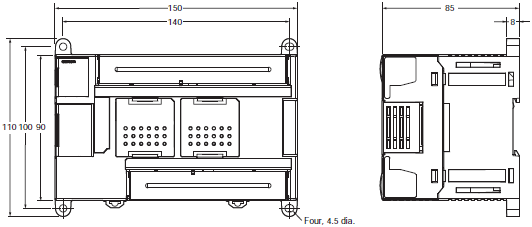

CP1E-[]30S(1)D[][]-[]

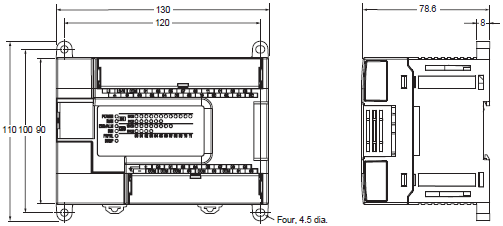

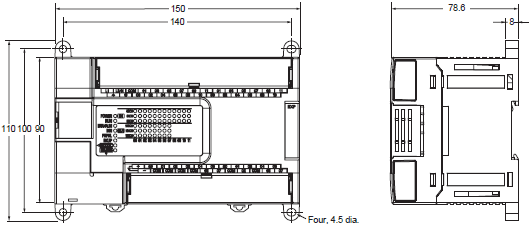

CPU Units with 40 I/O Points

CP1E-[]40D[][]-[]

CP1E-[]40S(1)D[][]-[]

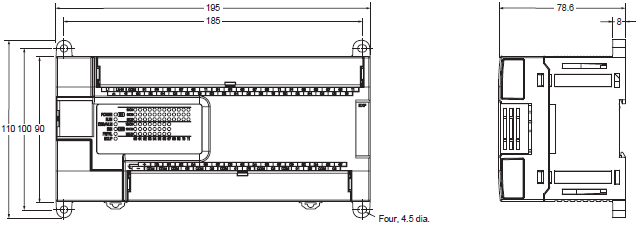

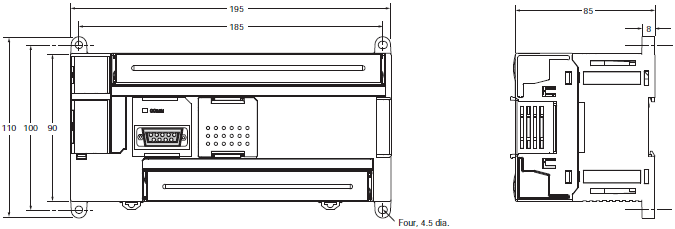

CPU Units with 60 I/O Points

CP1E-N60D[]-[]

CP1E-[]60S(1)D[][]-[]

Expansion I/O Units and Expansion Units

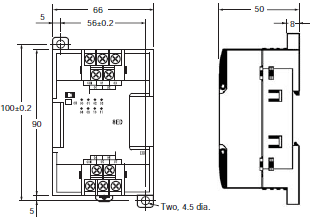

CP1W-8E[][]/CP1W-SRT21

CP1W-20ED[]/CP1W-16E[][]/CP1W-AD04[]/CP1W-DA021/CP1W-DA04[]/CP1W-MAD[][]/ CP1W-TS[][]1/[][]2/[][]3

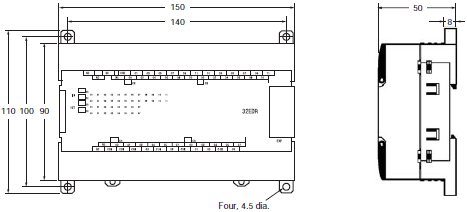

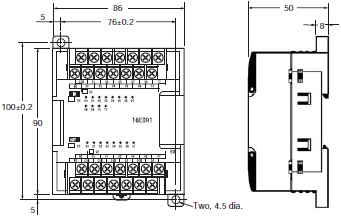

CP1W-40ED[]/CP1W-32E[][]/CP1W-TS004
