E3ZS, E3FS
Single-beam Safety Sensor
Detects Intrusions into Hazardous Areas with a Single Beam and Complies with International Safety Standards.
Related Contents
Application Solutions
last update: April 21, 2016
(Unit: mm)
Sensors

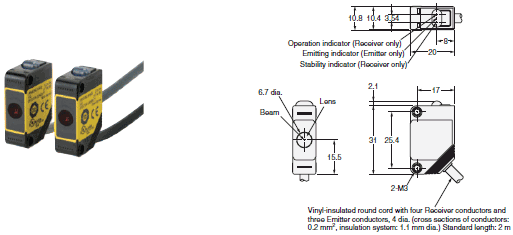

Pre-wired Cable with ABS Resin Case
E3ZS-T81A

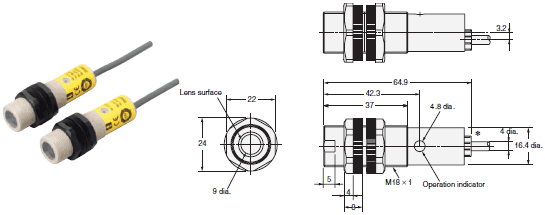

Pre-wired Cable with ABS Resin Case
E3FS-10B4 2M
* Vinyl-insulated round cord with four Receiver conductors and three Emitter conductors, 4 dia. (cross sections of conductors: 0.2 mm2, insulation system: 1.1 mm dia.)

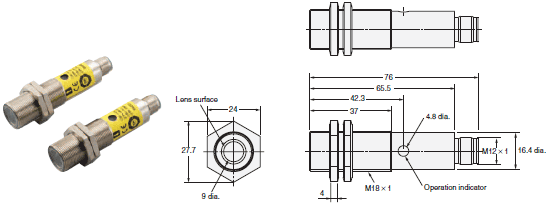

Connector with Metal Case
E3FS-10B4-M1-M
Accessories (Order Separately)

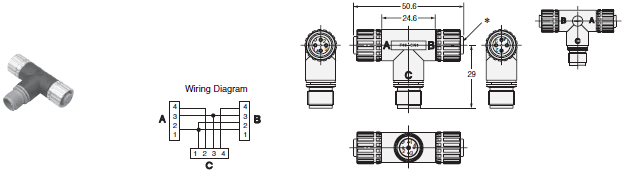

Branch Connector
F39-CN3
* The molded part B of the Connector is black.
Sensor Mounting Bracket (for E3FS)
Y92E-B18
Material: Plastic
Hexagonal bolt: M5 x 32
Sensor Mounting Bracket (for E3ZS)
E39-L104
Material: Stainless steel (SUS304)

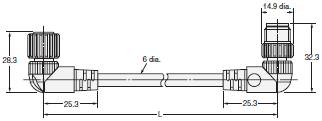

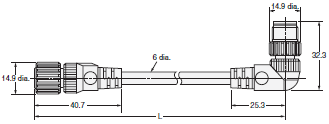

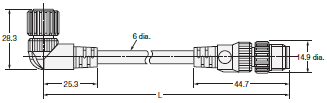

Cables with Connectors (Socket and Plug) on Both Ends (for extension)
XS2W-D421-C81-F (L=1m)
XS2W-D421-D81-F (L=2m)
XS2W-D421-G81-F (L=5m)
XS2W-D421-J81-F (L=10m)
XS2W-D422-D81-F (L=2m)
XS2W-D422-G81-F (L=5m)
XS2W-D423-D81-F (L=2m)
XS2W-D423-G81-F (L=5m)
XS2W-D424-D81-F (L=2m)
XS2W-D424-G81-F (L=5m)
Sheath material: PVC

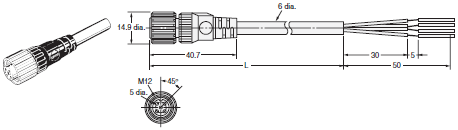

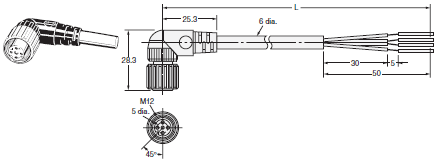

Cables with Connector (Socket) on One End (connecting to G9SP)
XS2F-D421-C80-F (L=1m)
XS2F-D421-D80-F (L=2m)
XS2F-D421-G80-F (L=5m)
XS2F-D421-J80-F (L=10m)
XS2F-D422-C80-F (L=1m)
XS2F-D422-D80-F (L=2m)
XS2F-D422-G80-F (L=5m)
XS2F-D422-J80-F (L=10m)
Sheath material: PVC

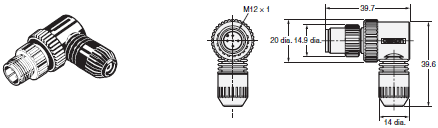

Connector Plug Assemblies, Solder Type
XS2G-D425
XS2G-D426
Connector Plug Assemblies, Screw-on Type
XS2G-D4S5
XS2G-D4S6
last update: April 21, 2016
