CJ Series Temperature Control Unit
last update: September 24, 2012
Item | Specification | |||
---|---|---|---|---|
Unit classification | CJ-series Special I/O Unit | |||
Compatible Racks | CJ-series CPU Rack or CJ-series Expansion Rack | |||
Max. number of Units |
10 Units/Rack max. (CPU Rack or Expansion Rack) | |||
CPU Unit data areas for data storage/exchange |
Special I/O Unit Area (960 words) CIO 2000 to CIO 2959 |
20 words/Unit for constant data exchange (6 output words and 14 input words) |
CPU Unit to Temperature Control Unit |
Set point (SP) Operating commands RUN/STOP control Start/Stop AT Write commands Heater burnout set value |
Temperature Control Unit to CPU Unit |
Process value (PV) Set point (SP) Status Heater current monitor |
|||
DM words allocated to Special I/O Units (9,600 words) D20000 to D29599 |
10 words/Unit transferred when power is turned ON or Unit is restarted |
CPU Unit to Temperature Control Unit |
Alarm mode Alarm hysteresis |
|
90 words/Unit for regular data exchange |
Two-way transfer between CPU Unit and Temperature Control Unit |
Alarm value Input compensation value Control period Hysteresis Proportional band Integral time Derivative time Output monitor |
||
Insulation resistance |
20 M Ω min. (at 500 VDC) between the following points: All output and NC terminals and external AC terminals (Power Supply Unit) All input terminals and external AC terminals (Power Supply Unit) All input terminals and all output terminals All external DC terminals (inputs, outputs, and NC) and the FG plate Between input terminals (sensor and CT inputs) I/O terminals and NC terminals |
|||
Dielectric strength | 2,000 VAC 50/60 Hz for 1 min., detected current: 1 mA The output terminals/NC terminals and external AC terminals (Power Supply Unit) 1,000 VAC 50/60 Hz for 1 min., detected current: 1 mA Input terminals and external AC terminals (Power Supply Unit) Input terminals and output terminals External DC terminals (inputs, outputs, and NC) and the FG plate 500 VAC 50/60 Hz for 1 min., detected current: 1 mA Between input terminals (sensor and CT inputs) I/O terminals and NC terminals |
|||
Internal current consumption |
250 mA max., 5 VDC | |||
Other | Other general specifications conform to the CJ-series general specifications. | |||
Dimensions | 31 × 90 × 65 mm (W × H × D) | |||
Weight | 150 g max. |
Item | Specification | |
---|---|---|
Model number | CJ1W-TC00[] | CJ1W-TC10[] |
Temperature sensor | Thermocouple: R, S, K, J, T, L, B | Platinum resistance thermometer: Pt100, JPt100 |
Number of loops | 4 loops or 2 loops with heater burnout detection *1 | |
Control output and heater burnout alarm output |
NPN or PNP outputs, both with short-circuit protection *1 External power supply voltage: 24 VDC +10%, -15% Max. switching capacity: 100 mA (per output) Leakage current: 0.3 mA max. Residual voltage: 3 V max. |
|
Temperature control method |
ON/OFF control or PID control with two degrees of freedom (Set with pin 6 on the Unit's DIP switch.) | |
Control operation | Forward or reverse operation (Set with pins 4 and 5 on the Unit's DIP switch.) | |
RUN/STOP control | Supported (Controlled from the CPU Unit through bits allocated in the Special I/O Unit area.) | |
Operation with CPU Unit in PROGRAM mode |
The Temperature Control Unit can be set to continue operating or stop operating when the CPU Unit is in PROGRAM mode. (Set with pin 1 on the Unit's DIP switch.) | |
Auto/Manual switch for operational output |
None | |
Autotuning (AT) of PID constant |
Supported (Controlled from the CPU Unit through bits allocated in the Special I/O Unit area.) | |
Indication accuracy | Celsius: ± 0.3% of PV or ± 1 ° C (whichever is larger) ± 1 digit max. Fahrenheit: ± 0.3% of PV or ± 2 ° F (whichever is larger) ± 1 digit max. L and - 100 ° C or less for K and T are ± 2 ° C ± 1 digit max. 200 ° C or less for R and S is ± 3 ° C ± 1 digit max. No accuracy is specified for 400 ° C or less for B *2 |
Celsius: ± 0.3% of PV or ± 0.8 ° C (whichever is larger) ± 1 digit max. Fahrenheit: ± 0.3% of PV or ± 1.6 ° F (whichever is larger) ± 1 digit max. |
Hysteresis (when using ON/OFF control) |
0.0 to 999.9 ° C or ° F (0.1 ° C or ° F units) | |
Proportional band | 0.1 to 999.9 ° C or ° F (0.1 ° C or ° F units) | |
Integral (reset) time | 0 to 9,999 s (one-second units) | |
Derivative (rate) time | 0 to 9,999 s (one-second units) | |
Control period | 1 to 99 s (one-second units) | |
Sampling period | 500 ms (4 loops) | |
Output refresh period | 500 ms (4 loops) | |
Display refresh period | 500 ms (4 loops) | |
Input compensation value |
- 99.9 to 999.9 ° C or ° F (0.1 ° C or ° F units) | |
Alarm output setting range |
- 999 to 9,999 ° C or ° F (1 ° C or ° F units) The setting range will be - 99.9 to 999.9 ° C or ° F (0.1 ° C or ° F units) for K or J with decimal point mode, or platinum resistance thermometer.B24 |
|
External terminal connections |
Removable terminal block with 18 points (M3 screws) | |
Effect on the CPU Unit's cycle time |
0.4ms |

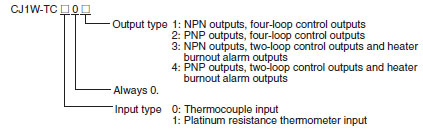

*1. The last three digits of the model number indicate the Unit's features:
Item | Specification |
---|---|
Maximum heater current | Single-phase AC, 50 A |
Indication accuracy of input current | ±5% of full scale ± 1 digit max. |
Heater burnout alarm setting range | 0.1 to 49.9 A (0.1 A units) The heater burnout detection function will not operate if the set value is set to 0.0 A or 50.0 A. (When the SV is 0.0 A, the heather burnout alarm will be OFF. When the SV is 50.0 A, the heater burnout alarm will be ON.) |
Min. detectable ON time * | 200 ms |
Item | E54-CT1 | E54-CT3 |
---|---|---|
Max. continuous heater current | 50A | 120 A * |
Dielectric strength | 1,000 VAC (1 min.) | |
Vibration resistance | 50 Hz, 98 m/s2 | |
Weight | Approx. 11.5 g | Approx. 50 g |
Accessories | None | Contacts (2) Plugs (2) |
Note: Do not use any Current Transformer (CT) other than the OMRON E54-CT1 or E54-CT3 Current Transformer.
* The maximum continuous heater current that can be detected at a CJ1W-TC[][][] Temperature Control Unit is 50 A.
