G3H / G3HD
Solid State Relays G3[]-VD
Solid State Relays Featuring the Same Profile as LY1 and LY2 Bi-power Relays
Related Contents
Application Solutions
last update: April 3, 2023
Model Number Structure

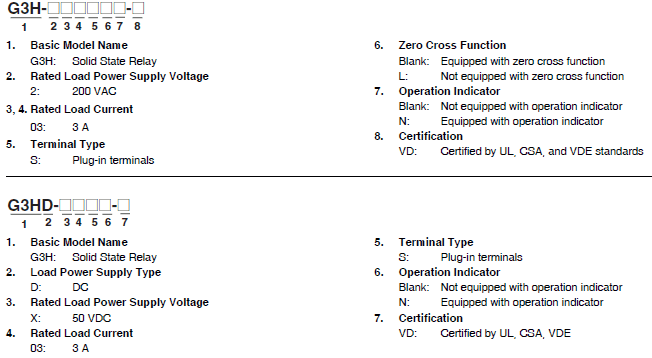

Model Number Legend
Ordering Information
List of Models
| Isolation | Zero cross
function |
Indicator | Rated output load | Rated input
voltage |
Model |
|---|---|---|---|---|---|
| Photocoupler | Yes | Yes | 3 A at 100 to 240 VAC *1 | 5 to 24 VDC | G3H-203SN-VD DC5-24 |
| Phototriac
coupler |
No | 5 VDC | G3H-203SLN-VD DC5 | ||
| 12 VDC | G3H-203SLN-VD DC12 | ||||
| 24 VDC | G3H-203SLN-VD DC24 | ||||
| Photocoupler | --- | 3 A at 4 to 48 VDC *2 | 5 to 24 VDC | G3HD-X03SN-VD DC5-24 | |
| Photocoupler | Yes | No | 3 A at 100 to 240 VAC *1 | 4 to 24 VDC | G3H-203S-VD DC4-24 |
| Phototriac
coupler |
No | 5 VDC | G3H-203SL-VD DC5 | ||
| 12 VDC | G3H-203SL-VD DC12 | ||||
| 24 VDC | G3H-203SL-VD DC24 | ||||
| Photocoupler | --- | 3 A at 4 to 48 VDC *2 | 4 to 24 VDC | G3HD-X03S-VD DC4-24 | |
| Photovoltaic
coupler |
--- | Yes | 2.5 A at 24 to 240 VDC *3 *4 | 12 to 24 VDC | G3HD-202SN-VD DC12-24V |
*1 Product is labelled "240 VAC".
*2 Product is labelled "48 VDC".
*3 Product is labelled "240 VDC".
*4 Application is possible for a half-wave rectification load between 19.2 and 264 VAC.
*2 Product is labelled "48 VDC".
*3 Product is labelled "240 VDC".
*4 Application is possible for a half-wave rectification load between 19.2 and 264 VAC.
Accessories (Order Separately)
Connection Sockets
| Classification | Terminal Type | Appearance | Model |
|---|---|---|---|
| Front-mounting | Push-In Plus
Terminal blocks |
 |
PTF-08-PU |
| Screw terminals |  |
PTF08A | |
| Screw terminals
(finger protection structure) |
 |
PTFZ-08-E | |
| Back-mounting | Solder terminals |  |
PT-08 |
| Relays with PCB Terminals |  |
PT08-0 | |
| Wrapping terminals |  |
PT08QN |
Hold-down Clip
| Applicable Socket | Hold-down Clip | ||
|---|---|---|---|
| Classification | Terminal Type | Model | Model |
| Front-mounting | Screw terminals (finger protection structure) | PTFZ-08-E | PYC-A1 * |
| Screw terminals | PTF08A | ||
| Back-mounting | Solder terminals | PT-08 | PYC-P |
| PYC-S | |||
| Relays with PCB Terminals | PT08-0 | PYC-P | |
| Wrapping terminals | PT08QN | PYC-P | |
| PYC-S | |||
* One Set (2 Clips)
DIN Track Mounting Parts
| Type | Appearance | Model | |
|---|---|---|---|
| DIN Tracks | Shallow type, total length: 1 m |  |
PFP-100N |
| Shallow type, total length: 0.5 m | PFP-50N | ||
| Deep type, total length: 1 m |  |
PFP-100N2 | |
| End Plate |  |
PFP-M | |
| Spacer |  |
PFP-S | |
