Switch Mode Power Supply (3/7.5-W Models)
last update: May 8, 2017
(Unit: mm)

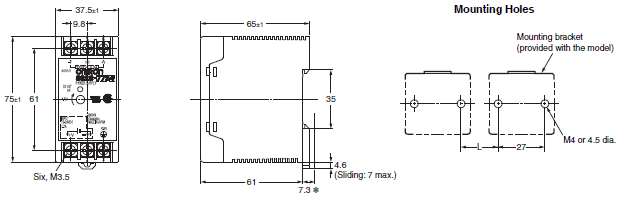

S82S-73[][] (3 W)
S82S-77[][] (7.5 W)
Used when not mounting the Power Supply directly on the DIN Rail.

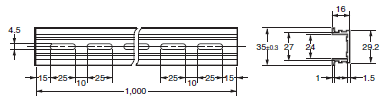

PFP-100N

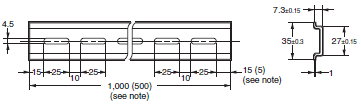

PFP-50N
Note: The values shown in parentheses are for the PFP-50N.
PFP-100N2
last update: May 8, 2017
