VHV5-F
Autofocus Multicode Reader
High-performance barcode reader.
Related Contents
Application Solutions
last update: June 2, 2025

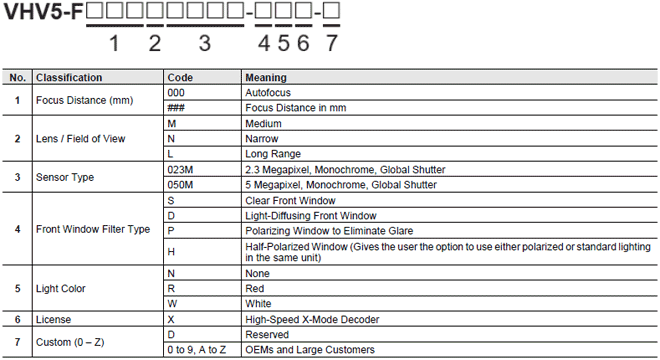

Model Number Structure
Use the table below to determine the product specifications of your reader from the model number on the label.
Important: Please see the next section for the full list of orderable model numbers. All other variations should be assembled using standard models combined with available accessories.
VHV5-F – Autofocus Multicode Reader, IP67 Enclosure, 24V/PoE, with Serial, Digital IO, and Ethernet.
Ordering Information
Standard Orderable Reader Models
Standard Red 2.3 MP and Standard Red 5 MP
| Appearance | Standard Red 2.3 MP | Part Number |
|---|---|---|
 |
VHV5-F, Autofocus, Medium Lens, 2.3 MP, Standard Red Light,
X-Mode Reader |
VHV5-F000M023M-SRX |
| VHV5-F, Autofocus, Narrow Lens, 2.3 MP, Standard Red Light,
X-Mode Reader |
VHV5-F000N023M-SRX | |
| VHV5-F, Autofocus, Long Lens, 2.3 MP, Standard Red Light,
X-Mode Reader |
VHV5-F000L023M-SRX | |
| Standard Red 5 MP | Part Number | |
| VHV5-F, Autofocus, Medium Lens, 5.0 MP, Standard Red Light,
X-Mode Reader |
VHV5-F000M050M-SRX | |
| VHV5-F, Autofocus, Narrow Lens, 5.0 MP, Standard Red Light,
X-Mode Reader |
VHV5-F000N050M-SRX | |
| VHV5-F, Autofocus, Long Lens, 5.0 MP, Standard Red Light,
X-Mode Reader |
VHV5-F000L050M-SRX |
Standard White 2.3 MP and Standard White 5 MP
| Appearance | Standard White 2.3 MP | Part Number |
|---|---|---|
 |
VHV5-F, Autofocus, Medium Lens, 2.3 MP, Standard White Light,
X-Mode Reader |
VHV5-F000M023M-SWX |
| VHV5-F, Autofocus, Narrow Lens, 2.3 MP, Standard White Light,
X-Mode Reader |
VHV5-F000N023M-SWX | |
| VHV5-F, Autofocus, Long Lens, 2.3 MP, Standard White Light,
X-Mode Reader |
VHV5-F000L023M-SWX | |
| Standard White 5 MP | Part Number | |
| VHV5-F, Autofocus, Medium Lens, 5.0 MP, Standard White Light,
X-Mode Reader |
VHV5-F000M050M-SWX | |
| VHV5-F, Autofocus, Narrow Lens, 5.0 MP, Standard White Light,
X-Mode Reader |
VHV5-F000N050M-SWX | |
| VHV5-F, Autofocus, Long Lens, 5.0 MP, Standard White Light,
X-Mode Reader |
VHV5-F000L050M-SWX |
Standard Red 2.3 MP with Half Polarizer and Standard Red 5 MP with Half Polarizer
| Appearance | Standard Red 2.3 MP with Half Polarizer | Part Number |
|---|---|---|
 |
VHV5-F, Autofocus, Medium Lens, 2.3 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader |
VHV5-F000M023M-HRX |
| VHV5-F, Autofocus, Narrow Lens, 2.3 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader |
VHV5-F000N023M-HRX | |
| VHV5-F, Autofocus, Long Lens, 2.3 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader |
VHV5-F000L023M-HRX | |
| Standard Red 5 MP with Half Polarizer | Part Number | |
| VHV5-F, Autofocus, Medium Lens, 5.0 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader |
VHV5-F000M050M-HRX | |
| VHV5-F, Autofocus, Narrow Lens, 5.0 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader |
VHV5-F000N050M-HRX | |
| VHV5-F, Autofocus, Long Lens, 5.0 MP, Standard Red Light,
Half-Polarized Window, X-Mode Reader |
VHV5-F000L050M-HRX |
Note 1: VHV5-F readers are sold without cables or mounting. These items can be found in later sections.
Note 2: The VHV5-F uses the same Parallel IO cables and interconnect accessories as the MicroHAWK V430-F and V440-F.
Note 3: X-Mode is suitable for all labels as well as low print grade codes and DPM.
Mounting Accessories
| Appearance | Type | Part Number |
|---|---|---|
 |
VHV5-F L-Bracket Adjustable Angle Mounting Kit
(VHV5-F only) |
VHV5-AM0 |
 |
Universal Mounting Block and Heatsink Kit
(VHV5-F only) |
VHV5-AM1 |
 |
VHV5-F APG Pan and Tilt Camera Mount
(VHV5-F only) |
VHV5-AM2 |
Front Window Accessories
| Appearance | Type | Part Number |
|---|---|---|
 |
VHV5-F Standard Window (for Medium Lens Models) | VHV5-AF0 |
 |
VHV5-F Lensed Window (for Narrow and Long Lens Models) | VHV5-AF1 |
 |
VHV5-F Diffuser Accessory | VHV5-AF2 |
 |
VHV5-F Polarizer Accessory | VHV5-AF3 |
 |
VHV5-F Half Polarizer Accessory | VHV5-AF4 |
Cables
| Appearance | Category | Length / Spec | Part Number |
|---|---|---|---|
 |
X-Code to RJ45 Ethernet Cable (High Flex, Straight,
Black Jacket) |
1 Meter | 61-9000134-01 |
| 3 Meters | 61-9000134-02 | ||
| 5 Meters | 61-9000134-03 | ||
| 10 Meters | 61-9000134-04 | ||
 |
X-Code to RJ45 Ethernet Cable (High Flex, Straight,
Black Jacket) |
2 Meters | FHV-VNB2 2M |
| 3 Meters | FHV-VNB2 3M | ||
| 5 Meters | FHV-VNB2 5M | ||
| 10 Meters | FHV-VNB2 10M | ||
| 20 Meters | FHV-VNB2 20M | ||
 |
X-Code to RJ45 Ethernet Cable (High Flex, Right-Angle,
Black Jacket) |
2 Meters | FHV-VNLB2 2M |
| 3 Meters | FHV-VNLB2 3M | ||
| 5 Meters | FHV-VNLB2 5M | ||
| 10 Meters | FHV-VNLB2 10M | ||
| 20 Meters | FHV-VNLB2 20M | ||
 |
M12 to Flying Leads Cable - Parallel IO (Power, DIO,
RS-232) |
3 Meters | V430-W8-3M |
| 5 Meters | V430-W8-5M | ||
| 10 Meters | V430-W8-10M | ||
 |
M12 to Flying Leads Cable - Parallel IO (Power, DIO,
RS-232) - Right Angle Back |
3 Meters | V430-W8LD-3M |
 |
M12 to Flying Leads Cable - Parallel IO (Power, DIO,
RS-232) - Right Angle Front |
3 Meters | V430-W8LU-3M |
 |
Reader M12 to RS-232 Breakout Cable | 1 Meter | V430-WR-1M |
| 3 Meters | V430-WR-3M | ||
 |
VHV5-F to External Light - 5 Pin M12 Plug to 5 Pin
M12 Socket |
1 Meter | 61-000184-01 |
 |
Cable, Adapter, Omron PLC | 2 Meters | V430-WPLC-2M |
* Important: Standard Omron FJ-VSG Ethernet cables are available in alternative and longer lengths.
Power Supplies
| Appearance | Category | Length / Spec | Part Number |
|---|---|---|---|
 |
Standard Reader 24V Power Supply (2.1 A) | 1 Meter
U.S. / Euro Plug |
97-000012-01 |
 |
Single Port PoE Injector, 30W, IEEE802.3at Compliant,
2 x RJ45 Connector, 90 to 264VAC |
Power Cord NOT Included | 98-9000311-01 |
Legacy QX-1 Cabling and Accessories
| Appearance | Category | Length / Spec | Part Number |
|---|---|---|---|
 |
QX-1 Interconnect Module - Power, Trigger,
Daisy Chain, Smart Light Control Breakout |
N/A | 98-000103-02 |
 |
Reader to QX-1 Interconnect Cable - M12 Socket
to M12 Plug (QX-1 is used as breakout module for Power input, Trigger input, and Strobe Output) |
1 Meter | V430-WQ-1M |
| 3 Meters | V430-WQ-3M | ||
| 5 Meters | V430-WQ-5M | ||
 |
Reader to QX-1 Interconnect Cable - M12 Socket
to M12 Plug - Right Angle Back |
1 Meter | 61-000162-03 |
| 3 Meters | 61-000148-03 | ||
 |
Reader to QX-1 Interconnect Cable - M12 Socket
to M12 Plug - Right Angle Front |
1 Meter | 61-000162-04 |
| 3 Meters | 61-000148-04 | ||
 |
Reader to QX-1 Interconnect Cables with RS-232
Breakout |
3 Meters | V430-WQR-3M |
| 5 Meters | V430-WQR-5M | ||
 |
Reader to QX-1 Interconnect Cables with USB
Keyboard Wedge Breakout |
3 Meters | V430-WQK-3M |
 |
QX-1 Photo Sensor, M12 4-Pin Plug, NPN,
Light ON / Dark ON |
2 Meters | 99-9000016-01 |
 |
QX-1 Field-Wireable M12 4-Pin Plug for Any
Trigger Source or Photo Sensor |
Screw Terminal Connector | 98-9000239-01 |
