E3C-LDA[]N

Photoelectric Sensor with Separate Digital Amplifier (Laser-type)

E3C-LDA[]N

Variable Laser Beam for Spot, Line, or Area Detection

(Unit: mm)

Sensor Heads

E3C-LD11N

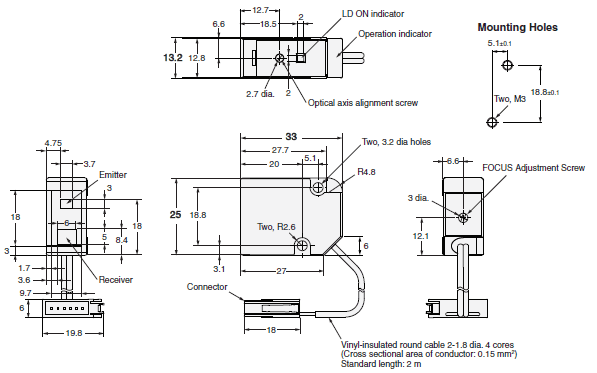

E3C-LDA[]N Dimensions 1

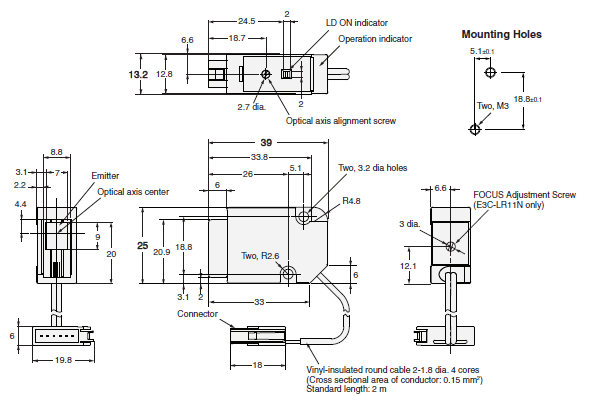

E3C-LDA[]N Dimensions 2

E3C-LR11N
E3C-LR12N

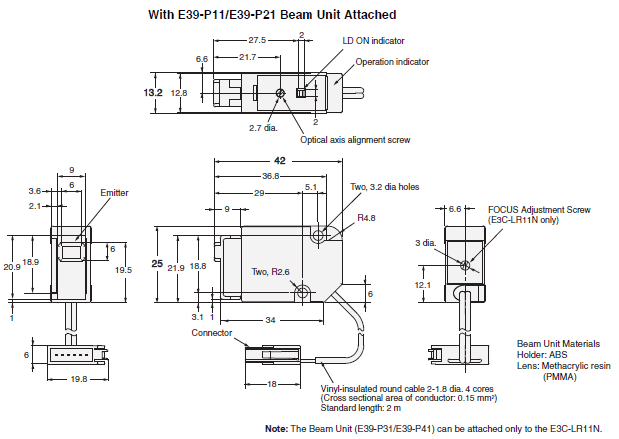

E3C-LDA[]N Dimensions 3

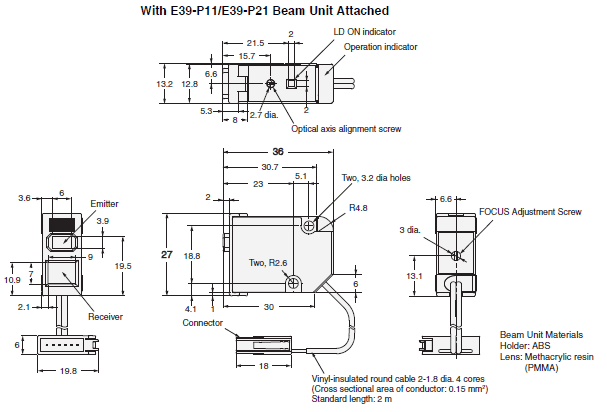

E3C-LDA[]N Dimensions 4

Amplifier Units

Pre-wired Amplifier Units
E3C-LDA21N
E3C-LDA51N

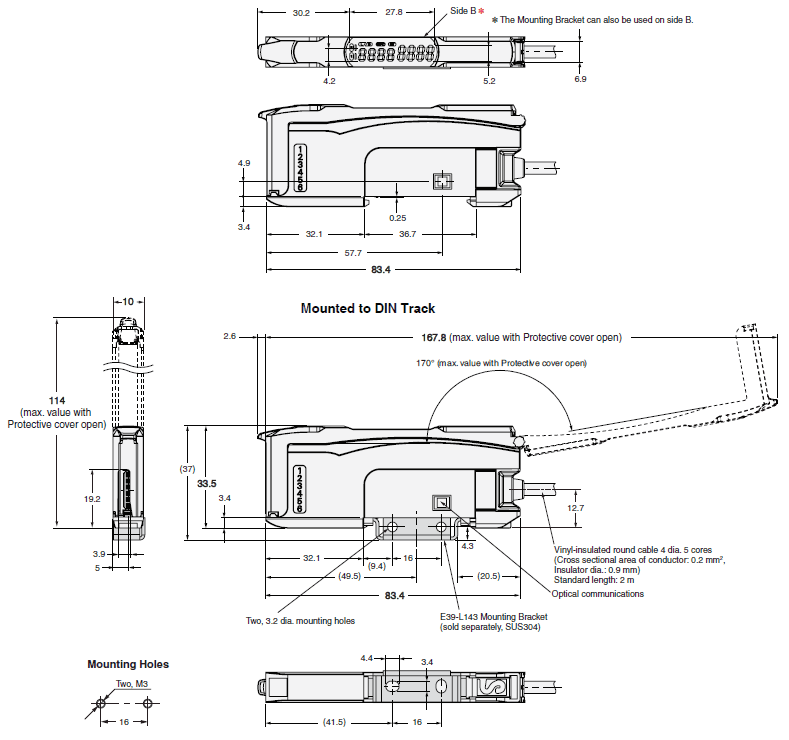

E3C-LDA[]N Dimensions 5

Amplifier Units with Wire-saving Connectors
E3C-LDA6N
E3C-LDA7N
E3C-LDA8N
E3C-LDA9N

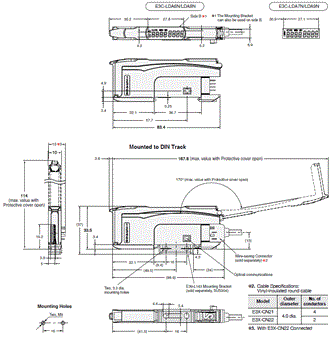

E3C-LDA[]N Dimensions 6

Accessories (Sold Separately)

Wire-saving Connectors

Master Connector
E3X-CN21

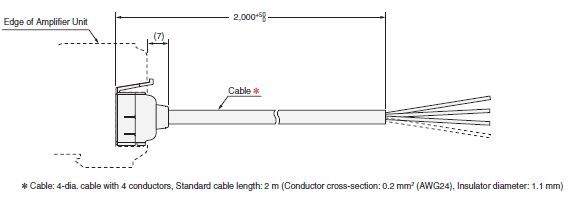

E3C-LDA[]N Dimensions 8

Slave Connector
E3X-CN22

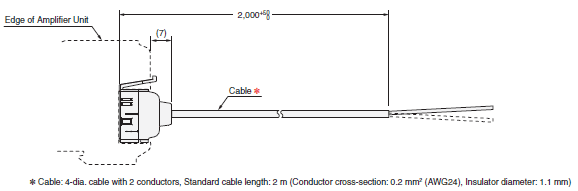

E3C-LDA[]N Dimensions 9
