MicroHAWK F430-F / F420-F / F330-F / F320-F

Smart Camera

MicroHAWK F430-F / F420-F / F330-F / F320-F

World’s smallest fully-integrated vision system.

MicroHAWK F430-F

Mounting Options

Appearance Type Part Number
3789_lu_1_1 L Bracket Adjustable Angle Mounting Kit V430-AM0
3789_lu_1_2 ¼-20 Camera Mounting Block Kit V430-AM1
3789_lu_1_3 4” (102 mm) Ram Mount Stand V430-AM2
3789_lu_1_4 APG Pan and Tilt Camera Mount V430-AM3
3789_lu_1_5 Nylon Screw and Washer Electrical Isolation Mounting Kit V430-AM4
3789_lu_1_6 MS-4 / MINI to V/F4XX-F Adapter Plate V430-AM5
3789_lu_1_7 Smart Ring Light to V/F4XX-F Mounting Bracket V430-AM6
3789_lu_1_8 QX / Vision HAWK to V/F4XX-F Adapter Plate V430-AM7

Optics Options

Appearance Type Part Number
3789_lu_2_1 Front Window - Installation Kit V430-AF10 *
3789_lu_2_2 Diffuser - Installation Kit V430-AF11 *
3789_lu_2_3 Polarizer - Installation Kit V430-AF12 *
3789_lu_2_4 Right Angle Mirror - Installation Kit V430-AF3
3789_lu_2_5 YAG Filter - Installation Kit V430-AF4
3789_lu_2_6 ESD-Safe Window - Installation Kit V430-AF5
3789_lu_2_7 Red Filter - Installation Kit V430-AF6
3789_lu_2_8 Blue Filter - Installation Kit V430-AF7

* Note: V430-AF10, AF11, and AF12 are used for MicroHAWK V/F4X0-FXXXXXXX-XXX cameras in this datasheet. The prior generation MicroHAWK V430-FXXXXXXX code reader uses part numbers V430-AF0, AF1, and AF2. Please select the correct accessory from the table based on your camera part number format.

Accessory Prior V430-FXXXXXXX Code Reader New V/F4X0-FXXXXXXX-XXX
Code Reader and Smart Camera
Front Window Installation Kit V430-AF0 V430-AF10
Diffuser Installation Kit V430-AF1 V430-AF11
Polarizer Installation Kit V430-AF2 V430-AF12

Additional Optics Options

Product Appearance Type Part Number
V430-F Window Kits
3789_lu_4_1
3789_lu_4_2 Front Window Installation Kit V430-AF0R
3789_lu_4_3 Diffuser Installation Kit V430-AF1R
3789_lu_4_4 Polarizer Installation Kit V430-AF2R

Lighting Options

Product Appearance Type Part Number
V430-F Ring Light Kits
3789_lu_5_1
3789_lu_5_2 Red Ring Light - Installation Kit V430-ALRR
White Ring Light - Installation Kit V430-ALWR
Blue Ring Light - Installation Kit V430-ALBR
IR Ring Light - Installation Kit V430-ALIR

Additional Lighting Options

Appearance Type Part Number
3789_lu_3_1 Red Light - Installation Kit V430-ALR
White Light - Installation Kit V430-ALW
Blue Light - Installation Kit V430-ALB
IR Light - Installation Kit V430-ALI

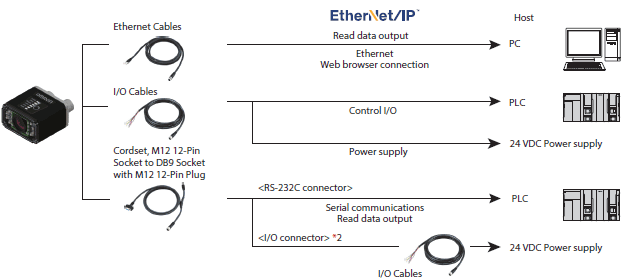

Wiring Options

MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 9

Drawing
Reference
Appearance Category Length / Spec Part Number
2 3789_lu_7_1 Ethernet Communication Cables -
Straight Connectors
M12 Plug on Camera to RJ45 connector
1 Meter V430-WE-1M
3 Meters V430-WE-3M
5 Meters V430-WE-5M
3789_lu_7_2 Ethernet Comm. Cable - Right Angle
M12 Connectors*
M12 Plug on Camera to RJ45
3 Meters - Right
Angle Up*
V430-WELU-3M
3 Meters - Right
Angle Down*
V430-WELD-3M
3 3789_lu_7_3 Camera to QX-1 Interconnect Cables
M12 Socket to M12 Plug
QX-1 is used as breakout Module for
common IO signals and power.
1 Meter V430-WQ-1M
M12 Socket to M12 Plug, with Power
Filter
300 mm V430-WQF-1M
Camera to QX-1 Interconnect Cables
M12 Socket to M12 Plug
QX-1 is used as breakout Module for
common IO signals and power.
3 Meters V430-WQ-3M
5 Meters V430-WQ-5M
4 3789_lu_7_4 QX-1 Interconnect Module - Power,
Trigger, Smart Light Control Breakout
98-000103-02
5 3789_lu_7_5 QX-1 Photo Sensor, M12 4-Pin Plug,
NPN
2 Meter - Light
ON/Dark ON
99-9000016-01
3789_lu_7_6 QX-1 Field-Wireable M12 4-Pin Plug for
any trigger source or photo sensor
Screw Terminals 98-9000239-01
6 3789_lu_7_7 Power Supply, 100-240VAC, +24VDC,
M12 12-Pin Socket
1 Meter
US/Euro Plug
97-000012-01
7 3789_lu_7_8 QX-1 M12 to Smart Light Power and
Strobe Control Cables
M12 Plug on QX-1 to 5 Pin Socket on
light
3 Meter -
Continuous
Power
61-000204-01
3 Meter -
Strobe Control
61-000218-01
8 3789_lu_7_9 Omron Microscan Smart Light Series Integrated Power
and Strobe
Control Module
See Omron
Microscan Smart
Light Offering -
Ring, DOAL, Large
Area Lighting

* Right angle cables.

MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 10
MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 11

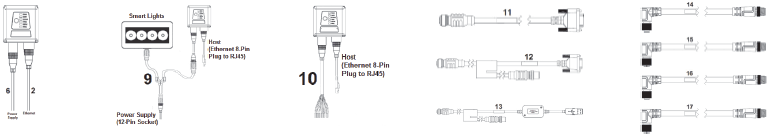

Alternate Wiring Options

MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 12

Drawing
Reference
Appearance Category Length/
Spec
Part Number
9 3789_lu_10_1 Y Cable, Camera/Power and Smart Light
Power (Continuous On)
1 Meter 61-9000135-01
Y Cable, Camera/Power and Smart Light
Strobe Control
1 Meter 61-9000137-01
10 3789_lu_10_2 M12 to Flying Leads Cable, Straight Power,
IO, RS-232, USB
3 Meters V430-W8-3M
M12 to Flying Leads Cable, with Power Filter V430-W8F-3M
M12 to Flying Leads Cable, Straight Power,
IO, RS-232, USB
5 Meters V430-W8-5M
M12 to Flying Leads Cable, with Power Filter V430-W8F-5M
3789_lu_10_3 M12 to Flying Leads Cable Right Angle
Power, IO, RS232, USB
3 Meters -
Right Angle Up
V430-W8LU-3M
M12 to Flying Leads Cable Right Angle, with
Power Filter
V430-W8LUF-3M
M12 to Flying Leads Cable Right Angle
Power, IO, RS232, USB
3 Meters -
Right Angle
Down
V430-W8LD-3M
M12 to Flying Leads Cable Right Angle, with
Power Filter
V430-W8LDF-3M
11 3789_lu_10_4 M12 to RS-232 Breakout 1 Meter V430-WR-1M
3 Meters V430-WR-3M
12 3789_lu_10_5 Camera to QX-1 Interconnect Cables with
RS-232 Breakout
2.7 Meters V430-WQR-3M
13 3789_lu_10_6 Camera to QX-1 Interconnect Cables with
USB Keyboard Wedge Breakout
2.7 Meters V430-WQK-3M
14 3789_lu_10_7 M12 12-Pin Plug to M12 12-Pin Socket,
Right Angle
3 Meters 61-000148-03
15 3789_lu_10_8 M12 12-Pin Plug to M12 12-Pin Socket,
Right Angle, Alternate Key
3 Meters 61-000148-04
16 3789_lu_10_9 M12 12-Pin Plug to M12 12-Pin Socket,
Right Angle
1 Meter 61-000162-03
17 3789_lu_10_10 M12 12-Pin Plug to M12 12-Pin Socket,
Right Angle, Alternate Key
1 Meter 61-000162-04

Verification Options

Appearance Type Part Number
3789_lu_11_1

AutoVISION Verification Calibration Card with NIST-Traceable Measurement
Report

98-000265-01
AutoVISION Verification Calibration Card 98-000265-02

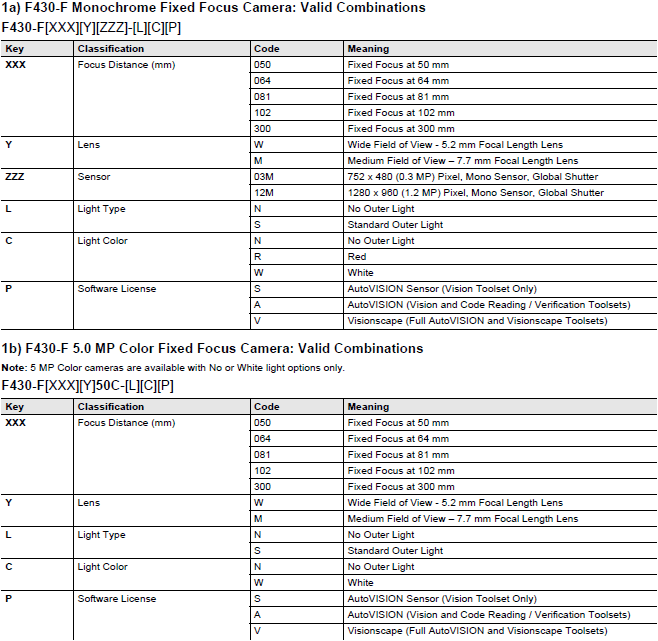

F430-F Part Number Structure

Use this legend when defining product part numbers. Please note that not all combinations of parameters are valid. For instance, color cameras are only available with white lighting, and 400 mm fixed focus is only available with UHD lenses. When ordering, use valid part numbers from the tables in the Ordering Information section only.

MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 14

F430-F Ordering Information

Categories:

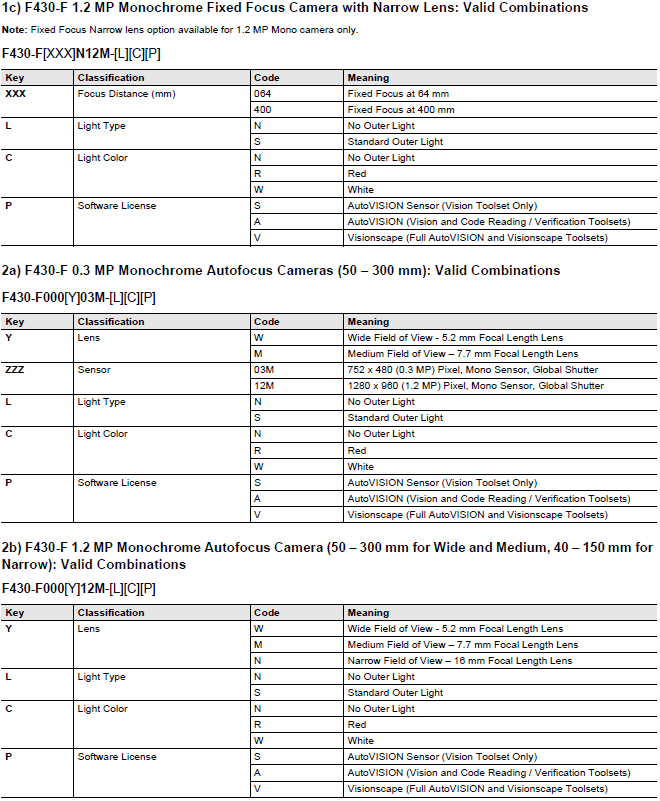

1. Fixed Focus Camera
     a.) F430-F Monochrome Fixed Focus Camera
     b.) F430-F Color Fixed Focus Camera
     c.) F430-F 1.2 MP Monochrome Fixed Focus Camera with Narrow Lens

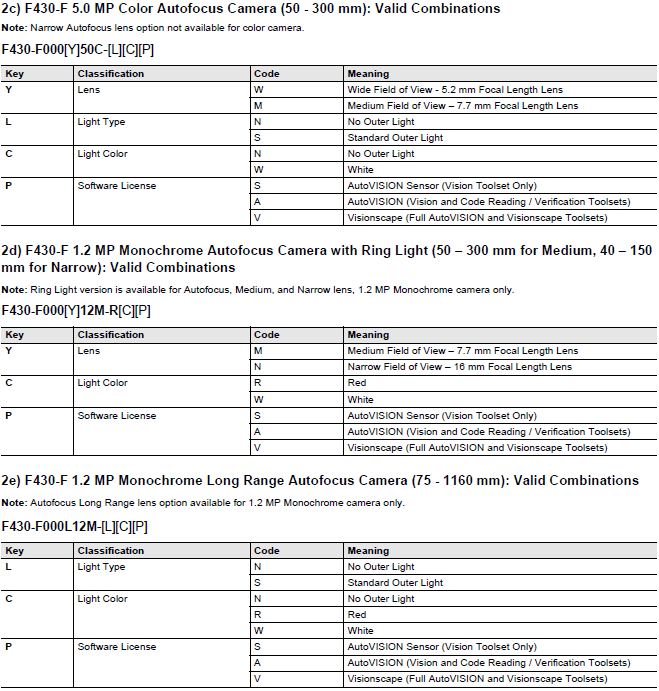

2. Autofocus Camera
     a.) F430-F 0.3 MP Monochrome Autofocus Camera (50 – 300 mm)
     b.) F430-F 1.2 MP Monochrome Autofocus Camera (50 – 300 mm for Wide and Medium Lens, 40 – 150 mm for Narrow
          Lens)
     c.) F430-F Color Autofocus Camera (50 - 300 mm)
     d.) F430-F 1.2 MP Monochrome Autofocus Camera with Ring Light (50 – 300 mm for Medium Lens, 40 – 150 mm for
          Narrow Lens)
     e.) F430-F 1.2 MP Monochrome Long Range Autofocus Camera (75 - 1160 mm)

MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 15
MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 16
MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 17

MicroHAWK F420-F

Mounting Options

Appearance Type Part Number
3789_lu_1_1 L Bracket Adjustable Angle Mounting Kit V430-AM0
3789_lu_1_2 ¼-20 Camera Mounting Block Kit V430-AM1
3789_lu_1_3 4” (102 mm) Ram Mount Stand V430-AM2
3789_lu_1_4 APG Pan and Tilt Camera Mount V430-AM3
3789_lu_1_5 Nylon Screw and Washer Electrical Isolation Mounting Kit V430-AM4
3789_lu_1_6 MS-4 / MINI to V/F4XX-F Adapter Plate V430-AM5
3789_lu_1_7 Smart Ring Light to V/F4XX-F Mounting Bracket V430-AM6
3789_lu_1_8 QX / Vision HAWK to V/F4XX-F Adapter Plate V430-AM7

Optics Options

Appearance Type Part Number
3789_lu_2_1 Front Window - Installation Kit V430-AF10 *
3789_lu_2_2 Diffuser - Installation Kit V430-AF11 *
3789_lu_2_3 Polarizer - Installation Kit V430-AF12 *
3789_lu_2_4 Right Angle Mirror - Installation Kit V430-AF3
3789_lu_2_5 YAG Filter - Installation Kit V430-AF4
3789_lu_2_6 ESD-Safe Window - Installation Kit V430-AF5
3789_lu_2_7 Red Filter - Installation Kit V430-AF6
3789_lu_2_8 Blue Filter - Installation Kit V430-AF7

* Note: V430-AF10, AF11, and AF12 are used for MicroHAWK V/F4X0-FXXXXXXX-XXX cameras in this datasheet. The prior generation MicroHAWK V430-FXXXXXXX code reader uses part numbers V430-AF0, AF1, and AF2. Please select the correct accessory from the table based on your camera part number format.

Accessory Prior V430-FXXXXXXX Code Reader New V/F4X0-FXXXXXXX-XXX
Code Reader and Smart Camera
Front Window Installation Kit V430-AF0 V430-AF10
Diffuser Installation Kit V430-AF1 V430-AF11
Polarizer Installation Kit V430-AF2 V430-AF12

Lighting Options

Appearance Type Part Number
3789_lu_3_1 Red Light - Installation Kit V430-ALR
White Light - Installation Kit V430-ALW
Blue Light - Installation Kit V430-ALB
IR Light - Installation Kit V430-ALI

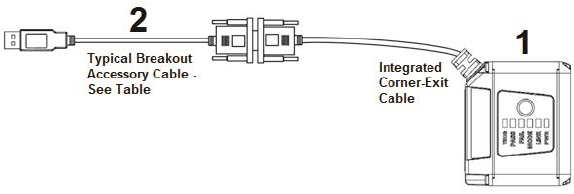

Wiring Options

MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 24

Drawing
Reference
Appearance Category Length/
Spec
Part Number
2 3789_lu_20_1 USB Breakout Cable 1 Meter V420-WUB-1M
3789_lu_20_2 Cable - USB Breakout With External
Power Input
1 Meter V420-WUX-1M
Power Supply 2 Meters 97-9000006-01
Kit - Cable and Power Supply V420-AC1
3789_lu_20_3 Cable - RS-232 Breakout (DB-15) and
External Power Input
1 Meter V420-WRX-1M
Power Supply 2 Meters 97-9000006-01
Kit - Cable and Power Supply V420-AC0
3789_lu_20_4 Cable - USB, IO, and Power Breakout 1 Meter V420-WU8X-1M
Power Supply 2 Meters 97-000011-02
Kit - Cable and Power Supply V420-AC2
3789_lu_20_5 Cable - RS-232, USB, IO, and Power
Breakout
1 Meter V420-WRU8X-1M
Power Supply 2 Meters 97-000011-02

Verification Options

Appearance Type Part Number
3789_lu_11_1 AutoVISION Verification Calibration Card with NIST-Traceable Measurement
Report
98-000265-01
AutoVISION Verification Calibration Card 98-000265-02

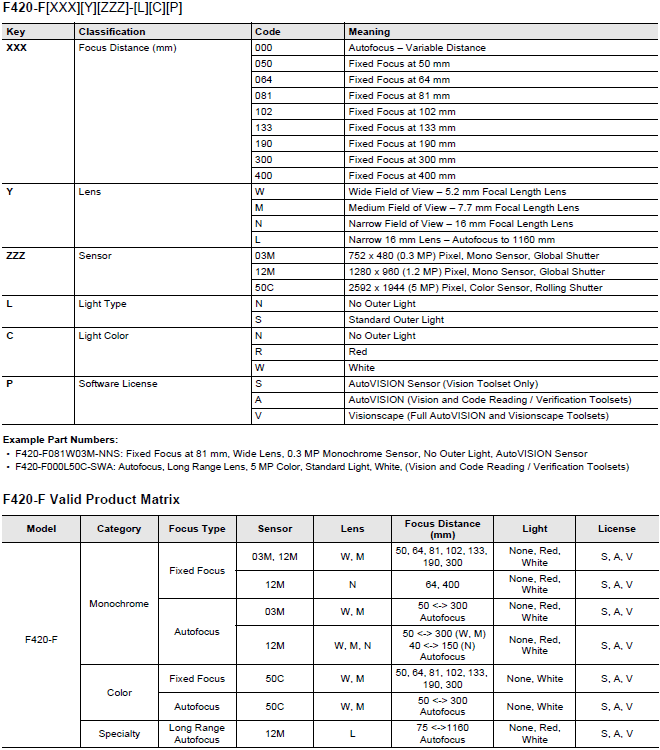

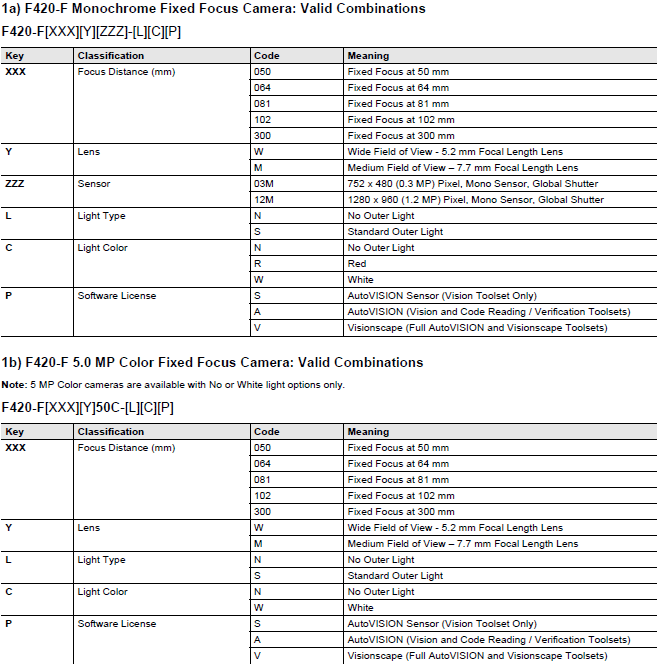

F420-F Part Number Structure

Use this legend when defining product part numbers. Please note that not all combinations of parameters are valid. For instance, color cameras are only available with white lighting, and 400 mm fixed focus is only available with UHD lenses. When ordering, use valid part numbers from the tables in the Ordering Information section only.

MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 26

F420-F Ordering Information

Categories:
1. Fixed Focus Camera
     a.) F420-F Monochrome Fixed Focus Camera
     b.) F420-F Color Fixed Focus Camera
     c.) F420-F 1.2 MP Monochrome Fixed Focus Camera with Narrow Lens

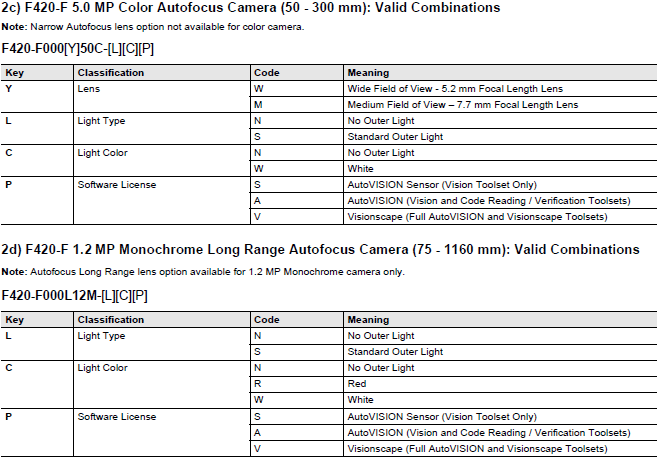

2. Autofocus Camera
     a.) F420-F 0.3 MP Monochrome Autofocus Camera (50 – 300 mm)
     b.) F420-F 1.2 MP Monochrome Autofocus Camera (50 – 300 mm for Wide and Medium Lens, 40 – 150 mm for Narrow
          Lens)
    c.) F420-F Color Autofocus Camera (50 - 300 mm)
    d.) F420-F 1.2 MP Monochrome Long Range Autofocus Camera (75 - 1160 mm)

MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 27
MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 28
MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 29

MicroHAWK F330-F

Optics Options

Appearance Type Part Number
3789_lu_26_1 Diffuser Kit - Peel and Stick Accessory. Exterior to unit. V330-AF1
3789_lu_26_2 Polarizer Kit - Peel and Stick Accessory. Exterior to unit. V330-AF2

Direct Wiring Options

Appearance Type Length Part Number
3789_lu_27_1 Power Over Ethernet (PoE) Single Port
Injector
N/A V330-AP1
3789_lu_27_2 Standard Ethernet Cables, In-Cabinet Use;
Standard RJ45 Connectors on Both Ends;
Green
1 Meter XS6W-5PUR8SS100CM-G
3 Meters XS6W-5PUR8SS300CM-G
5 Meters XS6W-5PUR8SS500CM-G
10 Meters XS6W-5PUR8SS1000CM-G
15 Meters XS6W-5PUR8SS1500CM-G
3789_lu_27_3 Standard Ethernet Cables, Out-of-Cabinet Use;
Rugged RJ45 Connectors on Both Ends;
Light Blue
1 Meter XS5W-T421-CMD-K
3 Meters XS5W-T421-EMD-K
5 Meters XS5W-T421-GMD-K
10 Meters XS5W-T421-JMD-K
15 Meters XS5W-T421-KMD-K
3789_lu_27_4 High Flex Ethernet Cables for Robot and Cable
Tray Use;
Rugged RJ45 Connectors on Both Ends;
Light Blue
1 Meter XS5W-T421-CMD-KR
3 Meters XS5W-T421-EMD-KR
5 Meters XS5W-T421-GMD-KR
10 Meters XS5W-T421-JMD-KR
15 Meters XS5W-T421-KMD-KR

Verification Options

Appearance Type Part Number
3789_lu_11_1 AutoVISION Verification Calibration Card with NIST-Traceable Measurement
Report
98-000265-01
AutoVISION Verification Calibration Card 98-000265-02

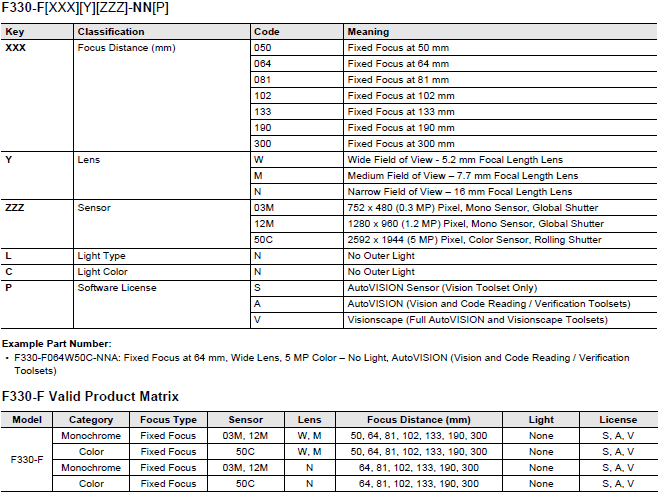

F330-F Part Number Structure

Use this legend when defining product part numbers. Please note that not all combinations of parameters are valid. For instance, fixed focus distance of 50 mm is not available with Narrow Lens. When ordering, use valid part numbers from the tables in the Ordering Information section only.

MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 34

F330-F Ordering Information

Categories:
1. Fixed Focus Cameras

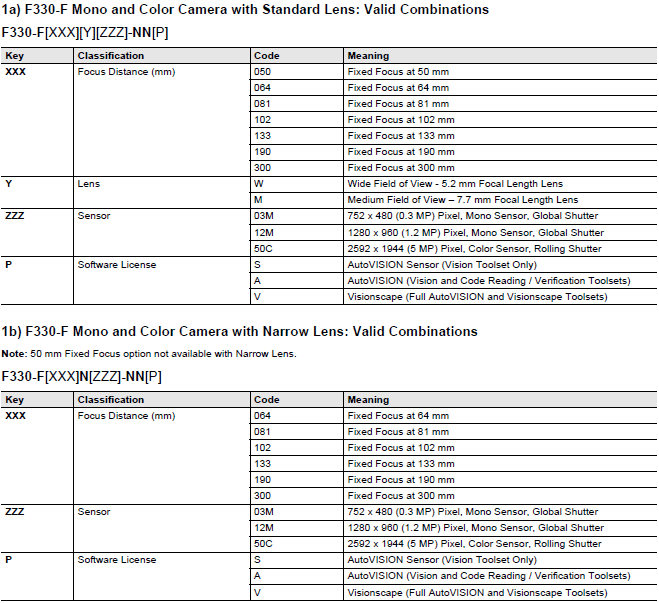

     a) F330-F Monochrome and Color Fixed Focus Camera with Standard Lens
     b) F330-F Monochrome and Color Fixed Focus Camera with Narrow Lens

MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 35

MicroHAWK F320-F

Optics Options

Appearance Type Part Number
3789_lu_26_1 Diffuser Kit - Peel and Stick Accessory. Exterior to unit. V330-AF1
3789_lu_26_2 Polarizer Kit - Peel and Stick Accessory. Exterior to unit. V330-AF2

Direct Wiring Options

Appearance Type Length Part Number
3789_lu_32_1 RJ50 to RS-232 and External Power
Straight
2 Meters V320-WRX-2M
3789_lu_32_2 RJ50 to RS-232 and External Power
Right Angle
2 Meters V320-WRXLR-2M
3789_lu_32_3 Power Supply for V320-WRX-2M and
V320-WRXLR-2M
2 Meters 97-9000006-01
3789_lu_32_4 RJ50 to Flying Leads
Straight
3 Meters V320-W8-3M
3789_lu_32_5 RJ50 to Flying Leads
Right Angle to the Right *
3 Meters V320-W8LR-3M

Wiring Options using V420-F Accessories

Appearance Category Length Part Number
3789_lu_33_1 Adapter V/F320-F to all V420-F Cable Accessories
RJ50 to DB-15
1 Meter V320-WR-1M
3789_lu_33_2 Adapter V/F320-F to all V420-F Cable Accessories
Right Angle to the Right *
RJ50 to DB-15
1 Meter V320-WRLR-1M
3789_lu_20_1 USB Breakout Cable 1 Meter V420-WUB-1M
3789_lu_20_2 Cable - USB Breakout With External Power Input 1 Meter V420-WUX-1M
Power Supply 2 Meters 97-9000006-01
Kit - Cable and Power Supply V420-AC1
3789_lu_20_3 Cable - RS-232 Breakout (DB-15) and External Power
Input
1 Meter V420-WRX-1M
Power Supply 2 Meters 97-9000006-01
Kit - Cable and Power Supply V420-AC0
3789_lu_20_4 Cable - USB, IO, and Power Breakout 1 Meter V420-WU8X-1M
Power Supply 2 Meters 97-000011-02
Kit - Cable and Power Supply V420-AC2
3789_lu_20_5 Cable - RS-232, USB, IO, and Power Breakout 1 Meter V420-WRU8X-1M
Power Supply 2 Meters 97-000011-02

* Right angle cables.

MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 40

Verification Options

Appearance Type Part Number
3789_lu_11_1 AutoVISION Verification Calibration Card with NIST-Traceable Measurement
Report
98-000265-01
AutoVISION Verification Calibration Card 98-000265-02

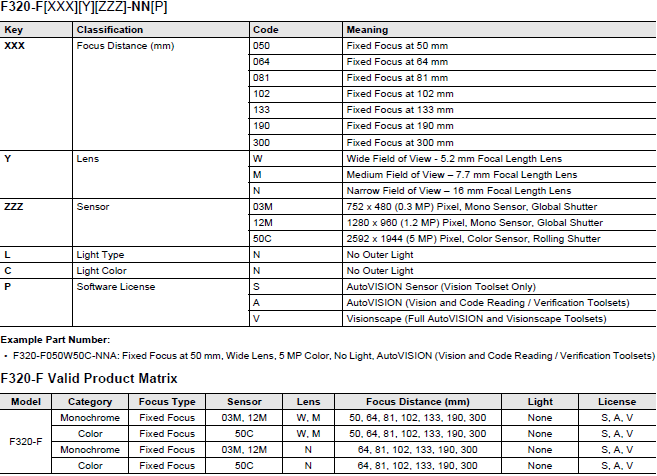

F320-F Part Number Structure

Use this legend when defining product part numbers. Please note that not all combinations of parameters are valid. For instance, fixed focus distance of 50 mm is not available with Narrow Lens. When ordering, use valid part numbers from the tables in the Ordering Information section only.

MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 42

F320-F Ordering Information

Categories:
1. Fixed Focus Cameras

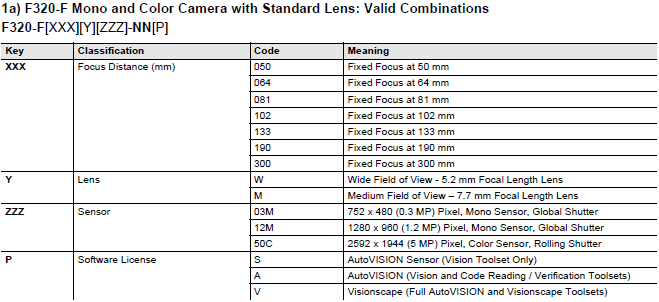

     a) F320-F Monochrome and Color Fixed Focus Camera with Standard Lens

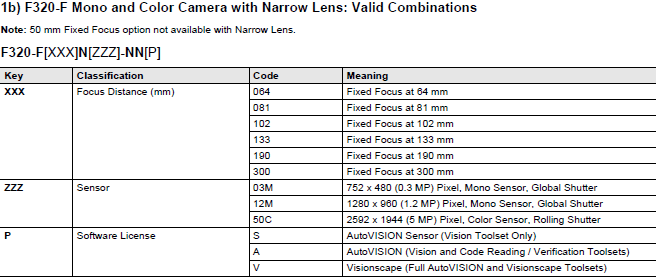

     b) F320-F Monochrome and Color Fixed Focus Camera with Narrow Lens

MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 43
MicroHAWK F430-F / F420-F / F330-F / F320-F Lineup 44
