Industrial Automation

NYB

Industrial PC Platform NY-series Industrial Box PC

NYB

Powerful. Tough. Future-Proof.

last update: January 14, 2025

Performance Specifications

Item				NYB2E- []1[][][] / NYB2E- []2[][][]	NYB37- []1[][][]/ NYB37- []2[][][]	NYB55- []1[][][]/ NYB55- []2[][][]	NYB65- []1[][][] / NYB65- []2[][][]	NYB13- []1[][][]/ NYB13- []2[][][]
Main system	CPU	CPU type		Intel® Xeon® W-11865MRE	Intel® Core™ i7-1185GRE	Intel® Core™ i5-1145GRE		Intel® Core™ i3-1115GRE
		Cores / Threads		8 / 16	4 / 8	4 / 8		2 / 4
		CPU base frequency		2.6 GHz	2.8 GHz	2.6 GHz	1.5 GHz	2.2 GHz
		Maximum turbo frequency		4.7 GHz	4.4 GHz	4.1 GHz		3.9 GHz
		Cache		24 MB	12 MB	8 MB		6 MB
		Cooling details		Active cooling (fan)	Active cooling (fan)	Active cooling (fan)	Passive cooling (fanless)
		Intel CPU category		Industrial (100% operation minimal 10yr)
	Memory	*Memory size 1**		8, 16, 32, 64 or 96 GB	8, 16, 32, 64 GB
		Memory type		DDR4 (ECC is available)	DDR4
		Package Memory Format		SO-DIMM
		Serial Presence Detect (SPD)	Speed grade	3200 MT/s
		Serial Presence Detect (SPD)	CAS latency	CL17
	Trusted platform module (TPM)			Available
	Graphics controller			Intel® UHD Graphics. Up to four independe nt screens.	Intel® Iris® Xe Graphics. Up to four independent screens.			Intel® UHD Graphics. Up to four independe nt screens.
	Graphics controller			Intel® UHD Graphics (32 EU)	Intel® Iris® Xe Graphics (96 EU)	Intel® Iris® Xe Graphics (80 EU)		Intel® UHD Graphics (48 EU)
	Watchdog			Yes
Operating system	Windows OS			Windows 10 IoT Enterprise 2021 LTSC - 64 bit
Storage devices	Drives *1	*Hard Disk Drive 2**		500 GB, 1 TB
		Solid State Drive	SLC type	-
			MLC type	-
			3DTLC type	128 GB, 256GB, 512 GB, 1 TB
	*Drive bays (HDD/SSD) 3**			2
	Hardware-RAID support			RAID1: NYB2E- []2[][][]	RAID1: NYB37- []2[][][]	NYB55- []2[][][]	NYB65- []2[][][]	NYB13- []2[][][]
Con- nectors	Power connector			24 VDC
	I/O connector			2 inputs and 1 output
	USB2.0 Type-A	Number of ports		-
		Maximum current		-
		Maximum cable length		-
	USB3.0 Type-A	Number of ports		4
		Maximum current		900 mA
		Maximum cable length		3 m
	Ethernet con- nectors	Number of ports		3
		Physical layer		10BASE-T, 100BASE-TX, 1000BASE-T or 2500BASE-T
		Maximum transmission distance between Ethernet switch and node		100 m
	DVI-I connector	Video interface		-
		Resolution		-
		Maximum DVI cable length		-
	Display- Port ++	Resolution		Up to 4,096 x 2,304 at 60 Hz
	Display- Port ++	Maximum cable length		3 m
Optional connector (select one per system)	RS-232C			Standard SUBD9 connector (Non-Isolated)
	DVI-D	Video interface		-
		Resolution		-
		Maximum DVI cable length		-
	NY Monitor Link	Video interface		Digital only
		Resolution		1,280 x 800 pixels at 60 Hz
		Connector type		RJ45
		Cable shielding, type and max. length		S/FTP, Cat.6A, 100 m
		USB data throughput		280 Mbps max.
	GigE LAN	Physical layer		10BASE-T, 100BASE-TX or 1000BASE-T
	Display- Port ++	Resolution		Up to 4,096 x 2,304 at 60 Hz
	Display- Port ++	Maximum cable length		3 m
PCIe Card Slot	Configuration			X4 (4 lanes) up to Gen 3
	Card height			Standard height cards, 4.20 inches (106.7 mm) *4
	Card length			Half length cards, 6.6 inches (167.65 mm)
Battery	Model			CJ1W-BAT01
Battery	Service life			5 years at 25°C
Fan unit	Model			NY000-AF00			-
Fan unit	Service life			70,000 hours of continuous operation at 40°C with 15% to 65% relative humidity			-
LED				PWR, ERR, HDD, RUN

Item				NYB2E- []0[][][]	NYB37- []0[][][]	NYB55- []0[][][]	NYB65- []0[][][]
Main system	CPU	CPU type		Intel® Xeon® W-11865MRE	Intel® Core™ i7-1185GRE	Intel® Core™ i5-1145GRE
		Cores / Threads		8 / 16	4 / 8	4 / 8
		CPU base frequency		2.6 GHz	1.8 GHz	2.6 GHz	1.5 GHz
		Maximum turbo frequency		4.7 GHz	4.4 GHz	4.1 GHz
		Cache		24 MB	12 MB	8 MB
		Cooling details		Active cooling (fan)	Active cooling (fan)	Active cooling (fan)	Passive cooling (fanless)
		Intel CPU category		Industrial (100% operation minimal 10yr)
	Memory	*Memory size 1**		8, 16, 32, 64 or 96 GB	8, 16, 32, 64 GB
		Memory type		DDR4 (ECC is available)	DDR4
		Package Memory Format		SO-DIMM
		Serial Presence Detect (SPD)	Speed grade	3200 MT/s
		Serial Presence Detect (SPD)	CAS latency	CL17
	Trusted platform module (TPM)			Available
	Graphics controller			Intel® UHD Graphics. Up to four independe nt screens.	Intel® Iris® Xe Graphics. Up to four independent screens.
	Graphics controller			Intel® UHD Graphics (32 EU)	Intel® Iris® Xe Graphics (96 EU)	Intel® Iris® Xe Graphics (80 EU)
	Watchdog			Yes
Operating system	Windows OS			Windows 10 IoT Enterprise 2021 LTSC - 64 bit
Storage devices	Drives *1	*Hard Disk Drive 2**		-
		Solid State Drive	SLC type	-
			MLC type	-
			3DTLC type	128 GB, 256GB, 512 GB
	*Drive bays (HDD/SSD) 3**			CFast slot
	Hardware-RAID support			N/A
Con- nectors	Power connector			24 VDC
	I/O connector			2 inputs and 1 output
	USB2.0 Type-A	Number of ports		-
		Maximum current		-
		Maximum cable length		-
	USB3.0 Type-A	Number of ports		4
		Maximum current		900 mA
		Maximum cable length		3 m
	Ethernet con- nectors	Number of ports		3
		Physical layer		10BASE-T, 100BASE-TX, 1000BASE-T or 2500BASE-T
		Maximum transmission distance between Ethernet switch and node		100 m
	DVI-I connector	Video interface		-
		Resolution		-
		Maximum DVI cable length		-
	Display- Port ++	Resolution		Up to 4,096 x 2,304 at 60 Hz
	Display- Port ++	Maximum cable length		3 m
Optional connector (select one per system)	RS-232C			Standard SUBD9 connector (Non-Isolated)
	DVI-D	Video interface		-
		Resolution		-
		Maximum DVI cable length		-
	NY Monitor Link	Video interface		Digital only
		Resolution		1,280 x 800 pixels at 60 Hz
		Connector type		RJ45
		Cable shielding, type and max. length		S/FTP, Cat.6A, 100 m
		USB data throughput		280 Mbps max.
	GigE LAN	Physical layer		10BASE-T, 100BASE-TX or 1000BASE-T
	Display- Port ++	Resolution		Up to 4,096 x 2,304 at 60 Hz
	Display- Port ++	Maximum cable length		3 m
PCIe Card Slot	Configuration			N/A
	Card height			N/A
	Card length			N/A
Battery	Model			CJ1W-BAT01
Battery	Service life			5 years at 25°C
Fan unit	Model			NY000-AF00			-
Fan unit	Service life			70,000 hours of continuous operation at 40°C with 15% to 65% relative humidity			-
LED				PWR, ERR, HDD, RUN

Item				NYB13-[]0[][][]	NYB3A-[]0[][][]
Main system	CPU	CPU type		Intel® Core™ i3-1115GRE	Intel Atom® x6425RE
		Cores / Threads		2 / 4	4 / 4
		CPU base frequency		2.2 GHz	1.9 GHz
		Maximum turbo frequency		3.9 GHz	-
		Cache		6 MB	1.5 MB
		Cooling details		Passive cooling (fanless)
		Intel CPU category		Industrial (100% operation minimal 10yr)
	Memory	*Memory size 1**		8, 16, 32, 64 GB	4, 8, 16,32 GB
		Memory type		DDR4
		Package Memory Format		SO-DIMM
		Serial Presence Detect (SPD)	Speed grade	3200 MT/s
		Serial Presence Detect (SPD)	CAS latency	CL17
	Trusted platform module (TPM)			Available
	Graphics controller			Intel® UHD Graphics. Up to four independe nt screens.
	Graphics controller			Intel® UHD Graphics (48 EU)	Intel® UHD Graphics (32 EU)
	Watchdog			Yes
Operating system	Windows OS			Windows 10 IoT Enterprise 2021 LTSC - 64 bit
Storage devices	Drives *1	*Hard Disk Drive 2**		-
		Solid State Drive	SLC type	-
			MLC type	-
			3DTLC type	128 GB, 256GB, 512 GB
	*Drive bays (HDD/SSD) 3**			CFast slot
	Hardware-RAID support			N/A
Con- nectors	Power connector			24 VDC
	I/O connector			2 inputs and 1 output
	USB2.0 Type-A	Number of ports		-
		Maximum current		-
		Maximum cable length		-
	USB3.0 Type-A	Number of ports		4
		Maximum current		900 mA
		Maximum cable length		3 m
	Ethernet con- nectors	Number of ports		3
		Physical layer		10BASE-T, 100BASE-TX, 1000BASE-T or 2500BASE-T
		Maximum transmission distance between Ethernet switch and node		100 m
	DVI-I connector	Video interface		-
		Resolution		-
		Maximum DVI cable length		-
	Display- Port ++	Resolution		Up to 4,096 x 2,304 at 60 Hz
	Display- Port ++	Maximum cable length		3 m
Optional connector (select one per system)	RS-232C			Standard SUBD9 connector (Non-Isolated)
	DVI-D	Video interface		-
		Resolution		-
		Maximum DVI cable length		-
	NY Monitor Link	Video interface		Digital only
		Resolution		1,280 x 800 pixels at 60 Hz
		Connector type		RJ45
		Cable shielding, type and max. length		S/FTP, Cat.6A, 100 m
		USB data throughput		280 Mbps max.
	GigE LAN	Physical layer		10BASE-T, 100BASE-TX or 1000BASE-T
	Display- Port ++	Resolution		Up to 4,096 x 2,304 at 60 Hz
	Display- Port ++	Maximum cable length		3 m
PCIe Card Slot	Configuration			N/A
	Card height			N/A
	Card length			N/A
Battery	Model			CJ1W-BAT01
Battery	Service life			5 years at 25°C
Fan unit	Model			-
Fan unit	Service life			-
LED				PWR, ERR, HDD, RUN

Item				NYB1E- []1[][][] NYB1E- []2[][][]	NYB27- []1[][][] NYB27- []2[][][]	NYB35- []1[][][] NYB35- []2[][][]	NYB2C- []1[][][]
Main system	CPU	CPU type		Intel® Xeon® E3-1515M v5	Intel® Core™ i7-7820EQ	Intel® Core™ i5-7300U	Intel® Celeron® 3965U
		Cores/Threads		4 / 8	4 / 8	2 / 4	2 / 2
		CPU base frequency		2.8 GHz	3.0 GHz	2.6 GHz	2.2 GHz
		Maximum turbo frequency		3.7 GHz	3.7 GHz	3.5 GHz	-
		Cache		8 MB	8 MB	3 MB	2 MB
		Cooling details		Requires active cooling (fan)		Passive cooling (fanless)
		Intel CPU category		Industrial (100% operation minimal 10yr)
	Memory	*Memory size 1**		8, 16 or 32 GB	8, 16 or 32 GB	4 or 8 GB	4 or 8 GB
	Memory	Memory type		DDR4 (ECC is available)	DDR4 (non ECC)
	Trusted platform module (TPM)			Available
	Graphics controller			Intel® Iris™ Pro Graphics. Up to two independent screens.	Intel® HD Graphics. Up to two independent screens.
	Graphics controller			Intel® Iris™ Pro Graphics P580	Intel® HD Graphics 630	Intel® HD Graphics 620	Intel® HD Graphics 610
	Watchdog			Yes
Operating system	Windows OS			Windows 10 IoT Enterprise 2016 LTSB - 64 bit Windows 10 IoT Enterprise 2021 LTSC - 64 bit	Windows 10 IoT Enterprise 2019 LTSC - 64 bit Windows 10 IoT Enterprise 2021 LTSC - 64 bit	Windows 10 IoT Enterprise 2016 LTSB - 64 bit Windows 10 IoT Enterprise 2019 LTSC - 64 bit Windows 10 IoT Enterprise 2021 LTSC - 64 bit	Windows 10 IoT Enterprise 2016 LTSB - 64 bit Windows 10 IoT Enterprise 2019 LTSC - 64 bit Windows 10 IoT Enterprise 2021 LTSC - 64 bit
Storage devices	*Drives 1**	*Hard Disk Drive 2**		• 320 GB, 500 GB, 1 TB	• 500 GB, 1 TB	• 320 GB
		Solid state drive	SLC type	• 64 GB
			MLC type	• 128 GB, 500 GB	• 128 GB, 256 GB, 500 GB	• 128 GB
			3DTLC type	• 128 GB, 256 GB, 512 GB, 1 TB
	*Drive bays (HDD/SSD) 3**			2	2	2	2
	Hardware-RAID support			NYB1E- []2[][][] only	NYB27- []2[][][] only	NYB35- []2[][][] only	N/A
Con- nectors	Power connector			24 VDC
	I/O connector			2 inputs (UPS signal and power OFF control) and 1 output (Industrial Box PC power state)
	USB2.0 Type-A	Number of ports		2
		Maximum current		500 mA
		Maximum cable length		5 m
	USB3.0 Type-A	Number of ports		2
		Maximum current		900 mA
		Maximum cable length		3 m
	Ethernet con- nectors	Number of ports		3
	Ethernet con- nectors	Physical layer		10BASE-T, 100BASE-TX or 1000BASE-T
	DVI-I connector	Video interface		Digital or analog		Digital only
		Resolution		Up to 1,920 x 1,200 pixels at 60 Hz
		Maximum DVI cable length		Dependent upon connected monitor type and resolution
	Display- Port ++	Resolution		N/A
	Display- Port ++	Maximum cable length		N/A
Optional connector (select one per system)	RS-232C			Standard DSUB9 connector (Non-Isolated)
	DVI-D	Video interface		Digital only
		Resolution		Up to 1,920 x 1,200 pixels at 60 Hz
		Maximum DVI cable length		Dependent upon connected monitor type and resolution
	NY Monitor Link	Video interface		Digital only
		Resolution		1,280 x 800 pixels at 60 Hz
		Connector type		RJ45
		Cable shielding, type and max. length		S/FTP, Cat.6A, 100 m
		USB data throughput		280 Mbps max.
	GigE LAN	Physical layer		10BASE-T, 100BASE-TX or 1000BASE-T		-
	Display- Port ++	Resolution		N/A
	Display- Port ++	Maximum cable length		N/A
PCIe Card Slot	Configuration			X4 (4 lanes) up to Gen 3		X2 (2 lanes) up to Gen 3
	Card height			Standard height cards, 4.20 inches (106.7 mm) *4
	Card length			Half length cards, 6.6 inches (167.65 mm)
Battery	Model			CJ1W-BAT01		Non replaceable battery
Battery	Service life			5 years at 25°C		10 years at 40°C *5
Fan unit	Model			NY000-AF00		No fan unit
Fan unit	Service life			70,000 hours of continuous operation at 40°C with 15% to 65% relative humidity		-
LED				PWR, ERR, HDD, RUN

Item				NYB27- []0[][][]	NYB35- []0[][][]	NYB2C- []0[][][]	NYB2A- []0[][][]
Main system	CPU	CPU type		Intel® Core™ i7-7820EQ	Intel® Core™ i5-7300U	Intel® Celeron® 3965U	Intel® Atom® x5-E3940
		Cores/Threads		4 / 8	2 / 4	2 / 2	4 / 4
		CPU base frequency		3.0 GHz	2.6 GHz	2.2 GHz	1.6 GHz
		Maximum turbo frequency		3.7 GHz	3.5 GHz	-	1.8 GHz
		Cache		8 MB	3 MB	2 MB	2 MB
		Cooling details		Requires active cooling (fan)	Passive cooling (fanless)
		Intel CPU category		Industrial (100% operation minimal 10yr)
	Memory	*Memory size 1**		8, 16 or 32 GB	8 or 16 GB	4 or 8 GB	2, 4 or 8 GB
	Memory	Memory type		DDR4 (non ECC)			DDR3L (non ECC)
	Trusted platform module (TPM)			Available
	Graphics controller			Intel® HD Graphics. Up to two independent screens.
	Graphics controller			Intel® HD Graphics 630	Intel® HD Graphics 620	Intel® HD Graphics 610	Intel® HD Graphics 500
	Watchdog			Yes
Operating system	Windows OS			Windows 10 IoT Enterprise 2019 LTSC - 64 bit Windows 10 IoT Enterprise 2021 LTSC - 64 bit	Windows 10 IoT Enterprise 2016 LTSB - 64 bit Windows 10 IoT Enterprise 2019 LTSC - 64 bit Windows 10 IoT Enterprise 2021 LTSC - 64 bit		Windows 10 IoT Enterprise 2019 LTSC - 64 bit Windows 10 IoT Enterprise 2021 LTSC - 64 bit
Storage devices	*Drives 1**	*Hard Disk Drive 2**		N/A
		Solid state drive	SLC type	N/A
			MLC type	• 64 GB, 128 GB, 256 GB
			3DTLC type	• 128 GB, 256 GB
	*Drive bays (HDD/SSD) 3**			CFast slot	CFast slot	CFast slot	CFast slot
	Hardware-RAID support			N/A	N/A	N/A	N/A
Con- nectors	Power connector			24 VDC
	I/O connector			2 inputs (UPS signal and power OFF control) and 1 output (Industrial Box PC power state)
	USB2.0 Type-A	Number of ports		2
		Maximum current		500 mA
		Maximum cable length		5 m
	USB3.0 Type-A	Number of ports		2
		Maximum current		900 mA
		Maximum cable length		3 m
	Ethernet con- nectors	Number of ports		3
	Ethernet con- nectors	Physical layer		10BASE-T, 100BASE-TX or 1000BASE-T
	DVI-I connector	Video interface		Digital only
		Resolution		Up to 1,920 x 1,200 pixels at 60 Hz
		Maximum DVI cable length		Dependent upon connected monitor type and resolution
	Display- Port ++	Resolution		N/A
	Display- Port ++	Maximum cable length		N/A
Optional connector (select one per system)	RS-232C			N/A
	DVI-D	Video interface		N/A
		Resolution		N/A
		Maximum DVI cable length		N/A
	NY Monitor Link	Video interface		Digital only
		Resolution		1,280 x 800 pixels at 60 Hz
		Connector type		RJ45
		Cable shielding, type and max. length		S/FTP, Cat.6A, 100 m
		USB data throughput		280 Mbps max.
	GigE LAN	Physical layer		-
	Display- Port ++	Resolution		N/A
	Display- Port ++	Maximum cable length		N/A
PCIe Card Slot	Configuration			N/A
	Card height			N/A
	Card length			N/A
Battery	Model			CJ1W-BAT01	Non replaceable battery
Battery	Service life			5 years at 25°C	10 years at 40°C *5
Fan unit	Model			NY000-AF00	No fan unit
Fan unit	Service life			70,000 hours of continuous operation at 40°C with 15% to 65% relative humidity	-
LED				PWR, ERR, HDD, RUN

*1. Not all combinations are possible or standard available. Please contact your Omron representative to discuss the
possibilities.
*2. Orders for HDD models will be accepted until the end of December 2025.
*3. Depending on the model one or two drives are supported.
*4. Low profile cards, 2.536 inches (64.4 mm) are not supported.
*5. Battery service life highly depend on circumtance and is in normal operation 20yr longer

Electrical Specifications

Item			NYB2E- []1[][][] NYB2E- []2[][][]	NYB37- []1[][][] NYB37- []2[][][]	NYB55- []1[][][] NYB55- []2[][][]	NYB65- []1[][][] NYB65- []2[][][]	NYB13- []1[][][] NYB13- []2[][][]
CPU type			Intel® Xeon® W-11865MRE	Intel® Core™ i7-1185GRE	Intel® Core™ i5-1145GRE		Intel® Core™ i3-1115GRE
Rated power supply voltage			24 VDC, non-isolated
Allowable power supply voltage range			20.4 to 28.8 VDC
Grounding method			Ground to less than 100 Ω
Inrush current			At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category			JIS B3502 and IEC 61131-2: Category II
EMC immunity level			IEC 61131-2: Zone B
RTC accuracy			At ambient temperature of 55°C: -3.5 to +0.5 min error per month At ambient temperature of 25°C: -1.5 to +1.5 min error per month At ambient temperature of 0°C: -3 to +1 min error per month
Power button life			100,000 operations
Battery life			5 years at 25°C (for battery CJ1W-BAT01)
Fan life			8 years of continuous operation at 40°C			-
Power consumption *			-
	Maximum power consumption including drives and expansions		167 W	123 W	108 W	89 W	68 W
	Maximum power consumption excluding drives and expansions		130 W	86 W	71 W	62 W	41 W
	Drives		-
		HDD 320 GB	2 W
		HDD 500 GB	2 W
		HDD 1 TB	2 W
		SSD SLC 32 GB	-
		SSD SLC 64 GB	-
		SSD MLC 128 GB	-
		SSD MLC 500 GB	-
		SSD 3DTLC 128 GB	1 W
		SSD 3DTLC 256 GB	1 W
		SSD 3DTLC 512 GB	2 W
		SSD 3DTLC 1 TB	2 W
		CFast MLC 64 GB	-
		CFast MLC 128 GB	-
		CFast MLC 256 GB	-
		CFast 3DTLC 128 GB	-
		CFast 3DTLC 256 GB	-
		CFast 3DTLC 512 GB	-
	Expansions		-
		USB	18 W max. (4 x 900 mA at 5 V)
		PCIe	15 W max.			5 W max.

Item			NYB2E- []0[][][]	NYB37- []0[][][]	NYB55- []0[][][]	NYB65- []0[][][]
CPU type			Intel® Xeon® W-11865MRE	Intel® Core™ i7-1185GRE	Intel® Core™ i5-1145GRE
Rated power supply voltage			24 VDC, non-isolated
Allowable power supply voltage range			20.4 to 28.8 VDC
Grounding method			Ground to less than 100 Ω
Inrush current			At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category			JIS B3502 and IEC 61131-2: Category II
EMC immunity level			IEC 61131-2: Zone B
RTC accuracy			At ambient temperature of 55°C: -3.5 to +0.5 min error per month At ambient temperature of 25°C: -1.5 to +1.5 min error per month At ambient temperature of 0°C: -3 to +1 min error per month
Power button life			100,000 operations
Battery life			5 years at 25°C (for battery CJ1W-BAT01)
Fan life			-
Power consumption *			-
	Maximum power consumption including drives and expansions		150 W	106 W	91 W	82 W
	Maximum power consumption excluding drives and expansions		130 W	86 W	71 W	62 W
	Drives		-
		HDD 320 GB	-
		HDD 500 GB	-
		HDD 1 TB	-
		SSD SLC 32 GB	-
		SSD SLC 64 GB	-
		SSD MLC 128 GB	-
		SSD MLC 500 GB	-
		SSD 3DTLC 128 GB	-
		SSD 3DTLC 256 GB	-
		SSD 3DTLC 512 GB	-
		SSD 3DTLC 1 TB	-
		CFast MLC 64 GB	-
		CFast MLC 128 GB	-
		CFast MLC 256 GB	-
		CFast 3DTLC 128 GB	1 W
		CFast 3DTLC 256 GB	1 W
		CFast 3DTLC 512 GB	2 W
	Expansions		-
		USB	18 W max. (4 x 900 mA at 5 V)
		PCIe	-

Item			NYB13-[]0[][][]	NYB3A-[]0[][][]
CPU type			Intel® Core™ i3-1115GRE	Intel® Atom® x6425RE
Rated power supply voltage			24 VDC, non-isolated
Allowable power supply voltage range			20.4 to 28.8 VDC
Grounding method			Ground to less than 100 Ω
Inrush current			At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category			JIS B3502 and IEC 61131-2: Category II
EMC immunity level			IEC 61131-2: Zone B
RTC accuracy			At ambient temperature of 55°C: -3.5 to +0.5 min error per month At ambient temperature of 25°C: -1.5 to +1.5 min error per month At ambient temperature of 0°C: -3 to +1 min error per month
Power button life			100,000 operations
Battery life			5 years at 25°C (for battery CJ1W-BAT01)
Fan life			-
Power consumption *			-
	Maximum power consumption including drives and expansions		61 W	44 W
	Maximum power consumption excluding drives and expansions		41 W	24 W
	Drives		-
		HDD 320 GB	-
		HDD 500 GB	-
		HDD 1 TB	-
		SSD SLC 32 GB	-
		SSD SLC 64 GB	-
		SSD MLC 128 GB	-
		SSD MLC 500 GB	-
		SSD 3DTLC 128 GB	-
		SSD 3DTLC 256 GB	-
		SSD 3DTLC 512 GB	-
		SSD 3DTLC 1 TB	-
		CFast MLC 64 GB	-
		CFast MLC 128 GB	-
		CFast MLC 256 GB	-
		CFast 3DTLC 128 GB	1 W
		CFast 3DTLC 256 GB	1 W
		CFast 3DTLC 512 GB	2 W
	Expansions		-
		USB	18 W max. (4 x 900 mA at 5 V)
		PCIe	-

Item			NYB1E- [][][][][]	NYB27- []1[][][] NYB27- []2[][][]	NYB35- []1[][][] NYB35- []2[][][]	NYB2C- []1[][][]
CPU type			Intel® Xeon® E3-1515M v5	Intel® Core™ i7-7820EQ CPU	Intel® Core™ i5-7300U	Intel® Celeron® 3965U
Rated power supply voltage			24 VDC, non-isolated
Allowable power supply voltage range			20.4 to 28.8 VDC
Grounding method			Ground to less than 100 Ω
Inrush current			At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category			Meets IEC 61010-2-201: Category II
EMC immunity level			IEC 61131-2: Zone B
RTC accuracy			At ambient temperature of 55°C: -3.5 to +0.5 min error per month At ambient temperature of 25°C: -1.5 to +1.5 min error per month At ambient temperature of 0°C: -3 to +1 min error per month
Power button life			100,000 operations
Battery life			5 years at 25°C (for battery CJ1W-BAT01)		10 years at 40°C
Fan life			8 years of continuous operation at 40°C		-	-
Power consumption *			-
	Maximum power consumption including drives and expansions		121 W	121 W	69 W	50 W
	Maximum power consumption excluding drives and expansions		86 W	86 W	46 W	27 W
	Drives		-
		HDD 320 GB	2 W
		HDD 500 GB	2 W
		HDD 1 TB	2 W
		SSD SLC 32 GB	2 W
		SSD SLC 64 GB	2 W
		SSD MLC 128 GB	2 W
		SSD MLC 500 GB	3 W
		SSD 3DTLC 128 GB	1 W
		SSD 3DTLC 256 GB	1 W
		SSD 3DTLC 512 GB	2 W
		SSD 3DTLC 1 TB	2 W
		CFast MLC 64 GB	-
		CFast MLC 128 GB	-
		CFast MLC 256 GB	-
		CFast 3DTLC 128 GB	-
		CFast 3DTLC 256 GB	-
		CFast 3DTLC 512 GB	-
	Expansions		-
		USB	14 W max. ((2 x 500 mA at 5 V) + (2 x 900 mA at 5 V))
		PCIe	15 W max.	15 W max.	5 W max.	5 W max.

Item			NYB27- []0[][][]	NYB35- []0[][][]	NYB2C- []0[][][]	NYB2A- []0[][][]
CPU type			Intel® Core™ i7-7820EQ	Intel® Core™ i5-7300U	Intel® Celeron® 3965U	Intel® Atom® x5-E3940
Rated power supply voltage			24 VDC, non-isolated
Allowable power supply voltage range			20.4 to 28.8 VDC
Grounding method			Ground to less than 100 Ω
Inrush current			At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category			Meets IEC 61010-2-201: Category II
EMC immunity level			IEC 61131-2: Zone B
RTC accuracy			At ambient temperature of 55°C: -3.5 to +0.5 min error per month At ambient temperature of 25°C: -1.5 to +1.5 min error per month At ambient temperature of 0°C: -3 to +1 min error per month
Power button life			100,000 operations
Battery life			5 years at 25°C (for battery CJ1W-BAT01)	10 years at 40°C
Fan life			8 years of continuous operation at 40°C	-	-	-
Power consumption *			-
	Maximum power consumption including drives and expansions		101 W	61 W	42 W	41 W
	Maximum power consumption excluding drives and expansions		86 W	46 W	27 W	26 W
	Drives		-
		HDD 320 GB	-
		HDD 500 GB	-
		HDD 1 TB	-
		SSD SLC 32 GB	-
		SSD SLC 64 GB	-
		SSD MLC 128 GB	-
		SSD MLC 500 GB	-
		SSD 3DTLC 128 GB	-
		SSD 3DTLC 256 GB	-
		SSD 3DTLC 512 GB	-
		SSD 3DTLC 1 TB	-
		CFast MLC 64 GB	1 W
		CFast MLC 128 GB	1 W
		CFast MLC 256 GB	1 W
		CFast 3DTLC 128 GB	1 W
		CFast 3DTLC 256 GB	1 W
		CFast 3DTLC 512 GB	2 W
	Expansions		-
		USB	14 W max. ((2 x 500 mA at 5 V) + (2 x 900 mA at 5 V))
		PCIe	-

Note: Refer to the Industrial Box PC User’s Manual (W553) for details.
* The total power consumption is the sum of the power consumption of all items that are installed in your Industrial Box PC.

To guarantee S8BA UPS operation in combination with our IPC, the specified combination of UPS and power-supply must be used.

Item		NYB2E- []1[][][] NYB2E- []2[][][]	NYB37- []1[][][] NYB37- []2[][][]	NYB55- []1[][][] NYB55- []2[][][]	NYB65- []1[][][] NYB65- []2[][][]	NYB13- []1[][][] NYB13- []2[][][]	NYB2E- []0[][][]
Minimum power requirements	Power supply	240 W			120 W		240 W
Minimum power requirements	UPS	240 W		120 W			240 W

Item		NYB37- []0[][][]	NYB55- []0[][][]	NYB65- []0[][][]	NYB13- []0[][][]	NYB3A- []0[][][]	NYB1E / NYB27	NYB35 / NYB2C / NYB27-[]0 / NYB2A
Minimum power requirements	Power supply	240 W	120 W				240 W	120 W
Minimum power requirements	UPS	120 W					240 W	120 W

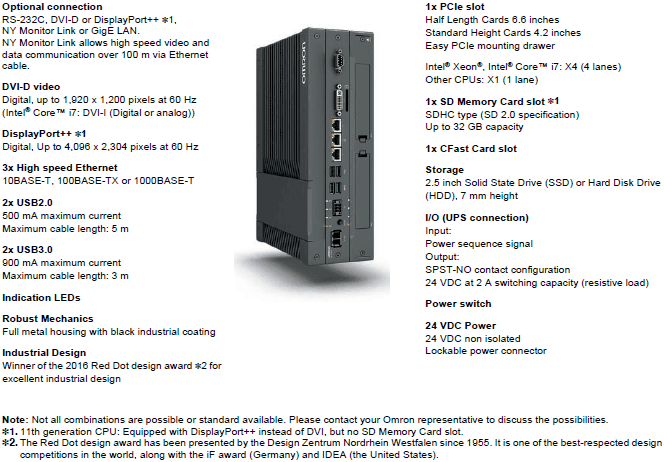

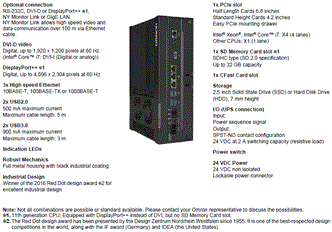

Components and functions

The intent behind our IPC platform is to empower engineers to become unstoppable in developing machines and factories that are better, faster and safer by giving them the freedom and flexibility to explore the opportunities provided by modern IT. In line with Omron’s traditional quality standards, the Industrial Box PC is designed to meet the demands of industrial users for maximum robustness and reliability.
All maintenance sensitive products (HDD/SDD, fan, battery, and PCIe Card) can be easily reached from the outside of the system. No need to open the electronics compartment, less risk on failure.

Environmental Specifications

Item		Specifications
operation environment	Ambient operating temperature *1	0 to 55°C
	Ambient storage temperature *1	-20 to 70°C
	*Ambient operating humidity 1**	10% to 90% with no condensation
	*Ambient storage humidity 1**	10% to 90% with no condensation
	Operating atmosphere	No corrosive gases
	Altitude	2,000 m max.
	Noise resistance (during operation)	Conforms to IEC61000-4-4, 2kV (power lines)
	Vibration resistance (during operation)	Conforms to IEC 60068-2-6. For a product with an SSD: 5 to 8.4 Hz with 3.5 mm single amplitude and 8.4 to 150 Hz with 9.8 m/s² for 10 times each in X, Y and Z directions. For a product with a HDD the vibration resistance depends on the mounting orientation *2.
	Shock resistance (during operation)	Conforms to IEC 60068-2-27. 147 m/s², 3 times in each X, Y and Z directions
	Installation method	Book mount, Wall mount
	Pollution degree	2 or less: Meets IEC 61010-2-201.
*Applicable standards 3**		EU Directives: EMC Directive 2014/30/EU (EN 61131-2) and RoHS Directive KC Registration, RCM, cULus

*1. The allowed ambient operating temperature and ambient humidity depend on product type, CPU type, mounting
orientation, and storage device type.
*2. Vibration resistance depends on the Industrial Box PC's mounting orientation and storage device type:

Mounting orientation	SSD or CFast Card	HDD
Book	9.8 m/s²	2.5 m/s²
Wall	9.8 m/s²	4.9 m/s²

*3. Contact your OMRON representative for the most recent applicable standards for each model.

Storage Device Specifications

Item	Specifications
Model	NY000- AS00	NY000- AS01	NY000- AS03	NY000- AS04	NY000- AS05	NY000- AS07	NY000- AS08
Capacity	32 GB	64 GB	64 GB	128 GB	500 GB	1 TB	256 GB
Type	SSD (SLC)		SSD (SLC)	SSD (MLC)	SSD (MLC)	SSD (3DTLC)	SSD (MLC)
S.M.A.R.T. support	Yes
Rotation speed	-	-	-	-	-	-	-
Interface	Serial ATA 3.1
Sustained standard read speed	Up to 160 MB/s	Up to 160 MB/s	Up to 500 MB/s	Up to 530 MB/s	Up to 415 MB/s	Up to 550 MB/s	Up to 530 MB/s
Sustained standard write speed	Up to 145 MB/s	Up to 150 MB/s	Up to 370 MB/s	Up to 190 MB/s	Up to 200 MB/s	Up to 340 MB/s	Up to 210 MB/s
Operating temperature	0 to 70°C
Operating humidity	10% to 95% (with no condensation)		10% to 85% (with no condensation)	10% to 95% (with no condensation)
Storage temperature	-40 to 100°C		-45 to 90°C	-55 to 95°C
Storage humidity	10% to 95% (with no condensation)
Life	1,500 TB written	3,000 TB written	1900 TB written	208 TB written	154 TB written	1000 TB written	416 TB written

Item	Specifications
Model	NY000-AS09	NY000-AS10	NY000-AS11	NY000-AS12	NY000-AS13
Capacity	128 GB	256 GB	512 GB	1 TB	2 TB
Type	SSD (3DTLC)	SSD (3DTLC)	SSD (3DTLC)	SSD (3DTLC)	SSD (3DTLC)
S.M.A.R.T. support	Yes
Rotation speed	-	-	-	-	-
Interface	Serial ATA 3.1
Sustained standard read speed	Up to 550 MB/s	Up to 550 MB/s	Up to 550 MB/s	Up to 550 MB/s	Up to 550 MB/s
Sustained standard write speed	Up to 450 MB/s	Up to 485 MB/s	Up to 500 MB/s	Up to 510 MB/s	Up to 510 MB/s
Operating temperature	0 to 70°C
Operating humidity	5% to 90% (with no condensation)
Storage temperature	-40 to 85°C
Storage humidity	5% to 93% (with no condensation)
Life	90 TB written	230 TB written	550 TB written	1200 TB written	3000 TB written

Item	Specifications
Model	NY000-AT00	NY000-AT01	NY000-AT02	NY000-AT05	NY000-AT06	NY000-AT07
Capacity	64 GB	128 GB	256 GB	128 GB	256 GB	512 GB
Type	CFast (MLC)	CFast (MLC)	CFast (MLC)	CFast (3DTLC)	CFast (3DTLC)	CFast (3DTLC)
S.M.A.R.T. support	Yes
Rotation speed	-	-	-	-	-	-
Interface	Serial ATA 3.1
Sustained standard read speed	Up to 530 MB/s	Up to 530 MB/s	Up to 530 MB/s	Up to 550 MB/s	Up to 550 MB/s	Up to 550 MB/s
Sustained standard write speed	Up to 100 MB/s	Up to 190 MB/s	Up to 210 MB/s	Up to 450 MB/s	Up to 485 MB/s	Up to 500 MB/s
Operating temperature	-40 to 85°C			-40 to 85°C
Operating humidity	10% to 95% (with no condensation)			5% to 90% (with no condensation)
Storage temperature	-55 to 95°C			-40 to 85°C
Storage humidity	10% to 95% (with no condensation)			5% to 90% (with no condensation)
Life	125 TB written	208 TB written	417 TB written	90 TB written	230 TB written	550 TB written

Note: Orders for NY000-AS02 are no longer accepted, as of November 30, 2018. Orders for NY000-AH00/-AH01/-AH02 will be accepted until the end of December 2025.

last update: January 14, 2025

Product Category

Automation Systems
- Industrial PC Platform
  - NY5[][]-1
  - NYB
  - NYP
  - NYM

Top of page
