Solid-state timer

H3RN-[]-B

Our Value Design Products Increase the Value of Your Control Panels. Compact, Multi-function Timers for G2R Relay Socket.

last update: November 8, 2021

(Unit: mm)

Timers

H3RN-1-B/H3RN-11-B Front Mounting

H3RN-[]-B Dimensions 2

Note: Use the P2RF-08-PU Front-mounting Sockets.

H3RN-2-B/H3RN-21-B Front Mounting

H3RN-[]-B Dimensions 3

Note: Use the P2RF-08-PU Front-mounting Sockets.

P2RF-[]-PU

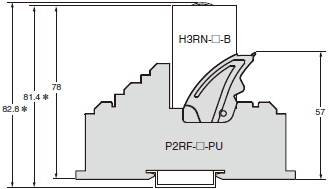

H3RN-[]-B Dimensions 4

Note: There are no restrictions to the mounting direction.
* These values apply when the PFP-[]N is used.
Add 9 mm if you use the PFP-[]N2.

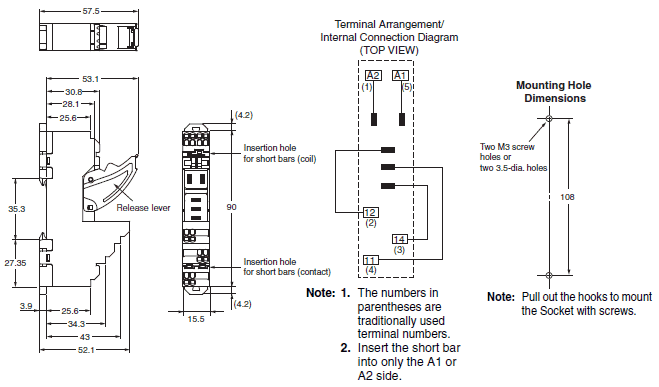

Connecting Sockets

P2RF-05-PU

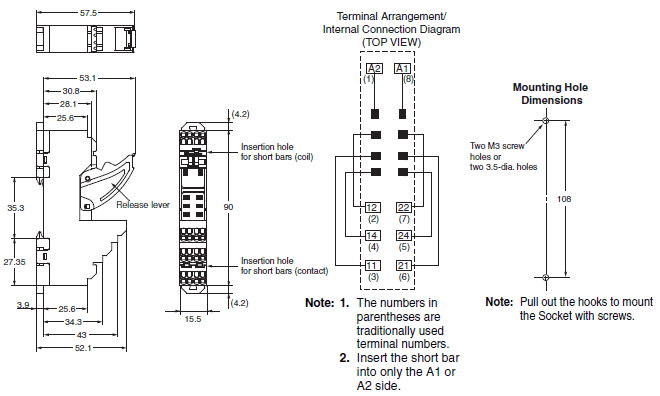

H3RN-[]-B Dimensions 6

P2RF-08-PU

H3RN-[]-B Dimensions 7
