Industrial Automation
A30NS / A30NW
Selector Switches
30-mm dia. Knob-type Selector Switches Control panel miniaturization through a more compact design and modified wiring direction. Addition of Push-In Plus terminal blocks for easy wiring. Workability and safety improvements.
Related Contents
Application Solutions
last update: November 5, 2024

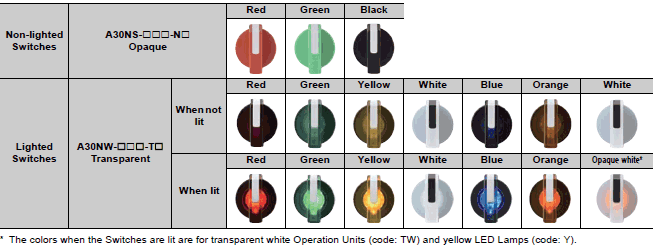

Operation Unit Colors

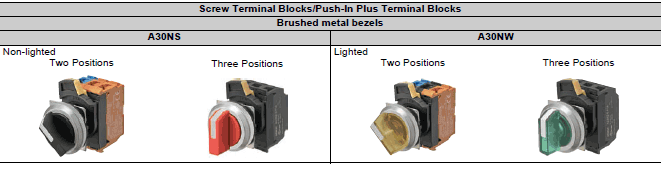

List of Models

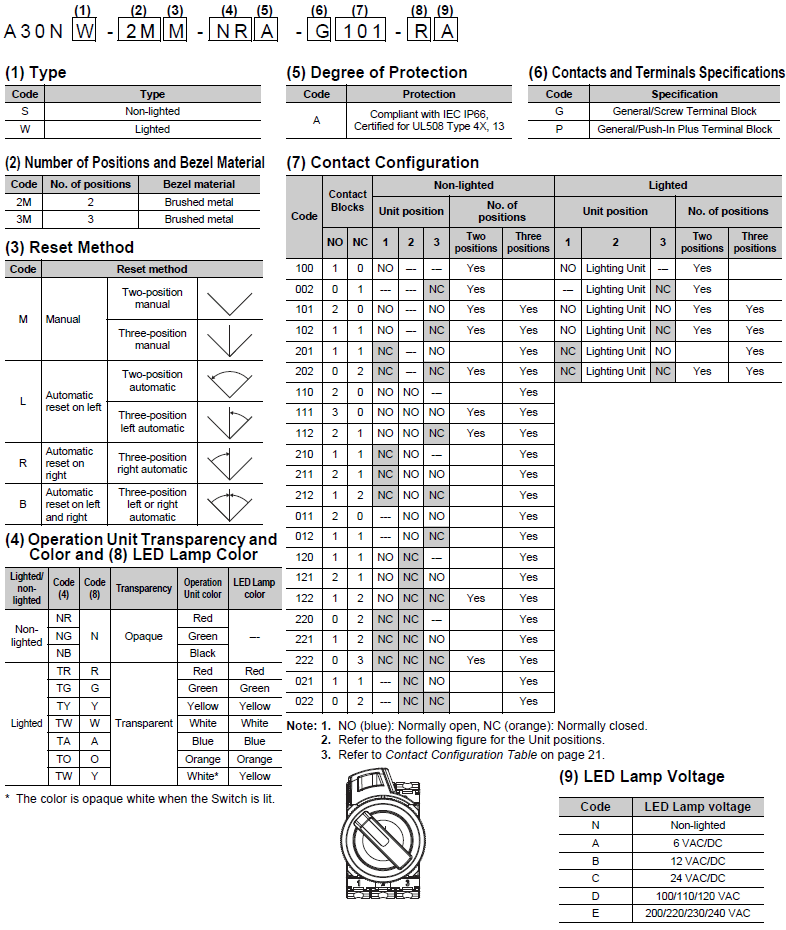

Model Number Structure
Model Number Legend
Please order Operation Units, LED lamps (lighted models only), Mounting Collars, Contact Blocks, and Lighting Units (lighted models only) separately. LED lamps, Mounting Collars, Contact Blocks, Lighting Units, and Lock Ring can also be used with the A22N series.
Model Numbers for Sets
Ordering Information
Model Numbers for Sets
Shipped as a set that includes the Operation Unit, Mounting Collar, and Contact Block.
Non-lighted, Two-position, Selector Switches
| Appearance |
Bezel
material |
No. of
outputs |
Model |
(3)
Reset method |
(4)(4)
Operation Unit color |
(7)(7)(7)
Contact configuration |
|---|---|---|---|---|---|---|
| Brushed metal
bezels  |
2M | 1 |
A30NS-2M(3)-
(4)(4)A-G(7)(7)(7)-NN |
M: Manual
L: Automatic reset on left |
NR: Opaque red
NG: Opaque green NB: Opaque black |
100
002 |
|
A30NS-2M(3)-
(4)(4)A-P(7)(7)(7)-NN |
||||||
| 2 |
A30NS-2M(3)-
(4)(4)A-G(7)(7)(7)-NN |
102
101 202 |
||||
|
A30NS-2M(3)-
(4)(4)A-P(7)(7)(7)-NN |
||||||
| 3 |
A30NS-2M(3)-
(4)(4)A-G(7)(7)(7)-NN |
111
222 122 112 |
||||
|
A30NS-2M(3)-
(4)(4)A-P(7)(7)(7)-NN |
Non-lighted, Three-position, Selector Switches
| Appearance |
Bezel
material |
No. of
outputs |
Model |
(3)
Reset method |
(4)(4)
Operation Unit color |
(7)(7)(7)
Contact configuration |
|---|---|---|---|---|---|---|
| Brushed metal
bezels  |
3M | 2 |
A30NS-3M(3)-
(4)(4)A-G(7)(7)(7)-NN |
M: Manual
L: Automatic reset on left R: Automatic reset on right B: Automatic reset on left and right |
NR: Opaque red
NG: Opaque green NY: Opaque yellow NW:Opaque white NA: Opaque blue NB: Opaque black |
110
011 101 220 022 202 120 102 210 201 012 021 |
|
A30NS-3M(3)-
(4)(4)A-P(7)(7)(7)-NN |
||||||
| 3 |
A30NS-3M(3)-
(4)(4)A-G(7)(7)(7)-NN |
111
222 122 212 221 211 121 112 |
||||
|
A30NS-3M(3)-
(4)(4)A-P(7)(7)(7)-NN |
Model Numbers for Sets
Shipped as a set that includes the Operation Unit, LED Lamp, Mounting Collar, Contact Block, and Lighting Unit.
Lighted, Two-position, Selector Switches
Bezel material : 2M
| Appearance |
No. of
outputs |
Model |
(3)
Reset method |
(4)(4)
Operation Unit color |
(7)(7)(7)
Contact configu- ration |
(8)
LED Lamp color |
(9)
LED Lamp voltage |
|---|---|---|---|---|---|---|---|
| Brushed metal
bezels  |
1 |
A30NW-2M(3)-
(4)(4)A-G(7)(7)(7)- (8)(9) |
M: Manual
L: Automatic reset on left |
TR: Transparent
red TG: Transparent green TY: Transparent yellow TW:Transparent white TA: Transparent blue TO: Transparent orange |
100
002 |
R: Red
G: Green Y: Yellow A: Blue O: Orange W:White |
A: 6 VAC/DC
B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC |
|
A30NW-2M(3)-
(4)(4)A-P(7)(7)(7)- (8)(9) |
|||||||
| 2 |
A30NW-2M(3)-
(4)(4)A-G(7)(7)(7)- (8)(9) |
102
101 202 |
|||||
|
A30NW-2M(3)-
(4)(4)A-P(7)(7)(7)- (8)(9) |
Lighted, Three-position, Selector Switches
Bezel material : 3M
| Appearance |
No. of
outputs |
Model |
(3)
Reset method |
(4)(4)
Operation Unit color |
(7)(7)(7)
Contact configu- ration |
(8)
LED Lamp color |
(9)
LED Lamp voltage |
|---|---|---|---|---|---|---|---|
| Brushed metal
bezels  |
2 |
A30NW-3M(3)-
(4)(4)A-G(7)(7)(7)- (8)(9) |
M: Manual
L: Automatic reset on left R: Automatic reset on right B: Automatic reset on left and right |
TR: Transparent
red TG: Transparent green TY: Transparent yellow TW:Transparent white TA: Transparent blue TO: Transparent orange |
101
202 102 201 |
R: Red
G: Green Y: Yellow A: Blue O: Orange W:White |
A: 6 VAC/DC
B: 12 VAC/DC C: 24 VAC/DC D: 100/110/ 120 VAC E: 200/220/ 230/240 VAC |
|
A30NW-3M(3)-
(4)(4)A-P(7)(7)(7)- (8)(9) |
Note: Normally, the Operation Unit and LED Lamp with the same color are combined.
However, opaque white is available by combining a white Operation Unit and yellow LED. A30N[]-[][][]-TWA-[][][][]-Y[]

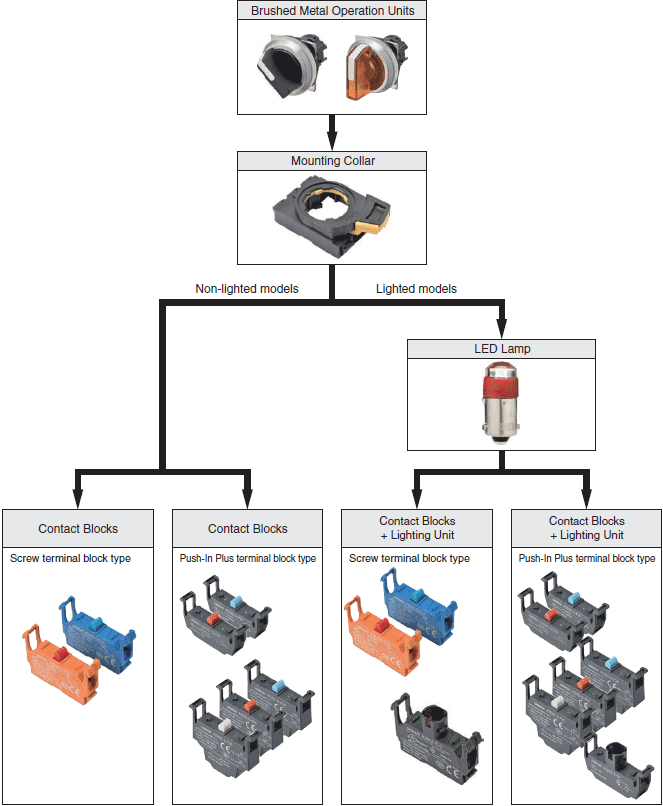

Switch Structure
Please order Operation Units, LED lamps (lighted models only), Mounting Collars, Contact Blocks, and Lighting Units (lighted models only) separately. LED lamps, Mounting Collars, Contact Blocks, Lighting Units, and Lock Ring can also be used with the A22N series.
Subassemblies
Please order Operation Units, LED lamps (lighted models only), Mounting Collars, Contact Blocks, and Lighting Units (lighted models only) separately. LED lamps, Mounting Collars, Contact Blocks, Lighting Units, and Lock Ring can also be used with the A22N series.
Operation Units
Non-lighted Switches
| Bezel material and shape |
Brushed metal
|
||
|---|---|---|---|
|
No. of
positions |
Reset method |
Operation
Unit color |
Model |
| 2 | Manual | Opaque red | A30NZ-2MM-NRA |
| Automatic reset on left | A30NZ-2ML-NRA | ||
| 3 | Manual | A30NZ-3MM-NRA | |
| Automatic reset on left | A30NZ-3ML-NRA | ||
| Automatic reset on right | A30NZ-3MR-NRA | ||
| Automatic reset on left and right | A30NZ-3MB-NRA | ||
| 2 | Manual | Opaque green | A30NZ-2MM-NGA |
| Automatic reset on left | A30NZ-2ML-NGA | ||
| 3 | Manual | A30NZ-3MM-NGA | |
| Automatic reset on left | A30NZ-3ML-NGA | ||
| Automatic reset on right | A30NZ-3MR-NGA | ||
| Automatic reset on left and right | A30NZ-3MB-NGA | ||
| 2 | Manual | Opaque black | A30NZ-2MM-NBA |
| Automatic reset on left | A30NZ-2ML-NBA | ||
| 3 | Manual | A30NZ-3MM-NBA | |
| Automatic reset on left | A30NZ-3ML-NBA | ||
| Automatic reset on right | A30NZ-3MR-NBA | ||
| Automatic reset on left and right | A30NZ-3MB-NBA | ||
Lighted Switches
| Bezel material and shape |
Brushed metal
|
||
|---|---|---|---|
|
No. of
positions |
Reset method |
Operation
Unit color |
Model |
| 2 | Manual | Transparent red | A30NZ-2MM-TRA |
| Automatic reset on left | A30NZ-2ML-TRA | ||
| 3 | Manual | A30NZ-3MM-TRA | |
| Automatic reset on left | A30NZ-3ML-TRA | ||
| Automatic reset on right | A30NZ-3MR-TRA | ||
| Automatic reset on left and right | A30NZ-3MB-TRA | ||
| 2 | Manual | Transparent green | A30NZ-2MM-TGA |
| Automatic reset on left | A30NZ-2ML-TGA | ||
| 3 | Manual | A30NZ-3MM-TGA | |
| Automatic reset on left | A30NZ-3ML-TGA | ||
| Automatic reset on right | A30NZ-3MR-TGA | ||
| Automatic reset on left and right | A30NZ-3MB-TGA | ||
| 2 | Manual | Transparent yellow | A30NZ-2MM-TYA |
| Automatic reset on left | A30NZ-2ML-TYA | ||
| 3 | Manual | A30NZ-3MM-TYA | |
| Automatic reset on left | A30NZ-3ML-TYA | ||
| Automatic reset on right | A30NZ-3MR-TYA | ||
| Automatic reset on left and right | A30NZ-3MB-TYA | ||
| 2 | Manual | Transparent white | A30NZ-2MM-TWA |
| Automatic reset on left | A30NZ-2ML-TWA | ||
| 3 | Manual | A30NZ-3MM-TWA | |
| Automatic reset on left | A30NZ-3ML-TWA | ||
| Automatic reset on right | A30NZ-3MR-TWA | ||
| Automatic reset on left and right | A30NZ-3MB-TWA | ||
| 2 | Manual | Transparent blue | A30NZ-2MM-TAA |
| Automatic reset on left | A30NZ-2ML-TAA | ||
| 3 | Manual | A30NZ-3MM-TAA | |
| Automatic reset on left | A30NZ-3ML-TAA | ||
| Automatic reset on right | A30NZ-3MR-TAA | ||
| Automatic reset on left and right | A30NZ-3MB-TAA | ||
| 2 | Manual | Transparent orange | A30NZ-2MM-TOA |
| Automatic reset on left | A30NZ-2ML-TOA | ||
| 3 | Manual | A30NZ-3MM-TOA | |
| Automatic reset on left | A30NZ-3ML-TOA | ||
| Automatic reset on right | A30NZ-3MR-TOA | ||
| Automatic reset on left and right | A30NZ-3MB-TOA | ||
Subassemblies (Common)
Subassemblies
You can order Operation Units, LED Lamps, Mounting Collars, and Contact Blocks individually. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.
LED Lamps
| Appearance |
Rated
voltage |
Model | ||||
|---|---|---|---|---|---|---|
| Color | 6 VAC/DC | 12 VAC/DC | 24 VAC/DC |
100/110/120
VAC |
200/220/230/
240 VAC |
|
|
Red | A22NZ-L-RA | A22NZ-L-RB | A22NZ-L-RC | A22NZ-L-RD | A22NZ-L-RE |
| Green | A22NZ-L-GA | A22NZ-L-GB | A22NZ-L-GC | A22NZ-L-GD | A22NZ-L-GE | |
| Yellow | A22NZ-L-YA | A22NZ-L-YB | A22NZ-L-YC | A22NZ-L-YD | A22NZ-L-YE | |
| White | A22NZ-L-WA | A22NZ-L-WB | A22NZ-L-WC | A22NZ-L-WD | A22NZ-L-WE | |
| Blue | A22NZ-L-AA | A22NZ-L-AB | A22NZ-L-AC | A22NZ-L-AD | A22NZ-L-AE | |
| Orange | A22NZ-L-OA | A22NZ-L-OB | A22NZ-L-OC | A22NZ-L-OD | A22NZ-L-OE | |
Mounting Collar
| Appearance | Model |
|---|---|
|
A22NZ-H-01 |
Contact Blocks
| Appearance | Terminals Specifications | Contacts | Model |
|---|---|---|---|
|
Screw terminal block | SPST-NO (blue) | A22NZ-S-G1A |
| SPST-NC (orange) | A22NZ-S-G1B | ||
|
Push-In Plus terminal block | SPST-NO (blue) | A22NZ-S-P1A |
| SPST-NC (red) | A22NZ-S-P1B | ||
|
Push-In Plus terminal block | DPST-NO (blue) | A22NZ-S-P2A |
| DPST-NC (red) | A22NZ-S-P2B | ||
| SPST-NO/SPST-NC (white) | A22NZ-S-P2C |
Lighting Units
| Appearance | Terminals Specifications | Rated voltage | Model |
|---|---|---|---|
|
Screw terminal block | 6 VAC/DC | A22NZ-T-A |
| 12 VAC/DC | A22NZ-T-B | ||
| 24 VAC/DC | A22NZ-T-C | ||
| 100/110/120 VAC | A22NZ-T-D | ||
| 200/220/230/240 VAC | A22NZ-T-E | ||
|
Push-In Plus terminal block | 6 VAC/DC | A22NZ-T-AP |
| 12 VAC/DC | A22NZ-T-BP | ||
| 24 VAC/DC | A22NZ-T-CP | ||
| 100/110/120 VAC | A22NZ-T-DP | ||
| 200/220/230/240 VAC | A22NZ-T-EP |
