Safety Light Curtain
* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.
last update: November 1, 2018
Number of beams | Protective height (mm) | Model |
---|---|---|
15 | 160 | F3SG-4RA0160-14 |
23 | 240 | F3SG-4RA0240-14 |
31 | 320 | F3SG-4RA0320-14 |
39 | 400 | F3SG-4RA0400-14 |
47 | 480 | F3SG-4RA0480-14 |
55 | 560 | F3SG-4RA0560-14 |
63 | 640 | F3SG-4RA0640-14 |
71 | 720 | F3SG-4RA0720-14 |
79 | 800 | F3SG-4RA0800-14 |
87 | 880 | F3SG-4RA0880-14 |
95 | 960 | F3SG-4RA0960-14 |
103 | 1040 | F3SG-4RA1040-14 |
111 | 1120 | F3SG-4RA1120-14 |
119 | 1200 | F3SG-4RA1200-14 |
127 | 1280 | F3SG-4RA1280-14 |
135 | 1360 | F3SG-4RA1360-14 |
143 | 1440 | F3SG-4RA1440-14 |
151 | 1520 | F3SG-4RA1520-14 |
159 | 1600 | F3SG-4RA1600-14 |
167 | 1680 | F3SG-4RA1680-14 |
175 | 1760 | F3SG-4RA1760-14 |
183 | 1840 | F3SG-4RA1840-14 |
191 | 1920 | F3SG-4RA1920-14 |
199 | 2000 | F3SG-4RA2000-14 |
207 | 2080 | F3SG-4RA2080-14 |
Number of beams | Protective height (mm) | Model |
---|---|---|
8 | 190 | F3SG-4RA0190-30 |
12 | 270 | F3SG-4RA0270-30 |
16 | 350 | F3SG-4RA0350-30 |
20 | 430 | F3SG-4RA0430-30 |
24 | 510 | F3SG-4RA0510-30 |
28 | 590 | F3SG-4RA0590-30 |
32 | 670 | F3SG-4RA0670-30 |
36 | 750 | F3SG-4RA0750-30 |
40 | 830 | F3SG-4RA0830-30 |
44 | 910 | F3SG-4RA0910-30 |
48 | 990 | F3SG-4RA0990-30 |
52 | 1070 | F3SG-4RA1070-30 |
56 | 1150 | F3SG-4RA1150-30 |
60 | 1230 | F3SG-4RA1230-30 |
64 | 1310 | F3SG-4RA1310-30 |
68 | 1390 | F3SG-4RA1390-30 |
72 | 1470 | F3SG-4RA1470-30 |
76 | 1550 | F3SG-4RA1550-30 |
80 | 1630 | F3SG-4RA1630-30 |
84 | 1710 | F3SG-4RA1710-30 |
88 | 1790 | F3SG-4RA1790-30 |
92 | 1870 | F3SG-4RA1870-30 |
96 | 1950 | F3SG-4RA1950-30 |
100 | 2030 | F3SG-4RA2030-30 |
104 | 2110 | F3SG-4RA2110-30 |
108 | 2190 | F3SG-4RA2190-30 |
112 | 2270 | F3SG-4RA2270-30 |
116 | 2350 | F3SG-4RA2350-30 |
120 | 2430 | F3SG-4RA2430-30 |
124 | 2510 | F3SG-4RA2510-30 |

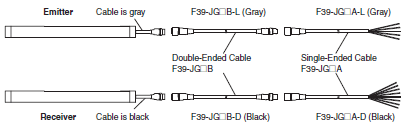

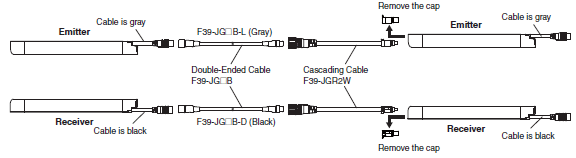

Safety light curtain connecting cable
Appearance | Type | Cable length | Specifications | Model |
---|---|---|---|---|
![]() |
For emitter
M12 connector (5-pin), 5 wires Color: Gray |
3 m |
![]() |
F39-JG3A-L |
7 m | F39-JG7A-L | |||
10 m | F39-JG10A-L | |||
15 m | F39-JG15A-L | |||
20 m | F39-JG20A-L | |||
For receiver
M12 connector (8-pin), 8 wires Color: Black |
3 m |
![]() |
F39-JG3A-D | |
7 m | F39-JG7A-D | |||
10 m | F39-JG10A-D | |||
15 m | F39-JG15A-D | |||
20 m | F39-JG20A-D |
* A set of two Single-Ended Cables (one for emitter and one for receiver) is also available.
Model: Model number without the -L/-D at the end (F39-JG[]A)
Note: To extend the cable length to more than 20 m, add the F39-JG[]B Double-Ended Cable.
Appearance | Type | Cable length | Specifications | Model |
---|---|---|---|---|
![]() |
For emitter
M12 connector (5-pin) on both ends Color: Gray |
0.5 m |
![]() |
F39-JGR5B-L |
1 m | F39-JG1B-L | |||
3 m | F39-JG3B-L | |||
5 m | F39-JG5B-L | |||
7 m | F39-JG7B-L | |||
10 m | F39-JG10B-L | |||
15 m | F39-JG15B-L | |||
20 m | F39-JG20B-L | |||
For receiver
M12 connector (8-pin) on both ends Color: Black |
0.5 m |
![]() |
F39-JGR5B-D | |
1 m | F39-JG1B-D | |||
3 m | F39-JG3B-D | |||
5 m | F39-JG5B-D | |||
7 m | F39-JG7B-D | |||
10 m | F39-JG10B-D | |||
15 m | F39-JG15B-D | |||
20 m | F39-JG20B-D |
Appearance | Type | Cable length | Specifications | Model |
---|---|---|---|---|
![]() |
M12 connectors.
Used for reduced wiring. |
0.5 m |
![]() |
F39-GCNY2 |
* Order the cable for emitter (end of model: -L) and the cable for receiver (end of model: -D).
Appearance | Specifications | Cable length | Specifications | Model |
---|---|---|---|---|
![]() |
Emitter cable: Cap (5-pin),
M12 connector (5-pin) Receiver cable: Cap (8-pin), M12 connector (8-pin) |
0.2 m |
![]() |
F39-JGR2W |
Note: The Double-Ended Cable (up to 10 m: F39-JG10B) can be added to extend the cable length between the series-connected sensors.
Cable length between sensors: 10 m max. (not including cascading cable (F39-JGR2W) and power cable)
Appearance | Specification | Application | Model |
---|---|---|---|
![]() |
Standard Fixed
Bracket |
Bracket to mount the F3SG-R.
Side mounting and backside mounting possible. (This is included as a standard accessory with the product. It comes as a set of two Brackets. Refer to note *1 for the number of sets provided with each model.) |
F39-LGF |
![]() |
Standard Adjustable
Bracket |
Bracket to mount the F3SG-R.
Beam alignment after mounting possible. The angle adjustment range is ±15°. Side mounting and backside mounting possible. (Sold separately as a set of two Brackets. Refer to note *1 for the number of sets required for each model.) |
F39-LGA |
![]() |
Top/Bottom
Adjustable Bracket *2 |
Bracket to mount the F3SG-R. Use this bracket at the top and
bottom positions of the F3SG-R. Beam alignment after mounting possible. The angle adjustment range is ±22.5°. Side mounting and backside mounting possible. (Sold separately. 4 brackets per set.) |
F39-LGTB |
![]() |
Top/Bottom
Adjustable Bracket *2 (For user-made mounting part) |
Top/Bottom Adjustable Bracket without a bracket to mount to
the wall. Use the user's own wall mounting part to suit the machine. (Sold separately. 4 brackets per set.) |
F39-LGTB-1 |
Appearance | Type | Specifications | Model |
---|---|---|---|
![]() |
SD Manager 2 | The Configuration Tool SD Manager 2 is available to
download from our website at http://www.ia.omron.com/f3sg-r_tool. To change the settings of the F3SG-RA using SD Manager 2, it is necessary to set the receiver's two DIP switches No. 8 to ON. |
- |
![]() |
Interface Unit | F39-GIF interface unit to connect the F3SG-RA
receiver to a USB port of the PC Accessories: 0.3-m Dedicated Cable 1 (1), 2-m Dedicated Cable 2 (1), Instruction Manual |
F39-GIF |
![]() |
Bluetooth
Communication Unit |
F39-BT bluetooth unit to enable bluetooth on the
F3SG-RA IP67 rated when mated. |
F39-BT |
Appearance | Type | Specifications | Model |
---|---|---|---|
![]() |
Lamp unit | The lamp unit can be connected to a receiver and turned
ON based on the operation of F3SG-RA/RR. The lamp can indicate red, orange, and green colors, to which three different states can be assigned. IP67 rated when mated. |
F39-LP |
Lamp and Bluetooth
Communication Unit |
F39-BTLP |
Appearance | Specifications | Model |
---|---|---|
![]() |
Housing color: Black
For both emitter and receiver (Attached to the F3SG-RA. The End Cap can be purchased if lost.) IP67 rated when mated. |
F39-CNM |
Appearance | Specifications | Model |
---|---|---|
![]() |
The laser pointer is attached on the optical surface of the F3SG-R to help coarse
adjustment of beams. |
F39-PTG |
Spatter Protection Covers include mounting brackets.
For Safety Light Curtain models of the protective height of 2,000 mm or longer, use two Spatter Protection Covers of different lengths.
Appearance | Safety Light Curtain Model | Model | |
---|---|---|---|
Finger protection | Hand and arm protection | ||
![]() |
F3SG-4RA0160-14 | F3SG-4RA0190-30 | F39-HGA0200 |
F3SG-4RA0240-14 | F3SG-4RA0270-30 | F39-HGA0280 | |
F3SG-4RA0320-14 | F3SG-4RA0350-30 | F39-HGA0360 | |
F3SG-4RA0400-14 | F3SG-4RA0430-30 | F39-HGA0440 | |
F3SG-4RA0480-14 | F3SG-4RA0510-30 | F39-HGA0520 | |
F3SG-4RA0560-14 | F3SG-4RA0590-30 | F39-HGA0600 | |
F3SG-4RA0640-14 | F3SG-4RA0670-30 | F39-HGA0680 | |
F3SG-4RA0720-14 | F3SG-4RA0750-30 | F39-HGA0760 | |
F3SG-4RA0800-14 | F3SG-4RA0830-30 | F39-HGA0840 | |
F3SG-4RA0880-14 | F3SG-4RA0910-30 | F39-HGA0920 | |
F3SG-4RA0960-14 | F3SG-4RA0990-30 | F39-HGA1000 | |
F3SG-4RA1040-14 | F3SG-4RA1070-30 | F39-HGA1080 | |
F3SG-4RA1120-14 | F3SG-4RA1150-30 | F39-HGA1160 | |
F3SG-4RA1200-14 | F3SG-4RA1230-30 | F39-HGA1240 | |
F3SG-4RA1280-14 | F3SG-4RA1310-30 | F39-HGA1320 | |
F3SG-4RA1360-14 | F3SG-4RA1390-30 | F39-HGA1400 | |
F3SG-4RA1440-14 | F3SG-4RA1470-30 | F39-HGA1480 | |
F3SG-4RA1520-14 | F3SG-4RA1550-30 | F39-HGA1560 | |
F3SG-4RA1600-14 | F3SG-4RA1630-30 | F39-HGA1640 | |
F3SG-4RA1680-14 | F3SG-4RA1710-30 | F39-HGA1720 | |
F3SG-4RA1760-14 | F3SG-4RA1790-30 | F39-HGA1800 | |
F3SG-4RA1840-14 | F3SG-4RA1870-30 | F39-HGA1880 | |
F3SG-4RA1920-14 | F3SG-4RA1950-30 | F39-HGA1960 | |
F3SG-4RA2000-14 | F3SG-4RA2030-30 | F39-HGA1480 | |
F39-HGA0550 | |||
F3SG-4RA2080-14 | F3SG-4RA2110-30 | F39-HGA1560 | |
F39-HGA0550 | |||
- | F3SG-4RA2190-30 | F39-HGA1640 | |
F39-HGA0550 | |||
- | F3SG-4RA2270-30 | F39-HGA1720 | |
F39-HGA0550 | |||
- | F3SG-4RA2350-30 | F39-HGA1800 | |
F39-HGA0550 | |||
- | F3SG-4RA2430-30 | F39-HGA1880 | |
F39-HGA0550 | |||
- | F3SG-4RA2510-30 | F39-HGA1960 | |
F39-HGA0550 |
Note:
1. The operating range of the Safety Light Curtain attached with the product is 10% shorter than the rating.
2. The product extends over the DIP Switch cover of the Safety Light Curtain. Be sure to use the product only after all required settings are made to the DIP Switch.
Diameter | Model |
---|---|
14 mm dia. | F39-TRD14 |
30 mm dia. | F39-TRD30 |
Number of beams | Protective height (mm) | Model |
---|---|---|
23 | 240 | F3SG-4RR0240-14 |
31 | 320 | F3SG-4RR0320-14 |
39 | 400 | F3SG-4RR0400-14 |
47 | 480 | F3SG-4RR0480-14 |
55 | 560 | F3SG-4RR0560-14 |
63 | 640 | F3SG-4RR0640-14 |
71 | 720 | F3SG-4RR0720-14 |
79 | 800 | F3SG-4RR0800-14 |
87 | 880 | F3SG-4RR0880-14 |
95 | 960 | F3SG-4RR0960-14 |
103 | 1040 | F3SG-4RR1040-14 |
111 | 1120 | F3SG-4RR1120-14 |
119 | 1200 | F3SG-4RR1200-14 |
127 | 1280 | F3SG-4RR1280-14 |
135 | 1360 | F3SG-4RR1360-14 |
143 | 1440 | F3SG-4RR1440-14 |
151 | 1520 | F3SG-4RR1520-14 |
159 | 1600 | F3SG-4RR1600-14 |
167 | 1680 | F3SG-4RR1680-14 |
175 | 1760 | F3SG-4RR1760-14 |
183 | 1840 | F3SG-4RR1840-14 |
191 | 1920 | F3SG-4RR1920-14 |
Number of beams | Protective height (mm) | Model |
---|---|---|
12 | 240 | F3SG-4RR0240-25 |
16 | 320 | F3SG-4RR0320-25 |
20 | 400 | F3SG-4RR0400-25 |
24 | 480 | F3SG-4RR0480-25 |
28 | 560 | F3SG-4RR0560-25 |
32 | 640 | F3SG-4RR0640-25 |
36 | 720 | F3SG-4RR0720-25 |
40 | 800 | F3SG-4RR0800-25 |
44 | 880 | F3SG-4RR0880-25 |
48 | 960 | F3SG-4RR0960-25 |
52 | 1040 | F3SG-4RR1040-25 |
56 | 1120 | F3SG-4RR1120-25 |
60 | 1200 | F3SG-4RR1200-25 |
64 | 1280 | F3SG-4RR1280-25 |
68 | 1360 | F3SG-4RR1360-25 |
72 | 1440 | F3SG-4RR1440-25 |
76 | 1520 | F3SG-4RR1520-25 |
80 | 1600 | F3SG-4RR1600-25 |
84 | 1680 | F3SG-4RR1680-25 |
88 | 1760 | F3SG-4RR1760-25 |
92 | 1840 | F3SG-4RR1840-25 |
96 | 1920 | F3SG-4RR1920-25 |

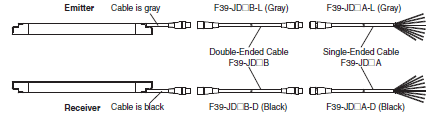

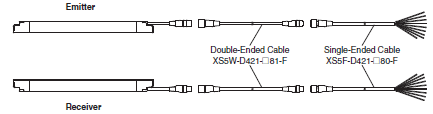

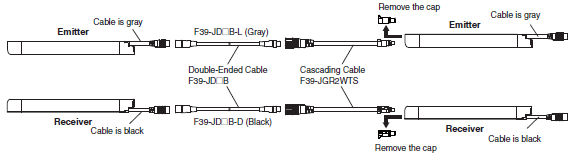

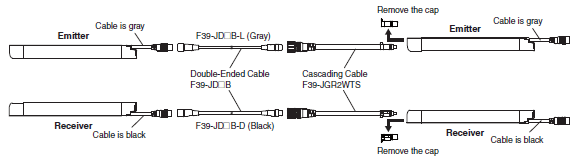

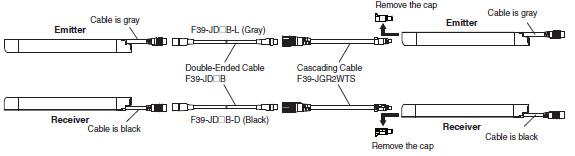

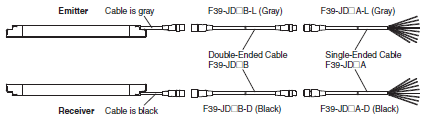

Safety light curtain connecting cable
Appearance | Type |
Cable
length |
Specifications | Model |
---|---|---|---|---|
![]() |
For emitter
M12 connector (8-pin), 5 wires Color: Gray |
3 m |
![]() IP67 and IP67G (JIS C 0920 Annex 1) * rated when mated. * F3SG-RR meets the degree of protection when this cable is correctly connected with the power cable of the F3SG-RR. The degree of protection is not satisfied with the part where cable wires are uncovered. |
F39-JD3RA-L |
7 m | F39-JD7RA-L | |||
For receiver
M12 connector (8-pin), 8 wires Color: Black |
3 m | F39-JD3RA-D | ||
7 m | F39-JD7RA-D |
Note: To extend the cable length to more than 7 m, add the F39-JD[]B Double-Ended Cable.
When the Double-Ended Cable is used, protect it from cutting oil.
Appearance |
Cable
length |
Specifications | Model |
---|---|---|---|
![]() |
3 m |
![]() * When the accessory is used, protect it from cutting oil. |
F39-JD3A |
7 m | F39-JD7A | ||
10 m | F39-JD10A | ||
15 m | F39-JD15A | ||
20 m | F39-JD20A |
* The cable for emitter and the cable for receiver are available separately. Add '-L' for emitter or '-D' for receiver to the end of the model number when you order.
Single-Ended Cable for Emitter: F39-JD[]A-L, Single-Ended Cable for Receiver: F39-JD[]A-D
Note:
1. Use the F39-JD[]RA-L/-D for applications where cutting oil resistance is required.
2. To extend the cable length to more than 20 m, add the F39-JD[]B Double-Ended Cable.
Appearance |
Cable
length |
Specifications | Model |
---|---|---|---|
![]() |
0.5 m |
![]() * When the accessory is used, protect it from cutting oil. |
F39-JDR5B |
1 m | F39-JD1B | ||
3 m | F39-JD3B | ||
5 m | F39-JD5B | ||
7 m | F39-JD7B | ||
10 m | F39-JD10B | ||
15 m | F39-JD15B | ||
20 m | F39-JD20B |
Appearance | Specifications | Model |
---|---|---|
![]() |
IP67* rated when mated.
* When the accessory is used, protect it from cutting oil. |
F39-CN5 |
Note: When using the Reduced Wiring Connector (F39-CN5), the following functions are not available.
- Manual Reset
- External Device Monitoring
- Auxiliary Output
Make sure to keep the settings in the factory default.
Appearance | Cable length | Specifications | Remarks | Model |
---|---|---|---|---|
![]() |
Emitter: 3 m
Receiver: 3 m |
IP67* rated
when mated. * When the accessory is used, protect it from cutting oil. |
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD3A-D |
F39-JD0303BA |
Emitter: 3 m
Receiver: 7 m |
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD7A-D |
F39-JD0307BA | ||
Emitter: 3 m
Receiver: 10 m |
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD10A-D |
F39-JD0310BA | ||
Emitter: 5 m
Receiver: 3 m |
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD3A-D |
F39-JD0503BA | ||
Emitter: 5 m
Receiver: 7 m |
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD7A-D |
F39-JD0507BA | ||
Emitter: 5 m
Receiver: 10 m |
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD10A-D |
F39-JD0510BA | ||
Emitter: 10 m
Receiver: 3 m |
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD3A-D |
F39-JD1003BA | ||
Emitter: 10 m
Receiver: 7 m |
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD7A-D |
F39-JD1007BA | ||
Emitter: 10 m
Receiver: 10 m |
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD10A-D |
F39-JD1010BA |
Note: A combination of emitter and receiver cables of other lengths than the above is also available. For details, contact your Omron representative.
* Double-Ended Cable for emitter and Single-Ended Cable for receiver.
Appearance | Type |
Cable
length |
Specifications | Model |
---|---|---|---|---|
![]() |
Cap (8-pin), M12
connector (8-pin) |
0.2 m |
![]() IP67* rated when mated. * When the accessory is used, protect it from cutting oil. |
F39-JGR2WTS |
Note: The Double-Ended Cable (up to 10 m: F39-JD10B) can be added to extend the cable length between the series-connected sensors.
Cable length between sensors: 10 m max. (not including cascading cable (F39-JGR2WTS) and power cable)
Appearance | Specifications | Application | Model |
---|---|---|---|
![]() |
Free-Location
Bracket (Intermediate Bracket) |
Beam alignment after mounting possible.
The angle adjustment range is ±15°. Side mounting and backside mounting possible. (Sold separately as a set of 2 brackets. Refer to note *1 for the number of sets required for each model.) |
F39-LGRA |
![]() |
Top/Bottom
Bracket *2 |
Use this bracket at the top and bottom
positions of the F3SG-RR. Beam alignment after mounting possible. The angle adjustment range is ±22.5°. Side mounting and backside mounting possible. (Sold separately as a set of 4 brackets.) |
F39-LGRTB |
![]() |
Top/Bottom
Bracket *2 |
The part of this bracket to contact with a wall
surface has a different shape from the F39-LGRTB Top/Bottom Bracket. Use this bracket when replacing an existing safety light curtain with the F3SG-RR. (Sold separately as a set of 4 brackets.) Select a bracket that fit into the existing mounting hole. |
F39-LGRTB-2 |
![]() |
Top/Bottom
Bracket *2 |
F39-LGRTB-3 |
*1. Protective height of 0240 to 1200 mm: 2 sets, Protective height of 1280 to 1920 mm: 3 sets
*2. Use the Top/Bottom Bracket in combination with the Intermediate Bracket.
Protective height of 1040 or less: The Intermediate Bracket is not required. Please purchase 1 set of Top/Bottom Brackets (F39-LGRTB(-2/-3)).
Protective height of 1120 to 1920:Please purchase 1 set of Top/Bottom Brackets (F39-LGRTB(-2/-3)) and 1 set of Intermediate Brackets (F39- LGRA).
Appearance | Type | Specifications | Model |
---|---|---|---|
![]() |
SD Manager 2 | The Configuration Tool SD Manager 2 is
available to download from our website at http://www.ia.omron.com/f3sg-r_tool |
- |
![]() |
Interface Unit | F39-GIF-1 interface unit to connect the
F3SG-RR receiver to a USB port of the PC Accessories: F39-CN1 Branch Connector (1), Connector Cap (1), 2-m Dedicated Cable (1), Instruction Manual |
F39-GIF-1 |
![]() |
Bluetooth
Communication Unit |
F39-BT bluetooth unit to enable bluetooth
on the F3SG-RR IP67 rated when mated. |
F39-BT |
* When the accessory is used, protect it from cutting oil.
Appearance | Type | Specifications | Model |
---|---|---|---|
![]() |
Lamp | The lamp unit can be connected to a receiver and
turned ON based on the operation of F3SG-RA/RR. The lamp can indicate red, orange, and green colors, to which three different states can be assigned. IP67 rated when mated. |
F39-LP |
Lamp and
Bluetooth Communication Unit |
F39-BTLP |
* When the accessory is used, protect it from cutting oil.
Appearance | Specifications | Model |
---|---|---|
![]() |
Housing color: Black
For both emitter and receiver (Attached to the F3SG-RR. The End Cap can be purchased if lost.) IP67 rated when mated. |
F39-CNM |
*1. This accessory can also be used with the F3SG-RA.
*2. When the accessory is used, protect it from cutting oil.
Appearance | Specifications | Model |
---|---|---|
![]() |
The laser pointer is attached on the optical surface of the F3SG-R to help coarse
adjustment of beams. |
F39-PTG |
* When the accessory is used, protect it from cutting oil.
Diameter | Model |
---|---|
14 mm dia. | F39-TRD14 |
25 mm dia. | F39-TRD25 |
Number of beams | Protective height (mm) | Model | |
---|---|---|---|
PNP output | NPN output | ||
15 | 160 | F3SG-4RE0160P14 | F3SG-4RE0160N14 |
23 | 240 | F3SG-4RE0240P14 | F3SG-4RE0240N14 |
31 | 320 | F3SG-4RE0320P14 | F3SG-4RE0320N14 |
39 | 400 | F3SG-4RE0400P14 | F3SG-4RE0400N14 |
47 | 480 | F3SG-4RE0480P14 | F3SG-4RE0480N14 |
55 | 560 | F3SG-4RE0560P14 | F3SG-4RE0560N14 |
63 | 640 | F3SG-4RE0640P14 | F3SG-4RE0640N14 |
71 | 720 | F3SG-4RE0720P14 | F3SG-4RE0720N14 |
79 | 800 | F3SG-4RE0800P14 | F3SG-4RE0800N14 |
87 | 880 | F3SG-4RE0880P14 | F3SG-4RE0880N14 |
95 | 960 | F3SG-4RE0960P14 | F3SG-4RE0960N14 |
103 | 1,040 | F3SG-4RE1040P14 | F3SG-4RE1040N14 |
111 | 1,120 | F3SG-4RE1120P14 | F3SG-4RE1120N14 |
119 | 1,200 | F3SG-4RE1200P14 | F3SG-4RE1200N14 |
127 | 1,280 | F3SG-4RE1280P14 | F3SG-4RE1280N14 |
135 | 1,360 | F3SG-4RE1360P14 | F3SG-4RE1360N14 |
143 | 1,440 | F3SG-4RE1440P14 | F3SG-4RE1440N14 |
151 | 1,520 | F3SG-4RE1520P14 | F3SG-4RE1520N14 |
159 | 1,600 | F3SG-4RE1600P14 | F3SG-4RE1600N14 |
167 | 1,680 | F3SG-4RE1680P14 | F3SG-4RE1680N14 |
175 | 1,760 | F3SG-4RE1760P14 | F3SG-4RE1760N14 |
183 | 1,840 | F3SG-4RE1840P14 | F3SG-4RE1840N14 |
191 | 1,920 | F3SG-4RE1920P14 | F3SG-4RE1920N14 |
199 | 2,000 | F3SG-4RE2000P14 | F3SG-4RE2000N14 |
207 | 2,080 | F3SG-4RE2080P14 | F3SG-4RE2080N14 |
Number of beams | Protective height (mm) | Model | |
---|---|---|---|
PNP | NPN | ||
8 | 190 | F3SG-4RE0190P30 | F3SG-4RE0190N30 |
12 | 270 | F3SG-4RE0270P30 | F3SG-4RE0270N30 |
16 | 350 | F3SG-4RE0350P30 | F3SG-4RE0350N30 |
20 | 430 | F3SG-4RE0430P30 | F3SG-4RE0430N30 |
24 | 510 | F3SG-4RE0510P30 | F3SG-4RE0510N30 |
28 | 590 | F3SG-4RE0590P30 | F3SG-4RE0590N30 |
32 | 670 | F3SG-4RE0670P30 | F3SG-4RE0670N30 |
36 | 750 | F3SG-4RE0750P30 | F3SG-4RE0750N30 |
40 | 830 | F3SG-4RE0830P30 | F3SG-4RE0830N30 |
44 | 910 | F3SG-4RE0910P30 | F3SG-4RE0910N30 |
48 | 990 | F3SG-4RE0990P30 | F3SG-4RE0990N30 |
52 | 1,070 | F3SG-4RE1070P30 | F3SG-4RE1070N30 |
56 | 1,150 | F3SG-4RE1150P30 | F3SG-4RE1150N30 |
60 | 1,230 | F3SG-4RE1230P30 | F3SG-4RE1230N30 |
64 | 1,310 | F3SG-4RE1310P30 | F3SG-4RE1310N30 |
68 | 1,390 | F3SG-4RE1390P30 | F3SG-4RE1390N30 |
72 | 1,470 | F3SG-4RE1470P30 | F3SG-4RE1470N30 |
76 | 1,550 | F3SG-4RE1550P30 | F3SG-4RE1550N30 |
80 | 1,630 | F3SG-4RE1630P30 | F3SG-4RE1630N30 |
84 | 1,710 | F3SG-4RE1710P30 | F3SG-4RE1710N30 |
88 | 1,790 | F3SG-4RE1790P30 | F3SG-4RE1790N30 |
92 | 1,870 | F3SG-4RE1870P30 | F3SG-4RE1870N30 |
96 | 1,950 | F3SG-4RE1950P30 | F3SG-4RE1950N30 |
100 | 2,030 | F3SG-4RE2030P30 | F3SG-4RE2030N30 |
104 | 2,110 | F3SG-4RE2110P30 | F3SG-4RE2110N30 |
108 | 2,190 | F3SG-4RE2190P30 | F3SG-4RE2190N30 |
112 | 2,270 | F3SG-4RE2270P30 | F3SG-4RE2270N30 |
116 | 2,350 | F3SG-4RE2350P30 | F3SG-4RE2350N30 |
120 | 2,430 | F3SG-4RE2430P30 | F3SG-4RE2430N30 |
124 | 2,510 | F3SG-4RE2510P30 | F3SG-4RE2510N30 |
Safety light curtain connecting cable
Appearance | Type | Cable length | Specifications | Model |
---|---|---|---|---|
![]() |
M12 connector
(4-pin), 4 wires |
1 m |
![]() |
XS5F-D421-C80-F |
2 m | XS5F-D421-D80-F | |||
3 m | XS5F-D421-E80-F | |||
5 m | XS5F-D421-G80-F | |||
10 m | XS5F-D421-J80-F | |||
20 m | XS5F-D421-L80-F |
Note:
1. One cable that can be used for both emitter and receiver is provided. Order two cables for one set of safety light curtains.
2. To extend the cable length to 20 m or more, add the XS5W-D421-[]81-F Double-Ended Cable.
Appearance | Type | Cable length | Specifications | Model |
---|---|---|---|---|
![]() |
M12 connector
(4-pin) on both ends |
1 m |
![]() |
XS5W-D421-C81-F |
2 m | XS5W-D421-D81-F | |||
3 m | XS5W-D421-E81-F | |||
5 m | XS5W-D421-G81-F | |||
10 m | XS5W-D421-J81-F | |||
20 m | XS5W-D421-L81-F |
Appearance | Type | Cable length | Specifications | Model |
---|---|---|---|---|
![]() |
M12 connectors.
Used for reduced wiring. |
0.5 m |
![]() When using the reduced wiring connector system F39-GCNY1, the Operating Range Selection is fixed to Long Mode. |
F39-GCNY1 |
Appearance | Specification | Application | Model |
---|---|---|---|
![]() |
Standard Fixed
Bracket |
Bracket to mount the F3SG-R.
Side mounting and backside mounting possible. (This is included as a standard accessory with the product. It comes as a set of two Brackets. Refer to note *1 for the number of sets provided with each model.) |
F39-LGF |
![]() |
Standard Adjustable
Bracket |
Bracket to mount the F3SG-R.
Beam alignment after mounting possible.The angle adjustment range is ±15°. Side mounting and backside mounting possible. (Sold separately as a set of two Brackets. Refer to note *1 for the number of sets required for each model.) |
F39-LGA |
![]() |
Top/Bottom
Adjustable Bracket *2 |
Bracket to mount the F3SG-R. Use this bracket at the top and
bottom positions of the F3SG-R. Beam alignment after mounting possible. The angle adjustment range is ±22.5°. Side mounting and backside mounting possible. (Sold separately. 4 brackets per set.) |
F39-LGTB |
![]() |
Top/Bottom
Adjustable Bracket *2 (For user-made mounting part) |
Top/Bottom Adjustable Bracket without a bracket to mount to the
wall. Use the user's own wall mounting part to suit the machine. (Sold separately. 4 brackets per set.) |
F39-LGTB-1 |
Appearance | Specifications | Model |
---|---|---|
![]() |
The laser pointer is attached on the optical surface of the F3SG-R to help coarse
adjustment of beams. |
F39-PTG |
Spatter Protection Covers include the mounting brackets
For Safety Light Curtain models of the protective height of 2,000 mm or longer, use two Spatter Protection Covers of different lengths.
Appearance | Safety Light Curtain Model | Model | |
---|---|---|---|
Finger protection | Hand and arm protection | ||
![]() |
F3SG-4RE0160[]14 | F3SG-4RE0190[]30 | F39-HGB0180 |
F3SG-4RE0240[]14 | F3SG-4RE0270[]30 | F39-HGB0260 | |
F3SG-4RE0320[]14 | F3SG-4RE0350[]30 | F39-HGB0340 | |
F3SG-4RE0400[]14 | F3SG-4RE0430[]30 | F39-HGB0420 | |
F3SG-4RE0480[]14 | F3SG-4RE0510[]30 | F39-HGB0500 | |
F3SG-4RE0560[]14 | F3SG-4RE0590[]30 | F39-HGB0580 | |
F3SG-4RE0640[]14 | F3SG-4RE0670[]30 | F39-HGB0660 | |
F3SG-4RE0720[]14 | F3SG-4RE0750[]30 | F39-HGB0740 | |
F3SG-4RE0800[]14 | F3SG-4RE0830[]30 | F39-HGB0820 | |
F3SG-4RE0880[]14 | F3SG-4RE0910[]30 | F39-HGB0900 | |
F3SG-4RE0960[]14 | F3SG-4RE0990[]30 | F39-HGB0980 | |
F3SG-4RE1040[]14 | F3SG-4RE1070[]30 | F39-HGB1060 | |
F3SG-4RE1120[]14 | F3SG-4RE1150[]30 | F39-HGB1140 | |
F3SG-4RE1200[]14 | F3SG-4RE1230[]30 | F39-HGB1220 | |
F3SG-4RE1280[]14 | F3SG-4RE1310[]30 | F39-HGB1300 | |
F3SG-4RE1360[]14 | F3SG-4RE1390[]30 | F39-HGB1380 | |
F3SG-4RE1440[]14 | F3SG-4RE1470[]30 | F39-HGB1460 | |
F3SG-4RE1520[]14 | F3SG-4RE1550[]30 | F39-HGB1540 | |
F3SG-4RE1600[]14 | F3SG-4RE1630[]30 | F39-HGB1620 | |
F3SG-4RE1680[]14 | F3SG-4RE1710[]30 | F39-HGB1700 | |
F3SG-4RE1760[]14 | F3SG-4RE1790[]30 | F39-HGB1780 | |
F3SG-4RE1840[]14 | F3SG-4RE1870[]30 | F39-HGB1860 | |
F3SG-4RE1920[]14 | F3SG-4RE1950[]30 | F39-HGB1940 | |
F3SG-4RE2000[]14 | F3SG-4RE2030[]30 | F39-HGB1460 | |
F39-HGA0550 | |||
F3SG-4RE2080[]14 | F3SG-4RE2110[]30 | F39-HGB1540 | |
F39-HGA0550 | |||
- | F3SG-4RE2190[]30 | F39-HGB1620 | |
F39-HGA0550 | |||
- | F3SG-4RE2270[]30 | F39-HGB1700 | |
F39-HGA0550 | |||
- | F3SG-4RE2350[]30 | F39-HGB1780 | |
F39-HGA0550 | |||
- | F3SG-4RE2430[]30 | F39-HGB1860 | |
F39-HGA0550 | |||
- | F3SG-4RE2510[]30 | F39-HGB1940 | |
F39-HGA0550 |
Note: The operating range of the Safety Light Curtain attached with the product is 10% shorter than the rating.
Diameter | Model |
---|---|
14 mm dia. | F39-TRD14 |
30 mm dia. | F39-TRD30 |
Number of beams | Protective height (mm) | Model |
---|---|---|
8 | 185 | F3SG-4RA0185-25-01TS |
12 | 265 | F3SG-4RA0265-25-01TS |
16 | 345 | F3SG-4RA0345-25-01TS |
20 | 425 | F3SG-4RA0425-25-01TS |
24 | 505 | F3SG-4RA0505-25-01TS |
28 | 585 | F3SG-4RA0585-25-01TS |
32 | 665 | F3SG-4RA0665-25-01TS |
36 | 745 | F3SG-4RA0745-25-01TS |
40 | 825 | F3SG-4RA0825-25-01TS |
44 | 905 | F3SG-4RA0905-25-01TS |
48 | 985 | F3SG-4RA0985-25-01TS |
52 | 1,065 | F3SG-4RA1065-25-01TS |
56 | 1,145 | F3SG-4RA1145-25-01TS |
60 | 1,225 | F3SG-4RA1225-25-01TS |
64 | 1,305 | F3SG-4RA1305-25-01TS |
68 | 1,385 | F3SG-4RA1385-25-01TS |
72 | 1,465 | F3SG-4RA1465-25-01TS |
76 | 1,545 | F3SG-4RA1545-25-01TS |
80 | 1,625 | F3SG-4RA1625-25-01TS |
84 | 1,705 | F3SG-4RA1705-25-01TS |
88 | 1,785 | F3SG-4RA1785-25-01TS |
92 | 1,865 | F3SG-4RA1865-25-01TS |
96 | 1,945 | F3SG-4RA1945-25-01TS |
Safety light curtain connecting cable
Appearance | Cable length | Specifications | Model |
---|---|---|---|
![]() |
3m |
![]() |
F39-JD3A |
7m | F39-JD7A | ||
10m | F39-JD10A | ||
15m | F39-JD15A | ||
20m | F39-JD20A |
* The cable for emitter and the cable for receiver are available separately. Add '-L' for emitter or '-D' for receiver to the end of the model number when you order.
Single-Ended Cable for Emitter: F39-JD[]A-L, Single-Ended Cable for Receiver: F39-JD[]A-D
Note: To extend the cable length to more than 20 m, add the F39-JD[]B Double-Ended Cable.
Appearance | Cable length | Specifications | Model |
---|---|---|---|
![]() |
0.5 m |
![]() |
F39-JDR5B |
1 m | F39-JD1B | ||
3 m | F39-JD3B | ||
5 m | F39-JD5B | ||
7 m | F39-JD7B | ||
10 m | F39-JD10B | ||
15 m | F39-JD15B | ||
20 m | F39-JD20B |
Appearance | Type | Cable length | Specifications | Model |
---|---|---|---|---|
![]() |
Cap (8-pin), M12
connector (8-pin) |
0.2m |
![]() |
F39-JGR2WTS |
Note: The Double-Ended Cable (up to 10 m: F39-JD10B) can be added to extend the cable length between the series-connected sensors. Cable length between sensors: 10 m max. (not including cascading cable (F39-JGR2WTS) and power cable)
Appearance | Specifications | Model |
---|---|---|
![]() |
IP67 rated when mated. | F39-CN5 |
Note: When using the Reduced Wiring Connector (F39-CN5), the following functions are not available.
- External Device Monitoring
- Auxiliary Output
Appearance | Cable length | Specifications | Remarks | Model |
---|---|---|---|---|
![]() |
Emitter: 3 m
Receiver: 3 m |
IP67 rated
when mated. |
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD3A-D |
F39-JD0303BA |
Emitter: 3 m
Receiver: 7 m |
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD7A-D |
F39-JD0307BA | ||
Emitter: 3 m
Receiver: 10 m |
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD10A-D |
F39-JD0310BA | ||
Emitter: 5 m
Receiver: 3 m |
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD3A-D |
F39-JD0503BA | ||
Emitter: 5 m
Receiver: 7 m |
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD7A-D |
F39-JD0507BA | ||
Emitter: 5 m
Receive: 10m |
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD10A-D |
F39-JD0510BA | ||
Emitter: 10 m
Receiver: 3 m |
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD3A-D |
F39-JD1003BA | ||
Emitter: 10 m
Receiver: 7 m |
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD7A-D |
F39-JD1007BA | ||
Emitter: 10 m
Receiver: 10 m |
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD10A-D |
F39-JD1010BA |
Note: A combination of emitter and receiver cables of other lengths than the above is also available. For details, contact your Omron representative.
* Double-Ended Cable for emitter and Single-Ended Cable for receiver.
Appearance | Specification | Application | Model |
---|---|---|---|
![]() |
Standard Fixed
Bracket |
Bracket to mount the F3SG-RA-01TS.
Side mounting and backside mounting possible. (Sold separately as a set of two Brackets. Refer to note *1 for the number of sets required for each model.) |
F39-LGF |
![]() |
Standard
Adjustable Bracket |
Bracket to mount the F3SG-RA-01TS.
Beam alignment after mounting possible. The angle adjustment range is ±15°. Side mounting and backside mounting possible. (Sold separately as a set of two Brackets. Refer to note *1 for the number of sets required for each model.) |
F39-LGA |
![]() |
Top/Bottom
Adjustable Bracket *2 |
Bracket to mount the F3SG-RA-01TS. Use this bracket at the
top and bottom positions of the F3SG-RA-01TS. Beam alignment after mounting possible. The angle adjustment range is ±22.5°. Side mounting and backside mounting possible. (Sold separately. 4 brackets per set.) |
F39-LGTB |
![]() |
Top/Bottom
Adjustable Bracket *2 (For user-made mounting part) |
Top/Bottom Adjustable Bracket without a bracket to
mount to the wall. Use the user's own wall mounting part to suit the machine. (Sold separately. 4 brackets per set.) |
F39-LGTB-1 |
*1. Protective height of 0185 to 1225: 2 sets, Protective height of 1305 to 1945: 3 sets
*2. Top/Bottom Adjustable Bracket cannot be used with the Standard Fixed Bracket. Use with the Standard Adjustable
Bracket.
Using Top/Bottom Adjustable Brackets with Standard Adjustable Brackets
Protective height of 1065 or less:
The Standard Adjustable Bracket is not required.
Please purchase 1 set of Top/Bottom Adjustable Brackets (F39-LGTB(-1)).
Protective height of 1145 to 1945:
Please purchase 1 set of Top/Bottom Adjustable Brackets (F39-LGTB(-1)) and 1 set of Standard Adjustable Brackets (F39-LGA).
Appearance | Type | Specifications | Model |
---|---|---|---|
![]() |
SD Manager 2 | The Configuration Tool SD Manager 2 is
available to download from our website at http://www.ia.omron.com/f3sg-r_tool. |
- |
![]() |
Interface Unit | F39-GIF interface unit to connect the F3SG-RA-01TS
receiver to a USB port of the PC Accessories: 0.3-m Dedicated Cable 1 (1), 2-m Dedicated Cable 2 (1), Instruction Manual |
F39-GIF |
![]() |
Bluetooth
Communication Unit |
F39-BT bluetooth unit to enable bluetooth on the
F3SG-RA IP67 rated when mated. |
F39-BT |
* The F3SG-RA-01TS provides only the monitoring functionality.
Appearance | Type | Specifications | Model |
---|---|---|---|
![]() |
Lamp unit | The lamp can be connected to a receiver and turned ON
based on the operation of F3SG-RA. The lamp output pattern is set as follows: Red (ON): Inverted signal of safety output information Orange (Blink once): Inverted signal of stable-state information Green (ON): Safety output information IP67 rated when mated. |
F39-LP |
Lamp and
Bluetooth Communication Unit |
F39-BTLP |
Appearance | Specifications | Model |
---|---|---|
![]() |
Housing color: Black
For both emitter and receiver (Attached to the F3SG-RA-01TS. The End Cap can be purchased if lost.) IP67 rated when mated. |
F39-CNM |
* This accessory can also be used with the F3SG-RA-02TS.
Appearance | Specifications | Model |
---|---|---|
![]() |
The laser pointer is attached on the optical surface of the F3SG-R to help coarse
adjustment of beams. |
F39-PTG |
Spatter Protection Covers include mounting brackets.
Appearance | Safety Light Curtain Model | Model |
---|---|---|
Hand protection | ||
![]() |
F3SG-4RA0185-25-01TS | F39-HGA0200 |
F3SG-4RA0265-25-01TS | F39-HGA0280 | |
F3SG-4RA0345-25-01TS | F39-HGA0360 | |
F3SG-4RA0425-25-01TS | F39-HGA0440 | |
F3SG-4RA0505-25-01TS | F39-HGA0520 | |
F3SG-4RA0585-25-01TS | F39-HGA0600 | |
F3SG-4RA0665-25-01TS | F39-HGA0680 | |
F3SG-4RA0745-25-01TS | F39-HGA0760 | |
F3SG-4RA0825-25-01TS | F39-HGA0840 | |
F3SG-4RA0905-25-01TS | F39-HGA0920 | |
F3SG-4RA0985-25-01TS | F39-HGA1000 | |
F3SG-4RA1065-25-01TS | F39-HGA1080 | |
F3SG-4RA1145-25-01TS | F39-HGA1160 | |
F3SG-4RA1225-25-01TS | F39-HGA1240 | |
F3SG-4RA1305-25-01TS | F39-HGA1320 | |
F3SG-4RA1385-25-01TS | F39-HGA1400 | |
F3SG-4RA1465-25-01TS | F39-HGA1480 | |
F3SG-4RA1545-25-01TS | F39-HGA1560 | |
F3SG-4RA1625-25-01TS | F39-HGA1640 | |
F3SG-4RA1705-25-01TS | F39-HGA1720 | |
F3SG-4RA1785-25-01TS | F39-HGA1800 | |
F3SG-4RA1865-25-01TS | F39-HGA1880 | |
F3SG-4RA1945-25-01TS | F39-HGA1960 |
Note:
1. The operating range of the Safety Light Curtain attached with the product is 10% shorter than the rating.
2. The product extends over the DIP Switch cover of the Safety Light Curtain. Be sure to use the product only after all required settings are made to the DIP Switch.
Diameter | Model |
---|---|
25 mm dia. | F39-TRD25 |
Number of beams | Protective height (mm) | Model |
---|---|---|
12 | 240 | F3SG-4RA0240-25-02TS |
16 | 320 | F3SG-4RA0320-25-02TS |
20 | 400 | F3SG-4RA0400-25-02TS |
24 | 480 | F3SG-4RA0480-25-02TS |
28 | 560 | F3SG-4RA0560-25-02TS |
32 | 640 | F3SG-4RA0640-25-02TS |
36 | 720 | F3SG-4RA0720-25-02TS |
40 | 800 | F3SG-4RA0800-25-02TS |
44 | 880 | F3SG-4RA0880-25-02TS |
48 | 960 | F3SG-4RA0960-25-02TS |
52 | 1,040 | F3SG-4RA1040-25-02TS |
56 | 1,120 | F3SG-4RA1120-25-02TS |
60 | 1,200 | F3SG-4RA1200-25-02TS |
64 | 1,280 | F3SG-4RA1280-25-02TS |
68 | 1,360 | F3SG-4RA1360-25-02TS |
72 | 1,440 | F3SG-4RA1440-25-02TS |
76 | 1,520 | F3SG-4RA1520-25-02TS |
80 | 1,600 | F3SG-4RA1600-25-02TS |
84 | 1,680 | F3SG-4RA1680-25-02TS |
88 | 1,760 | F3SG-4RA1760-25-02TS |
92 | 1,840 | F3SG-4RA1840-25-02TS |
96 | 1,920 | F3SG-4RA1920-25-02TS |
Safety light curtain connecting cable
Appearance | Type | Cable
length |
Specifications | Model |
---|---|---|---|---|
![]() |
For emitter
M12 connector (8-pin), 5 wires Color: Gray |
3m | ![]() IP67 and IP67G (JIS C 0920 Annex 1) * rated when mated. * F3SG-RA-02TS meets the degree of protection when this cable is correctly connected with the power cable of the F3SG-RA-02TS. The degree of protection is not satisfied with the part where cable wires are uncovered. |
F39-JD3RA-L |
7m | F39-JD7RA-L | |||
For receiver
M12 connector (8-pin), 8 wires Color: Black |
3m | F39-JD3RA-D | ||
7m | F39-JD7RA-D |
Note: To extend the cable length to more than 7 m, add the F39-JD[]B Double-Ended Cable.
When the Double-Ended Cable is used, protect it from cutting oil.
Appearance | Cable
length |
Specifications | Model |
---|---|---|---|
![]() |
3m | ![]() IP67* rated when mated. * When the accessory is used, protect it from cutting oil. |
F39-JD3A |
7m | F39-JD7A | ||
10m | F39-JD10A | ||
15m | F39-JD15A | ||
20m | F39-JD20A |
* The cable for emitter and the cable for receiver are available separately. Add '-L' for emitter or '-D' for receiver to the end of the model number when you order.
Single-Ended Cable for Emitter: F39-JD[]A-L, Single-Ended Cable for Receiver: F39-JD[]A-D
Note:
1. Use the F39-JD[]RA-L/-D for applications where cutting oil resistance is required.
2. To extend the cable length to more than 20 m, add the F39-JD[]B Double-Ended Cable.
Appearance | Cable
length |
Specifications | Model |
---|---|---|---|
![]() |
0.5m | ![]() IP67* rated when mated. * When the accessory is used, protect it from cutting oil. |
F39-JDR5B |
1m | F39-JD1B | ||
3m | F39-JD3B | ||
5m | F39-JD5B | ||
7m | F39-JD7B | ||
10m | F39-JD10B | ||
15m | F39-JD15B | ||
20m | F39-JD20B |
Appearance | Specifications | Model |
---|---|---|
![]() |
IP67* rated when mated.
* When the accessory is used, protect it from cutting oil. |
F39-CN5 |
Note: When using the Reduced Wiring Connector (F39-CN5), the following functions are not available.
- External Device Monitoring
- Auxiliary Output
Appearance | Cable length | Specifications | Remarks | Model |
---|---|---|---|---|
![]() |
Emitter: 3 m
Receiver: 3 m |
IP67* rated
when mated. * When the accessory is used, protect it from cutting oil |
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD3A-D |
F39-JD0303BA |
Emitter: 3 m
Receiver: 7 m |
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD7A-D |
F39-JD0307BA | ||
Emitter: 3 m
Receiver: 10 m |
Double-Ended Cable: F39-JD3B-L
Single-Ended Cable: F39-JD10A-D |
F39-JD0310BA | ||
Emitter: 5 m
Receiver: 3 m |
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD3A-D |
F39-JD0503BA | ||
Emitter: 5 m
Receiver: 7 m |
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD7A-D |
F39-JD0507BA | ||
Emitter: 5 m
Receiver: 10 m |
Double-Ended Cable: F39-JD5B-L
Single-Ended Cable: F39-JD10A-D |
F39-JD0510BA | ||
Emitter: 10 m
Receiver: 3 m |
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD3A-D |
F39-JD1003BA | ||
Emitter: 10 m
Receiver: 7 m |
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD7A-D |
F39-JD1007BA | ||
Emitter: 10 m
Receiver: 10 m |
Double-Ended Cable: F39-JD10B-L
Single-Ended Cable: F39-JD10A-D |
F39-JD1010BA |
Note: A combination of emitter and receiver cables of other lengths than the above is also available. For details, contact your Omron representative.
* Double-Ended Cable for emitter and Single-Ended Cable for receiver.
Appearance | Type | Cable length | Specifications | Model |
---|---|---|---|---|
![]() |
Cap (8-pin), M12
connector (8-pin) |
0.2m |
![]() * When the accessory is used, protect it from cutting oil. |
F39-JGR2WTS |
Note: The Double-Ended Cable (up to 10 m: F39-JD10B) can be added to extend the cable length between the series-connected sensors.
Cable length between sensors: 10 m max. (not including cascading cable (F39-JGR2WTS) and power cable)
Appearance | Specifications | Application | Model |
---|---|---|---|
![]() |
Free-Location
Bracket (Intermediate Bracket) |
Beam alignment after mounting possible.
The angle adjustment range is ±15°. Side mounting and backside mounting possible. (Sold separately as a set of 2 brackets. Refer to note *1 for the number of sets required for each model.) |
F39-LGRA |
![]() |
Top/Bottom
Bracket *2 |
Use this bracket at the top and bottom
positions of the F3SG-RA-02TS. Beam alignment after mounting possible. The angle adjustment range is ±22.5°. Side mounting and backside mounting possible. (Sold separately as a set of 4 brackets.) |
F39-LGRTB |
![]() |
Top/Bottom
Bracket *2 |
The part of this bracket to contact with a wall
surface has a different shape from the F39-LGRTB Top/Bottom Bracket. Use this bracket when replacing an existing safety light curtain with the F3SG-RA-02TS. (Sold separately as a set of 4 brackets.) Select a bracket that fit into the existing mounting hole. |
F39-LGRTB-2 |
![]() |
Top/Bottom
Bracket *2 |
F39-LGRTB-3 |
*1. Protective height of 0240 to 1200 mm: 2 sets, Protective height of 1280 to 1920 mm: 3 sets
*2. Use the Top/Bottom Bracket in combination with the Intermediate Bracket.
Protective height of 1040 or less:
The Intermediate Bracket is not required. Please purchase 1 set of Top/Bottom Brackets (F39-LGRTB(-2/-3)).
Protective height of 1120 to 1920:
Please purchase 1 set of Top/Bottom Brackets (F39-LGRTB(-2/-3)) and 1 set of Intermediate Brackets (F39-LGRA).
Appearance | Type | Specifications | Model |
---|---|---|---|
![]() |
SD Manager 2 | The Configuration Tool SD Manager 2 is
available to download from our website at http://www.ia.omron.com/f3sg-r_tool |
- |
![]() |
Interface Unit | F39-GIF-1 interface unit to connect the
F3SG-RA-02TS receiver to a USB port of the PC Accessories: F39-CN1 Branch Connector (1), Connector Cap (1), 2-m Dedicated Cable (1), Instruction Manual |
F39-GIF-1 |
![]() |
Bluetooth
Communication Unit |
F39-BT bluetooth unit to enable bluetooth
on the F3SG-RA IP67 rated when mated. |
F39-BT |
*1. The F3SG-RA-02TS provides only the monitoring functionality.
*2. When the accessory is used, protect it from cutting oil.
Appearance | Type | 仕様 | Model |
---|---|---|---|
![]() |
Lamp | The lamp can be connected to a receiver and
turned ON based on the operation of F3SG-RA. The lamp output pattern is set as follows: Red (ON): Inverted signal of safety output information Orange (Blink once): Inverted signal of stable-state information Green (ON): Safety output information IP67 rated when mated. |
F39-LP |
Lamp and
Bluetooth Communication Unit |
F39-BTLP |
* When the accessory is used, protect it from cutting oil.
Appearance | Specifications | Model |
---|---|---|
![]() |
Housing color: Black
For both emitter and receiver (Attached to the F3SG-RA-02TS. The End Cap can be purchased if lost.) IP67 rated when mated. |
F39-CNM |
*1. This accessory can also be used with the F3SG-RA-01TS.
*2. When the accessory is used, protect it from cutting oil.
Appearance | Specifications | Model |
---|---|---|
![]() |
The laser pointer is attached on the optical surface of the F3SG-R to help coarse
adjustment of beams. |
F39-PTG |
* When the accessory is used, protect it from cutting oil.
Diameter | Model |
---|---|
25 mm dia. | F39-TRD25 |
last update: November 1, 2018
