D4CC
Miniature Limit Switch
Many Models Including Roller Lever Switches are Only 16-mm Thick with Connector
Related Contents
Application Solutions
last update: May 17, 2017
Switches
Limit Switches
| Ratings | 1 A at 125 VAC | 1 A at 30 VDC | |||
|---|---|---|---|---|---|
| LED indicator | Without indicator | With indicator | Without indicator | With indicator | |
| Actuator | Model | Model | Model | Model | |
| Pin plunger |
 |
D4CC-1001 | D4CC-2001 | D4CC-3001 | D4CC-4001 |
| Roller plunger |
 |
D4CC-1002 | D4CC-2002 | D4CC-3002 | D4CC-4002 |
| Crossroller plunger |
 |
D4CC-1003 | D4CC-2003 | D4CC-3003 | D4CC-4003 |
| High-sensitivity roller lever |
 |
D4CC-1024 | D4CC-2024 | D4CC-3024 | D4CC-4024 |
| Sealed pin plunger |
 |
D4CC-1031 | D4CC-2031 | D4CC-3031 | D4CC-4031 |
| Sealed roller plunger |
 |
D4CC-1032 | D4CC-2032 | D4CC-3032 | D4CC-4032 |
| Sealed crossroller plunger |
 |
D4CC-1033 | --- | D4CC-3033 | D4CC-4033 |
| Plastic rod |
 |
D4CC-1050 | D4CC-2050 | D4CC-3050 | D4CC-4050 |
| Center roller lever |
 |
D4CC-1060 | D4CC-2060 | D4CC-3060 | D4CC-4060 |
Note: 1. Ask your OMRON representative for Information on approved models.
2. The meaning of suffix codes in the D4CC model numbers is different from that in the D4C model numbers.
3. Refer to the following table for cable plugs.
2. The meaning of suffix codes in the D4CC model numbers is different from that in the D4C model numbers.
3. Refer to the following table for cable plugs.
Applicable Cables
| Type | For AC | For DC | ||
|---|---|---|---|---|
| Appearance | No. of conductors | Cable length | Model | Model |
Straight
 |
4 | 1 m | XS2F-A421-C90-F | XS2F-D421-C80-F |
| 2 m | XS2F-A421-D90-F | XS2F-D421-D80-F | ||
| 5 m | XS2F-A421-G90-F | XS2F-D421-G80-F | ||
| 10 m | XS2F-A421-J90-F | XS2F-D421-J80-F | ||
Special Mounting Plate (Order Separately)
It is possible to replace an WL/WL-N Limit Switch with a D4CC Limit Switch mounted on this plate without changing the position of the dog or cam.
List of Replaceable Models
| WL/WL-N model (Actuator) | D4CC model (Actuator) | Plate |
|---|---|---|
| WLD
WLD18-N (Top plunger) |
D4CC- [] 001
(Plunger) |
D4C-P001 |
| WLD2
WLD28-N (Top roller plunger) |
D4CC- [] 002
(Roller plunger) |
D4C-P002 |
| WLCA2
WLCA2-N (Roller lever) |
D4CC- [] 024
(Roller lever) |
D4C-P020 |

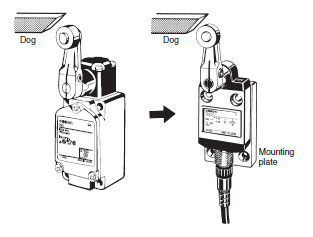

Example of Replacement
Note: The position of the dog remains unchanged.
