E5[]Z

Digital Temperature Controllers

E5[]Z

1/16, 1/8, and 1/4 DIN Temperature Controllers Join the Best-selling E5[]Z Series

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: December 27, 2013

(Unit: mm)

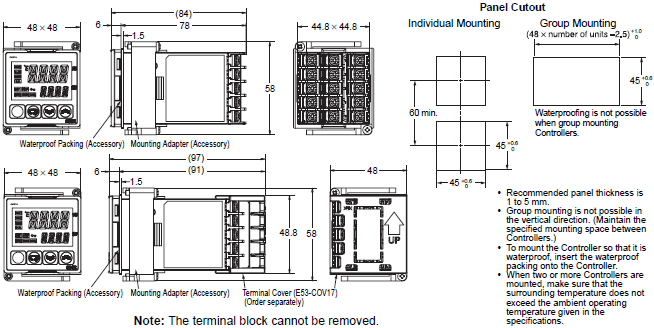

E5CZ
Terminal Models

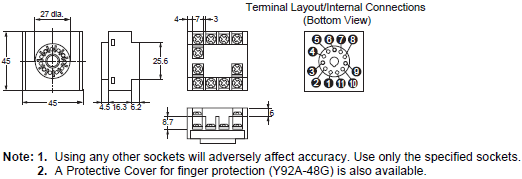

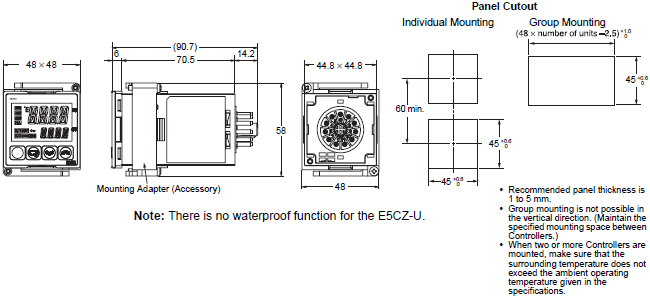

E5CZ-U

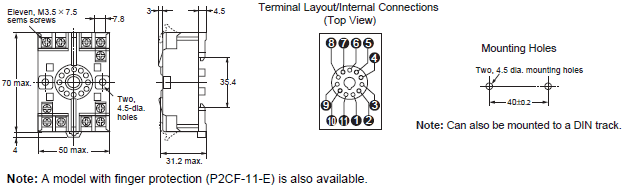

Plug-in Models

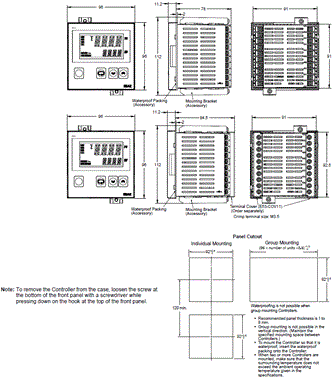

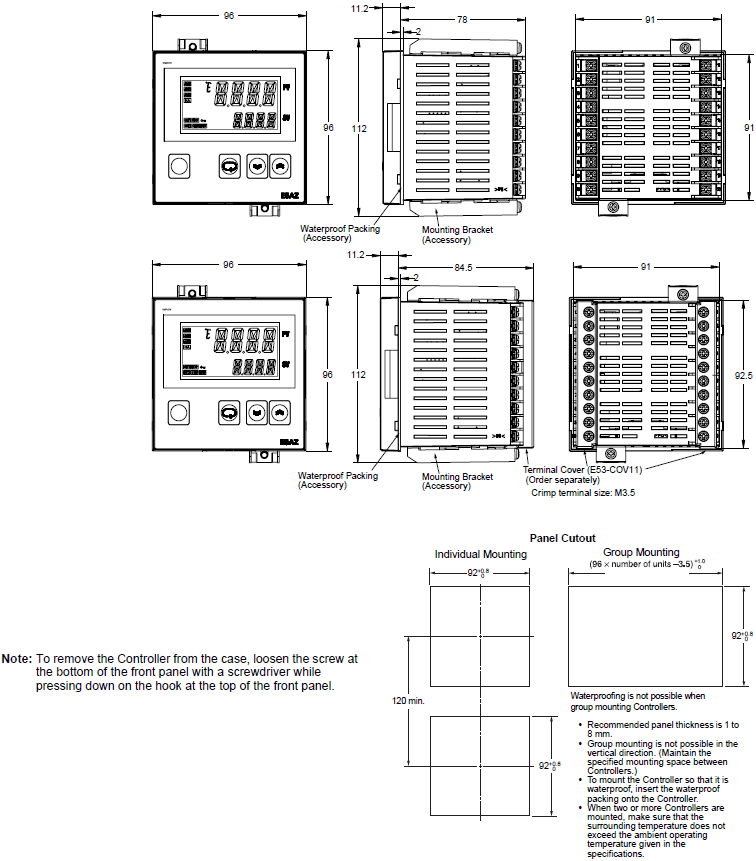

E5AZ

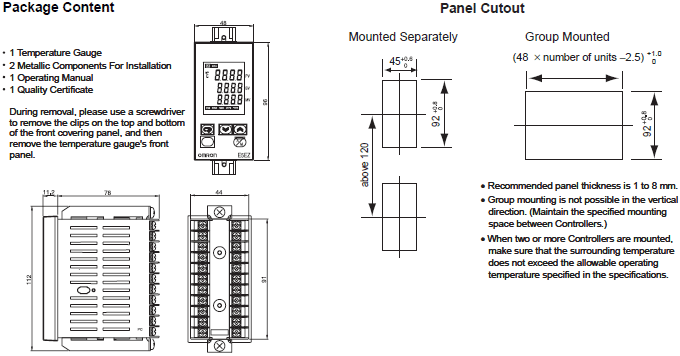

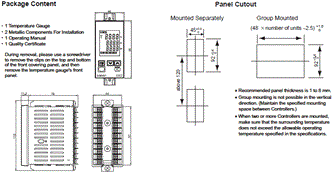

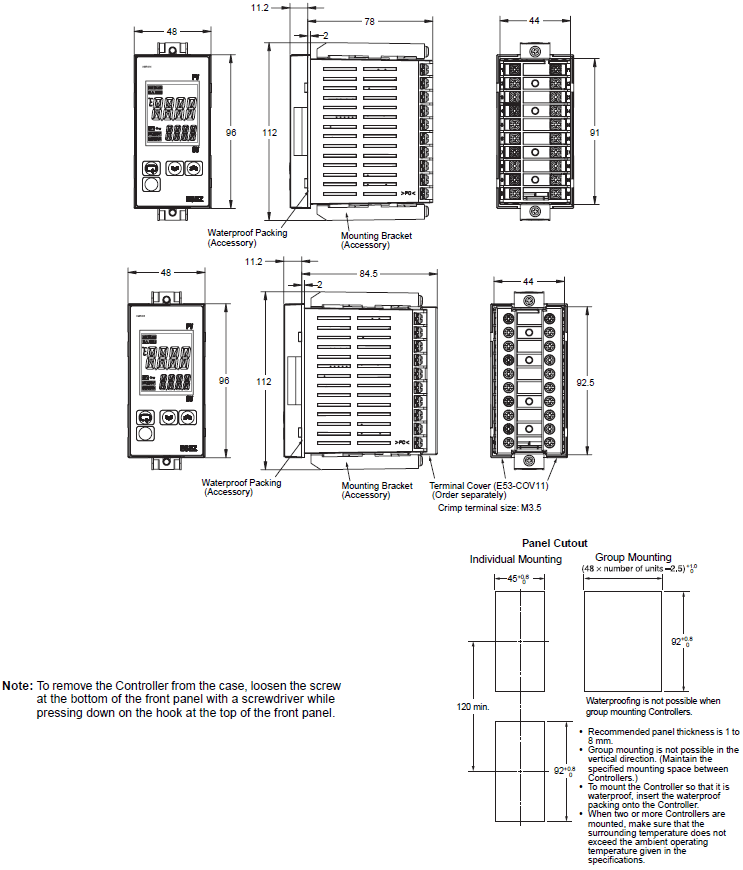

E5EZ
Terminal Models

E5EZ-PRR

Accessories

USB-Serial Conversion Cable (Order Separately)

E58-CIFQ1

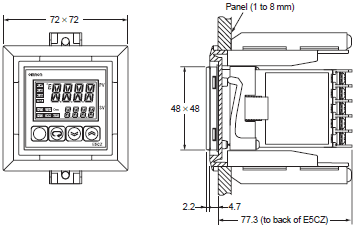

Terminal Cover (Order Separately)

E53-COV17

E53-COV11 (Two Covers provided.)

E53-COV18 (Available only for E5EZ-PRR)

Waterproof Packing

Y92S-29 (for DIN 48 × 48)

Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 (indoor use) degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment.
Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66 (indoor use). The time for periodic replacement depends on the operating environment.
Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.
Note: There is no waterproof function for the E5CZ-U.

Y92S-P4 (for DIN 96 × 96)

Y92S-P5 (for DIN 48 × 96)

Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 (indoor use) degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66 (indoor use). The time for periodic replacement depends on the operating environment.
Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.
