G3R-I/O

I/O Solid State Relays

G3R-I/O

SSR with Plug-in Terminals The Same Shape as the G2R-1-S Power Relays

Input Modules for Microloads

Insulation
method
Operation
indicator
Response
speed
Applicable load Input rated voltage Model
Photocoupler Yes --- 4 to 32 VDC
0.1 to 100 mA
100 to 240 VAC G3R-IAZR1SN-UTU AC100-240
High-speed 5 VDC G3R-IDZR1SN-UTU DC5
12 to 24 VDC G3R-IDZR1SN-UTU DC12-24
Low-speed 5 VDC G3R-IDZR1SN-1-UTU DC5
12 to 24 VDC G3R-IDZR1SN-1-UTU DC12-24

Output Modules for Standard Loads

Insulation
method
Operation
indicator
Zero cross
function
Applicable load Input rated
voltage
Model
Phototriac Yes Yes 2 A at 100 to 240 VAC 5 to 24 VDC G3R-OA202SZN-UTU DC5-24
No G3R-OA202SLN-UTU DC5-24
Photocoupler --- 2 A at 5 to 48 VDC G3R-ODX02SN-UTU DC5-24
1.5 A at 48 to 200 VDC G3R-OD201SN-UTU DC5-24

Accessories (Order Separately)

Connection Sockets

Classification Terminal type Appearance Model
Front-mounting Screw terminals 2808_lu_3_1 P2RFZ-05
Screw terminals
(finger protection structure)
2808_lu_3_3 P2RFZ-05-E
Push-In Plus terminal blocks 2808_lu_3_4 P2RF-05-PU
Back-mounting Relays with PCB Terminals 2808_lu_3_5 P2R-05P
2808_lu_3_6 P2R-057P
Solder terminals 2808_lu_3_7 P2R-05A

For Push-In Plus Terminal Block Sockets

Short Bars

Appli-
cable
sockets
Pitch Applica-
tion
Shape/external
dimensions
Number
of
poles
L
(Length)
Insulation
color
Short Bars
Model*1
Maxi-
mum
carry
current
P2RF-
05-PU
7.75
mm
Bridging
Output
terminals
2808_lu_4_1 2 15.1 Red (R)
Blue (S)
Yellow(Y)
PYDN-7.75-020[] 20 A
3 22.85 PYDN-7.75-030[]
4 30.6 PYDN-7.75-040[]
20 154.6 PYDN-7.75-200[]
15.5
mm
Input
terminals
2808_lu_4_2 8 115.55 PYDN-15.5-080[]

*1. Replace the box ([]) in the model number with the code for the covering color. []Color selection: R = Red, S = Blue,
      Y = Yellow

Labels

Applicable sockets Model
P2RF-05-PU XW5Z-P4.0LB1
(1 sheet/60 pieces)

For Screw Terminal Sockets

Short Bars

Applicable
sockets
Pitch Dimensions (mm) Number
of poles
Insu-
ation
color
Short Bars
Model
Maximum
carry
current
Minimum
order
(set)
P2RFZ-05-E 15.7
mm
2808_lu_6_1 10 Blue
(S)
P2DN-15.7-100S 20 A 1
P2RFZ-05 19.4
mm
2808_lu_6_2 10 Blue
(S)
P2DN-19.4-100S 20 A 1

Note: 1. Select an applicable type of short bars by checking applicable socket type, appearance, and dimensions.
         2. Use the Short Bars for crossover wiring within one Socket or between Sockets.
         3. Use the short bars on the lower section of the socket.
             When using the short bars on the upper section of the socket, insert them so that their heads are pointed upwards
             (see the figure below).
             Otherwise, short bars may interfere with the socket, leading to improper wiring and contact failure.

G3R-I/O Lineup 11

* One set (order unit) contains 10 short bars and 20 caps.

Accessories for Short Bars (P2DN)

Cap

Short Bars Models Appearance Dimensions (mm) Model
P2DN-19.4-100S
P2DN-15.7-100S
2808_lu_7_1 2808_lu_7_2 P2DN-CP100

For Screw Terminal Sockets (P2RFZ-05)

Terminal covers

Applicable sockets Appearance Model Minimum order (set)
P2RFZ-05 2808_lu_8_1 P2CZ-C

Note: 1. Use these covers in a combination with P2RFZ-05.

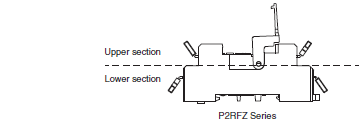

         2. Do not install short bars (optional) on the upper section (see the figure below).
             Short bars may interfere with the terminal cover, making the terminal cover unusable.

G3R-I/O Lineup 17

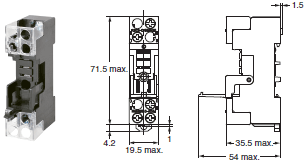

Dimensions with terminal cover

P2RFZ-05

G3R-I/O Lineup 18

Labels

Applicable sockets Model Minimum order (sheet)
(quantity per sheet)
P2RFZ-05-E XW5Z-P2.5LB1 5
1 sheet (72 pieces)

Note: This label cannot be applied on sockets other than P2RFZ-05-E.

DIN Track Mounting Parts

Classification/division Type Appearance Model
For front-mounting DIN Tracks Shallow type, total length: 1 m 2808_lu_11_1 PFP-100N
Shallow type, total length: 0.5 m PFP-50N
Deep type, total length: 1 m 2808_lu_11_2 PFP-100N2
End Plate 2808_lu_11_3 PFP-M
Spacer 2808_lu_11_4 PFP-S
For back-mounting Mounting Plates for Sockets *
(For 5 Sockets)
--- P2R-P

* Used to mount several P2R-05A Connecting Sockets side by side.
