H5CZ

Digital Timer

H5CZ

Easy to Use and Easy to Read.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: December 19, 2013

(Unit: mm)

Digital Timers

Digital Timers

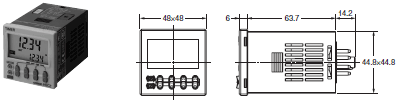

H5CZ-L8[] (Flush Mounting/Surface Mounting Models)

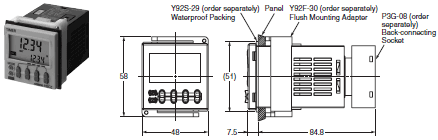

Dimensions with Flush Mounting Adapter
H5CZ-L8[] (Adapter and Waterproof Packing Ordered Separately)

Panel Cutouts

Panel cutouts areas shown below. (according to DIN43700).

Note: 1. The mounting panel thickness should be 1 to 5 mm.
2. To allow easier operation, it is recommended that Adapters be mounted so that the gap between sides with
hooks is at least 15 mm (i.e., with the panel cutouts separated by at least 60 mm).
3. It is possible to horizontally mount Timers side by side. Attach the Flush Mounting Adapters so that the surfaces
without hooks are on the sides of the Timers. (However, if Timers are mounted side by side, water resistance
will be lost.)

Dimensions with Front Connecting Socket

* These dimensions vary with the type of DIN track (reference value).
