F3SR-B
Safety Light Curtain
For Safety Light Curtain Robust & Basic New Lineup. Understanding the Indicators at a Glance.
* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.
Related Contents
Application Solutions
last update: August 6, 2013
(Unit: mm)
Main Unit
Using Standard Mounting Brackets
Backside mounting
Side mounting
Accessories (sold separately)

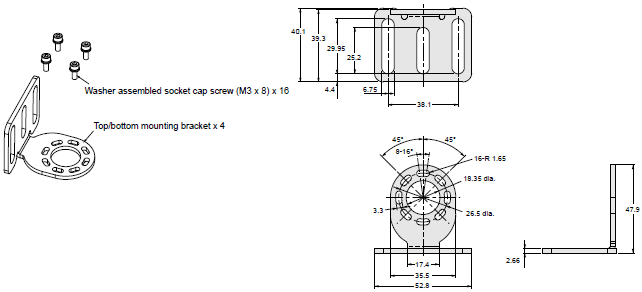

Top/bottom Mounting Bracket
F39-LR1
Material: Stainless steel (Top/bottom mounting brackets, hexagon socket head cap screws)
Note: Screws to mount top/bottom mounting brackets to the wall are not included.
Customers are requested to prepare them by themselves.
Note: Screws to mount top/bottom mounting brackets to the wall are not included.
Customers are requested to prepare them by themselves.
Intermediate Mounting Bracket
F39-LR2
Material: Stainless steel (Free-location bracket (2),(3), hexagon socket head cap screws)
Backside mounting
Side mounting
Free-location Mounting Bracket
F39-LR3
Material: Stainless steel (Free-location bracket (2),(3), hexagon socket head cap screws)
Backside mounting
Side mounting
Number of required mounting brackets
The numbers of brackets required for the protective heights of sensors are as follows:
Single-end Connector Cable
F39-JD3A (L = 3 m), F39-JD7A (L = 7 m)
F39-JD10A (L = 10 m), F39-JD15A (L = 15 m)
F39-JD20A (L = 20 m)
Cable color: Gray for emitter, Black for receiver
Double-end Connector Cable
F39-JDR5B (L = 0.5 m), F39-JD1B (L = 1 m)
F39-JD3B (L = 3 m), F39-JD5B (L = 5 m)
F39-JD7B (L = 7 m), F39-JD10B (L = 10 m)
F39-JD15B (L = 15 m), F39-JD20B (L = 20 m)
Cable color: Gray for emitter, Black for receiver
Control Unit
F3SP-B1P
Laser Pointer
F39-PTR
Spatter Protection Cover
F39-HRB[][][][]
last update: August 6, 2013
