Industrial Automation

KS1

Ionizer (Air Push Type)

KS1

Wide Range of Nozzles for Optimal Ionization

last update: June 16, 2017

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

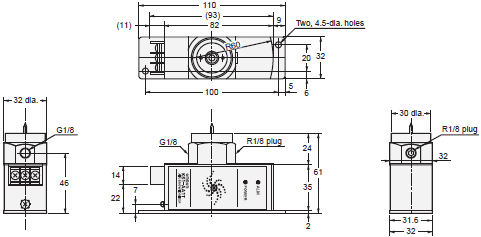

Ionizer

KS1

Nozzles and Optional Products Used with the Ionizer

Nozzles

Standard Nozzle
KS1-ANNS01

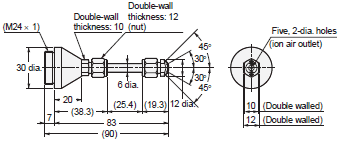

60° Shower Nozzle
KS1-ANSW60

90° Shower Nozzle
KS1-ANSW90

Straight Bar Nozzles
KS1-ANSB[]

Flat Nozzle
KS1-ANFT90

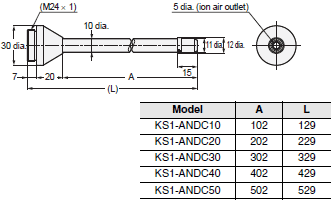

Flexible Tube Nozzles
KS1-ANDC[]

Caps

Flexible Flat Nozzle Cap
KS1-ANDC-FT90

Flexible Shower Nozzle Caps
KS1-ANDC-SW[]

Optional Tubes

Optional Tubes for Standard Nozzles
KS1-ANNS-[]

Optional Products

Optional Air Clean Filter
KS1-AZ04

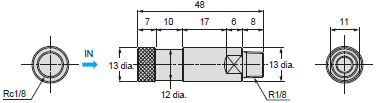

Stainless Steel Connector
KS1-AZ03

• Attached to the Ionizer for air tube connection.
• If using products from other manufacturers, consider using stainless steel products for less impact on the ozone layer.
