ZX-T

Smart Sensors High-Precision Contact Type

ZX-T

The Smart Answer to High-precision Measuring Applications that Were Difficult with Non-contact Types

Related Contents

last update: November 06, 2012

Sensors

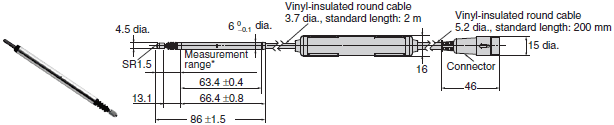

ZX-TDS01T

ZX-T Dimensions 2

* Measurement range: 11.2 to 12.2 (TYP)

ZX-TDS04T
ZX-TDS04T-L

ZX-T Dimensions 3

* Measurement range: 14.9 to 18.9 (TYP)

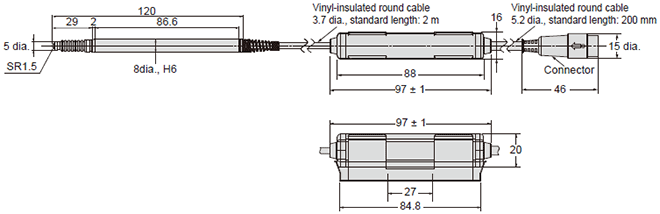

ZX-TDS10[]

ZX-T Dimensions 4

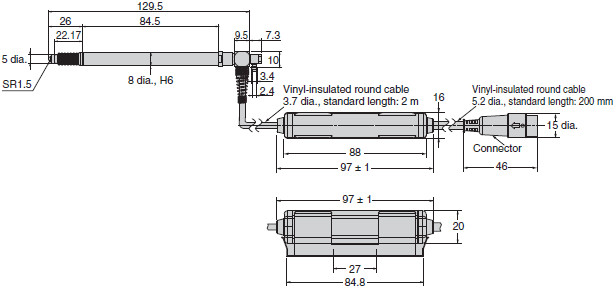

ZX-TDS10[]-L

ZX-T Dimensions 5

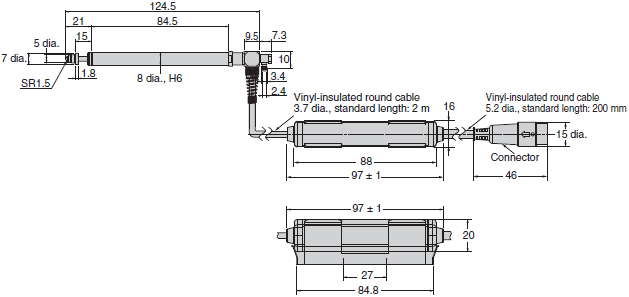

ZX-TDS10[]-V

ZX-T Dimensions 6

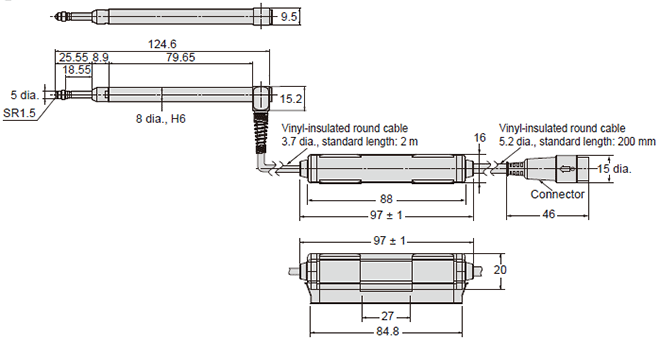

ZX-TDS10[]-VL

ZX-T Dimensions 7

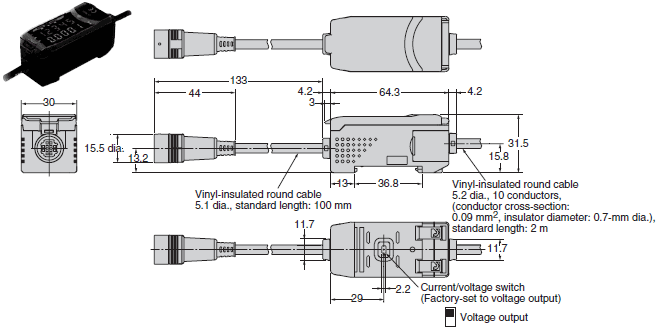

Amplifier Unit

ZX-TDA11
ZX-TDA41

ZX-T Dimensions 9

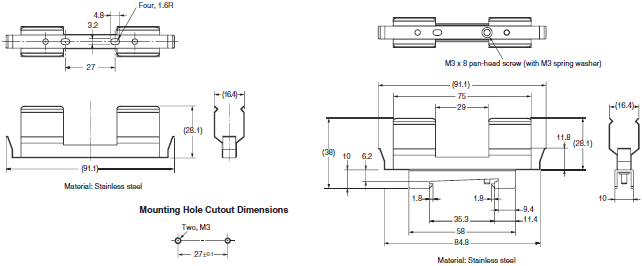

Accessories (Order Separately)

Preamplifier Mounting Bracket (Supplied with Each Sensor)

ZX-XBT1
ZX-XBT2 (For DIN Track Mounting)

ZX-T Dimensions 12
