Discontinued On Dec. 2022

SRT2-VID / VOD(-1)

Transistor Remote I/O Terminals with Connectors (8/16 Points)

SRT2-VID / VOD(-1)

Compact Remote I/O Terminals that Save Wiring Effort and Enable Long-distance Communications

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

(Unit: mm)

SRT2-VID08S
SRT2-VID08S-1
SRT2-VOD08S
SRT2-VOD08S-1

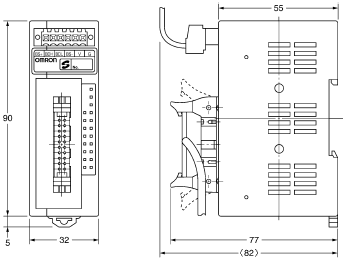

SRT2-VID / VOD(-1) Dimensions 1

SRT2-VID16ML
SRT2-VID16ML-1
SRT2-VOD16ML
SRT2-VOD16ML-1

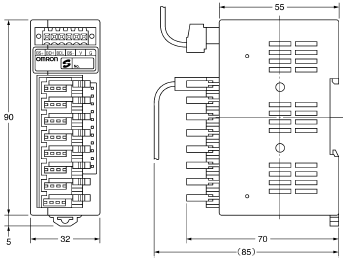

SRT2-VID / VOD(-1) Dimensions 2

SRT2-ATT01

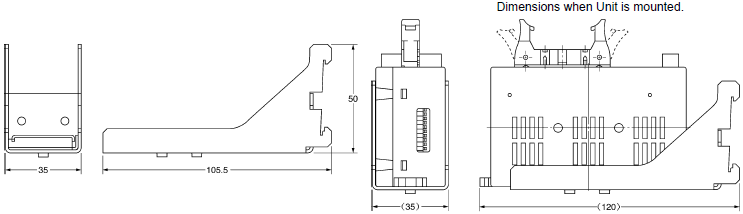

SRT2-VID / VOD(-1) Dimensions 3

SRT2-ATT02

SRT2-VID / VOD(-1) Dimensions 4
