Industrial Automation
Discontinued On Mar. 2018
F3UV
UV Power Monitor
Monitor the Output of a UV Light Source through an Optical Fiber Cable
* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.
Related Contents
last update: November 12, 2012

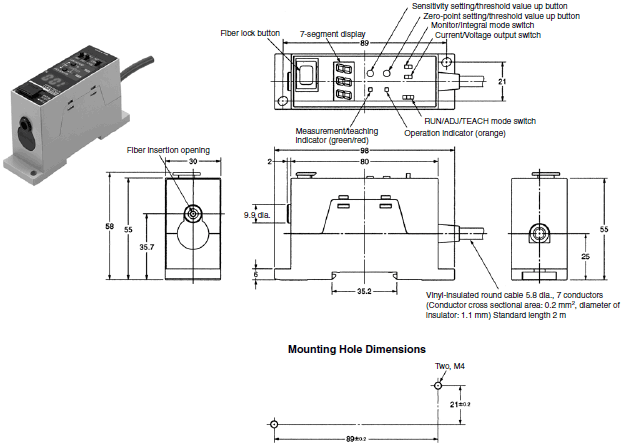

(Unit: mm)
Main Units
Amplifier
F3UV-XW11(-1)/-XW41
Base Unit
F3UV-HM
Material: Stainless steel (SUS303)
Fiber Unit
F32-300
*1: Material: Stainless steel (SUS303)
Note: The max. temperature is 300°C in section A and 110°C in section B, which connects to the Main Unit.
The part of section B that is actually inserted into the Main Unit must remain within the Main Unit's rated operating
temperature range.
Note: The max. temperature is 300°C in section A and 110°C in section B, which connects to the Main Unit.
The part of section B that is actually inserted into the Main Unit must remain within the Main Unit's rated operating
temperature range.
Fiber Unit
F32-70 (Cuttable)
* Material: Nickel-plated brass
Note: The "cuttable" Fiber Units can be cut to length. Units that are not marked "cuttable" cannot be cut to length.
Accessories (Sold Separately)
Protective Tube (Protects the Fiber.)
F39-FU1M
*1. Material: Nickel-plated brass
*2. Material: Stainless steel (SUS304)
last update: November 12, 2012
