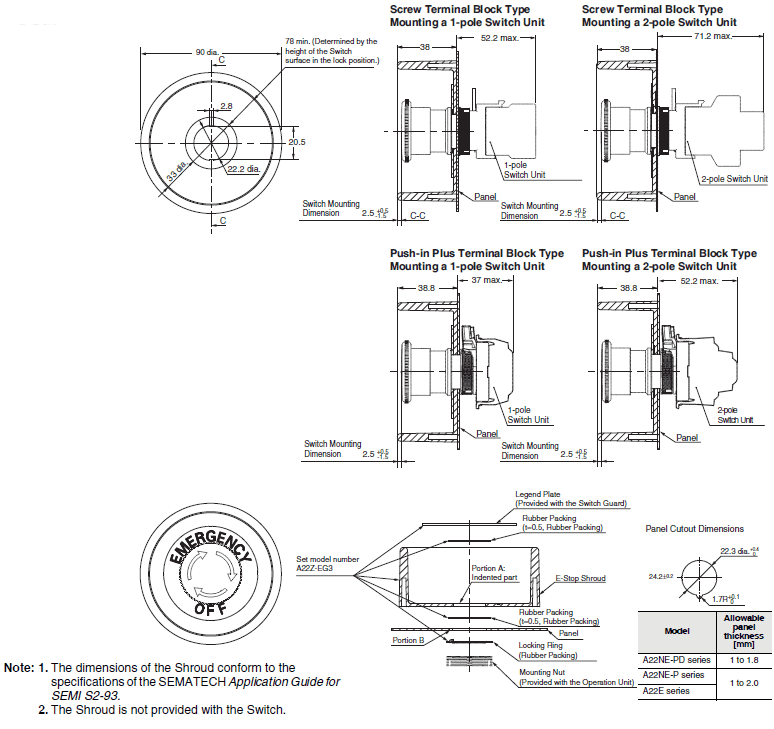

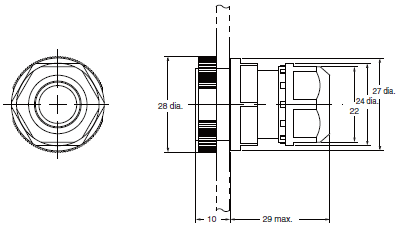

Install in 22-dia. or 25-dia. Panel Cutout (When Using a Ring)

A22NE-PD Push-in Plus Terminal Block Models
A22NE-P Push-in Plus Terminal Block Models
A22E Screw Terminal Block types

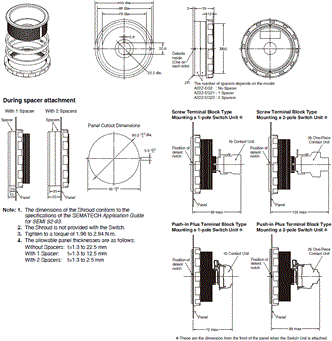

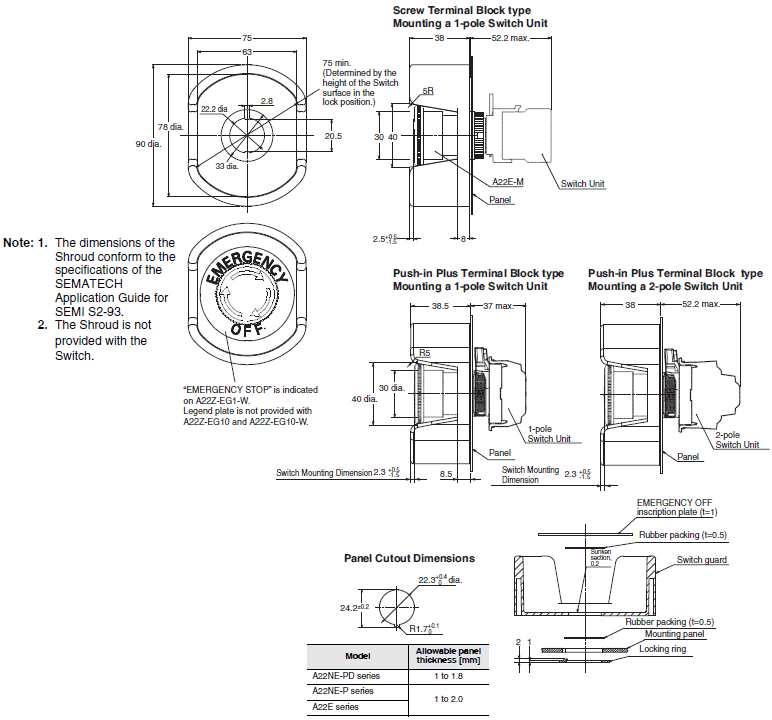

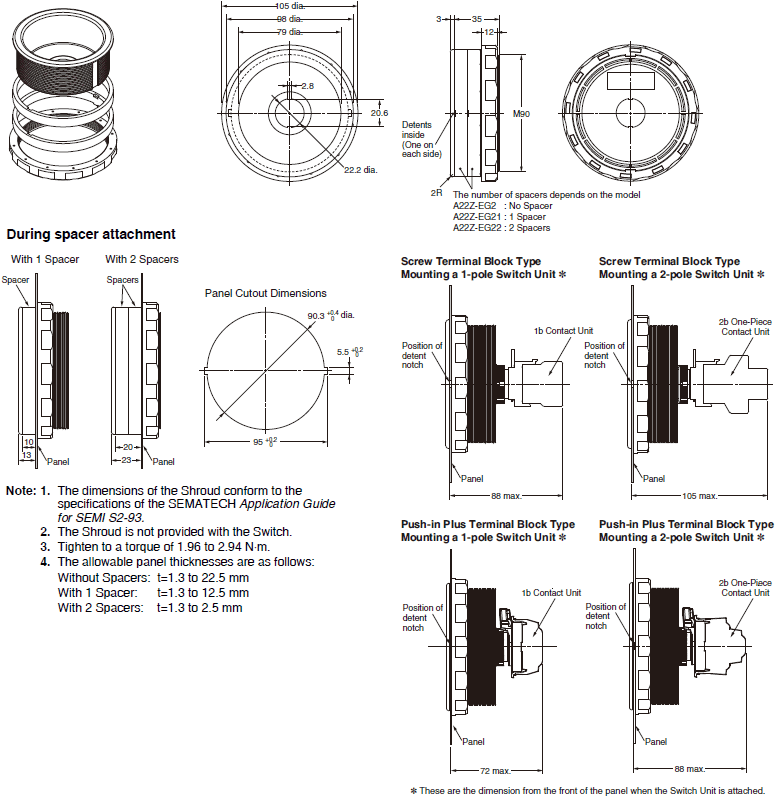

Common Accessories and Tools (Order Separately)

last update: April 1, 2021

(Unit: mm)

A22NE-PD Push-in Plus Terminal Block Models

Non-lighted Models

A22NE-MP-PD[][]-N
Pull-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

A22NE-MP-PD[][]-N-69K
Pull-reset (40-dia.) Degree of Protection: IP69K

A22NE-S-PD[][]-N
Small Turn-reset (30-dia.) Degree of Protection: IP65 oil-resistant models

A22NE-M-PD[][]-N
Medium Turn-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

Note: The dimensions the same even if the Operation Unit is replaced with the A22NE-MR[]-N or the A22NE-MR[]-N-RD.

A22NE-L-PD[][]-N
Large Turn-reset (60-dia.) Degree of Protection: IP65 oil-resistant models

Lighted Model

A22NE-M-PD[][]-C
Medium Turn-reset (40-dia.) Degree of Protection: IP65

Note: Unless otherwise specified, a tolerance of ±0.8mm applies to all dimensions.

Accessories (Order Separately)

LED Lamp

A22NZ-L-RC

Note: For details on the accessories common to the screw terminal block types and push-in plus terminal block types, refer to "Common Accessories and Tools (Order Separately)".

A22NE-P Push-in Plus Terminal Block Models

Non-lighted Models

A22NE-MP-P[][]2-N
Pull-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

A22NE-MP-P[][]2-N-69K
Pull-reset (40-dia.) Degree of Protection: IP69K

A22NE-S-P[][]2-N
Small Turn-reset (30-dia.) Degree of Protection: IP65 oil-resistant models

A22NE-M-P[][]2-N
Medium Turn-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

Note: The dimensions the same even if the Operation Unit is replaced with the A22NE-MR[]-N or the A22NE-MR[]-N-RD.

A22NE-L-P[][]2-N
Large Turn-reset (60-dia.) Degree of Protection: IP65 oil-resistant models

Lighted Model

A22NE-M-P[][]2-[]
Medium Turn-reset (40-dia.) Degree of Protection: IP65

Note: Unless otherwise specified, a tolerance of ±0.8mm applies to all dimensions.

Dimensions when a two-contact Switch Block is attached

Accessories (Order Separately)

Switch Block with Push-In Plus technology

Switch Block (one contact)

A22NZ-S-P1[]

Switch Block (two contacts)

A22NZ-S-P2[]

Lighting unit

A22NZ-T-[]P

Mounting Latches

A22NZ-H-02

LED Lamp

A22NZ-L-[][]

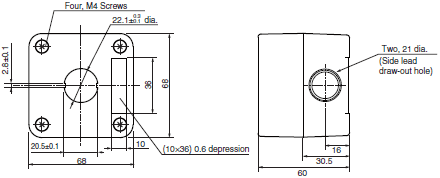

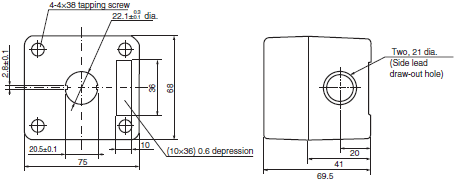

Control Box

A22NZ-A-B01Y

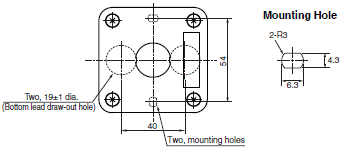

Control Box

A22NZ-A-B101Y

Note: For details on the accessories common to the screw terminal block types and push-in plus terminal block types, refer to "Common Accessories and Tools (Order Separately)" on below.

A22E Screw Terminal Block types

Non-lighted Models

A22E-MP
Medium Pull-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

A22E-S
Small Turn-reset (30-dia.) Degree of Protection: IP65 oil-resistant models

A22E-M
Medium Turn-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

Note: The dimensions are the same as for EMO/EMS indication models.

A22E-L
Large Turn-reset (60-dia.)Degree of Protection: IP65 oil-resistant models

Note: Unless otherwise specified, a tolerance of ±0.8mm applies to all dimensions.

Lighted Model

A22EL-M
Medium Turn-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

Switch dimensions when mounted to a 2NO (2NC) one-piece switch block

Note: The operation unit is an example for the A22E-M.

Note: Unless otherwise specified, a tolerance of ±0.8mm applies to all dimensions.

Accessories (Order Separately)

LED Lamp

A22-6[], 12[], 24[]

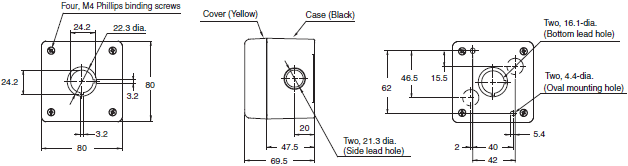

Control Box

A22Z-B101Y (1-hole)

Cable Draw-out Hole (Top View)

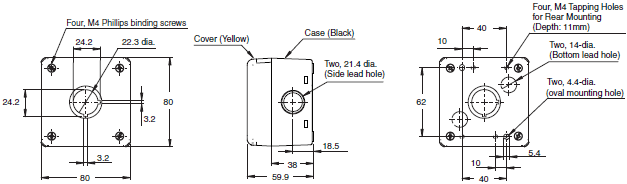

A22Z-B201Y (1-hole)

Cable Draw-out Hole (Top View)

Note: For details on the accessories common to the screw terminal block types and push-in plus terminal block types,
refer to "Common Accessories and Tools (Order Separately)" on below.
