Small, High-precision Enclosed Switch
Related Contents
Application Solutions
last update: November 12, 2012
(Unit: mm)
Plunger
ZC-D55
![ZC-[]55 Dimensions 1](/Images/ZC-%5B%5D55_dm_119-111733.jpg)
Panel Mount Plunger
ZC-Q55
![ZC-[]55 Dimensions 2](/Images/ZC-%5B%5D55_dm_219-111735.jpg)
Panel Mount Roller Plunger
ZC-Q2255
![ZC-[]55 Dimensions 3](/Images/ZC-%5B%5D55_dm_319-111737.jpg)

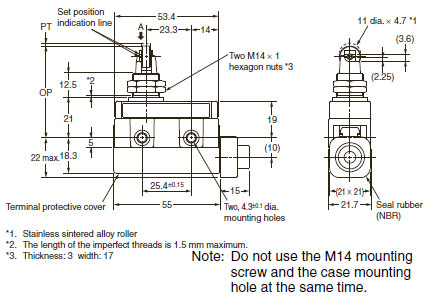

Panel Mount Crossroller Plunger
ZC-Q2155
![ZC-[]55 Dimensions 4](/Images/ZC-%5B%5D55_dm_419-111739.jpg)

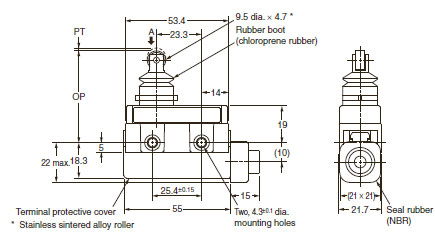

Sealed Roller Plunger
ZC-N2255
![ZC-[]55 Dimensions 5](/Images/ZC-%5B%5D55_dm_519-111741.jpg)

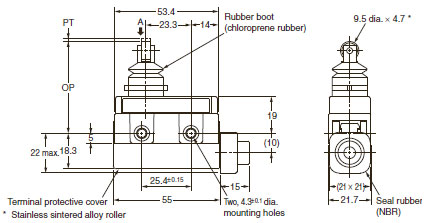

Sealed Crossroller Plunger
ZC-N2155
![ZC-[]55 Dimensions 6](/Images/ZC-%5B%5D55_dm_619-111743.jpg)

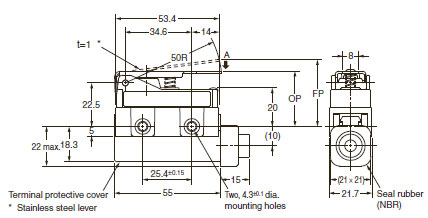

Short Hinge Roller Lever
ZC-W55
![ZC-[]55 Dimensions 7](/Images/ZC-%5B%5D55_dm_719-111745.jpg)
Hinge Lever
ZC-W155
![ZC-[]55 Dimensions 8](/Images/ZC-%5B%5D55_dm_819-111747.jpg)

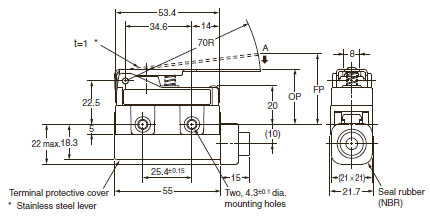

Short Hinge Roller Lever
ZC-W255
![ZC-[]55 Dimensions 9](/Images/ZC-%5B%5D55_dm_919-111749.jpg)

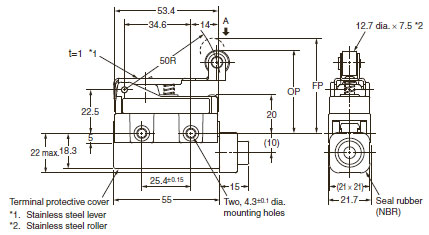

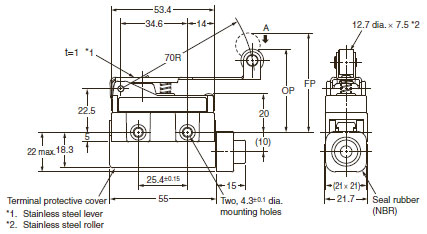

Hinge Roller Lever
ZC-W2155
![ZC-[]55 Dimensions 10](/Images/ZC-%5B%5D55_dm_1019-111751.jpg)

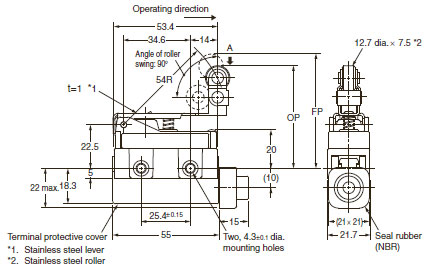

One-way Action Short Hinge Roller Lever
ZC-W355
![ZC-[]55 Dimensions 11](/Images/ZC-%5B%5D55_dm_1119-111753.jpg)

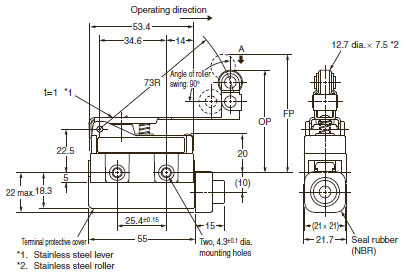

One-way Action Hinge Roller Lever
ZC-W3155
![ZC-[]55 Dimensions 12](/Images/ZC-%5B%5D55_dm_1219-111755.jpg)

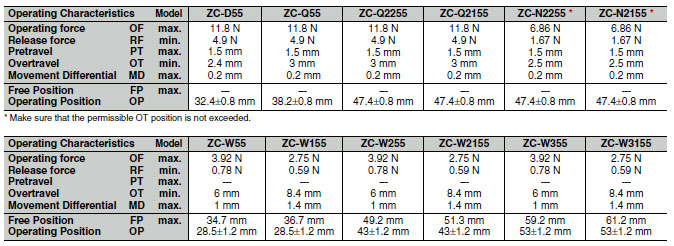

Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. Operating characteristics are for when the Switch is operated from direction A.
2. Operating characteristics are for when the Switch is operated from direction A.
![ZC-[]55 Dimensions 14](/Images/ZC-%5B%5D55_dm_1319-111758.jpg)
