NX-PG0[][][]

NX-series Pulse Output Unit

NX-PG0[][][]

Positioning control with pulse outputs to command stepper motor drives and other pulse input motor drives

Related Contents

last update: February 6, 2020

General Specification

Item Specification
Enclosure Mounted in a panel
Grounding method Ground to less than 100 Ω
Operating
environment		 Ambient operating
temperature		 0 to 55°C
Ambient operating
humidity		 10% to 95% (with no condensation or icing)
Atmosphere Must be free from corrosive gases.
Ambient storage
temperature		 -25 to 70°C (with no condensation or icing)
Altitude 2,000 m max.
Pollution degree Pollution degree 2 or less: Meets IEC 61010-2-201.
Noise immunity Conforms to IEC61000-4-4, 2 kV (power supply line)
Overvoltage category Category II: Meets IEC 61010-2-201.
EMC immunity level Zone B
Vibration resistance Conforms to IEC 60068-2-6.
5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz, acceleration of 9.8 m/s2,
100 min each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min
total)
Shock resistance Conforms to IEC 60068-2-27. 147 m/s2, 3 times each in X, Y, and Z directions
Applicable standards * cULus: Listed (UL508) or Listed (UL 61010-2-201), ANSI/ISA 12.12.01,
EU: EN 61131-2, C-Tick or RCM, KC Registration, NK, LR

* Ask your OMRON representative for the most recent applicable standards for each model.

Pulse Output Unit Specifications

Pulse Output Unit (Open collector output, NPN type) NX-PG0112

Unit name Pulse Output Unit Model NX-PG0112
Number of axes 1 Type of external
connections		 Screwless clamping terminal
block (16 terminals)
I/O refreshing method *1 Synchronous I/O refreshing or task period prioritized refreshing
Indicators 3192_sp_3_1 I/O signals Inputs: 2, External inputs
Outputs: 3, The outputs are
the forward direction
pulse output, reverse direction pulse
output, and external output
(one of each output).
Control method Open-loop control through pulse string output
Controlled drive Servo drive with a pulse string input or a stepper motor drive
Pulse output form Open collector output
Control unit Pulses
Maximum pulse output
speed		 500kpps
Pulse output method Forward/reverse direction pulse outputs or pulse + direction outputs
Position control range -2,147,483,648 to 2,147,483,647 pulses
Velocity control range 1 to 500,000 pps
Positioning *2
Single-axis position
control		 Absolute positioning, relative positioning, and interrupt feeding
Single-axis velocity
control		 Velocity control (velocity feeding in Position Control Mode)
Single-axis
synchronized control		 Cam operation and gear operation
Single-axis manual
operation		 Jogging
Auxiliary function for
single-axis control		 Homing, stopping, and override changes
External input specifications
Input voltage 20.4 to 28.8 VDC
(24 VDC +20%/-15%)		 ON voltage/
ON current		 15 VDC min./3 mA min.
Input current 4.6 mA typical (24 VDC) OFF voltage/OFF
current		 4.0 VDC max./1 mA max.
ON/OFF response time 1 μs max./2 μs max.
Internal I/O common
processing		 NPN
Pulse output and external output specifications
Rated voltage 24 VDC
Load voltage range 15 to 28.8 VDC Residual voltage 1.0 V max.
Maximum load current 30mA Leakage current 0.1 mA max.
ON/OFF response time Pulse output: Refer to “NX-series Position Interface Units User’s Manual (W524-E1)”.
External output: 5 μs max./5 μs max.
Internal I/O common
processing		 NPN
Dimensions 12 × 100 × 71 mm
(W×H×D)		 Isolation
method		 External inputs:
Photocoupler isolation
External outputs:
Digital isolator
Insulation resistance 20 MΩ min. between isolated
circuits (at 100 VDC)		 Dielectric
strength		 510 VAC between isolated
circuits for 1minute with
leakage current of 5 mA max.
I/O power supply source Supplied from the NX bus.
20.4 to 28.8 VDC
(24 VDC +20%/-15%)		 Current capacity
of I/O power
supply terminals		 IOV: 0.1 A max. per terminal
IOG: 0.1 A max. per terminal
NX Unit power
consumption		 • Connected to a CPU Unit
1.15 W max.
• Connected to a Commu-
nications Coupler Unit
0.80 W max.		 Current
consumption from
I/O power supply		 20 mA max.
Weight 70 g max. Cable length 3 m max.

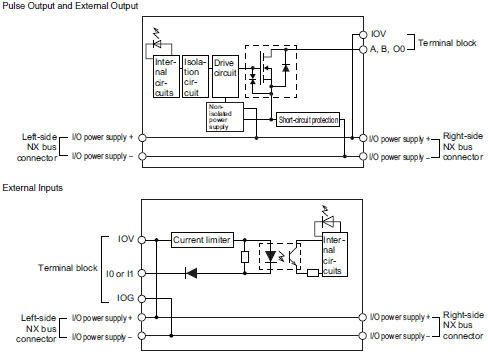

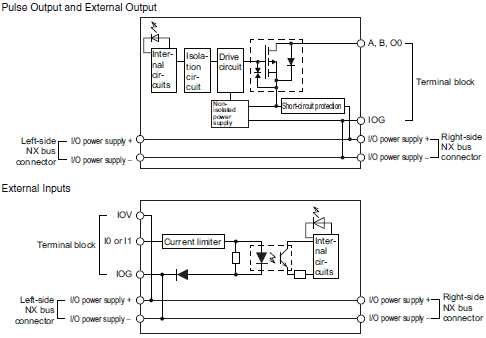

Circuit layout 3192_sp_3_2
Installation orientation
and restrictions		 Installation orientation:
• Connected to a CPU Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: There are no restrictions.
Terminal connection
diagram		 3192_sp_3_3
Failure detection None Protection None

*1. The I/O refreshing method is automatically set according to the connected Communications Coupler Unit and CPU Unit.
*2. These functions are supported when you also use the MC Function Module in the NJ/NX-series CPU Unit or the NY-
     series Industrial PC.
     For details, refer to the motion control user’s manual for the connected CPU Unit or Industrial PC.
     A Pulse Output Unit only outputs pulses during the control period based on commands received at a fixed period.
     Target position calculations (distribution calculations) for acceleration/deceleration control or for each control period must
     be performed on the Controller.

Pulse Output Unit (Open collector output, PNP type) NX-PG0122

Unit name Pulse Output Unit Model NX-PG0122
Number of axes 1 Type of external
connections		 Screwless push-in terminal
block (16 terminals)
I/O refreshing method *1 Synchronous I/O refreshing or task period prioritized refreshing
Indicators 3192_sp_2_1 I/O signals Inputs: 2, External inputs *2
Outputs: 3, The outputs are
the forward direction pulse
output, reverse direction
pulse output, and external
output *3 (one of each output).
Control method Open-loop control through pulse string output
Controlled drive Servo drive with a pulse train input or a stepper motor drive
Pulse output form Open collector output
Control unit Pulses
Maximum pulse output
speed		 500kpps
Pulse output method Forward/reverse direction pulse outputs or pulse + direction outputs
Position control range -2,147,483,648 to 2,147,483,647 pulses
Velocity control range 1 to 500,000 pps
Positioning *2
Single-axis position
control		 Absolute positioning, relative positioning, and interrupt feeding
Single-axis velocity
control		 Velocity control (velocity feeding in Position Control Mode)
Single-axis
synchronized control		 Cam operation and gear operation
Single-axis manual
operation		 Jogging
Auxiliary function for
single-axis control		 Homing, stopping, and override changes
External input specifications
Input voltage 20.4 to 28.8 VDC
(24 VDC +20%/-15%)		 ON voltage/
ON current		 15 VDC min./3 mA min.
Input current 4.6 mA typical (24 VDC) OFF voltage/OFF
current		 4.0 VDC max./1 mA max.
ON/OFF response time 1 μs max./2 μs max.
Internal I/O common
processing		 PNP
External output specifications
Rated voltage 24 VDC
Load voltage range 15 to 28.8 VDC Residual voltage 1.0 V max.
Maximum load current 30mA Leakage current 0.1 mA max.
ON/OFF response time Pulse output: Refer to “NX-series Position Interface Units User’s Manual (W524-E1)”.
5 μs max./5 μs max.
Internal I/O common
processing		 PNP
Dimensions 12 × 100 × 71 mm
(W×H×D)		 Isolation
method		 External inputs:
Photocoupler isolation
External outputs:
Digital isolator
Insulation resistance 20 MΩ min. between isolated
circuits (at 100 VDC)		 Dielectric
strength		 510 VAC between isolated
circuits for 1minute with
leakage current of 5 mA max.
I/O power supply source Supplied from the NX bus.
20.4 to 28.8 VDC
(24 VDC +20%/-15%)		 Current capacity
of I/O power
supply terminals		 IOV: 0.1 A max. per terminal
IOG: 0.1 A max. per terminal
NX Unit power
consumption		 • Connected to a CPU Unit
1.30 W max.
• Connected to a Commu-
nications Coupler Unit
0.90 W max.		 Current
consumption from
I/O power supply		 20 mA max.
Weight 70 g max. Cable length 3 m max.
Circuit layout 3192_sp_2_2
Installation orientation
and restrictions		 Installation orientation:
• Connected to a CPU Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: There are no restrictions.
Terminal connection
diagram		 3192_sp_2_3
Failure detection None Protection None

*1. The I/O refreshing method is automatically set according to the connected CPU Unit or Communications Coupler Unit.
*2. You can use the external inputs as latch inputs.
*3. You can use the external output as error counter reset outputs.
*4. These functions are supported when you also use the MC Function Module in the NJ/NX-series CPU Unit or the NY-
     series Industrial PC.
     For details, refer to the motion control user’s manual for the connected CPU Unit or Industrial PC.
     A Pulse Output Unit only outputs pulses during the control period based on commands received at a fixed period.
     Target position calculations (distribution calculations) for acceleration/deceleration control or for each control period must
     be performed on the Controller.

Pulse Output Unit (Line driver output, NPN type) 2 channels NX-PG0232-5

Unit name Pulse Output Unit Model NX-PG0232-5
Number of channels 2 channels Type of external
connections		 MIL connector (34 terminals ×1)
I/O refreshing method *1 Synchronous I/O refreshing or task period prioritized refreshing
Indicators 3192_sp_5_1 I/O signals Inputs: 5 per channel. External
inputs *2
Outputs: 5 per channel. 1 forward
direction pulse output, 1 reverse
direction pulse output, and
3 external outputs (per channel) *3
Control method Open-loop control through pulse string output
Controlled drive Servo drive with a pulse string input or a stepper motor drive
Pulse output form Line driver output
Unit of control Pulses
Maximum pulse output
speed		 4 Mpps
Pulse output method Forward/reverse direction pulse outputs, Pulse + direction outputs, or Phase differential
pulse output multiplication x1/2/4
Position control range -2,147,483,648 to 2,147,483,647 pulses
Velocity control range 1 to 4,000,000 pps
Positioning *4
Single-axis position
control		 Absolute positioning, relative positioning, and interrupt feeding
Single-axis velocity
control		 Velocity control (velocity feeding in Position Control Mode)
Single-axis
synchronized control		 Cam operation and gear operation
Single-axis manual
operation		 Jogging
Auxiliary function for
single-axis control		 Homing, stopping, and override changes
External input specifications (except for line receiver inputs)
Input voltage 21.6 to 26.4 VDC
(24 VDC +10%, -10%)		 ON voltage/
ON current		 15 VDC min./3 mA min.
Input current 4.6 mA typical (24 VDC) OFF voltage/OFF
current		 4.0 VDC max./1 mA max.
ON/OFF response time External inputs 0 and 1: 1 μs max./2 μs max.
External inputs 2 to 4: 20 μs max./400 μs max.
Internal I/O common
processing		 NPN
External input specifications (line receiver inputs)
Input voltage EIA standard RS-422-A line
driver levels		 High level input voltage VIT+: 0.1 V min.
Input impedance 120 Ω ± 5% Low level input voltage VIT-: -0.1 V max.
Hysteresis voltage Vhys (VIT+ - VIT-): 60 mV
Line driver output specifications
Output voltage RS-422-A line driver level (equivalent to AM26C31)
Maximum load current 20 mA
Maximum output
frequency		 4 Mpps
External output specifications
Rated voltage 24 VDC
Load voltage range 15 to 28.8 VDC Residual voltage 1.0 V max.
Maximum load current 30mA Leakage current 0.1 mA max.
ON/OFF response time External output 0: 5 μs max./5 μs max.
External outputs 1 and 2: 0.5 ms max./1 ms max.
Internal I/O common
processing		 NPN
Dimensions

30 × 100 × 71 mm

(W×H×D)

 Isolation
method		 External inputs: Photocoupler
isolation
External outputs: Digital isolator
Insulation resistance 20 MΩ min. between isolated
circuits (at 100 VDC)		 Dielectric
strength		 510 VAC between isolated circuits
for 1 minute at a leakage current
of 5 mA max.
I/O power supply source

Supply from external source
20.4 to 28.8 VDC

(24 VDC +20%, -15%)

 Current capacity
of I/O power
supply terminals		 Without I/O power supply terminals
NX Unit power
consumption		 • Connected to a CPU Unit
1.55 W max.
• Connected to a Communi-
cations Coupler Unit
1.20 W max.		 Current
consumption from
I/O power supply		 50 mA max.
Weight 110 g max. Cable length Line driver outputs: 10 m max.
Other I/O: 3 m max.
Circuit layout 3192_sp_5_2
Installation orientation
and restrictions		 Installation orientation:
• Connected to a CPU Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.

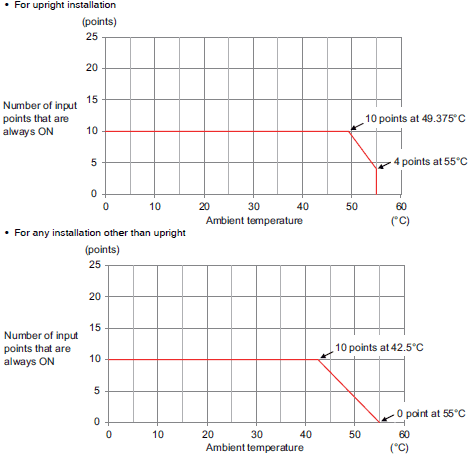

Restrictions: The number of external inputs that can be always ON is restricted as shown below.

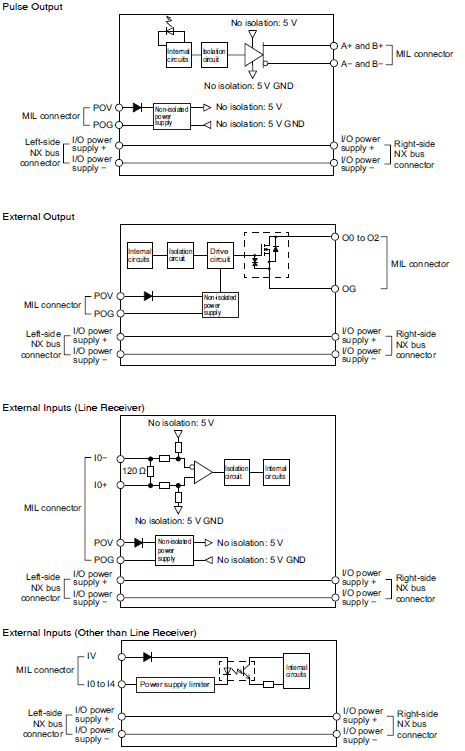

3192_sp_5_3

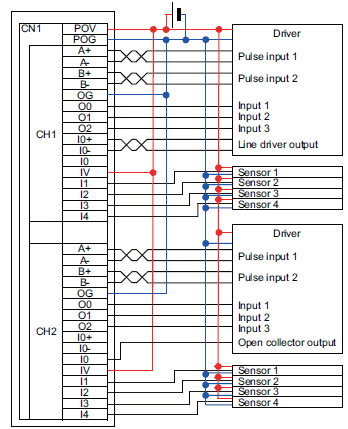

Terminal connection
diagram		 3192_sp_5_4
Failure detection None Protection None

*1. The I/O refreshing method is automatically set according to the connected Communications Coupler Unit and CPU Unit.
*2. You can use the external input 0 as a latch input.
*3. You can use the external output 0 as an error counter reset output.
*4. These functions are supported when you also use the MC Function Module in the NJ/NX-series CPU Unit or the NY-
     series Industrial PC.
     For details, refer to the motion control user’s manual for the connected CPU Unit or Industrial PC.
     A Pulse Output Unit only outputs pulses during the control period based on commands received at a fixed period.
     Target position calculations (distribution calculations) for acceleration/deceleration control or for each control period must
     be performed on the Controller.

Pulse Output Unit (Line driver output, PNP type) 2 channels NX-PG0242-5

Unit name Pulse Output Unit Model NX-PG0242-5
Number of channels 2 channels Type of external
connections		 MIL connector (34 terminals ×1)
I/O refreshing method *1 Synchronous I/O refreshing or task period prioritized refreshing
Indicators 3192_sp_6_1 I/O signals Inputs: 5 per channel. External
inputs *2
Outputs: 5 per channel. 1 forward
direction pulse output, 1 reverse direction pulse output, and
3 external outputs (per channel) *3
Control method Open-loop control through pulse string output
Controlled drive Servo drive with a pulse string input or a stepper motor drive
Pulse output form Line driver output
Unit of control Pulses
Maximum pulse output
speed		 4 Mpps
Pulse output method Forward/reverse direction pulse outputs, Phase + direction outputs, or Phase differential
pulse output multiplication x1/2/4
Position control range -2,147,483,648 to 2,147,483,647 pulses
Velocity control range 1 to 4,000,000 pps
Positioning *4
Single-axis position
control		 Absolute positioning, relative positioning, and interrupt feeding
Single-axis velocity
control		 Velocity control (velocity feeding in Position Control Mode)
Single-axis
synchronized control		 Cam operation and gear operation
Single-axis manual
operation		 Jogging
Auxiliary function for
single-axis control		 Homing, stopping, and override changes
External input specifications (except for line receiver inputs)
Input voltage 21.6 to 26.4 VDC
(24 VDC +10%, -10%)		 ON voltage/
ON current		 15 VDC min./3 mA min.
Input current 4.6 mA typical (24 VDC) OFF voltage/OFF
current		 4.0 VDC max./1 mA max.
ON/OFF response time External inputs 0 and 1: 1 μs max./2 μs max.
External inputs 2 to 4: 20 μs max./400 μs max.
Internal I/O common
processing		 PNP
External input specifications (line receiver inputs)
Input voltage EIA standard RS-422-A line
driver levels		 High level input voltage VIT+: 0.1 V min.
Input impedance 120 Ω ± 5% Low level input voltage VIT-: -0.1 V max.
Hysteresis voltage Vhys (VIT+ - VIT-): 60 mV
Line driver output specifications
Output voltage RS-422-A line driver level (equivalent to AM26C31)
Maximum load current 20 mA
Maximum output
frequency		 4 Mpps
External output specifications
Rated voltage 24 VDC
Load voltage range 15 to 28.8 VDC Residual voltage 1.0 V max.
Maximum load current 30mA Leakage current 0.1 mA max.
ON/OFF response time External output 0: 5 μs max./200 μs max.
External outputs 1 and 2: 0.5 ms max./1 ms max.
Internal I/O common
processing		 PNP
Dimensions

30 × 100 × 71 mm

(W×H×D)

 Isolation
method		 External inputs: Photocoupler
isolation
External outputs: Digital isolator
Insulation resistance 20 MΩ min. between isolated
circuits (at 100 VDC)		 Dielectric
strength		 510 VAC between isolated circuits
for 1 minute at a leakage current
of 5 mA max.
I/O power supply source

Supply from external source
20.4 to 28.8 VDC

(24 VDC +20%, -15%)

 Current capacity
of I/O power
supply terminals		 Without I/O power supply terminals
NX Unit power
consumption		 • Connected to a CPU Unit
1.55 W max.
• Connected to a Commu-
nications Coupler Unit
1.20 W max.		 Current
consumption from
I/O power supply		 50 mA max.
Weight 110 g max. Cable length Line driver outputs: 10 m max.
Other I/O: 3 m max.

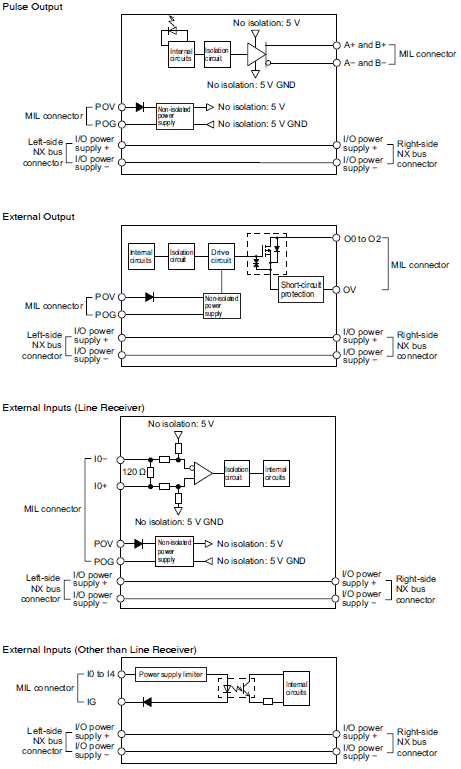

Circuit layout 3192_sp_6_2
Installation orientation
and restrictions		 Installation orientation:
• Connected to a CPU Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.

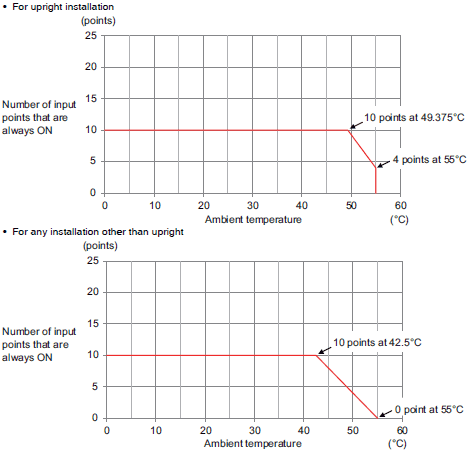

Restrictions: The number of external inputs that can be always ON is restricted as shown below.
3192_sp_6_3
Terminal connection

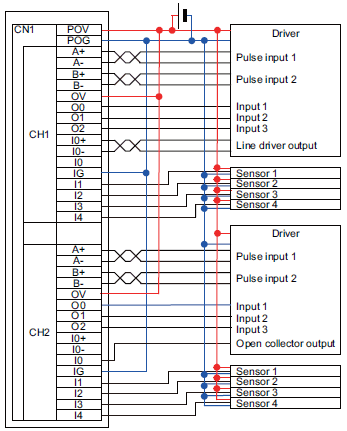

diagram		 3192_sp_6_4
Failure detection None Protection None

*1. The I/O refreshing method is set according to the connected Communications Coupler Unit and CPU Unit.
*2. You can use the external input 0 as a latch input.
*3. You can use the external output 0 as an error counter reset output.
*4. These functions are supported when you also use the MC Function Module in the NJ/NX-series CPU Unit or the NY-
     series Industrial PC.
     For details, refer to the motion control user’s manual for the connected CPU Unit or Industrial PC.
     A Pulse Output Unit only outputs pulses during the control period based on commands received at a fixed period.
     Target position calculations (distribution calculations) for acceleration/deceleration control or for each control period must
     be performed on the Controller.

Pulse Output Unit (Line driver output, NPN type) 4 channels NX-PG0332-5

Unit name Pulse Output Unit Model NX-PG0332-5
Number of channels 4 channels Type of external
connections		 MIL connector (34 terminals ×2)
I/O refreshing method *1 Synchronous I/O refreshing or task period prioritized refreshing
Indicators 3192_sp_7_1 I/O signals Inputs: 5 per channel. External
inputs*2
Outputs: 5 per channel. 1 forward
direction pulse output, 1 reverse
direction pulse output, and
3 external outputs (per channel)*3
Control method Open-loop control through pulse string output
Controlled drive Servo drive with a pulse string input or a stepper motor drive
Pulse output form Line driver output
Unit of control Pulses
Maximum pulse output
speed		 4 Mpps
Pulse output method Forward/reverse direction pulse outputs, Pulse + direction outputs, or Phase
differential pulse output multiplication x1/2/4
Position control range -2,147,483,648 to 2,147,483,647 pulses
Velocity control range 1 to 4,000,000 pps
Positioning *4
Single-axis position
control		 Absolute positioning, relative positioning, and interrupt feeding
Single-axis velocity
control		 Velocity control (velocity feeding in Position Control Mode)
Single-axis
synchronized control		 Cam operation and gear operation
Single-axis manual
operation		 Jogging
Auxiliary function for
single-axis control		 Homing, stopping, and override changes
External input specifications (except for line receiver inputs)
Input voltage 21.6 to 26.4 VDC
(24 VDC +10%, -10%)		 ON voltage/
ON current		 15 VDC min./3 mA min.
Input current 4.6 mA typical (24 VDC) OFF voltage/OFF
current		 4.0 VDC max./1 mA max.
ON/OFF response time External inputs 0 and 1: 1 μs max./2 μs max.
External inputs 2 to 4: 20 μs max./400 μs max.
Internal I/O common
processing		 NPN
External input specifications (line receiver inputs)
Input voltage EIA standard RS-422-A line
driver levels		 High level input voltage VIT+: 0.1 V min.
Input impedance 120 Ω ± 5% Low level input voltage VIT-: -0.1 V max.
Hysteresis voltage Vhys (VIT+ - VIT-): 60 mV
Line driver output specifications
Output voltage RS-422-A line driver level (equivalent to AM26C31)
Maximum load current 20 mA
Maximum output
frequency		 4 Mpps
External output specifications
Rated voltage 24 VDC
Load voltage range 15 to 28.8 VDC Residual voltage 1.0 V max.
Maximum load current 30mA Leakage current 0.1 mA max.
ON/OFF response time External output 0: 5 μs max./200 μs max.
External outputs 1 and 2: 0.5 ms max./1 ms max.
Internal I/O common
processing		 NPN
Dimensions

30 × 100 × 71 mm

(W×H×D)

 Isolation
method		 External inputs: Photocoupler
isolation
External outputs: Digital isolator
Insulation resistance 20 MΩ min. between isolated
circuits (at 100 VDC)		 Dielectric
strength		 510 VAC between isolated circuits
for 1 minute at a leakage current
of 5 mA max.
I/O power supply source

Supply from external source
20.4 to 28.8 VDC

(24 VDC +20%, -15%)

 Current capacity
of I/O power
supply terminals		 Without I/O power supply terminals
NX Unit power
consumption		 • Connected to a CPU Unit
1.65 W max.
• Connected to a Communi-
cations Coupler Unit
1.30 W max.		 Current
consumption from
I/O power supply		 50 mA/CN max.
Weight 150 g max. Cable length Line driver outputs: 10 m max.
Other I/O: 3 m max.
Circuit layout 3192_sp_7_2
Installation orientation
and restrictions		 Installation orientation:
• Connected to a CPU Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: The number of external inputs that can be always ON is restricted as shown below.

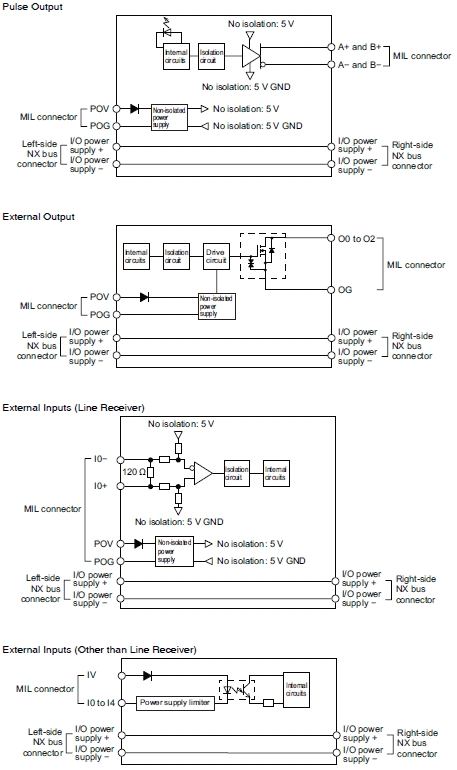

3192_sp_7_3
Terminal connection

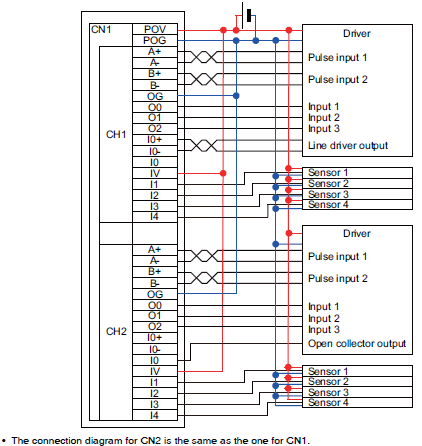

diagram		 3192_sp_7_4
Failure detection None Protection None

*1. The I/O refreshing method is set according to the connected Communications Coupler Unit and CPU Unit.
*2. You can use the external input 0 as a latch input.
*3. You can use the external output 0 as an error counter reset output.
*4. These functions are supported when you also use the MC Function Module in the NJ/NX-series CPU Unit or the NY-
     series Industrial PC.
     For details, refer to the motion control user’s manual for the connected CPU Unit or Industrial PC.
     A Pulse Output Unit only outputs pulses during the control period based on commands received at a fixed period.
     Target position calculations (distribution calculations) for acceleration/deceleration control or for each control period must
     be performed on the Controller.

Pulse Output Unit (Line driver output, PNP type) 4 channels NX-PG0342-5

Unit name Pulse Output Unit Model NX-PG0342-5
Number of channels 4 channels Type of external
connections		 MIL connector (34 terminals ×2)
I/O refreshing method *1 Synchronous I/O refreshing or task period prioritized refreshing
Indicators 3192_sp_8_1 I/O signals Inputs: 5 per channel. External
inputs *2
Outputs: 5 per channel. 1 forward
direction pulse output, 1 reverse direction pulse output, and
3 external outputs (per channel) *3
Control method Open-loop control through pulse string output
Controlled drive Servo drive with a pulse string input or a stepper motor drive
Pulse output form Line driver output
Unit of control Pulses
Maximum pulse output
speed		 4 Mpps
Pulse output method Forward/reverse direction pulse outputs, Pulse + direction outputs, or Phase
differential pulse output multiplication x1/2/4
Position control range -2,147,483,648 to 2,147,483,647 pulses
Velocity control range 1 to 4,000,000 pps
Positioning *4
Single-axis position
control		 Absolute positioning, relative positioning, and interrupt feeding
Single-axis velocity
control		 Velocity control (velocity feeding in Position Control Mode)
Single-axis
synchronized control		 Cam operation and gear operation
Single-axis manual
operation		 Jogging
Auxiliary function for
single-axis control		 Homing, stopping, and override changes
External input specifications (except for line receiver inputs)
Input voltage 21.6 to 26.4 VDC
(24 VDC +10%, -10%)		 ON voltage/
ON current		 15 VDC min./3 mA min.
Input current 4.6 mA typical (24 VDC) OFF voltage/OFF
current		 4.0 VDC max./1 mA max.
ON/OFF response time External inputs 0 and 1: 1 μs max./2 μs max.
External inputs 2 to 4: 20 μs max./400 μs max.
Internal I/O common
processing		 PNP
External input specifications (line receiver inputs)
Input voltage EIA standard RS-422-A line
driver levels		 High level input voltage VIT+: 0.1 V min.
Input impedance 120 Ω ± 5% Low level input voltage VIT-: -0.1 V max.
Hysteresis voltage Vhys (VIT+ - VIT-): 60 mV
Line driver output specifications
Output voltage RS-422-A line driver level (equivalent to AM26C31)
Maximum load current 20 mA
Maximum output
frequency		 4 Mpps
External output specifications
Rated voltage 24 VDC
Load voltage range 15 to 28.8 VDC Residual voltage 1.0 V max.
Maximum load current 30mA Leakage current 0.1 mA max.
ON/OFF response time External output 0: 5 μs max./200 μs max.
External outputs 1 and 2: 0.5 ms max./1 ms max.
Internal I/O common
processing		 PNP
Dimensions

30 × 100 × 71 mm

(W×H×D)

 Isolation
method		 External inputs: Photocoupler isolation
External outputs: Digital isolator
Insulation resistance 20 MΩ min. between isolated
circuits (at 100 VDC)		 Dielectric
strength		 510 VAC between isolated circuits
for 1 minute at a leakage current
of 5 mA max.
I/O power supply source

Supply from external source
20.4 to 28.8 VDC

(24 VDC +20%, -15%)

 Current capacity
of I/O power
supply terminals		 Without I/O power supply terminals
NX Unit power
consumption		 • Connected to a CPU Unit
1.65 W max.
• Connected to a Communi-
cations Coupler Unit
1.30 W max.		 Current
consumption from
I/O power supply		 50 mA/CN max.
Weight 150 g max. Cable length Line driver outputs: 10 m max.
Other I/O: 3 m max.

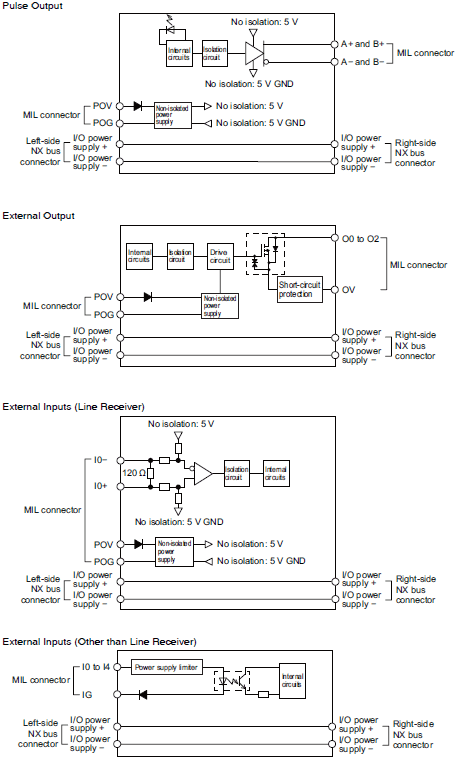

Circuit layout 3192_sp_8_2
Installation orientation
and restrictions		 Installation orientation:
• Connected to a CPU Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.

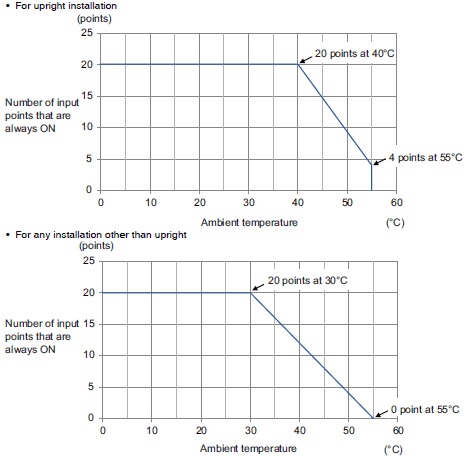

Restrictions: The number of external inputs that can be always ON is restricted as shown below.
3192_sp_8_3

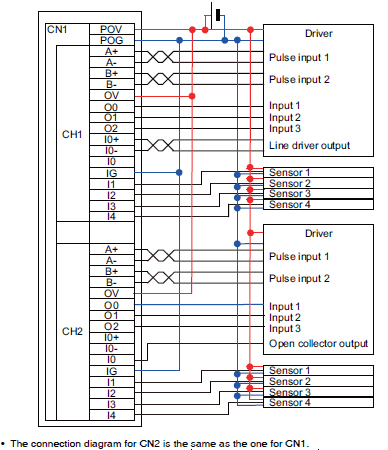

Terminal connection
diagram		 3192_sp_8_4
Failure detection None Protection None

*1. The I/O refreshing method is set according to the connected Communications Coupler Unit and CPU Unit.
*2. You can use the external input 0 as a latch input.
*3. You can use the external output 0 as an error counter reset output.
*4. These functions are supported when you also use the MC Function Module in the NJ/NX-series CPU Unit or the NY-
     series Industrial PC.
     For details, refer to the motion control user’s manual for the connected CPU Unit or Industrial PC.
     A Pulse Output Unit only outputs pulses during the control period based on commands received at a fixed period.
     Target position calculations (distribution calculations) for acceleration/deceleration control or for each control period must
     be performed on the Controller.

Version Information

Connected to a CPU Unit

Refer to the user's manual for the CPU Unit details on the CPU Units to which NX Units can be connected.

NX Unit Corresponding unit versions/versions
Model Unit version CPU Unit Sysmac Studio
NX-PG0112 Ver. 1.1 Ver.1.13 Ver. 1.17
Ver. 1.2
Ver. 1.3 Ver. 1.19
NX-PG0122 Ver. 1.0 Ver.1.13 Ver. 1.17
Ver. 1.1
Ver. 1.2
Ver. 1.3 Ver. 1.19
NX-PG0232-5 Ver. 1.2 Ver.1.13 Ver. 1.17
Ver. 1.3 Ver. 1.19
NX-PG0242-5 Ver. 1.2 Ver.1.13 Ver. 1.17
Ver. 1.3 Ver. 1.19
NX-PG0332-5 Ver. 1.2 Ver.1.13 Ver. 1.17
Ver. 1.3 Ver. 1.19
NX-PG0342-5 Ver. 1.2 Ver.1.13 Ver. 1.17
Ver. 1.3 Ver. 1.19

Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the specific Units for the relation between models and versions.

Connected to an EtherCAT Coupler Unit

NX Unit Corresponding unit versions/versions
Model Unit version EtherCAT
Coupler Unit		 CPU Unit or Industrial PC Sysmac Studio
NX-PG0112 Ver. 1.1 Ver. 1.0 Ver. 1.05 Ver. 1.10
Ver. 1.2 Ver. 1.3 *2*4 Ver. 1.13
Ver. 1.3 Ver. 1.19
NX-PG0122 Ver. 1.0 Ver. 1.0 Ver. 1.05 Ver. 1.06
Ver. 1.1 Ver. 1.08
Ver. 1.2 Ver. 1.3 *2*4 Ver. 1.13
Ver. 1.3 Ver. 1.19
NX-PG0232-5 Ver. 1.2 Ver. 1.3 *2*4 Ver. 1.05 Ver. 1.15
Ver. 1.3 Ver. 1.19
NX-PG0242-5 Ver. 1.2 Ver. 1.3 *2*4 Ver. 1.05 Ver. 1.15
Ver. 1.3 Ver. 1.19
NX-PG0332-5 Ver. 1.2 Ver. 1.3 *2*4 Ver. 1.05 Ver. 1.15
Ver. 1.3 Ver. 1.19
NX-PG0342-5 Ver. 1.2 Ver. 1.3 *2*4 Ver. 1.05 Ver. 1.15
Ver. 1.3 Ver. 1.19

Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the specific Units for the relation between models and versions.
*1. You can use the following versions if time stamp refreshing is not used.
*2. To use task period prioritized refreshing, you must use the NX-ECC203.
*3. If you do not use task period prioritized refreshing, you can use EtherCAT Coupler Units which support Position Interface Units with unit version 1.1 or earlier.
*4. If you do not use task period prioritized refreshing, you can use EtherCAT Coupler Units with unit version 1.0.

Connected to an EtherNet/IP Coupler Unit

NX Unit Corresponding unit versions/versions
Model Unit
version		 Application with an NJ/NX/NY-series Controller
*1		 Application with a CS/CJ/CP-series PLC *2
EtherNet/IP
Coupler Unit		 CPU Unit or
Industrial PC		 Sysmac
Studio		 EtherNet/IP
Coupler Unit		 Sysmac
Studio		 NX-IO
Configurator *3
NX-PG0112 Ver. 1.1 --- --- --- --- --- ---
Ver. 1.2
Ver. 1.3
NX-PG0122 Ver. 1.0 --- --- --- --- --- ---
Ver. 1.1
Ver. 1.2
Ver. 1.3
NX-PG0232-5 Ver. 1.2 --- --- --- --- --- ---
Ver. 1.3
NX-PG0242-5 Ver. 1.2 --- --- --- --- --- ---
Ver. 1.3
NX-PG0332-5 Ver. 1.2 --- --- --- --- --- ---
Ver. 1.3
NX-PG0342-5 Ver. 1.2 --- --- --- --- --- ---
Ver. 1.3

Note: 1. Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the specific Units for the relation between models and versions.
Note: 2. You cannot connect the relevant NX Unit or use the relevant NX Unit function if “---” is shown in the corresponding unit versions/versions column.
*1. Refer to the user's manual of the EtherNet/IP Coupler Unit for the unit versions of EtherNet/IP Units corresponding to EtherNet/IP Coupler Units.
*2. Refer to the user's manual of the EtherNet/IP Coupler Unit for the unit versions of CPU Units and EtherNet/IP Units corresponding to EtherNet/IP Coupler Units.
*3. For connection to an EtherNet/IP Coupler Unit with unit version 1.0, connection is supported only for a connection to the peripheral USB port on the EtherNet/IP Coupler Unit. You cannot connect by any other path. If you need to connect by another path, use an EtherNet/IP Coupler Unit with unit version 1.2 or later.

last update: February 6, 2020

Product Category

Products

About Us

Solutions

Privacy

Services

Resources

Omron Automation is an industrial automation partner that creates, sells and services fully integrated automation solutions that include sensing, control, safety, vision, motion, robotics and more.

Follow Us

Youtube Facebook Linkedin
© Copyright OMRON Corporation 2000-2020. All Rights Reserved.
