G6D-F4PU / G3DZ-F4PU, G6D-F4B / G3DZ-F4B

Terminal Relay

G6D-F4PU / G3DZ-F4PU, G6D-F4B / G3DZ-F4B

Model with Push-In Plus technology Added to Terminal Relays with Four-point Output Lineup

(Unit: mm)

Main unit

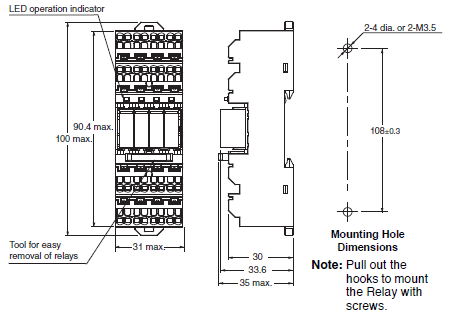

G6D-F4PU
G3DZ-F4PU

G6D-F4PU / G3DZ-F4PU, G6D-F4B / G3DZ-F4B Dimensions 2

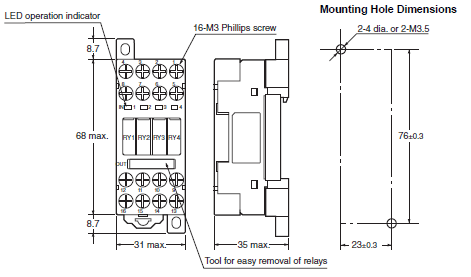

G6D-F4B
G3DZ-F4B

G6D-F4PU / G3DZ-F4PU, G6D-F4B / G3DZ-F4B Dimensions 3

Accessories (Order Separately)

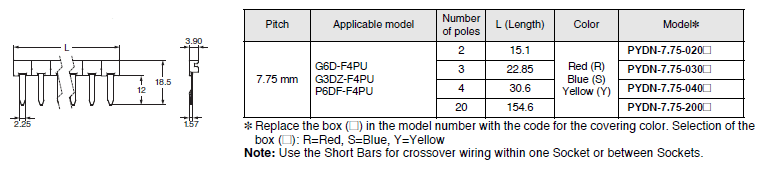

Short Bars

PYDN-7.75-[][] (7.75 mm)

G6D-F4PU / G3DZ-F4PU, G6D-F4B / G3DZ-F4B Dimensions 5

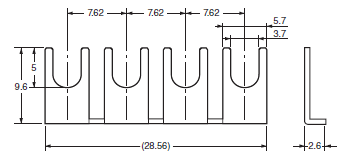

Short Bars

G6D-4-SB

G6D-F4PU / G3DZ-F4PU, G6D-F4B / G3DZ-F4B Dimensions 6

Parts for DIN Track Mounting

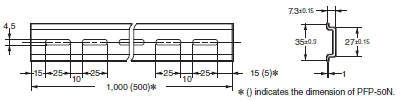

DIN Tracks
PFP-100N
PFP-50N

G6D-F4PU / G3DZ-F4PU, G6D-F4B / G3DZ-F4B Dimensions 7

End Plate
PFP-M

G6D-F4PU / G3DZ-F4PU, G6D-F4B / G3DZ-F4B Dimensions 8

Spacer
PFP-S

G6D-F4PU / G3DZ-F4PU, G6D-F4B / G3DZ-F4B Dimensions 9
