E6B2-C

Incremental 40-mm-dia. Rotary Encoder

E6B2-C

General-purpose Encoder with External Diameter of 40 mm

last update: July 6, 2017

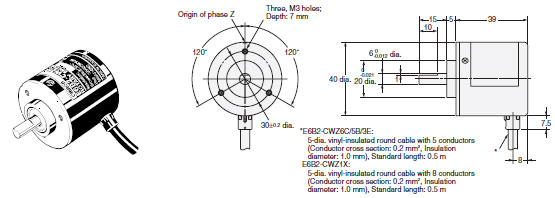

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Couplings
E69-C06B
E69-C68B
E69-C610B
E69-C06M

Flanges
E69-FBA
E69-FBA02

Servo Mounting Bracket
E69-2

Refer to E69-[] catalog.
