5-Megapixel C-Mount Smart Camera
last update: May 8, 2023
Appearance | Description | Part Number |
---|---|---|
F440-F, No Optics, 5 MP, Mono, No Light, AutoVISION Sensor | F440-FXXXY50M-NNS | |
F440-F, No Optics, 5 MP, Mono, No Light, AutoVISION + Verification | F440-FXXXY50M-NNA | |
F440-F, No Optics, 5 MP, Mono, No Light, AutoVISION + Verification + Visionscape | F440-FXXXY50M-NNV |
Appearance | Type | Part Number |
---|---|---|
¼-20 Camera Mounting Block Kit
(F440-F series only) |
V440-AM0 |
Part Number | Focal Length | Minimum
Working Distance (mm) |
Size (mm) -
Length x Diameter |
Filter Size | Polarizer Part Number | Smart Ring
Light Compatibility |
---|---|---|---|---|---|---|
98-9000167-01 | 6 mm | 100 | 36.7 x 29.5 | M27 P0.5 | 3Z4S-LE SV-PL270-SS | R-70/R-100 |
98-9000168-01 | 9 mm | 100 | 35 x 29.5 | M27 P0.5 | 3Z4S-LE SV-PL270-SS | R-70/R-100 |
98-9000169-01 | 12.5 mm | 100 | 29.5 x 29.5 | M25.5 P0.5 | 3Z4S-LE SV-PL255-SS | R-70/R-100 |
98-9000170-01 | 16 mm | 100 | 29.5 x 29.5 | M25.5 P0.5 | 3Z4S-LE SV-PL255-SS | R-70/R-100 |
98-9000171-01 | 25 mm | 150 | 29.5 x 29.5 | M25.5 P0.5 | 3Z4S-LE SV-PL255-SS | R-70/R-100 |
98-9000172-01 | 35 mm | 250 | 29.5 x 29.5 | M25.5 P0.5 | 3Z4S-LE SV-PL255-SS | R-70/R-100 |
*For working distances shorter than the minimum working distance specified for the lens, an extension tube is required to focus the lens.
Part Number | Focal Length | Minimum
Working Distance (mm) |
Size (mm) -
Length x Diameter |
Filter Size | Polarizer Part Number | Smart Ring
Light Compatibility |
---|---|---|---|---|---|---|
3Z4S-LE SV-0614H | 6 mm | 100 | 57.5 x 42 | M40.5 P0.5 | 3Z4S-LE SV-PL405-SS | R-100 |
3Z4S-LE SV-0814H | 8 mm | 100 | 52.5 x 39 | M35.5 P0.5 | 3Z4S-LE SV-PL355-SS | R-100 |
3Z4S-LE SV-1214H | 12 mm | 100 | 51 x 30 | M27 P0.5 | 3Z4S-LE SV-PL270-SS | R-70/R-100 |
3Z4S-LE SV-1614H | 16 mm | 100 | 47.5 x 30 | M27 P0.5 | 3Z4S-LE SV-PL270-SS | R-70/R-100 |
3Z4S-LE SV-2514H | 25 mm | 150 | 36 x 30 | M27 P0.5 | 3Z4S-LE SV-PL270-SS | R-70/R-100 |
3Z4S-LE SV-3514H | 35 mm | 200 | 45.5 x 44 | M35.5 P0.5 | 3Z4S-LE SV-PL355-SS | R-100 |
3Z4S-LE SV-5014H | 50 mm | 300 | 57.5 x 44 | M40.5 P0.5 | 3Z4S-LE SV-PL405-SS | R-100 |
3Z4S-LE SV-7525H | 75 mm | 1200 | 54.6 x 36 | M34.0 P0.5 | 3Z4S-LE SV-PL340-SS | R-100 |
3Z4S-LE SV-10028H | 100 mm | 2000 | 71.6 x 39 | M37.5 P0.5 | 3Z4S-LE SV-PL375-SS | R-100 |
*These are the standard lenses offered in the Omron Vision Accessories Catalog.
*For working distances shorter than the minimum working distance specified for the lens, an extension tube is required to focus the lens.
Part Number | Focal Length | Minimum
Working Distance (mm) |
Size (mm) -
Length x Diameter |
Filter Size | Polarizer Part Number | Smart Ring
Light Compatibility |
---|---|---|---|---|---|---|
98-9000192-01 | 6 mm | 100 | 51 x 39 | M37.5 x 0.5 | 3Z4S-LE SV-PL375-SS | R-100 |
98-9000165-01 | 8 mm | 100 | 51.5 x 29.5 | M25.5 x 0.5 | 3Z4S-LE SV-PL255-SS | R-70/R-100 |
98-9000166-01 | 12 mm | 100 | 51.5 x 29.5 | M25.5 x 0.5 | 3Z4S-LE SV-PL255-SS | R-70/R-100 |
98-9000154-01 | 16 mm | 100 | 46.0 x 29.5 | M25.5 x 0.5 | 3Z4S-LE SV-PL255-SS | R-70/R-100 |
98-9000164-01 | 25 mm | 100 | 46.5 x 29.5 | M25.5 x 0.5 | 3Z4S-LE SV-PL255-SS | R-70/R-100 |
98-9000163-01 | 35 mm | 200 | 41.5 x 29.5 | M25.5 x 0.5 | 3Z4S-LE SV-PL255-SS | R-70/R-100 |
*For working distances shorter than the minimum working distance specified for the lens, an extension tube is required to focus the lens.
Model | Filter Size |
---|---|
3Z4S-LE SV-PL225-SS | M22.5 P0.5 |
3Z4S-LE SV-PL255-SS | M25.5 P0.5 |
3Z4S-LE SV-PL270-SS | M27.0 P0.5 |
3Z4S-LE SV-PL305-SS | M30.5 P0.5 |
3Z4S-LE SV-PL340-SS | M34.0 P0.5 |
3Z4S-LE SV-PL355-SS | M35.5 P0.5 |
3Z4S-LE SV-PL375-SS | M37.5 P0.5 |
3Z4S-LE SV-PL405-SS | M40.5 P0.5 |
3Z4S-LE SV-PL520-SS | M52.0 P0.75 |
3Z4S-LE SV-PL550-SS | M55.0 P0.75 |
3Z4S-LE SV-PL620-SS | M62.0 P0.75 |
Part Number | Description | Opt.
Mag. |
Working
Distance (mm) |
F# | Depth of Field
(mm) |
TV Distortion | F440-F FOV (mm) |
---|---|---|---|---|---|---|---|
3Z4S-LE VS-MC05-130 | 0.5x Macro Lens | 0.5x | 126.3 | 6.1 | 2.0 | 0.00% max. | 17 × 14.2 |
3Z4S-LE VS-MC1-80 | 1x Macro Lens | 1x | 82.4 | 8.14 | 0.7 | 0.00% max. | 8.5 × 7.1 |
Part Number | Description | Opt.
Mag. |
Working
Distance (mm) |
F# | NA | Depth of Field
(mm) |
TV Distortion | F440-F FOV
(mm) |
---|---|---|---|---|---|---|---|---|
3Z4S-LE VS-TCH1-65-O | 1x Telecentric Lens | 1x | 68.8 | 9.9 | 0.05 | 0.6 | 0.01% | 8.5 × 7.1 |
3Z4S-LE VS-TCH1-110-O | 1x Telecentric Lens | 1x | 110.3 | 10.5 | 0.048 | 0.6 | 0.02% | 8.5 × 7.1 |
3Z4S-LE VS-TCH2-65-O | 2x Telecentric Lens | 2x | 65 | 13.6 | 0.074 | 0.3 | 0.01% | 4.25 × 3.55 |
3Z4S-LE VS-TCH2-110-O | 2x Telecentric Lens | 2x | 110.3 | 13.6 | 0.074 | 0.3 | 0.02% | 4.25 × 3.55 |
3Z4S-LE VS-TCH1-65CO-O | 1x Telecentric Lens with Coaxial Light | 1x | 68.8 | 9.9 | 0.05 | 0.6 | 0.03% | 8.5 × 7.1 |
3Z4S-LE VS-TCH1-110CO-O | 1x Telecentric Lens with Coaxial Light | 1x | 110.8 | 10.5 | 0.048 | 0.6 | 0.03% | 8.5 × 7.1 |
3Z4S-LE VS-TCH2-65CO-O | 2x Telecentric Lens with Coaxial Light | 2x | 65 | 13.5 | 0.074 | 0.3 | 0.03% | 4.25 × 3.55 |
3Z4S-LE VS-TCH2-110CO-O | 2x Telecentric Lens with Coaxial Light | 2x | 110.8 | 13.5 | 0.074 | 0.3 | 0.03% | 4.25 × 3.55 |

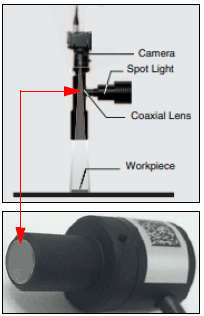

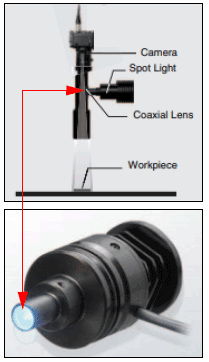

Part Number | Description* |
---|---|
FLV-EP0803R | Spot Light, Red (Fits TCH Telecentric Lens) |
FLV-EP0803W | Spot Light, White (Fits TCH Telecentric Lens) |
FLV-EP0803B | Spot Light, Blue (Fits TCH Telecentric Lens) |
FLV-ATC10405 | Analog Lighting Controller for FLV-EP Series |
FLV-XC1EP | Extension Cable (between Light and Controller) 1 Meter |
FLV-XC2EP | Extension Cable (between Light and Controller) 2 Meters |
FLV-XC3EP | Extension Cable (between Light and Controller) 3 Meters |
FLV-XC5EP | Extension Cable (between Light and Controller) 5 Meters |
*Note: See the Omron Vision Accessories Catalog for full descriptions.
Important: This option uses standard components available in Japan. Please note that this power supply cannot be sold in the U.S. or the EU. Refer to Telecentric Lens Coaxial Lighting – Option 2 for alternate components.
Part Number | Description |
---|---|
98-9000304-01 | Kit, Spotlight, Blue, Telecentric Lens with Flying Leads Extension Cable |
NER-011504100 | 24VDC 2.5A DIN Mount Power Supply* |
NER-030028300 | AC Power Cord for DSPxx Power Supply, U.S.* |
NER-030028400 | AC Power Cord for DSPxx Power Supply, EU* |
*Important: This option can be sold in the U.S., EU, and all other regions, as it can be powered directly from 24V, or can use the listed UL-compliant and CE-compliant S8VK-C06024 power supply.
Appearance | Category | Length / Spec | Part Number |
---|---|---|---|
Standard Ethernet Cables - Industrial High-Flex GigE Ethernet Cables with Jack Screws and RJ45 Connector* | 2 Meters | 98-000133-01 | |
5 Meters | 98-000134-01 | ||
7 Meters | 98-000134-02 | ||
Camera to QX-1 Interconnect Cables
M12 Socket to M12 Plug QX-1 is used as breakout module for common IO signals and power. |
1 Meter | V430-WQ-1M | |
M12 Socket to M12 Plug, with Power Filter | 300 mm | V430-WQF-1M | |
Camera to QX-1 Interconnect Cables
M12 Socket to M12 Plug QX-1 is used as breakout module for common IO signals and power. |
3 Meters | V430-WQ-3M | |
5 Meters | V430-WQ-5M | ||
QX-1 M12 to Smart Light Power and Strobe Control Cables M12 Plug on QX-1 to 5 Pin Socket on Light | 3 Meters - Continuous
Power |
61-000204-01 | |
3 Meters - Strobe
Control |
61-000218-01 | ||
Y Cable, Camera/Power and Smart Light Power (Continuous On) | 1 Meter | 61-9000135-01 | |
Y Cable, Camera/Power and Smart Light Strobe Control | 1 Meter | 61-9000137-01 | |
M12 to Flying Leads Cable, Straight Power, IO, RS-232, USB | 3 Meters | V430-W8-3M | |
M12 to Flying Leads Cable, with Power Filter | V430-W8F-3M | ||
M12 to Flying Leads Cable, Straight Power, IO, RS-232, USB | 5 Meters | V430-W8-5M | |
M12 to Flying Leads Cable, with Power Filter | V430-W8F-5M | ||
M12 to RS-232 Breakout | 1 Meter | V430-WR-1M | |
3 Meters | V430-WR-3M | ||
Camera to QX-1 Interconnect Cables with RS-232 Breakout | 2.7 Meters | V430-WQR-3M | |
Camera to QX-1 Interconnect Cables with USB Keyboard Wedge Breakout | 2.7 Meters | V430-WQK-3M |
Appearance | Category | Length / Spec | Part Number |
---|---|---|---|
Power Supply, 100-240VAC, +24VDC, M12
12-Pin Socket |
1 Meter
US/Euro Plug |
97-000012-01 | |
Single Port PoE Injector, 30W, IEEE802.3at Compliant,
2 x RJ45 Connector, 90 to 264VAC |
Power Cord NOT
Included (C13 Connector Required) |
98-9000311-01
(Coming Soon) |
The F440-F is designed for use with external lighting. It can be equipped with any vendor’s continuous power or strobe lighting. Strobe lights are triggered using Output 3 on the M12 IO connector through a flying leads cable.
Omron also offers a line of Smart Lights that can be used in continuous or strobed mode. NERLITE Smart Series Lights have a built-in strobe controller, so no external strobe controller is needed. Dedicated cable sets allow you to wire the NERLITE Smart Series Lights directly to the F440-F.
NERLITE Smart Series Lights include Ring Lights, DOALs, Large Area Bar Lights (MAX Lights), and a dedicated label-reading light called Pharmalite. Ring Lights, Ring Light accessories, and mounting brackets are show below.
Product | Appearance | Type | Part Number |
---|---|---|---|
F440-F Smart Series Ring
Light Kits |
R-70, 70 mm RED Ring Light | NER-011660900G* | |
R-70, 70 mm WHITE Ring Light | NER-011660910G | ||
R-70, 70 mm BLUE Ring Light | NER-011660920G | ||
R-100, 100 mm RED Ring Light | NER-011661100G* | ||
R-100, 100 mm WHITE Ring Light | NER-011661110G | ||
R-100, 100 mm BLUE Ring Light | NER-011661120G |
*Note: The R-70 and R-100 Red Ring Lights are normally stock lights with short lead times. Blue and White Ring Lights are subject to standard NERLITE lead times. Check on availability before placing order.
Appearance | Type | Part Number |
---|---|---|
R-70 Smart Series Ring Light Polarizer Kit | 98-9000301-01* | |
R-100 Smart Series Ring Light Polarizer Kit | 98-9000302-01* |
*Note: Smart Series Ring Light Polarizer Kits must be used in conjunction with a cross-polarizer on the lens. See lens polarizer section of the datasheet to determine the correct part number to match the filter thread size of the lens.
Appearance | Type | Part Number |
---|---|---|
R-70 Smart Series Ring Light Mounting Kit | V440-AM1* | |
R-100 Smart Series Ring Light Mounting Kit | V440-AM2* |

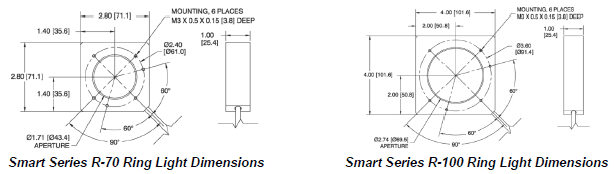

*Note: The C-Mount lens nests down inside the light aperture. The R-70 has a 43.4 mm opening. The R-100 has a 69.5 mm opening. Larger diameter lenses may not fit inside the R-70 ring light. Please see light size compatibility chart in the lens tables.
Size | Part Number | Description | Wavelength | Current @ 24 V | Strobe Current | Millicandela
Continuous |
Millicandela
Strobe |
---|---|---|---|---|---|---|---|
R-70 | NER-011660900G | 70 mm, RED | 623 nm | 172 mA | 1.2 A | 349281 | 3062913 |
NER-011660910G | 70 mm, WHITE | 6700 K | 160 mA | 850 mA | 352205 | 1739631 | |
NER-011660920G | 70 mm, BLUE | 470 nm | 160 mA | 850 mA | 143217 | 618814 | |
R-100 | NER-011661100G | 100 mm, RED | 623 nm | 255 mA | 1.7 A | 516015 | 4370388 |
NER-011661110G | 100 mm, WHITE | 6700 K | 235 mA | 1.1 A | 495814 | 2338577 | |
NER-011661120G | 100 mm, BLUE | 470 nm | 235 mA | 1.1 A | 201005 | 848215 |
Appearance | Category | Length / Spec | Part Number |
---|---|---|---|
QX-1 Interconnect Module - Power, Trigger, Smart Light
Control Breakout |
N/A | 98-000103-02 | |
QX-1 Photo Sensor, M12 4-Pin Plug, NPN | 2 Meters - Light ON/
Dark ON |
99-9000016-01 | |
QX-1 Field-Wireable M12 4-Pin Plug for Any Trigger Source or
Photo Sensor |
Screw Terminals | 98-9000239-01 |
