MicroHAWK V430-F / V420-F / V330-F / V320-F
Autofocus Multicode Reader/Multicode Reader
Autofocus to read codes at different distances.
Related Contents
MicroHAWK V430-Flast update: February 14, 2020
MicroHAWK V430-F
Mounting Options
| Appearance | Type | Part Number |
|---|---|---|
 |
L Bracket Adjustable Angle Mounting Kit | V430-AM0 |
 |
¼-20 Camera Mounting Block Kit | V430-AM1 |
 |
4” (102 mm) Ram Mount Stand | V430-AM2 |
 |
APG Pan and Tilt Camera Mount | V430-AM3 |
 |
Nylon Screw and Washer Electrical Isolation Mounting Kit | V430-AM4 |
 |
MS-4 / MINI to V/F4XX-F Adapter Plate | V430-AM5 |
 |
Smart Ring Light to V/F4XX-F Mounting Bracket | V430-AM6 |
 |
QX / Vision HAWK to V/F4XX-F Adapter Plate | V430-AM7 |
Optics Options
| Appearance | Type | Part Number |
|---|---|---|
 |
Front Window Installation Kit | V430-AF10 * |
 |
Diffuser Installation Kit | V430-AF11 * |
 |
Polarizer Installation Kit | V430-AF12 * |
 |
Right Angle Mirror Installation Kit | V430-AF3 |
 |
YAG Filter Installation Kit | V430-AF4 |
 |
ESD-Safe Window Installation Kit | V430-AF5 |
 |
Red Filter Installation Kit | V430-AF6 |
 |
Blue Filter Installation Kit | V430-AF7 |
* Note: V430-AF10, AF11, and AF12 are used for MicroHAWK V/F4X0-FXXXXXXX-XXX readers in this datasheet. The prior generation MicroHAWK V430-FXXXXXXX code reader uses part numbers V430-AF0, AF1, and AF2. Please select the correct accessory from the table based on your camera part number format.
| Accessory | Prior V430-FXXXXXXX Code Reader | New V/F4X0-FXXXXXXX-XXX
Code Reader and Smart Camera |
|---|---|---|
| Front Window Installation Kit | V430-AF0 | V430-AF10 |
| Diffuser Installation Kit | V430-AF1 | V430-AF11 |
| Polarizer Installation Kit | V430-AF2 | V430-AF12 |
Additional Optics Options
| Product | Appearance | Type | Part Number |
|---|---|---|---|
V430-F Window Kits
 |
 |
Front Window Installation Kit | V430-AF0R |
 |
Diffuser Installation Kit | V430-AF1R | |
 |
Polarizer Installation Kit | V430-AF2R |
Lighting Options
| Product | Appearance | Type | Part Number |
|---|---|---|---|
V430-F Ring Light Kits
 |
 |
Red Ring Light Installation Kit | V430-ALRR |
| White Ring Light Installation Kit | V430-ALWR | ||
| Blue Ring Light Installation Kit | V430-ALBR | ||
| IR Ring Light Installation Kit | V430-ALIR |
Additional Lighting Options
| Appearance | Type | Part Number |
|---|---|---|
 |
Red Light Installation Kit | V430-ALR |
| White Light Installation Kit | V430-ALW | |
| Blue Light Installation Kit | V430-ALB | |
| IR Light Installation Kit | V430-ALI |

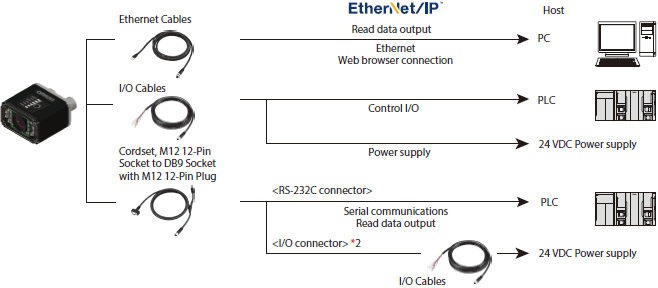

Wiring Options
| Drawing
Reference |
Appearance | Category | Length / Spec | Part Number |
|---|---|---|---|---|
| 2 |  |
Ethernet Communication Cables -
Straight Connectors M12 Plug on Camera to RJ45 Connector |
1 Meter | V430-WE-1M |
| 3 Meters | V430-WE-3M | |||
| 5 Meters | V430-WE-5M | |||
 |
Ethernet Communication Cables - Right
Angle M12 Connectors* M12 Plug on Camera to RJ45 Connector |
3 Meters - Right
Angle Up* |
V430-WELU-3M | |
| 3 Meters - Right
Angle Down* |
V430-WELD-3M | |||
| 3 |  |
Camera to QX-1 Interconnect Cables
M12 Socket to M12 Plug QX-1 is used as breakout module for common IO signals and power. |
1 Meter | V430-WQ-1M |
| M12 Socket to M12 Plug, with Power
Filter |
300 mm | V430-WQF-1M | ||
| Camera to QX-1 Interconnect Cables
M12 Socket to M12 Plug QX-1 is used as breakout module for common IO signals and power. |
3 Meters | V430-WQ-3M | ||
| 5 Meters | V430-WQ-5M | |||
| 4 |  |
QX-1 Interconnect Module - Power,
Trigger, Smart Light Control Breakout |
98-000103-02 | |
| 5 |  |
QX-1 Photo Sensor, M12 4-Pin Plug,
NPN |
2 Meters - Light
ON/Dark ON |
99-9000016-01 |
 |
QX-1 Field-Wireable M12 4-Pin Plug for
Any Trigger Source or Photo Sensor |
Screw Terminals | 98-9000239-01 | |
| 6 |  |
Power Supply, 100-240VAC, +24VDC,
M12 12-Pin Socket |
1 Meter
US/Euro Plug |
97-000012-01 |
| 7 |  |
QX-1 M12 to Smart Light Power and
Strobe Control Cables M12 Plug on QX-1 to 5 Pin Socket on light |
3 Meters -
Continuous Power |
61-000204-01 |
| 3 Meters -
Strobe Control |
61-000218-01 | |||
| 8 |  |
Omron Microscan Smart Light Series | Integrated Power
and Strobe Control Module |
See Omron
Microscan Smart Light Offering - Ring, DOAL, Large Area Lighting |

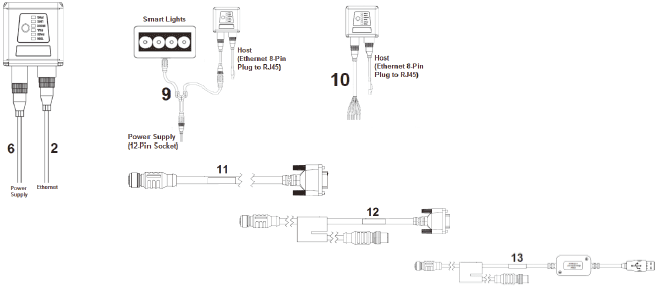

Alternate Wiring Options
| Drawing
Reference |
Appearance | Category | Length/
Spec |
Part Number |
|---|---|---|---|---|
| 9 |  |
Y Cable, Camera/Power and Smart Light
Power (Continuous On) |
1 Meter | 61-9000135-01 |
| Y Cable, Camera/Power and Smart Light
Strobe Control |
1 Meter | 61-9000137-01 | ||
| 10 |  |
M12 to Flying Leads Cable, Straight Power,
IO, RS-232, USB |
3 Meters | V430-W8-3M |
| M12 to Flying Leads Cable, with Power Filter | V430-W8F-3M | |||
| M12 to Flying Leads Cable, Straight Power,
IO, RS-232, USB |
5 Meters | V430-W8-5M | ||
| M12 to Flying Leads Cable, with Power Filter | V430-W8F-5M | |||
 |
M12 to Flying Leads Cable Right Angle
Power, IO, RS232, USB |
3 Meters -
Right Angle Up |
V430-W8LU-3M | |
| M12 to Flying Leads Cable Right Angle, with
Power Filter |
V430-W8LUF-3M | |||
| M12 to Flying Leads Cable Right Angle
Power, IO, RS232, USB |
3 Meters -
Right Angle Down |
V430-W8LD-3M | ||
| M12 to Flying Leads Cable Right Angle, with
Power Filter |
V430-W8LDF-3M | |||
| 11 |  |
M12 to RS-232 Breakout | 1 Meter | V430-WR-1M |
| 3 Meters | V430-WR-3M | |||
| 12 |  |
Camera to QX-1 Interconnect Cables with
RS-232 Breakout |
2.7 Meters | V430-WQR-3M |
| 13 |  |
Camera to QX-1 Interconnect Cables with
USB Keyboard Wedge Breakout |
2.7 Meters | V430-WQK-3M |

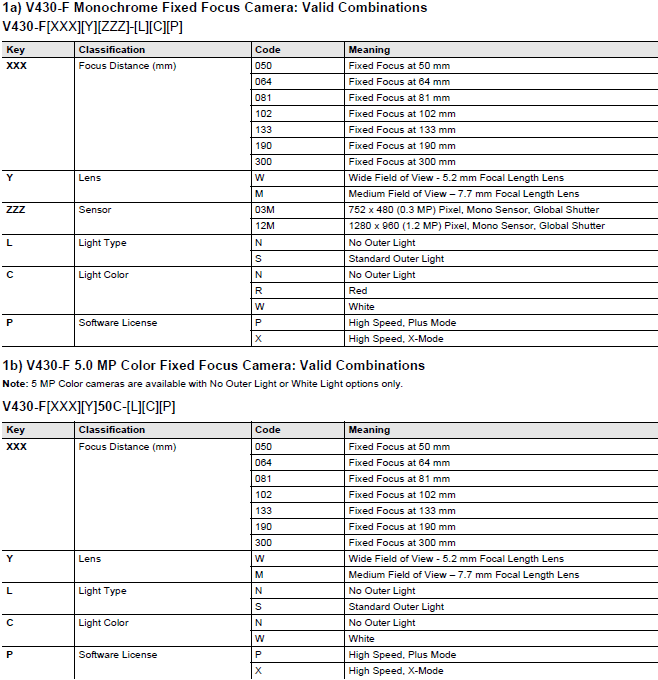

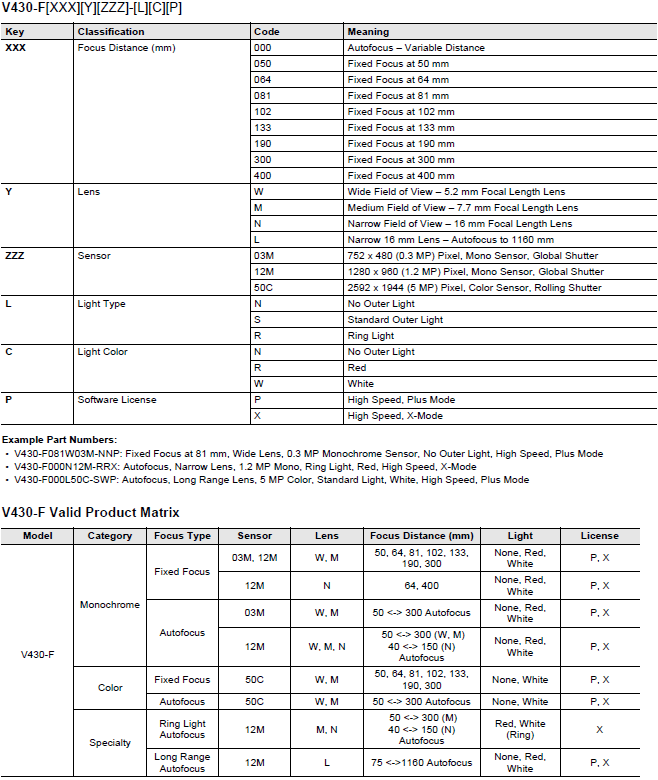

V430-F Part Number Structure
Use this legend when defining product part numbers. Please note that not all combinations of parameters are valid. For instance, color cameras are only available with white lighting, and 400 mm fixed focus is only available with UHD lenses. When ordering, use valid part numbers from the tables in the Ordering Information section only.

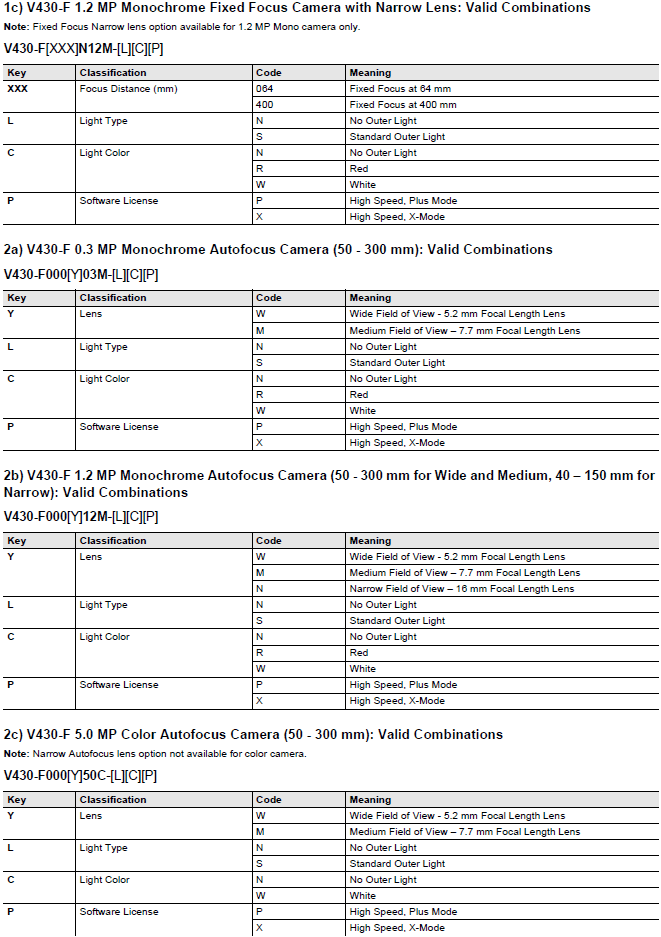

V430-F Ordering Information
Categories:
1. Fixed Focus Camera
a.) V430-F Monochrome Fixed Focus Camera
b.) V430-F Color Fixed Focus Camera
c.) V430-F 1.2 MP Monochrome Fixed Focus Camera with Narrow Lens
2. Autofocus Camera
a.) V430-F 0.3 MP Monochrome Autofocus Camera (50 - 300 mm)
b.) V430-F 1.2 MP Monochrome Autofocus Camera (50 - 300 mm for Wide and Medium Lens, 40 - 150 mm for Narrow
Lens)
c.) V430-F Color Autofocus Camera (50 - 300 mm)

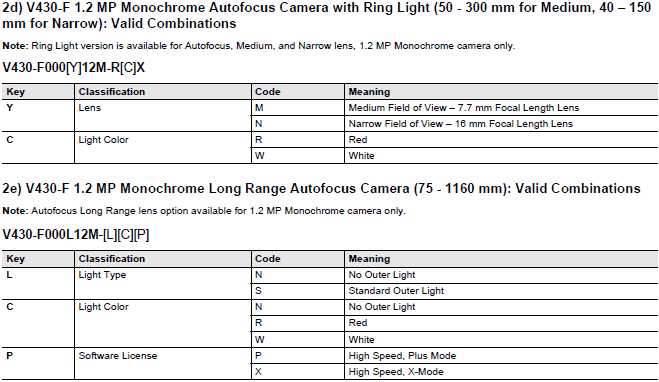

d.) V430-F 1.2 MP Monochrome Autofocus Camera with Ring Light (50 – 300 mm for Medium Lens, 40 - 150 mm for
Narrow Lens)
e.) V430-F 1.2 MP Monochrome Long Range Autofocus Camera (75 - 1160 mm)
1. Fixed Focus Camera
a.) V430-F Monochrome Fixed Focus Camera
b.) V430-F Color Fixed Focus Camera
c.) V430-F 1.2 MP Monochrome Fixed Focus Camera with Narrow Lens
2. Autofocus Camera
a.) V430-F 0.3 MP Monochrome Autofocus Camera (50 - 300 mm)
b.) V430-F 1.2 MP Monochrome Autofocus Camera (50 - 300 mm for Wide and Medium Lens, 40 - 150 mm for Narrow
Lens)
c.) V430-F Color Autofocus Camera (50 - 300 mm)
d.) V430-F 1.2 MP Monochrome Autofocus Camera with Ring Light (50 – 300 mm for Medium Lens, 40 - 150 mm for
Narrow Lens)
e.) V430-F 1.2 MP Monochrome Long Range Autofocus Camera (75 - 1160 mm)
MicroHAWK V420-F
Mounting Options
| Appearance | Type | Part Number |
|---|---|---|
|
L Bracket Adjustable Angle Mounting Kit | V430-AM0 |
|
¼-20 Camera Mounting Block Kit | V430-AM1 |
|
4” (102 mm) Ram Mount Stand | V430-AM2 |
|
APG Pan and Tilt Camera Mount | V430-AM3 |
|
Nylon Screw and Washer Electrical Isolation Mounting Kit | V430-AM4 |
|
MS-4 / MINI to V/F4XX-F Adapter Plate | V430-AM5 |
|
Smart Ring Light to V/F4XX-F Mounting Bracket | V430-AM6 |
|
QX / Vision HAWK to V/F4XX-F Adapter Plate | V430-AM7 |
Optics Options
| Appearance | Type | Part Number |
|---|---|---|
|
Front Window Installation Kit | V430-AF10 * |
|
Diffuser Installation Kit | V430-AF11 * |
|
Polarizer Installation Kit | V430-AF12 * |
|
Right Angle Mirror Installation Kit | V430-AF3 |
|
YAG Filter Installation Kit | V430-AF4 |
|
ESD-Safe Window Installation Kit | V430-AF5 |
|
Red Filter Installation Kit | V430-AF6 |
|
Blue Filter Installation Kit | V430-AF7 |
*Note: V430-AF10, AF11, and AF12 are used for MicroHAWK V/F4X0-FXXXXXXX-XXX readers in this datasheet. The prior generation MicroHAWK V430-FXXXXXXX code reader uses part numbers V430-AF0, AF1, and AF2. Please select the correct accessory from the table based on your reader part number format.
| Accessory | Prior V430-FXXXXXXX Code Reader | New V/F4X0-FXXXXXXX-XXX
Code Reader and Smart Camera |
|---|---|---|
| Front Window Installation Kit | V430-AF0 | V430-AF10 |
| Diffuser Installation Kit | V430-AF1 | V430-AF11 |
| Polarizer Installation Kit | V430-AF2 | V430-AF12 |
Lighting Options
| Appearance | Type | Part Number |
|---|---|---|
|
Red Light Installation Kit | V430-ALR |
| White Light Installation Kit | V430-ALW | |
| Blue Light Installation Kit | V430-ALB | |
| IR Light Installation Kit | V430-ALI |

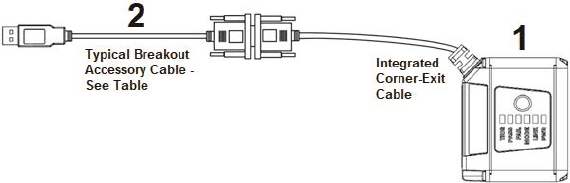

Wiring Options
| Drawing
Reference |
Appearance | Category | Length/
Spec |
Part Number |
|---|---|---|---|---|
| 2 |  |
USB Breakout Cable | 1 Meter | V420-WUB-1M |
 |
Cable - USB Breakout with External Power
Input |
1 Meter | V420-WUX-1M | |
| Power Supply | 2 Meters | 97-9000006-01 | ||
| Kit - Cable and Power Supply | V420-AC1 | |||
 |
Cable - RS-232 Breakout (DB-15) and
External Power Input |
1 Meter | V420-WRX-1M | |
| Power Supply | 2 Meters | 97-9000006-01 | ||
| Kit - Cable and Power Supply | V420-AC0 | |||
 |
Cable - USB, IO, and Power Breakout | 1 Meter | V420-WU8X-1M | |
| Power Supply | 2 Meters | 97-000011-02 | ||
| Kit - Cable and Power Supply | V420-AC2 | |||
 |
Cable - RS-232, USB, IO, and Power
Breakout |
1 Meter | V420-WRU8X-1M | |
| Power Supply | 2 Meters | 97-000011-02 |

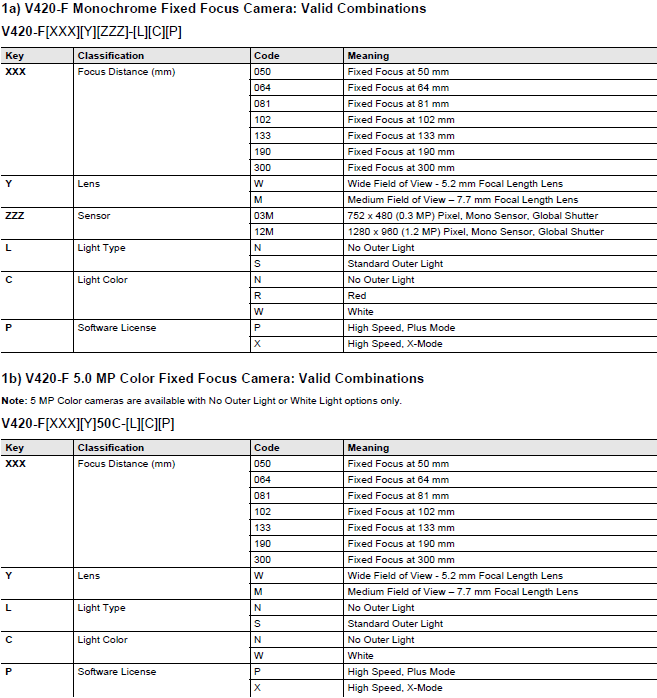

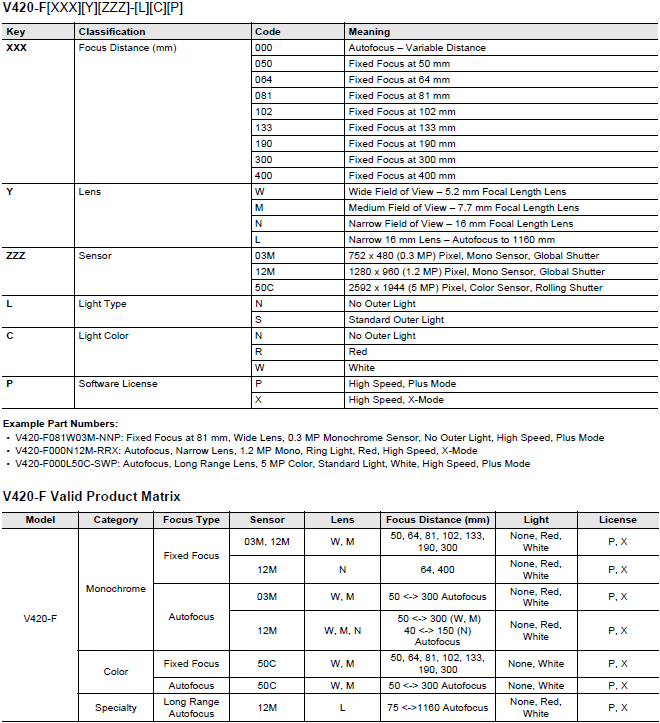

V420-F Part Number Structure
Use this legend when defining product part numbers. Please note that not all combinations of parameters are valid. For instance, color cameras are only available with white lighting, and 400 mm fixed focus is only available with UHD lenses. When ordering, use valid part numbers from the tables in the Ordering Information section only.
V420-F Ordering Information
Categories:
1. Fixed Focus Camera
a.) V420-F Monochrome Fixed Focus Camera
b.) V420-F Color Fixed Focus Camera
c.) V420-F 1.2 MP Monochrome Fixed Focus Camera with Narrow Lens
2. Autofocus Camera
a.) V420-F 0.3 MP Monochrome Autofocus Camera (50 -300 mm)
b.) V420-F 1.2 MP Monochrome Autofocus Camera (50 – 300 mm for Wide and Medium Lens, 40 – 150 mm for Narrow
Lens)
c.) V420-F Color Autofocus Camera (50 - 300 mm)

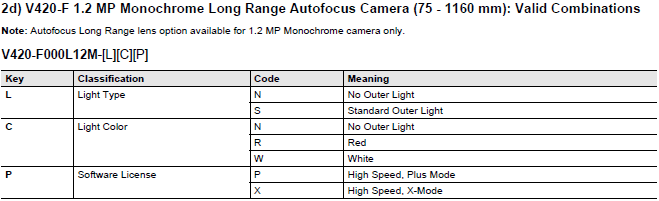

d.) V420-F 1.2 MP Monochrome Long Range Autofocus Camera (75 - 1160 mm)
1. Fixed Focus Camera
a.) V420-F Monochrome Fixed Focus Camera
b.) V420-F Color Fixed Focus Camera
c.) V420-F 1.2 MP Monochrome Fixed Focus Camera with Narrow Lens
2. Autofocus Camera
a.) V420-F 0.3 MP Monochrome Autofocus Camera (50 -300 mm)
b.) V420-F 1.2 MP Monochrome Autofocus Camera (50 – 300 mm for Wide and Medium Lens, 40 – 150 mm for Narrow
Lens)
c.) V420-F Color Autofocus Camera (50 - 300 mm)
d.) V420-F 1.2 MP Monochrome Long Range Autofocus Camera (75 - 1160 mm)
MicroHAWK V330-F
Optics Options
| Appearance | Type | Part Number |
|---|---|---|
 |
Diffuser Kit - Peel and Stick Accessory. Exterior to unit. | V330-AF1 |
 |
Polarizer Kit - Peel and Stick Accessory. Exterior to unit. | V330-AF2 |
Direct Wiring Options
| Appearance | Type | Length | Part Number |
|---|---|---|---|
 |
Power Over Ethernet (PoE) Single Port
Injector |
N/A | V330-AP1 |
 |
Standard Ethernet Cables, In-Cabinet Use;
Standard RJ45 Connectors on Both Ends; Green |
1 Meter | XS6W-5PUR8SS100CM-G |
| 3 Meters | XS6W-5PUR8SS300CM-G | ||
| 5 Meters | XS6W-5PUR8SS500CM-G | ||
| 10 Meters | XS6W-5PUR8SS1000CM-G | ||
| 15 Meters | XS6W-5PUR8SS1500CM-G | ||
 |
Standard Ethernet Cables, Out-of-Cabinet Use;
Rugged RJ45 Connectors on Both Ends; Light Blue |
1 Meter | XS5W-T421-CMD-K |
| 3 Meters | XS5W-T421-EMD-K | ||
| 5 Meters | XS5W-T421-GMD-K | ||
| 10 Meters | XS5W-T421-JMD-K | ||
| 15 Meters | XS5W-T421-KMD-K | ||
 |
High Flex Ethernet Cables for Robot and Cable
Tray Use; Rugged RJ45 Connectors on Both Ends; Light Blue |
1 Meter | XS5W-T421-CMD-KR |
| 3 Meters | XS5W-T421-EMD-KR | ||
| 5 Meters | XS5W-T421-GMD-KR | ||
| 10 Meters | XS5W-T421-JMD-KR | ||
| 15 Meters | XS5W-T421-KMD-KR |

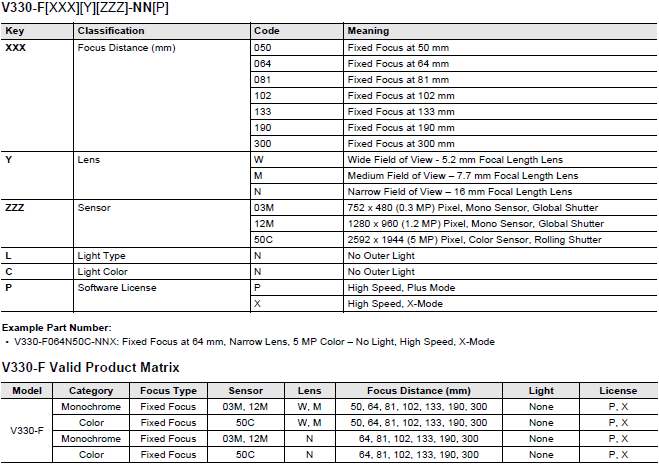

V330-F Part Number Structure
Use this legend when defining product part numbers. Please note that not all combinations of parameters are valid. For instance, fixed focus distance of 50 mm is not available with Narrow Lens. When ordering, use valid part numbers from the tables in the Ordering Information section only.

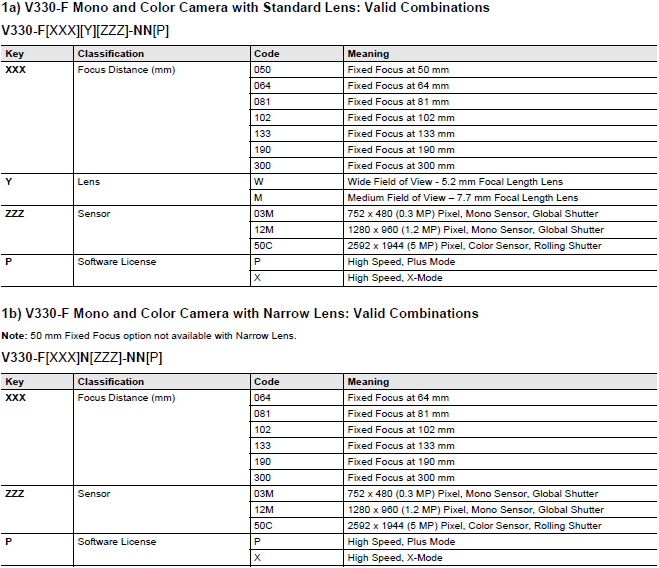

V330-F Ordering Information
Categories:
1. Fixed Focus Cameras
a) V330-F Monochrome and Color Fixed Focus Camera with Standard Lens
b) V330-F Monochrome and Color Fixed Focus Camera with Narrow Lens
1. Fixed Focus Cameras
a) V330-F Monochrome and Color Fixed Focus Camera with Standard Lens
b) V330-F Monochrome and Color Fixed Focus Camera with Narrow Lens
MicroHAWK V320-F
Optics Options
| Appearance | Type | Part Number |
|---|---|---|
|
Diffuser Kit - Peel and Stick Accessory. Exterior to unit. | V330-AF1 |
|
Polarizer Kit - Peel and Stick Accessory. Exterior to unit. | V330-AF2 |
Direct Wiring Options
| Appearance | Type | Length | Part Number |
|---|---|---|---|
 |
RJ50 to RS-232 and External Power
Straight |
2 Meters | V320-WRX-2M |
 |
RJ50 to RS-232 and External Power
Right Angle |
2 Meters | V320-WRXLR-2M |
 |
Power Supply for V320-WRX-2M and
V320-WRXLR-2M |
2 Meters | 97-9000006-01 |
 |
RJ50 to Flying Leads
Straight |
3 Meters | V320-W8-3M |
 |
RJ50 to Flying Leads
Right Angle to the Right * |
3 Meters | V320-W8LR-3M |
Wiring Options using V420-F Accessories
| Appearance | Category | Length | Part Number |
|---|---|---|---|
 |
Adapter V/F320-F to all V420-F Cable Accessories
RJ50 to DB-15 |
1 Meter | V320-WR-1M |
 |
Adapter V/F320-F to all V420-F Cable Accessories
Right Angle to the Right * RJ50 to DB-15 |
1 Meter | V320-WRLR-1M |
|
USB Breakout Cable | 1 Meter | V420-WUB-1M |
|
Cable - USB Breakout With External Power Input | 1 Meter | V420-WUX-1M |
| Power Supply | 2 Meters | 97-9000006-01 | |
| Kit - Cable and Power Supply | V420-AC1 | ||
|
Cable - RS-232 Breakout (DB-15) and External Power
Input |
1 Meter | V420-WRX-1M |
| Power Supply | 2 Meters | 97-9000006-01 | |
| Kit - Cable and Power Supply | V420-AC0 | ||
|
Cable - USB, IO, and Power Breakout | 1 Meter | V420-WU8X-1M |
| Power Supply | 2 Meters | 97-000011-02 | |
| Kit - Cable and Power Supply | V420-AC2 | ||
|
Cable - RS-232, USB, IO, and Power Breakout | 1 Meter | V420-WRU8X-1M |
| Power Supply | 2 Meters | 97-000011-02 |
* Right angle cables.
V320-F Part Number Structure
Use this legend when defining product part numbers. Please note that not all combinations of parameters are valid. For instance, fixed focus distance of 50 mm is not available with Narrow Lens. When ordering, use valid part numbers from the tables in the Ordering Information section only.
V320-F Ordering Information
Categories:
1. Fixed Focus Cameras
a) V320 Monochrome and Color Fixed Focus Camera with Standard Lens
b) V320 Monochrome and Color Fixed Focus Camera with Narrow Lens
1. Fixed Focus Cameras

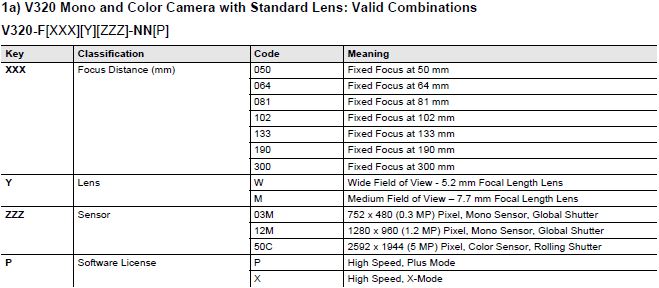

a) V320 Monochrome and Color Fixed Focus Camera with Standard Lens

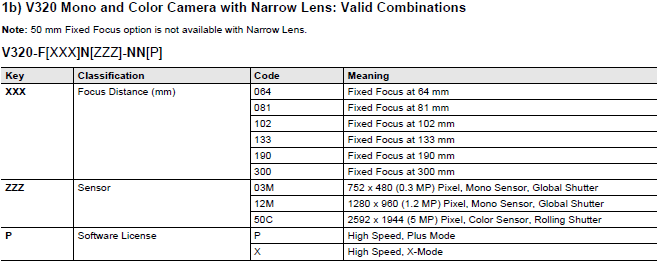

b) V320 Monochrome and Color Fixed Focus Camera with Narrow Lens
Details of the form which isn't in this page see a Data Sheet (Q258-E1), please.
last update: February 14, 2020
Product Category
- Sensors
- Code Readers / OCR
- Code Readers
- MicroHAWK V430-F / V420-F / V330-F / V320-F
- V440-F
- V400-R2
- V460-H
- V450-H
- V410-H
- FQ-CR Series
- MS-3 Series
- QX-830 Series
- QX-870 Series
- V500-R2
- VHV5-F
Top of page
Products
Menu
About Us
Menu
Solutions
Menu
Privacy
Menu
Services
Menu
Resources
Menu
© Copyright OMRON Corporation 2000-2020. All Rights Reserved.
