NY51[]-A

Industrial PC Platform NY-series IPC Programmable Multi-Axis Controller

NY51[]-A

High-speed, high-precision motion controller plus PC - in one box

Contact your OMRON representative for details.

(Unit: mm)

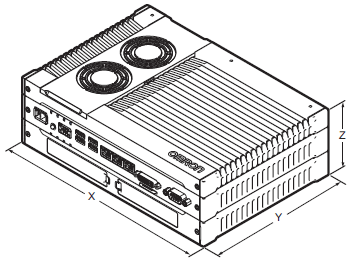

NY51[]-A Dimensions 1

Item Specifications
Dimensions Width X = 282 mm
Depth Y = 195 mm. Y = 200 mm including the DVI connectors.
Height Z = 88.75 mm
Weight 3.8 kg

Bracket Specifications

The metal mounting brackets mount your Industrial Box PC and they are the connection for the functional ground.
Use metal screws with a diameter of 4 mm or 5 mm to mount the brackets.

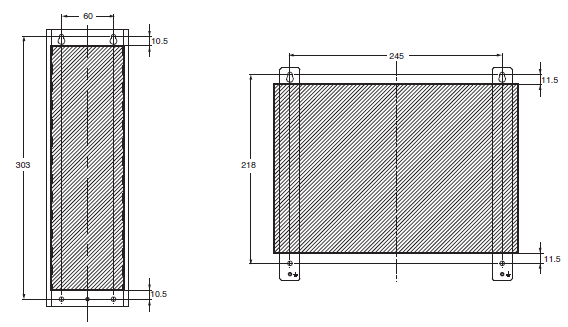

Mounting screw locations for book mount and wall mount orientation:

NY51[]-A Dimensions 2
