Industrial PC Platform NY-series Industrial Box PC

NYB

Powerful. Tough. Future-Proof.

(Unit: mm)

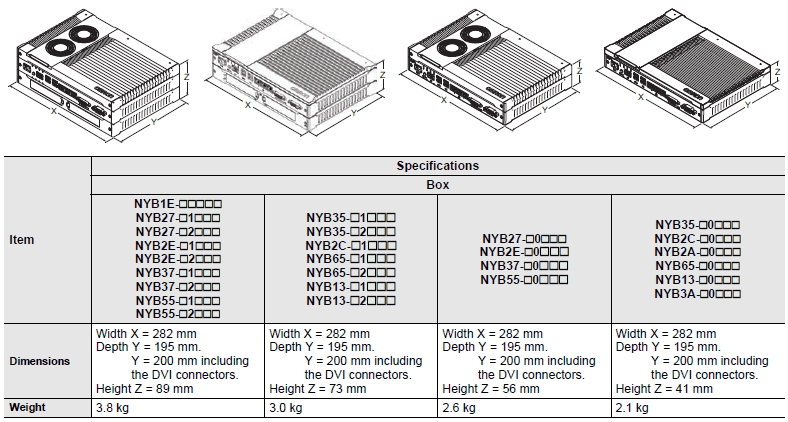

NYB Dimensions 1

Bracket Specifications

The metal mounting brackets mount your Industrial Box PC and they are the connection for the functional ground.
Use metal screws with a diameter of 4 mm or 5 mm to mount the brackets.

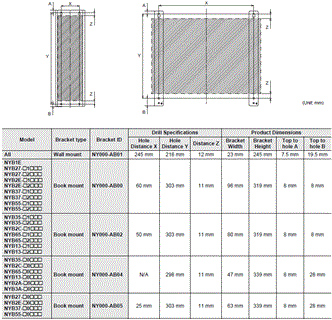

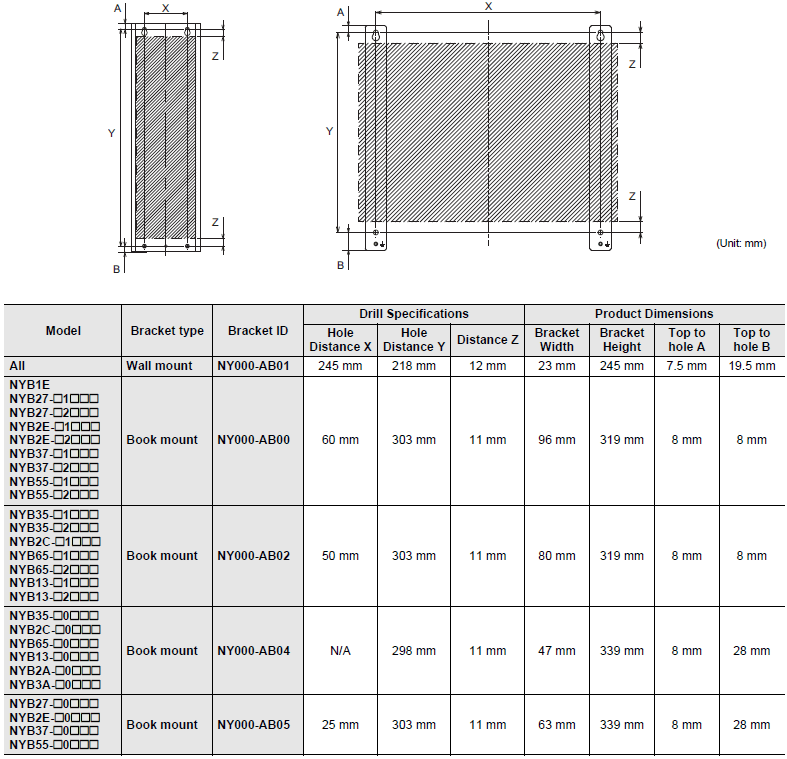

Mounting screw locations for book mount and wall mount orientation:

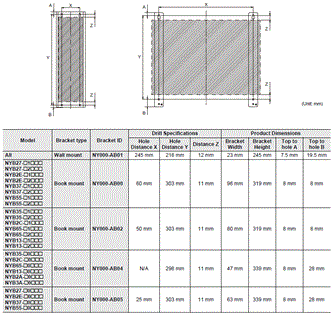

NYB Dimensions 2
