E5CC-T

Programmable Temperature Controller (Digital Controller) (48 × 48 mm)

E5CC-T

48 × 48 mm. Programmable Controllers Join the E5[]C Series! Program up to 256 segments can handle a wide variety of applications.

(Unit: mm)

Controllers

E5CC-T

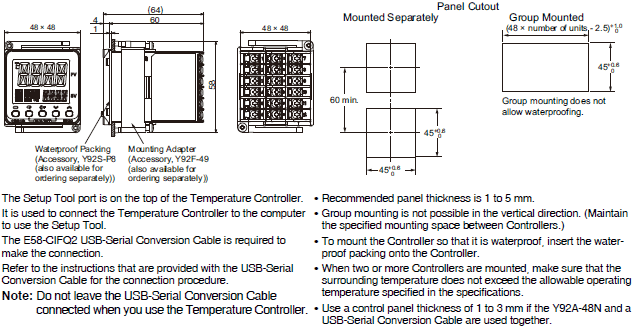

E5CC-T Dimensions 2

Accessories (Order Separately)

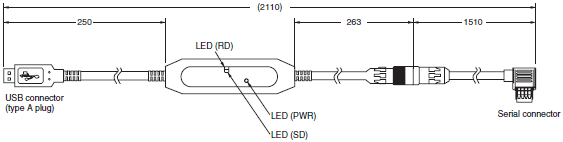

USB-Serial Conversion Cable

E58-CIFQ2

E5CC-T Dimensions 4

Terminal Covers

E53-COV17

E5CC-T Dimensions 5

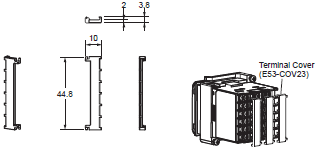

E53-COV23 (Three Covers provided.)

E5CC-T Dimensions 6

Waterproof Packing

Y92S-P8 (for DIN 48 × 48)

E5CC-T Dimensions 8

The Waterproof Packing is provided with the Temperature Controller.
Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site.
Consider three years as a rough standard.)

Current Transformers

E54-CT1

E5CC-T Dimensions 10

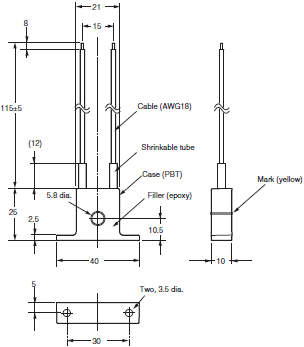

E54-CT1L

E5CC-T Dimensions 11

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)

E54-CT1 or E54-CT1L

E5CC-T Dimensions 13

Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω

E54-CT3

E5CC-T Dimensions 14

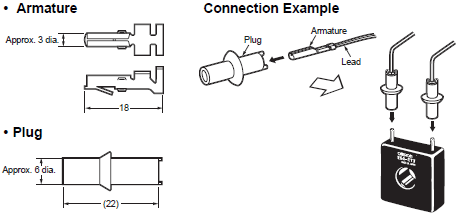

E54-CT3 Accessories

E5CC-T Dimensions 15

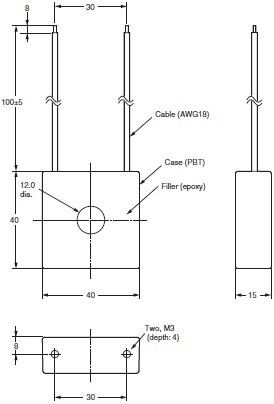

E54-CT3L

E5CC-T Dimensions 16

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)

E54-CT3 or E54-CT3L

E5CC-T Dimensions 18

Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for an OMRON Digital Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω

Adapter

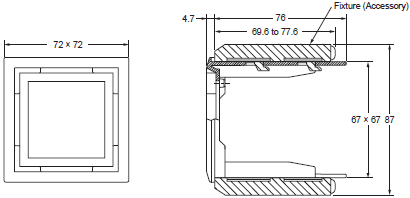

Y92F-45

Note: 1. Use this Adapter when the Front Panel has already been prepared for the E5B[].
          2. Only black is available.
          3. You cannot use the E58-CIFQ2 USB-Serial Conversion Cable if you use the Y92F-45 Adapter. To use the USB-
               Serial Conversion Cable to make the settings, do so before you mount the Temperature Controller in the panel.
          4. You cannot use this Adapter together with the Y92F-49 Adapter that is provided with the E5CC-T Temperature
               Serial Controller.

E5CC-T Dimensions 20

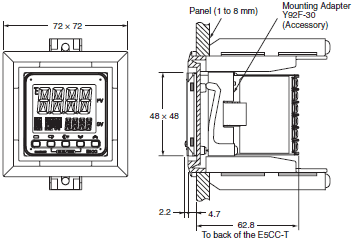

Mounted to E5CC

E5CC-T Dimensions 21

DIN Track Mounting Adapter

Y92F-52

E5CC-T Dimensions 23

Note: This Adapter cannot be used together with the Terminal Cover.
           Remove the Terminal Cover to use the Adapter.

This Adapter is used to mount the E5CC-T to a DIN Track.
If you use the Adapter, there is no need for a plate to mount in the panel or to drill mounting holes in the panel.

Mounted to E5CC-T

E5CC-T Dimensions 24

Watertight Cover

Y92A-48N

E5CC-T Dimensions 25

Mounting Adapter

Y92F-49

E5CC-T Dimensions 27

The Mounting Adapter is provided with the Temperature Controller.
Order the Mounting Adapter separately if it becomes lost or damaged.

Protective Cover

Y92A-48D

E5CC-T Dimensions 29

Note: This Protective Cover cannot be used if the Waterproof Packing is installed.

This Protective Cover is soft type.
It is able to operate the controller with using this cover.

Protective Cover

Y92A-48H

E5CC-T Dimensions 31

This Protective Cover is hard type.
Please use it for the mis-operation prevention etc.
