Industrial Ethernet Cables
Cables and Connectors for EtherCAT® and Other Industrial Ethernet Networks
Related Contents
last update: September 3, 2018
Cables with Standard RJ45 Connectors

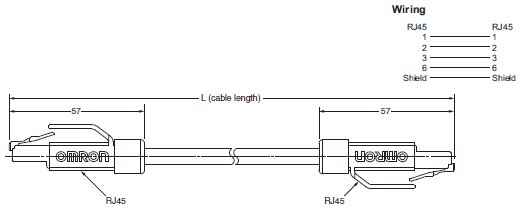

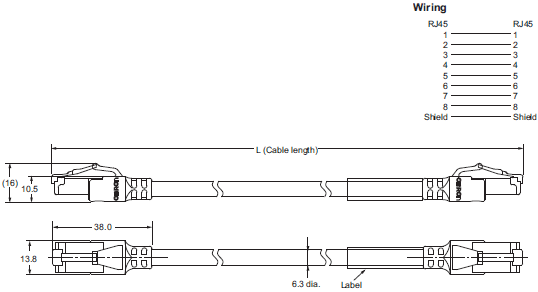

Cable with Connectors on Both Ends (RJ45/RJ45)
XS6W-6LSZH8SS[][][][]CM-[]
XS6W-5PUR8SS[][][][]CM-G
Cables with Rugged RJ45 Connectors and Cables with M12 Connectors

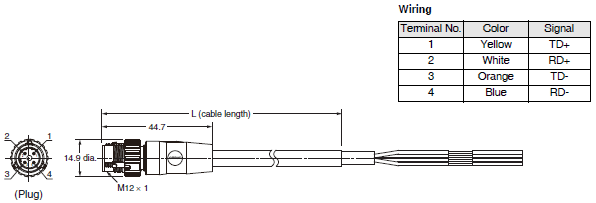

Cable with Plug on One End (M12 Straight)
XS5H-T421-[]M0-K

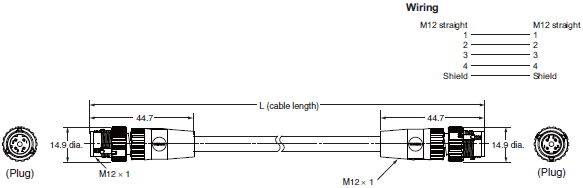

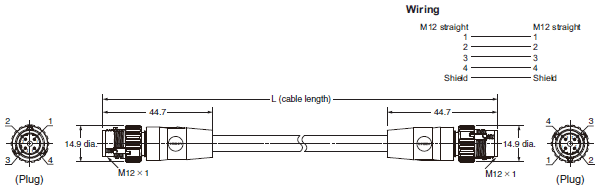

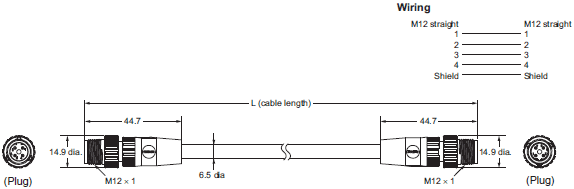

Cable with Plugs on Both End (M12 Straight/M12 Straight)
XS5W-T421-[]M2-K
XS5W-T421-[]M2-KR
XS5W-T421-[]M2-Y
XS5W-T421-[]M2-YR

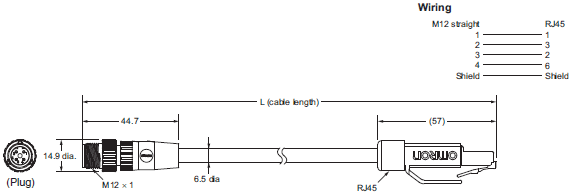

Cable with Plugs on Both Ends (M12 Straight/RJ45)
XS5W-T421-[]MC-K
XS5W-T421-[]MC-KR
XS5W-T421-[]MC-Y
XS5W-T421-[]MC-YR

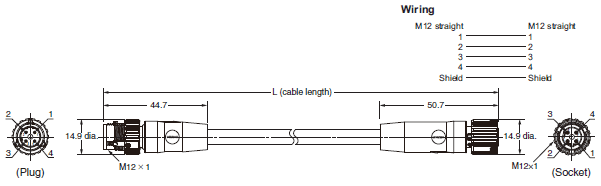

Cable with Plug on One End and Socket on Other End (M12 Straight/M12 Straight)
XS5W-T421-[]M1-K
XS5W-T421-[]M1-KR

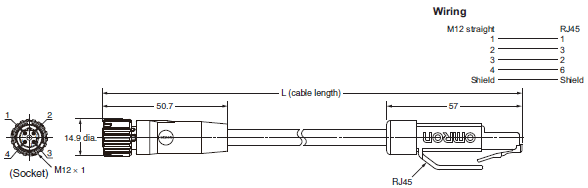

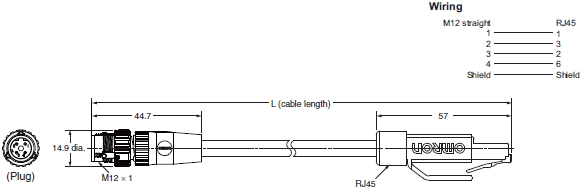

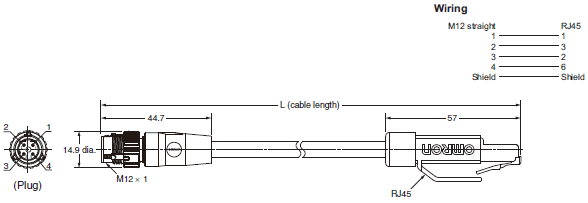

Cable with Plug on One End and Socket on Other End (M12 Straight/RJ45)
XS5W-T421-[]ME-K

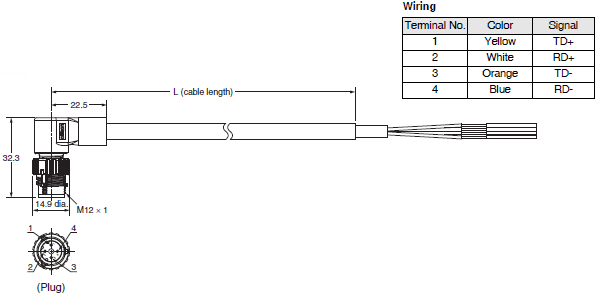

Cable with Plug One End (M12 Right-angle)
XS5H-T422-[]M0-K

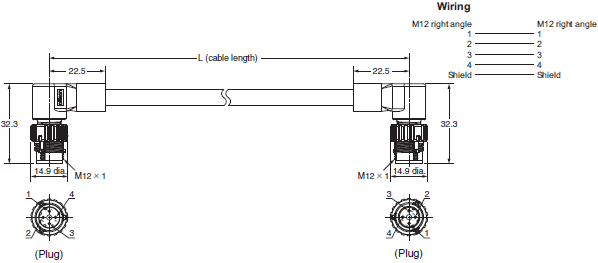

Cable with Plugs on Both Ends (M12 Right-angle/M12 Right-angle)
Wiring XS5W-T422-[]M2-K

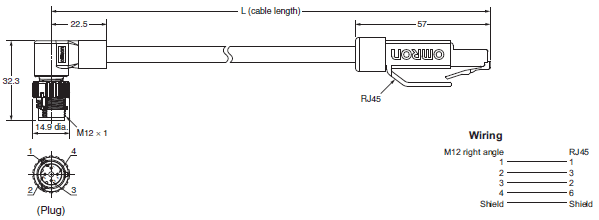

Cable with Plugs on Both Ends (M12 Right-angle/RJ45)
XS5W-T422-[]MC-K
Cable with Plugs on Both Ends (RJ45/RJ45)
XS5W-T421-[]MD-K
XS5W-T421-[]MD-KR
XS5W-T421-[]MD-YR
Cable with Plugs on Both Ends (M12 Straight/M12 Straight)
Shield Strengthening Cable
XS5W-T421-[]M2-SS
Cable with Plugs on Both Ends (M12 Straight/RJ45)
Shield Strengthening Cable
XS5W-T421-[]MC-SS

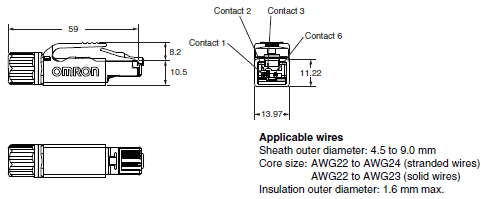

RJ45 Assembly Connector
XS6G-T421-1
Applicable wires
Sheath outer diameter: 6.1 to 6.9 mm
Core size:
AWG22 to AWG24 (stranded wires)
AWG22 to AWG23 (solid wires)
Insulation outer diameter: 1.6 mm max.
Sheath outer diameter: 6.1 to 6.9 mm
Core size:
AWG22 to AWG24 (stranded wires)
AWG22 to AWG23 (solid wires)
Insulation outer diameter: 1.6 mm max.

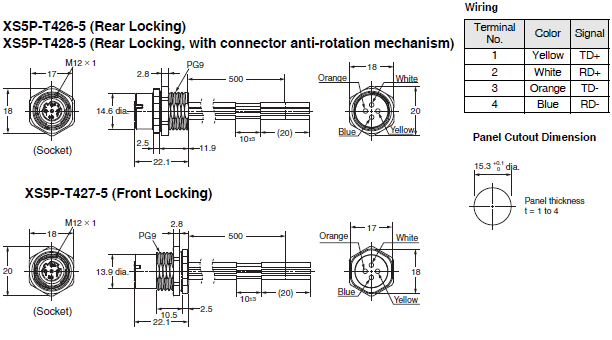

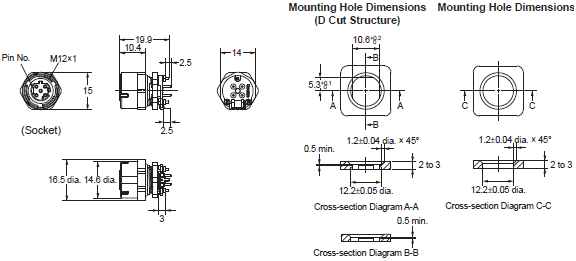

M12 Connector for Panel Mounting
XS5P-T42[]-5
Note 1: The panel cutout dimension is the same for Front-locking and Rearlocking Connectors.
Note 2: Rotational positioning is not possible for connector rotation.
M12 Panel-mounting PCB Straight Terminals
XS5P-T426-1
