H3CA

Discontinued On Jan. 2026

H3CA

Solid-state Timer

H3CA

DIN-sized (48 × 48, 45 × 75 mm) Timer with Digital Setting and LCD Display

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: November 12, 2012

(Unit: mm)

Timers

H3CA-A/-8H

H3CA Dimensions 2

H3CA-FA

H3CA Dimensions 3

H3CA Dimensions 4

H3CA Dimensions 5

Accessories (Order Separately)

Track Mounted Front Connecting Socket

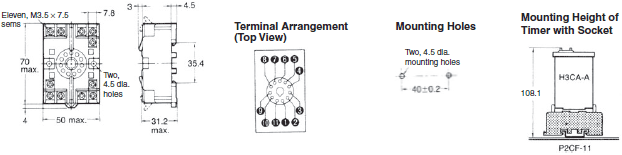

P2CF-11

H3CA Dimensions 8

Note 1: P2CF-11 can be used as a front connecting socket.
Note 2: There are no restrictions to the mounting direction.

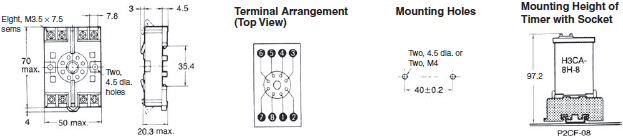

P2CF-08

H3CA Dimensions 9

Note 1: P2CF-08 can be used as a front connecting socket.
Note 2: There are no restrictions to the mounting direction.

Back Connecting Socket

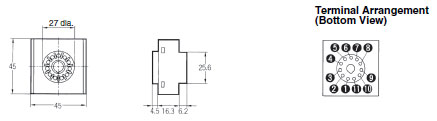

P3GA-11

H3CA Dimensions 11

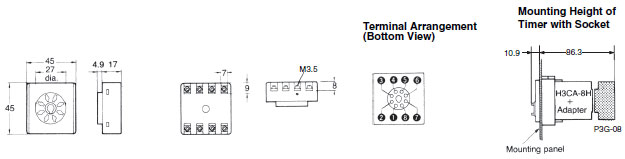

P3G-08

H3CA Dimensions 12

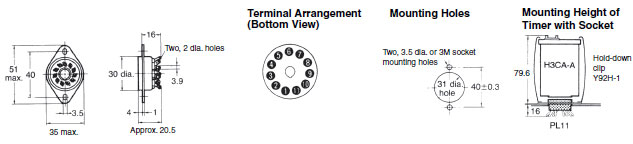

PL11

H3CA Dimensions 13

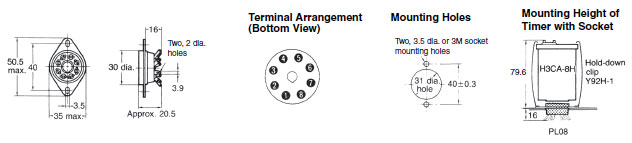

PL08

H3CA Dimensions 14

Note: There are no restrictions to the mounting direction.

Adapter for Flush Mounting

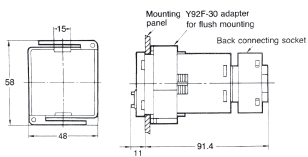

Y92F-30

H3CA Dimensions 16

Note: Pay attention to the orientation of the adapter when mounting two or more timers in a vertical or horizontal line.
