D4F

Note: Variation occurs in the simultaneity of contact opening/closing operations of 2NC, 2NC/2NO, and 4NC contacts.
          Check contact operation.

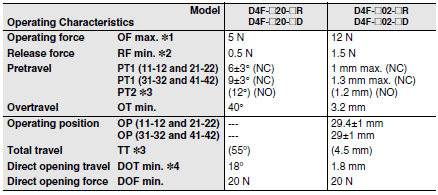

*1. The OF value is the maximum load that opens an NC contact (11-12, 21-22, 31-32, 41-42).
*2. The RF value is the minimum load that closes an NC contact (11-12, 21-22, 31-32, 41-42).
*3. The PT2 and TT values are reference values.
*4. The D4F is used in accordance with EN81 and EN115 at a minimum DOT of 30° and 2.8 mm.
