M2P

Indicators

M2P

Large Rectangular-bodied Indicators

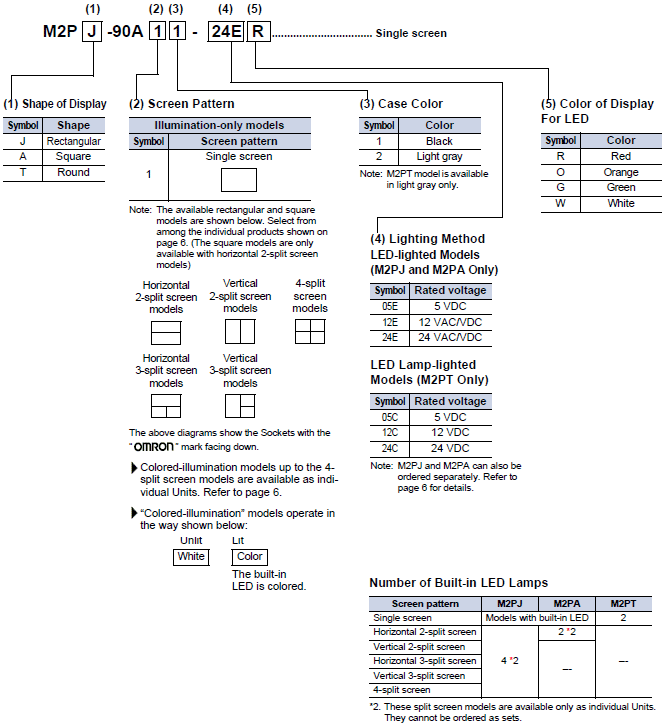

Model Number Structure

Model Number Legend

The model numbers used to order sets of Units are illustrated below. One set comprises the Display, Lamp, and Socket.
For information on combinations, refer to Ordering Information.

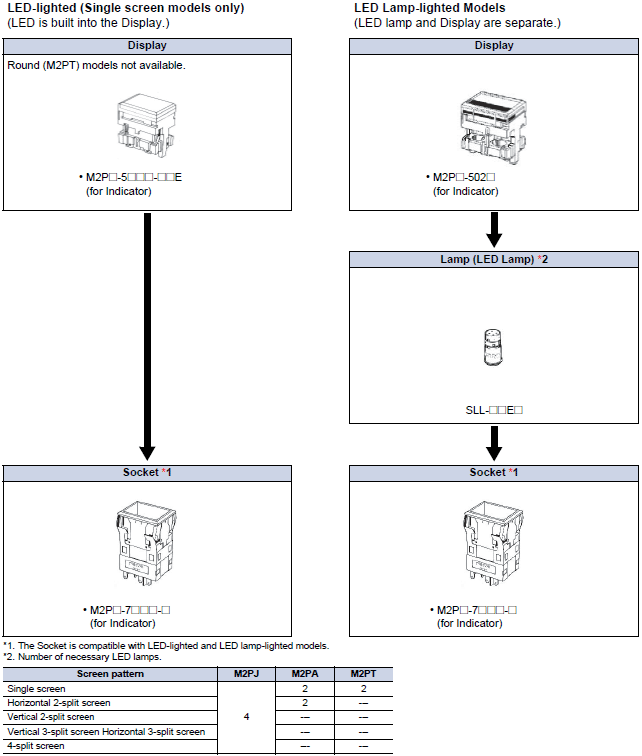

M2P Lineup 2

Ordering Information

Ordering as a Set

The model numbers used to order sets of Units are given in the following tables. One set comprises the Display, Lamp, and Socket.

M2PJ (Rectangular) Single Screen Models

M2P Lineup 5

Case color Black Light gray Display color symbol
LED 5 VDC M2PJ-90A11-05E(1) M2PJ-90A12-05E(1) R
O
G
W
12 VAC/VDC M2PJ-90A11-12E(1) M2PJ-90A12-12E(1)
24 VAC/VDC M2PJ-90A11-24E(1) M2PJ-90A12-24E(1)
Chameleon 12 VDC M2PJ-90AG1-12EK M2PJ-90AG2-12EK *
24 VDC M2PJ-90AG1-24EK M2PJ-90AG2-24EK

Note: Enter the desired color symbol for the Display in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.

M2P Lineup 6

* You can change the screen colors of chameleon models between red, green, and orange by changing the terminal wiring. Refer to Data Sheet for details.

M2P Lineup 8

Case color Black Light gray Display color symbol
LED 24 VDC M2PJ-90A21-24E(1)(2) M2PJ-90A22-24E(1)(2) R O G W

Note: Enter the desired color symbols for the Display in (1) and (2). (R) = Red, (O) = Orange, (G) = Green, (W) = White.

M2P Lineup 9

M2PA (Square) Single Screen Models

M2P Lineup 10

Case color Black Light gray Display color symbol
LED 5 VDC M2PA-90A11-05E(1) M2PA-90A12-05E(1) R O G W
12 VAC/VDC M2PA-90A11-12E(1) M2PA-90A12-12E(1)
24 VAC/VDC M2PA-90A11-24E(1) M2PA-90A12-24E(1)
Chameleon 12 VDC M2PA-90AG1-12EK --- *
24 VDC M2PA-90AG1-24EK M2PA-90AG2-24EK

Note: Enter the desired color symbol for the Display in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.

M2P Lineup 11

* You can change the screen colors of chameleon models between red, green, and orange, by changing the terminal wiring. Refer to Data Sheet for details.

M2P Lineup 13

Case color Black Light gray Display color symbol
LED 24 VDC M2PA-90A21-24E(1)(2) M2PA-90A22-24E(1)(2) R O G W

Note: Enter the desired color symbols for the Display in (1) and (2). (R) = Red, (O) = Orange, (G) = Green, (W) = White.

M2P Lineup 14

M2PT (Round) Single Screen Models

M2P Lineup 15

Case color Light gray Display color symbol
LED lamp 5 VDC M2PT-90A12-05C(1) R O G W
12 VDC M2PT-90A12-12C(1)
24 VDC M2PT-90A12-24C(1)

Note: Enter the desired color symbol for the Display in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.

M2P Lineup 16

Ordering Individually

Displays, Lamps, and Sockets can be ordered separately. Combinations that are not available as sets can be created using individual Units. Also, store the parts as spares for maintenance and repairs.

M2P Lineup 17

Display

LED-lighted Models (LED is built-in.)

Appearance Split-screen
color
(color symbol)
White (W) Red (R) Green (G) Orange (O) Selection precautions
Rectangular
models
1122_lu_7_1
Single
screen
1122_lu_7_3
M2PJ-5701-[][]E M2PJ-5702-[][]E M2PJ-5703-[][]E M2PJ-5706-[][]E Enter the voltage to be
used in the [][] at the end
of the model number.
Examples of voltage used:
1122_lu_7_13
Horizontal 2-split screen
models support only 24V.
For the color of the
shaded part, select the
model according to the
colors given at the top of
the table.
Horizontal
2- 2 split
screen
1122_lu_7_4
M2PJ-5711-[][]E M2PJ-5712-[][]E M2PJ-5713-[][]E M2PJ-5716-[][]E
1122_lu_7_5
M2PJ-5721-[][]E M2PJ-5722-[][]E M2PJ-5723-[][]E M2PJ-5726-[][]E
1122_lu_7_6
M2PJ-5731-[][]E M2PJ-5732-[][]E M2PJ-5733-[][]E M2PJ-5736-[][]E
1122_lu_7_7
M2PJ-5741-[][]E M2PJ-5742-[][]E M2PJ-5743-[][]E M2PJ-5746-[][]E
Square
models
1122_lu_7_2
Single
screen
1122_lu_7_8
M2PA-5701-[][]E M2PA-5702-[][]E M2PA-5703-[][]E M2PA-5706-[][]E
Horizontal
2-split
screen
1122_lu_7_9
M2PA-5711-[][]E M2PA-5712-[][]E M2PA-5713-[][]E M2PA-5716-[][]E
1122_lu_7_10
M2PA-5721-[][]E M2PA-5722-[][]E M2PA-5723-[][]E M2PA-5726-[][]E
1122_lu_7_11
M2PA-5731-[][]E M2PA-5732-[][]E M2PA-5733-[][]E M2PA-5736-[][]E
1122_lu_7_12
M2PA-5741-[][]E M2PA-5742-[][]E M2PA-5743-[][]E M2PA-5746-[][]E

Note: 1. A cap, legend plate (transparent), colored plate, white plunger case, and LED (with a current-limiting resistor) are
              built into the standard lighting unit.
          2. Split-screen coloring configurations are given with the "OMRON" mark on the Sockets facing down.

LED Lamp-lighted Models (LED is not built-in.)

Model Rectangular models
1122_lu_8_10
Square models
1122_lu_8_11
Round models
1122_lu_8_12
Selection precautions
Screen
pattern
Screen Model Screen Model Screen Model
Single screen 1122_lu_8_1 M2PJ-5021 1122_lu_8_7 M2PA-5021 1122_lu_8_9 M2PT-5021 Colored plates (white, red, green, and orange),
a legend plate (transparent), and a light baffle
(split-screen models only) are included. Use
the appropriate combination for the LED
coloring required.
The number of white colored plates required
to enable colored illumination for the
corresponding screen-split configuration is
included. (For example, 4-split screen models
include 4 white colored plates).
The number of colored plates included for
each model are shown in the following table.
1122_lu_8_13
Horizontal 2-
split screen
1122_lu_8_2 M2PJ-5022 1122_lu_8_8 M2PA-5022 ---
Vertical 2-
split screen
1122_lu_8_3 M2PJ-5023 --- ---
Horizontal 3-
split screen
1122_lu_8_4 M2PJ-5024 --- ---
Vertical 3-
split screen
1122_lu_8_5 M2PJ-5025 --- ---
4-split screen 1122_lu_8_6 M2PJ-5026 --- ---

* The following types of colored plates are included with Horizontal and Vertical 3-splitScreen Switches.
  White: One colored plate for a 2-split screen and two colored plates for a 4-split screen.
  Red, green, or orange: One colored plate for a 2-split screen and one colored plates for a 4-split screen.

Chameleon Models (with Built-in LED)

Shape Rated voltage Chameleon indicator
Rectangular
1122_lu_10_1
12 VDC M2PJ-5800-12E
24 VDC M2PJ-5800-24E
Square
1122_lu_10_2
12 VDC M2PA-5800-12E
24 VDC M2PA-5800-24E

Note: 1. With the chameleon models, the whole screen lights red, green, or orange (i.e., red and green simultaneously).
           2. A cap, legend plate (transparent), white colored plate, and LED (with a current-limiting resistor) are built into the
                Display.

Lamp

LED Lamp

Voltage 5 VDC 12 VDC 24 VDC Applicable cap (color)
(colored plate)
Selection precautions
Color Model (DC only) Model (DC only) Model (DC only)
Red SLL-05ER SLL-12ER SLL-24ER Red In the standard setup, 4 LED lamps are
used with M2PJ models and 2 LED lamps
are used with M2PA and M2PT models.
Yellow SLL-05EY SLL-12EY SLL-24EY Orange
Green SLL-05EG SLL-12EG SLL-24EG Green
White SLL-05EW SLL-12EW SLL-24EW White

Socket

(LED-lighted models)

Rectangular
1122_lu_13_1
Square
1122_lu_13_2
Round
1122_lu_13_3
Selection precautions
Model Model Model
M2PJ-7010-1 M2PA-7010-1 M2PT-7010-2 The end digit denotes the color of the flange: -1 denotes a black flange, and -2 denotes
a light gray flange. Round switches are available only in light gray, and not in black.
