Industrial Automation
A3P
Lighted Pushbutton Switches
Large Rectangular-bodied Lighted Pushbutton Switches
Related Contents
Application Solutions
last update: April 1, 2025

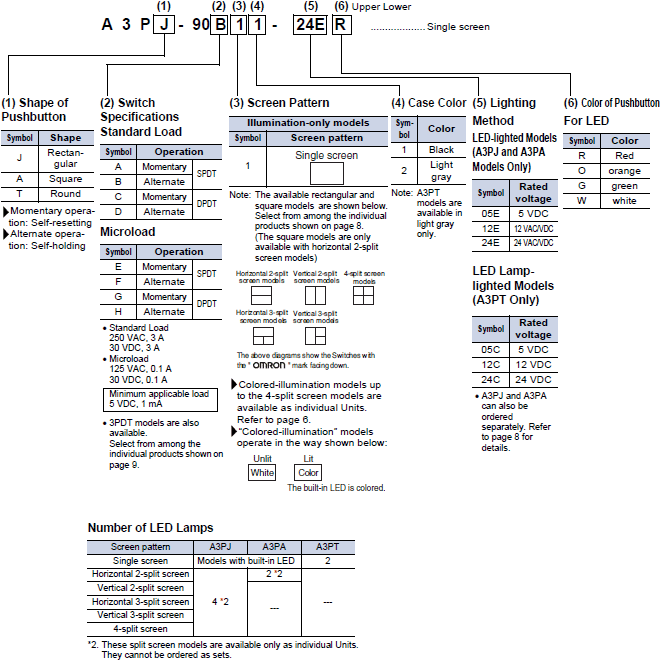

Model Number Structure
Model Number Legend
The model numbers used to order sets of Units are illustrated below. One set comprises the Pushbutton, Lamp, and Switch.
For more information, refer to Ordering Information (Data Sheet).
Some forms may not be available for order depending on the combination of functions and specifications described below. Contact your OMRON sales representative for more detailed information.
Ordering Information
Ordering as a Set
The model numbers used to order sets of Units are given in the following tables. One set comprises the Pushbutton, Lamp, and Switch.
(Not all combinations are possible. Ask your OMRON representative for details.)
Standard Loads
| Contact type | Standard load (250 VAC, 3 A; 30 VDC, 4 A) | Push-
button color symbol |
|||||
|---|---|---|---|---|---|---|---|
| Operation | Momentary operation
(Self-resetting) |
Alternate operation
(Self-holding) |
|||||
| Output | Lighting | Case
color |
Black | Light gray | Black | Light gray | |
| SPDT | LED | 5 VDC | A3PJ-90A11-05E(1) | A3PJ-90A12-05E(1) | A3PJ-90B11-05E(1) | --- | R
O G W |
| 12 VAC/
VDC |
A3PJ-90A11-12E(1) | A3PJ-90A12-12E(1) | A3PJ-90B11-12E(1) | A3PJ-90B12-12ER | |||
| 24 VAC/
VDC |
A3PJ-90A11-24E(1) | A3PJ-90A12-24E(1) | A3PJ-90B11-24E(1) | A3PJ-90B12-24E(1) | |||
| DPDT | LED | 5 VDC | A3PJ-90C11-05E(1) | A3PJ-90C12-05ER | A3PJ-90D11-05E(1) | A3PJ-90D12-05E(1) | R
O G W |
| 12 VAC/
VDC |
A3PJ-90C11-12E(1) | A3PJ-90C12-12E(1) | A3PJ-90D11-12E(1) | A3PJ-90D12-12E(1) | |||
| 24 VAC/
VDC |
A3PJ-90C11-24E(1) | A3PJ-90C12-24E(1) | A3PJ-90D11-24E(1) | A3PJ-90D12-24E(1) | |||
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.
Microloads
| Contact type | Microload (125 VAC, 0.1 A; 30 VDC, 0.1 A) | Pushbutton
color symbol |
|||
|---|---|---|---|---|---|
| Operation | Momentary operation (Self-resetting) | ||||
| Output | Lighting | Case color | Black | Light gray | |
| SPDT | LED | 5 VDC | --- | A3PJ-90E12-05E(1) | R
O G W |
| 12 VAC/VDC | A3PJ-90E11-12E(1) | --- | |||
| 24 VAC/VDC | A3PJ-90E11-24E(1) | A3PJ-90E12-24E(1) | |||
| DPDT | LED | 24 VAC/VDC | A3PJ-90G11-24E(1) | A3PJ-90G12-24E(1) | R
O G W |
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.
Standard Loads
| Contact type | Standard load (250 VAC, 3 A; 30 VDC, 4 A) | Push-
button color symbol |
|||||
|---|---|---|---|---|---|---|---|
| Operation | Momentary operation
(Self-resetting) |
Alternate operation
(Self-holding) |
|||||
| Output | Lighting | Case
color |
Black | Light gray | Black | Light gray | |
| SPDT | LED | 5 VDC | A3PA-90A11-05E(1) | A3PA-90A12-05EW | --- | --- | R
O G W |
| 12 VAC/
VDC |
A3PA-90A11-12E(1) | A3PA-90A12-12E(1) | A3PA-90B11-12E(1) | --- | |||
| 24 VAC/
VDC |
A3PA-90A11-24E(1) | A3PA-90A12-24E(1) | A3PA-90B11-24E(1) | A3PA-90B12-24E(1) | |||
| DPDT | LED | 5 VDC | A3PA-90C11-05E(1) | --- | --- | --- | R
O G W |
| 12 VAC/
VDC |
A3PA-90C11-12E(1) | A3PA-90C12-12E(1) | A3PA-90D11-12E(1) | A3PA-90D12-12EG | |||
| 24 VAC/
VDC |
A3PA-90C11-24E(1) | A3PA-90C12-24E(1) | A3PA-90D11-24E(1) | A3PA-90D12-24E(1) | |||
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.
Microloads
| Contact type | Microload (125 VAC, 0.1 A; 30 VDC, 0.1 A) | Pushbutton
color symbol |
|||
|---|---|---|---|---|---|
| Operation | Momentary operation (Self-resetting) | ||||
| Output | Lighting | Case color | Black | Light gray | |
| SPDT | LED | 24 VAC/VDC | A3PA-90E11-24E(1) | A3PA-90E12-24E(1) | R
O G W |
| DPDT | LED | 24 VAC/VDC | A3PA-90G11-24E(1) | A3PA-90G12-24E (1) | R
O G W |
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.
Standard Loads
| Contact type | Standard load (250 VAC, 3 A; 30 VDC, 4 A) | Pushbutton
color symbol |
|||
|---|---|---|---|---|---|
| Operation | Momentary operation
(Self-resetting) |
Alternate operation
(Self-holding) |
|||
| Output | Lighting | Case color | Light gray | Light gray | |
| SPDT | LED lamp | 24 VDC | A3PT-90A12-24C(1) | A3PT-90B12-24C(1) | R O G W |
| DPDT | LED lamp | 24 VDC | A3PT-90C12-24C(1) | A3PT-90D12-24C(1) | R O G W |
Note: Enter the desired color symbols for the Pushbutton in (1) and (2). (R) = Red, (O) = Orange, (G) = Green, (W) = White.
Microloads
| Contact type | Microload (125 VAC, 0.1 A; 30 VDC, 0.1 A) | Pushbutton
color symbol |
||
|---|---|---|---|---|
| Operation | Momentary operation (Self-resetting) | |||
| Output | Lighting | Case color | Light gray | |
| SPDT | LED lamp | 24 VDC | A3PT-90E12-24C(1) | R O G |
Note: Enter the desired color symbols for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green.

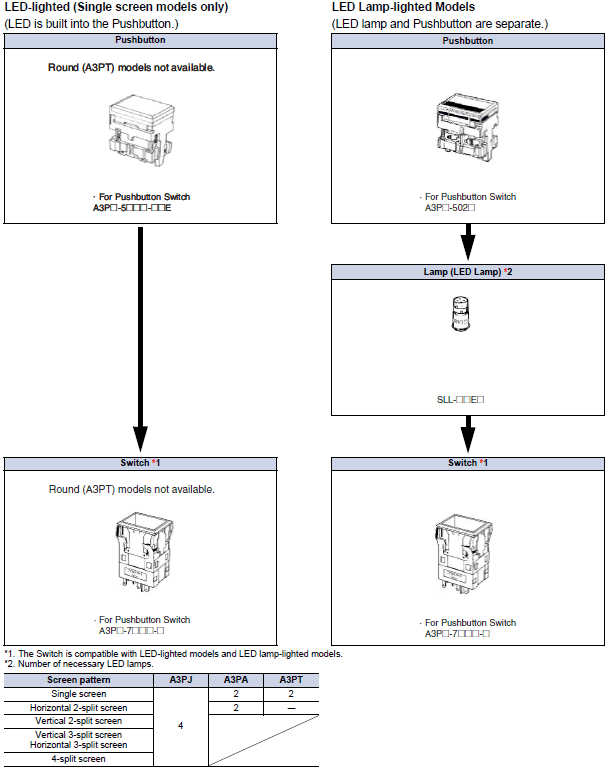

Ordering Individually
Pushbuttons, Lamps, and Switches can be ordered separately. Combinations that are not available as sets can be created using individual Units. Also, store the parts as spares for maintenance and repairs.
Pushbutton
LED-lighted Models (LED is built-in.)
| Appearance | Split-screen color
(color symbol) |
White (W) | Red (R) | Green (G) | Orange (O) | Selection precautions | |
|---|---|---|---|---|---|---|---|
| Rectangular
models  |
Single
screen |
 |
A3PJ-5701
-[][]E |
A3PJ-5702
-[][]E |
A3PJ-5703
-[][]E |
A3PJ-5706
-[][]E |
Enter the voltage to be
used in the [][] at the end of the model number. Examples of voltages used:  For the color of the shaded part, select the model according to the colors given at the top of the table. |
| Square
models  |
Single
screen |
 |
A3PA-5701
-[][]E |
A3PA-5702
-[][]E |
A3PA-5703
-[][]E |
A3PA-5706
-[][]E |
|
Note: 1. A cap, legend plate (transparent), colored plate, white plunger case, and LED (with a current-limiting resistor) are
built into the standard lighting unit.
2. Split-screen coloring configurations are given with the OMRON mark on the Switch facing down.
3. The LED is built-in and cannot be replaced individually.
built into the standard lighting unit.
2. Split-screen coloring configurations are given with the OMRON mark on the Switch facing down.
3. The LED is built-in and cannot be replaced individually.
LED Lamp-lighted Models (LED is not built-in.)
| Appearance | Rectangular models
 |
Square models
 |
Round models
 |
|||
|---|---|---|---|---|---|---|
| Screen
pattern |
Screen | Model | Screen | Model | Screen | Model |
| Single
screen |
 |
A3PJ-5021 |  |
A3PA-5021 |  |
A3PT-5021 |
| Horizontal
2- split screen |
 |
A3PJ-5022 |  |
A3PA-5022 | --- | |
| Vertical
2-split screen |
 |
A3PJ-5023 | --- | --- | ||
| Horizontal
3-split screen |
 |
A3PJ-5024 | --- | --- | ||
| Vertical
3-split screen |
 |
A3PJ-5025 | --- | --- | ||
| 4-split
screen |
 |
A3PJ-5026 | --- | --- | ||
Selection precautions
Parts included:
Colored plates (white, red, green, and orange), a legend plate (transparent), and a light baffle (split-screen models only) are included. Use the appropriate combination for the LED coloring required.
The number of white colored plates required to enable colored illumination for the corresponding screen-split configuration is included. (For example, 4-split screen models include 4 white colored plates).
The number of colored plates included for each model are shown in the following table.
* The following types of colored plates are included with Horizontal and Vertical 3-splitScreen Switches.
White: One colored plate for a 2-split screen and two colored plates for a 4-split screen.
Red, green, or orange: One colored plate for a 2-split screen and one colored plates for a 4-split screen.
Pushbutton (For information on mounting of LED lamps, refer to Data Sheet.)
LED Lamp
| Voltage | 5 VDC | 12 VDC | 24 VDC | Applicable cap (color)
(colored plate) |
Selection precautions |
|---|---|---|---|---|---|
| Color | Model (DC only) | Model (DC only) | Model (DC only) | ||
| Red | SLL-05ER | SLL-12ER | SLL-24ER | Red | In the standard setup,
4 LED lamps are used with A3PJ models and 2 LED lamps are used with A3PA and A3PT models. |
| Yellow | SLL-05EY | SLL-12EY | SLL-24EY | Orange | |
| Green | SLL-05EG | SLL-12EG | SLL-24EG | Green | |
| White | SLL-05EW | SLL-12EW | SLL-24EW | White |
Switch (LED models)
| Appearance | Rectangular
models  |
Square models  |
Round models  |
Selection precautions | |||
|---|---|---|---|---|---|---|---|
| Contact type | Switch
Number of outputs |
Operation | Model | Model | Model | ||
| Stan-
dard load |
Silver
alloy contact |
1c | Momentary
operation |
A3PJ-7010-1 | A3PA-7010-1 | A3PT-7010-2 | The end digit denotes the color of the flange: -1 denotes a black flange, and -2 denotes a light gray flange. Round switches are available only in light gray, and not in black.
Use the Switch in combination with the same shape Lamp (rectangular,square or round). Example: For rectangular Lamp A3PJ-5011, select Switch A3PJ-7[][]0-[]. On the Switch itself, however, only 3 digits are shown, as follows: A3PJ-7[][]. Momentary operation is self-resetting, and alternate operation is self-holding (i.e., push-on, push-off). |
| Alternate
operation |
A3PJ-7020-1 | A3PA-7020-1 | A3PT-7020-2 | ||||
| 2c | Momentary
operation |
A3PJ-7030-1 | A3PA-7030-1 | A3PT-7030-2 | |||
| Alternate
operation |
A3PJ-7040-1 | A3PA-7040-1 | A3PT-7040-2 | ||||
| 3c | Momentary
operation |
A3PJ-7150-1 | --- | --- | |||
| Alternate
operation |
A3PJ-7160-1 | --- | --- | ||||
| Micro-
load |
Gold
alloy contact |
1c | Momentary
operation |
A3PJ-7050-1 | A3PA-7050-1 | A3PT-7050-2 | |
| Alternate
operation |
A3PJ-7060-1 | A3PA-7060-1 | A3PT-7060-2 | ||||
| 2c | Momentary
operation |
A3PJ-7070-1 | A3PA-7070-1 | --- | |||
| Alternate
operation |
A3PJ-7080-1 | A3PA-7080-1 | A3PT-7080-2 | ||||
| 3c | Alternate
operation |
A3PJ-7180-1 | --- | --- | |||
Accessories, Replacements, and Tools
Accessories
| Name | Appearance | Classification | Rectangular | Square | Application precautions | |
|---|---|---|---|---|---|---|
| Socket |  |
Wire-wrap terminal | A3PJ-4101 | A3PA-4101 | The Socket cannot be used with
when mounting multiple Switches or with 3C models. You can use the same Sockets for the A3P Ultra Bright Lighted Pushbutton Switches. |
|
| PCB terminal | A3PJ-4102 | A3PA-4102 | ||||
| Solder terminal | A3PJ-4103 | A3PA-4103 | ||||
| Barrier |  |
Short edge
barrier (Horizontal mounting) (1 pair) |
Black | A3PJ-4001 | A3PA-4001 | The purpose of the barrier is to
prevent malfunctioning and to improve design image of the mounting panel. Intermediate barrier × 1. Edge barriers × 1 pair (2 Units). Mount short barriers horizontally. Mount long barriers vertically. For details on mounting, refer to Data Sheet. You can use the same Sockets for the A3P Ultra Bright Lighted Pushbutton Switches. |
| Light gray | A3PJ-4002 | A3PA-4002 | ||||
 |
Long edge
barrier (Vertical mounting) (1 pair) |
Black | A3PJ-4004 | --- | ||
| Light gray | A3PJ-4005 | |||||
 |
Short
intermediate barrier (Horizontal mounting) |
Black | A3PJ-4007 | A3PA-4007 | ||
| Light gray | A3PJ-4008 | A3PA-4008 | ||||
 |
Long
intermediate barrier (Vertical mounting) |
Black | A3PJ-4010 | --- | ||
| Light gray | A3PJ-4011 | |||||
| Switch
guard |
 |
For horizontal mounting
(with OMRON logo facing down) |
A3PJN-5050 | A3PAN-5050 | Can be used by exchanging with
the cap. Cannot be used with seal cover. Can be used with barrier. Use horizontal mounting guard for consecutive horizontal mounting, and use vertical mounting guard for consecutive vertical mounting. You can use the same Sockets for the A3P Ultra Bright Lighted Pushbutton Switches. |
|
| For vertical mounting
(with OMRON logo facing to the right) |
A3PJN-5055 | A3PAN-5055 | ||||
| Seal
cover |
 |
--- | A3PJ-5060 | A3PA-5060 | Cannot be used with barrier and/or
switch guard. For details on mounting, refer to Data Sheet. Cap is manufactured from vinyl chloride. You can use the same Sockets for the A3P Ultra Bright Lighted Pushbutton Switches. |
|
| Long
mounting plate |
 |
--- | A3PJ-3002 | --- | Use when vertically mounting
individual (with barrier) or multiple Switches (in standard mounting style and with barrier). Since a short mounting plate is attached to the Switch, replace it with the long one. You can use the same Sockets for the A3P Ultra Bright Lighted Pushbutton Switches. |
|
| Name | Appearances | Classification | A3PJ/M2PJ | A3PA/M2PA | Application precautions | |
|---|---|---|---|---|---|---|
| Colored plate
for LED |
 |
Single
screen  |
White | A3PJ-5301 | A3PA-5301 | Keep mounted at all times.
If the colored plate is lost or damaged, contact OMRON. Use in accordance with coloring of the built-in LED. For details on mounting, refer to Data Sheet. You cannot use the same Colored Plates for Incandescent Lamps for the A3P Ultra Bright Lighted Pushbutton Switches. |
| Red | A3PJ-5302 | A3PA-5302 | ||||
| Green | A3PJ-5303 | A3PA-5303 | ||||
| Yellow | A3PJ-5305 | A3PA-5305 | ||||
| Orange | A3PJ-5306 | A3PA-5306 | ||||
| Horizontal
2-split screen  |
White | A3PJ-5321 | A3PA-5321 | |||
| Red | A3PJ-5322 | A3PA-5322 | ||||
| Green | A3PJ-5323 | A3PA-5323 | ||||
| Yellow | A3PJ-5325 | A3PA-5325 | ||||
| Orange | A3PJ-5326 | A3PA-5326 | ||||
| Vertical 2-
split screen  |
White | A3PJ-5331 | --- | |||
| Red | A3PJ-5332 | --- | ||||
| Yellow | A3PJ-5335 | --- | ||||
| Orange | A3PJ-5336 | --- | ||||
| 4-split
screen  |
White | A3PJ-5361 | --- | |||
| Red | A3PJ-5362 | --- | ||||
| Green | A3PJ-5363 | --- | ||||
| Orange | A3PJ-5366 | --- | ||||
| Light baffle |  |
Horizontal 2-split screen | A3PJ-4302 | --- | Keep mounted at all times.
If the light baffle is lost, contact OMRON. Used in LED lamp-lighted models. Cannot be used in LED- lighted models. You cannot use the same Colored Plates for Incandescent Lamps for the A3P Ultra Bright Lighted Pushbutton Switches. |
|
| Vertical 2-split screen | A3PJ-4303 | --- | ||||
| Horizontal 3-
split screen |
Long axis | A3PJ-4304 | --- | |||
| Short axis | A3PJ-4305 | --- | ||||
| 4-split screen | Long axis | A3PJ-4304 | --- | |||
| Legend plate |  |
Transparent legend plate | A3PJ-5202 | A3PA-5202 | A transparent legend plate
is mounted on the Pushbutton. You cannot use the same Colored Plates for Incandescent Lamps for the A3P Ultra Bright Lighted Pushbutton Switches. |
|
| Milk-white legend plate | A3PJ-5201 | A3PA-5201 | ||||
| Cap |  |
Transparent cap | A3PJ-5600 | A3PA-5600 | You can use the same
Sockets for the A3P Ultra Bright Lighted Pushbutton Switches. |
|
Tools
| Name | Appearance | Classification | Model | Application precautions |
|---|---|---|---|---|
| Extractor |  |
--- | A3PJ-5080 | Use to extract components when replacing the Pushbutton.
You can use the same Sockets for the A3P Ultra Bright Lighted Pushbutton Switches. |
last update: April 1, 2025
Top of page
Products
Menu
About Us
Menu
Solutions
Menu
Privacy
Menu
Services
Menu
Resources
Menu
© Copyright OMRON Corporation 2000-2020. All Rights Reserved.
