A22K

Key-type Selector Switch (Cylindrical 22/25-dia.)

A22K

Install in 22-dia. or 25-dia. Panel Cutout

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: December 2, 2013

(Unit: mm)

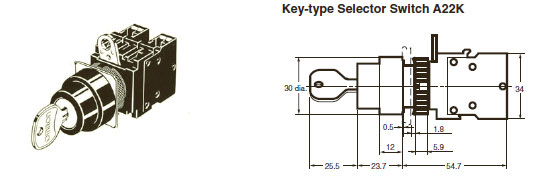

Key-type Selector Switch

Terminal Arrangement (Bottom View)

Panel Cutouts

Lock fitting is provided as a standard item.
• When applying coating such as paint to the panel, the dimensions should be those after the application of coating.
• Recommended panel thickness: 1 to 5 mm.
• Use an A22Z-R25 Ring when mounting to a panel with 25-mm holes.
