CP2E

CP series CP2E CPU Unit

CP2E

Micro PLC designed to support data collection and Machine to Machine communication

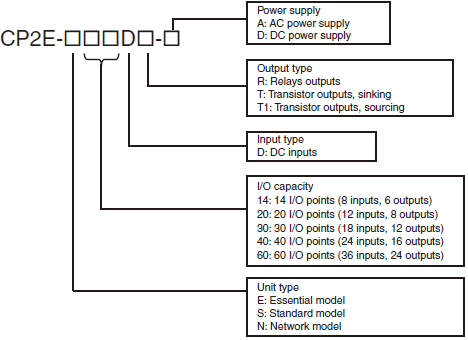

Model Number Structure

CP2E Lineup 1

Ordering Information

Applicable standards

Ask your OMRON representative for the most recent applicable standards for each model.

CPU Unit

CP2E-N-type/Network model

Number of
points
Specifications Model
Power
Supply
Inputs Outputs Output
type
Program
capacity
Data
memory
capacity
Current
consumption
5 VDC 24 VDC
CPU Units with
14 points
3777_lu_2_1
100 to
240 VAC
8
points
6
points
Relay 10K steps
(FB
capacity:
10K steps)
16K
words
0.15 A 0.05 A CP2E-N14DR-A
Transistor
(sinking)
0.21 A 0.02 A CP2E-N14DT-A
24 VDC Relay 0.15 A 0.05 A CP2E-N14DR-D
Transistor
(sinking)
0.21 A 0.02 A CP2E-N14DT-D
Transistor
(sourcing)
0.22 A 0.02 A CP2E-N14DT1-D
CPU Units with
20 points
3777_lu_2_2
100 to
240 VAC
12
points
8
points
Relay 0.17 A 0.06 A CP2E-N20DR-A
Transistor
(sinking)
0.27 A 0.02 A CP2E-N20DT-A
24 VDC Relay 0.17 A 0.06 A CP2E-N20DR-D
Transistor
(sinking)
0.27 A 0.02 A CP2E-N20DT-D
Transistor
(sourcing)
0.26 A 0.02 A CP2E-N20DT1-D
CPU Units with
30 points
3777_lu_2_3
100 to
240 VAC
18
points
12
points
Relay 0.41 A 0.07 A CP2E-N30DR-A
Transistor
(sinking)
0.52 A 0.03 A CP2E-N30DT-A
24 VDC Relay 0.37 A 0.07 A CP2E-N30DR-D
Transistor
(sinking)
0.51 A 0.03 A CP2E-N30DT-D
Transistor
(sourcing)
0.51 A 0.03 A CP2E-N30DT1-D
CPU Units with
40 points
3777_lu_2_4
100 to
240 VAC
24
points
16
points
Relay 0.39 A 0.09 A CP2E-N40DR-A
Transistor
(sinking)
0.59 A 0.03 A CP2E-N40DT-A
24 VDC Relay 0.39 A 0.09 A CP2E-N40DR-D
Transistor
(sinking)
0.59 A 0.03 A CP2E-N40DT-D
Transistor
(sourcing)
0.59 A 0.03 A CP2E-N40DT1-D
CPU Units with
60 points
3777_lu_2_5
100 to
240 VAC
36
points
24
points
Relay 0.44 A 0.13 A CP2E-N60DR-A
Transistor
(sinking)
0.71 A 0.03 A CP2E-N60DT-A
24 VDC Relay 0.41 A 0.13 A CP2E-N60DR-D
Transistor
(sinking)
0.71 A 0.03 A CP2E-N60DT-D
Transistor
(sourcing)
0.71 A 0.03 A CP2E-N60DT1-D

CP2E-S-type/Standard model

Number of
points
Specifications Model
Power
Supply
Inputs Outputs Output
type
Program
capacity
Data
memory
capacity
Current
consumption
5 VDC 24 VDC
CPU Units with
30 points
3777_lu_3_1
100 to
240 VAC
18
points
12
points
Relay 8K steps
(FB
capacity:
8K steps)
8K words 0.12 A 0.07 A CP2E-S30DR-A
24 VDC Transistor
(sinking)
0.28 A 0.02 A CP2E-S30DT-D
Transistor
(sourcing)
CP2E-S30DT1-D
CPU Units with
40 points
3777_lu_3_2
100 to
240 VAC
24
points
16
points
Relay 0.13 A 0.09 A CP2E-S40DR-A
24 VDC Transistor
(sinking)
0.34 A 0.02 A CP2E-S40DT-D
Transistor
(sourcing)
CP2E-S40DT1-D
CPU Units with
60 points
3777_lu_3_3
100 to
240 VAC
36
points
24
points
Relay 0.16 A 0.13 A CP2E-S60DR-A
24 VDC Transistor
(sinking)
0.48 A 0.02 A CP2E-S60DT-D
Transistor
(sourcing)
CP2E-S60DT1-D

CP2E-E-type/Essential model

Number of
points
Specifications Model
Power
Supply
Inputs Outputs Output
type
Program
capacity
Data
memory
capacity
Current
consumption
5 VDC 24 VDC
CPU Units with
14 points
3777_lu_4_1
100 to
240 VAC
8 points 6 points Relay 4K steps
(FB
capacity:
4K steps)
4K words 0.06 A 0.04 A CP2E-E14DR-A
CPU Units with
20 points
3777_lu_4_2
12 points 8 points Relay 0.08 A 0.06 A CP2E-E20DR-A
CPU Units with
30 points
3777_lu_4_3
18 points 12 points Relay 0.12 A 0.07 A CP2E-E30DR-A
CPU Units with
40 points
3777_lu_4_4
24 points 16 points Relay 0.13 A 0.09 A CP2E-E40DR-A
CPU Units with
60 points
3777_lu_4_5
36 points 24 points Relay 0.16 A 0.13 A CP2E-E60DR-A

Optional Products

Battery

Product name Specifications Model
Battery
3777_lu_5_1
Mounted in an N/S[][]-type CPU Unit.
Mount the Battery when using the clock function.
A Battery cannot be mounted to an E[][]-type CPU Unit.
CP2W-BAT02

Option Board

Product name Specifications Current
consumption
Model
5 VDC 24 VDC
RS-232C Option
Board
3777_lu_6_1
Mounted in the option slot of an N[][]-type CPU Unit and
can be used as an RS-232C port.
Maximum transmission distance: 15 m
0.04 A --- CP1W-CIF01
Non-isolated
RS-422A/485
Option Board
3777_lu_6_2
Mounted in the option slot of an N[][]-type CPU Unit and
can be used as an RS-422A/485 port.
Maximum transmission distance: 50 m
0.04 A --- CP1W-CIF11
Isolated
RS-422A/485
Option Board
3777_lu_6_3
Mounted in the option slot of an N[][]-type CPU Unit and
can be used as an RS-422A/485 port.
Maximum transmission distance: 500 m
0.04 A --- CP1W-CIF12-V1
RS-232C&RS-232C
Option Board
3777_lu_6_4
Mounted in the option slot of an N[][]-type CPU Unit and
can be used as two RS-232C ports.
Maximum transmission distance: 15 m
0.04 A --- CP2W-CIFD1
RS-232C&RS-485
Option Board
3777_lu_6_5
Mounted in the option slot of an N[][]-type CPU Unit and
can be used as one RS-232C port and one isolated
RS-485 port.
Maximum transmission distance:
15 m (RS-232C)
500 m (RS-485)
0.06 A --- CP2W-CIFD2
RS-485&RS-485
Option Board
3777_lu_6_6
Mounted in the option slot of an N[][]-type CPU Unit and
can be used as two isolated RS-485 ports.
Maximum transmission distance: 500 m
0.08 A --- CP2W-CIFD3
Analog Input Option
Board
3777_lu_6_7
Mounted in the option slot of an N[][]-type CPU Unit and
can be used as an analog input module.
• 2 analog inputs
0 to 10 V (Resolution: 1/4000)
0 to 20 mA (Resolution: 1/2000)
0.02 A --- CP1W-ADB21
Analog Output
Option Board
3777_lu_6_8
Mounted in the option slot of an N[][]-type CPU Unit and
can be used as an analog output module.
• 2 analog outputs
0 to 10 V (Resolution: 1/4000)
0.06 A --- CP1W-DAB21V
Analog Input/Output
Option Board
3777_lu_6_9
Mounted in the option slot of an N[][]-type CPU Unit and
can be used as an analog input/output module.
• 2 analog inputs
0 to 10 V (Resolution: 1/4000)
0 to 20 mA (Resolution: 1/2000)
• 2 analog outputs
0 to 10 V (Resolution: 1/4000)
0.08 A --- CP1W-MAB221

Note: 1. Maximum one Analog Option Board can be mounted on an N[][]-type CPU Unit.
         2. The CP1W-ME05M Memory Cassette, CP1W-DAM01 LCD Option Board, and CP1W-CIF41 Ethernet Option Board
             cannot be used with the CP2E CPU Unit.
         3. Option Boards cannot be used with the E/S[][]-type CPU Unit.

Expansion I/O Units and Expansion Units (for E30/40/60, S30/40/60, or N30/40/60 CPU Units)

E14/20 or N14/20 CPU Units do not support Expansion I/O Units and Expansion Units.

Unit type Product
name
Specifications Current
consumption
(A)
Model
In-
puts
Out-
puts
Output type 5 V 24 V
CP1W
Expansion
I/O Units
Input Unit
3777_lu_7_1
8 --- 24 VDC Input 0.018 --- CP1W-8ED
Output Units
3777_lu_7_2
--- 8 Relay 0.026 0.044 CP1W-8ER
Transistor (sinking) 0.075 --- CP1W-8ET
Transistor (sourcing) 0.075 --- CP1W-8ET1
--- 16 Relay 0.042 0.090 CP1W-16ER
Transistor (sinking) 0.076 --- CP1W-16ET
Transistor (sourcing) 0.076 --- CP1W-16ET1
--- 32 Relay 0.049 0.131 CP1W-32ER
Transistor (sinking) 0.113 --- CP1W-32ET
Transistor (sourcing) 0.113 --- CP1W-32ET1
I/O Units
3777_lu_7_3
12 8 Relay 0.103 0.044 CP1W-20EDR1
Transistor (sinking) 0.130 --- CP1W-20EDT
Transistor (sourcing) 0.130 --- CP1W-20EDT1
24 16 Relay 0.080 0.090 CP1W-40EDR
Transistor (sinking) 0.160 --- CP1W-40EDT
Transistor (sourcing) 0.160 --- CP1W-40EDT1
CP1W
Expansion
Units
Analog Input
Unit
3777_lu_7_4
4CH --- Input range: 0 to 5 V,
1 to 5 V, 0 to 10 V, ±10 V,
0 to 20 mA, or 4 to 20 mA.
Resolution:
1/6000
0.100 0.090 CP1W-AD041
Resolution:
1/12000
0.100 0.050 CP1W-AD042
Analog Output
Unit
3777_lu_7_5
--- 2CH Output range:
1 to 5 V, 0 to 10 V, ±10 V,
0 to 20 mA, or 4 to 20 mA.
Resolution:
1/6000
0.040 0.095 CP1W-DA021
--- 4CH Resolution:
1/6000
0.080 0.124 CP1W-DA041
Resolution:
1/12000
0.070 0.160 CP1W-DA042
Analog I/O Unit
3777_lu_7_6
4CH 4CH Input range: 0 to 5 V,
1 to 5 V, 0 to 10 V, ±10 V,
0 to 20 mA, or 4 to 20 mA.
Output range:
1 to 5 V, 0 to 10 V, ±10 V,
0 to 20 mA, or 4 to 20 mA.
Resolution:
1/12000
0.120 0.170 CP1W-MAD44
4CH 2CH Resolution:
1/12000
0.120 0.120 CP1W-MAD42
2CH 1CH Resolution:
1/6000
0.083 0.110 CP1W-MAD11
Temperature
Sensor Unit
3777_lu_7_7
2CH --- Sensor type: Thermocouple (J or K) 0.040 0.059 CP1W-TS001
4CH --- Sensor type: Thermocouple (J or K) 0.040 0.059 CP1W-TS002
2CH --- Sensor type: Platinum resistance
thermometer (Pt100 or JPt100)
0.054 0.073 CP1W-TS101
4CH --- Sensor type: Platinum resistance
thermometer (Pt100 or JPt100)
0.054 0.073 CP1W-TS102
4CH --- Sensor type:
Thermocouple (J or K)
2channels can be used
as analog input.
Input range: 1 to 5 V, 0 to
10 V, 4-20 mA
Resolution:
1/12000
0.070 0.030 CP1W-TS003
12CH --- Sensor type: Thermocouple (J or K) 0.080 0.050 CP1W-TS004

I/O Connecting Cable

Product name Specifications Model
I/O Connecting Cable 80 cm (for CP1W Expansion I/O Units and Expansion Units)
Only one I/O Connecting Cable can be used in each PLC.
CP1W-CN811

Recommended Ethernet Communications Cables

For the Ethernet communications cable specifications, refer to Catalog

Item Recommended
manufacturer
Cable
length (m)
Model
Wire Gauge and
Number of Pairs:
AWG26, 4-pair Cable
Cable Sheath material:
LSZH *2
Cable with Connectors on
Both Ends (RJ45/RJ45)
Standard RJ45 plug type *1
Cable color: Yellow *3
3777_lu_11_1
OMRON 0.3 XS6W-6LSZH8SS30CM-Y
0.5 XS6W-6LSZH8SS50CM-Y
1 XS6W-6LSZH8SS100CM-Y
2 XS6W-6LSZH8SS200CM-Y
3 XS6W-6LSZH8SS300CM-Y
5 XS6W-6LSZH8SS500CM-Y
Wire Gauge and
Number of Pairs:
AWG22, 2-pair cable
Cable with Connectors on
Both Ends (RJ45/RJ45)
Rugged RJ45 plug type *1
Cable color: Light blue
3777_lu_11_2
OMRON 0.3 XS5W-T421-AMD-K
0.5 XS5W-T421-BMD-K
1 XS5W-T421-CMD-K
2 XS5W-T421-DMD-K
5 XS5W-T421-GMD-K
10 XS5W-T421-JMD-K

*1. Cables with standard RJ45 plugs are available in the following lengths: 0.2 m, 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m,
  7.5 m, 10 m, 15 m, 20 m.
  Cables with rugged RJ45 plugs are available in the following lengths: 0.3 m, 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m, 15 m.
  For details, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).
*2. The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
  Although the LSZH cable is single shielded, its communications and noise characteristics meet the standards.
*3. Cable colors are available in yellow, green, and blue.
*4. For details, contact your OMRON representative.

RS-232C Connecting Cable

Name Specifications Model
PT-to-PLC
Connecting Cable
Connection cable with programmable terminal NB / NS
For CP2E-N+CP1W-CIF01
Length: 2 m XW2Z-200T
Length: 5 m XW2Z-500T
Connection cable with programmable terminal NB / NS
For CP2E-S/E, CP2E-N+CP2W-CIFD1/CIFD2
Length: 2 m XW2Z-200T-3
Length: 5 m XW2Z-500T-3

DIN Track Accessories

Name Specifications Model
DIN Track Length: 0.5 m; Height: 7.3 mm PFP-50N
Length: 1 m; Height: 7.3 mm PFP-100N
Length: 1 m; Height: 16 mm PFP-100N2
End Plate A stopper to secure the Units on the DIN Track. PFP-M

Programming Devices

Software

Product
name
Specifications Model
Number of
licenses
Media
FA Integrated
Tool Package
CX-One Lite
Ver.4.[]
CX-One Lite is a subset of the complete CX-One package
that provides only the Support Software required for micro
PLC applications.

CX-One Lite Ver. 4.[] includes Micro PLC Edition
CX-Programmer Ver.9.[].
1 license DVD CXONE-LT01D-V4
FA Integrated
Tool Package
CX-One
Package
Ver. 4.[]
CX-One is a comprehensive software package that
integrates Support Software for OMRON PLCs and
components.

CX-One Ver. 4.[] includes CX-Programmer Ver. 9.[].
1 license
*1
DVD CXONE-AL01D-V4

Note: 1. For details, refer to the CX-One Catalog (Cat. No. R134), visit your local OMRON website.
         2. CP2E CPU Units are supported by CX-One version 4.51 or higher and CX-Programmer version 9.72 or higher.
         3. The CX-One and CX-One Lite cannot be simultaneously installed on the same computer.
*1. Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.
